Cylinder Piston Gasket Top End Rebuild Kit 51mm For Yamaha TTR110 TT-R110E 2008-2025
Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

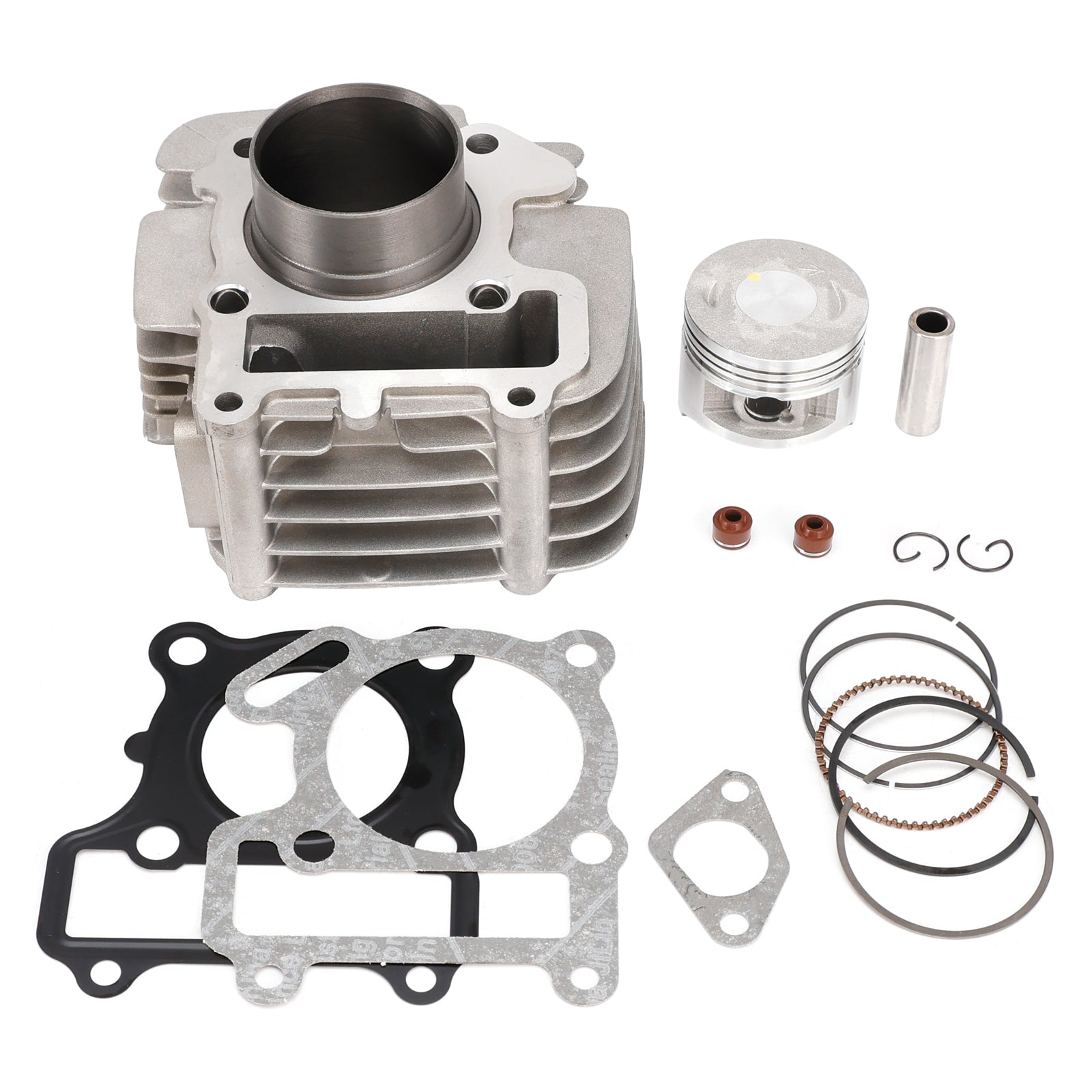

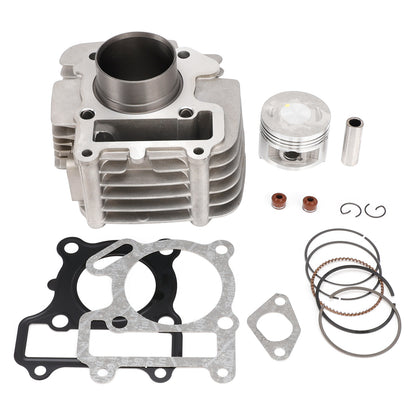

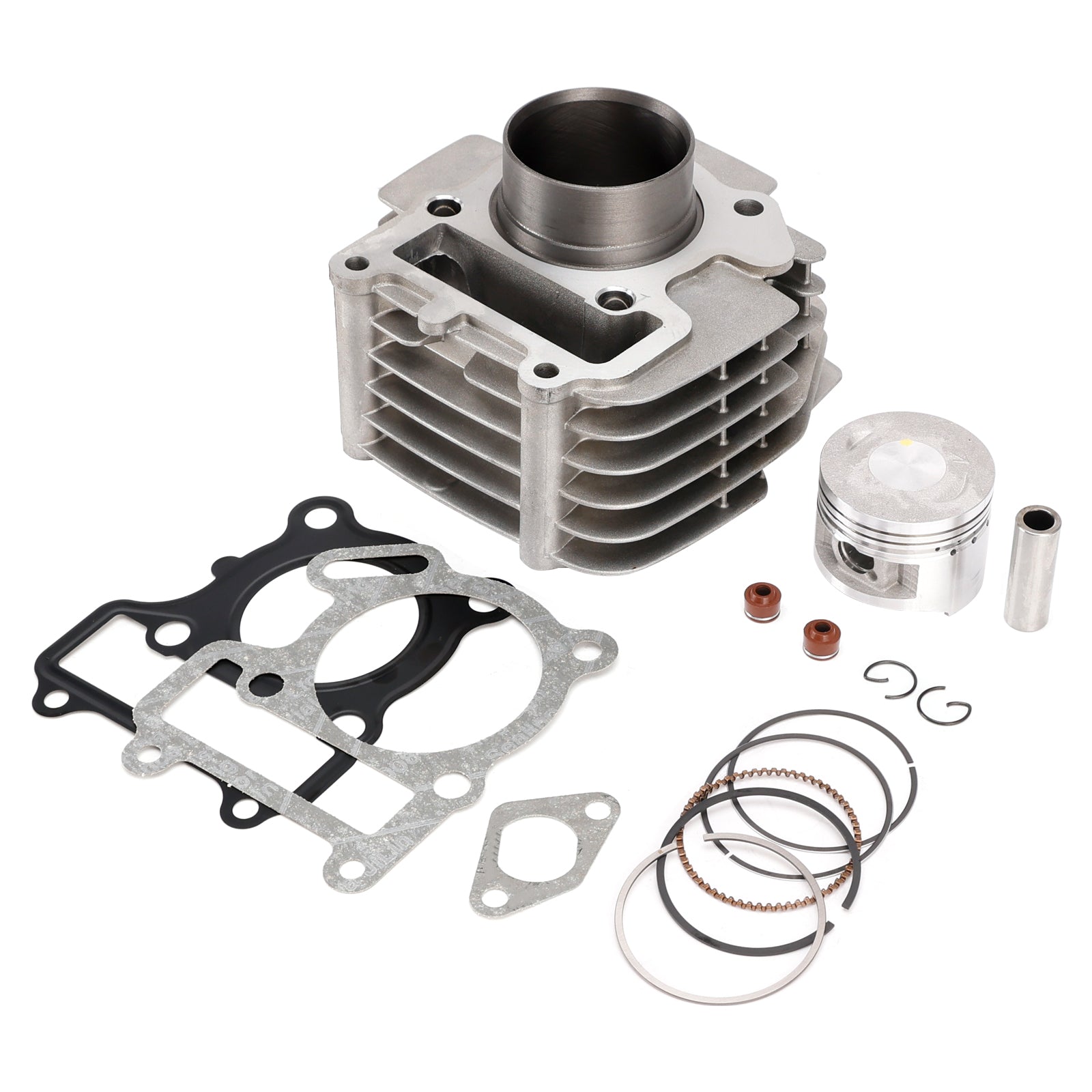

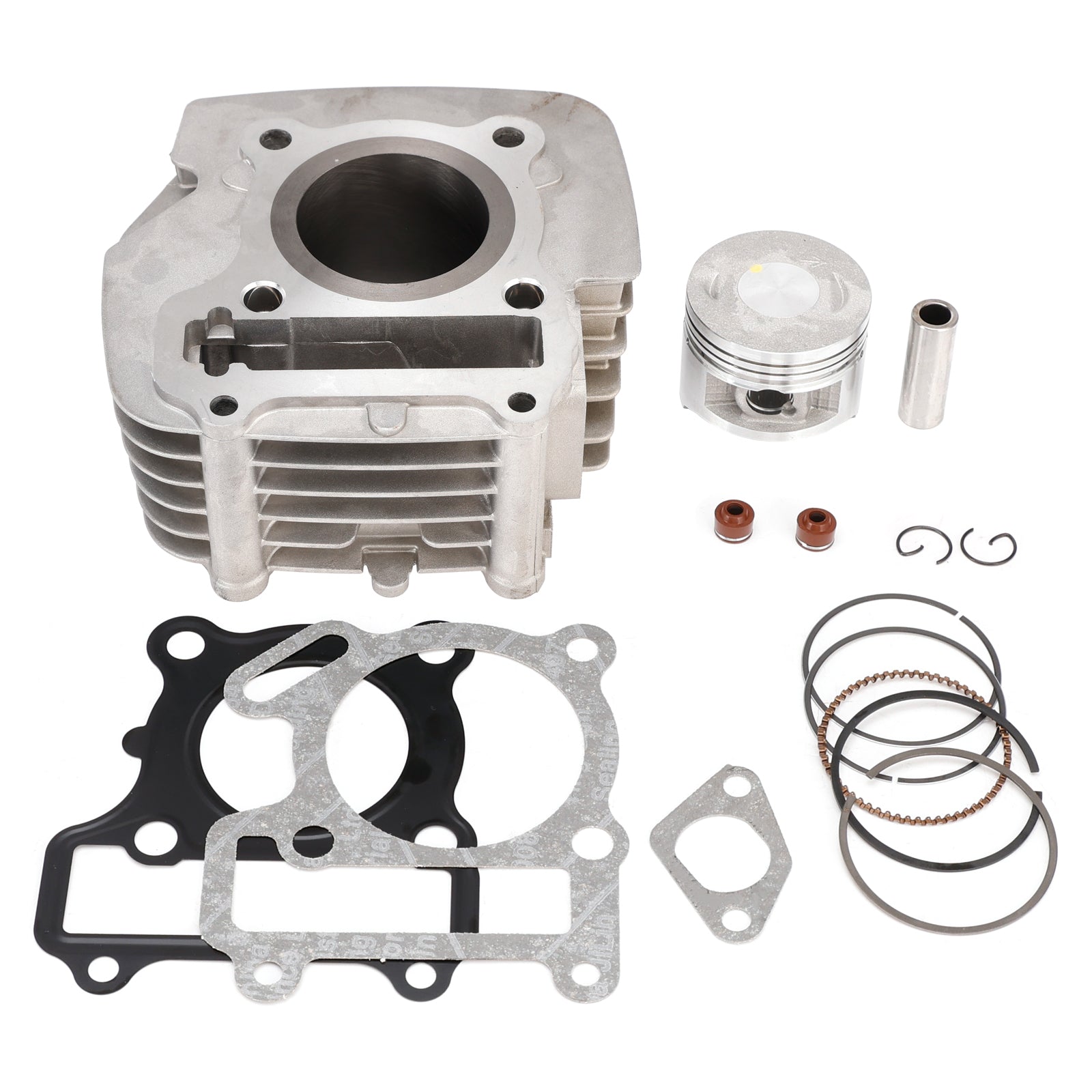

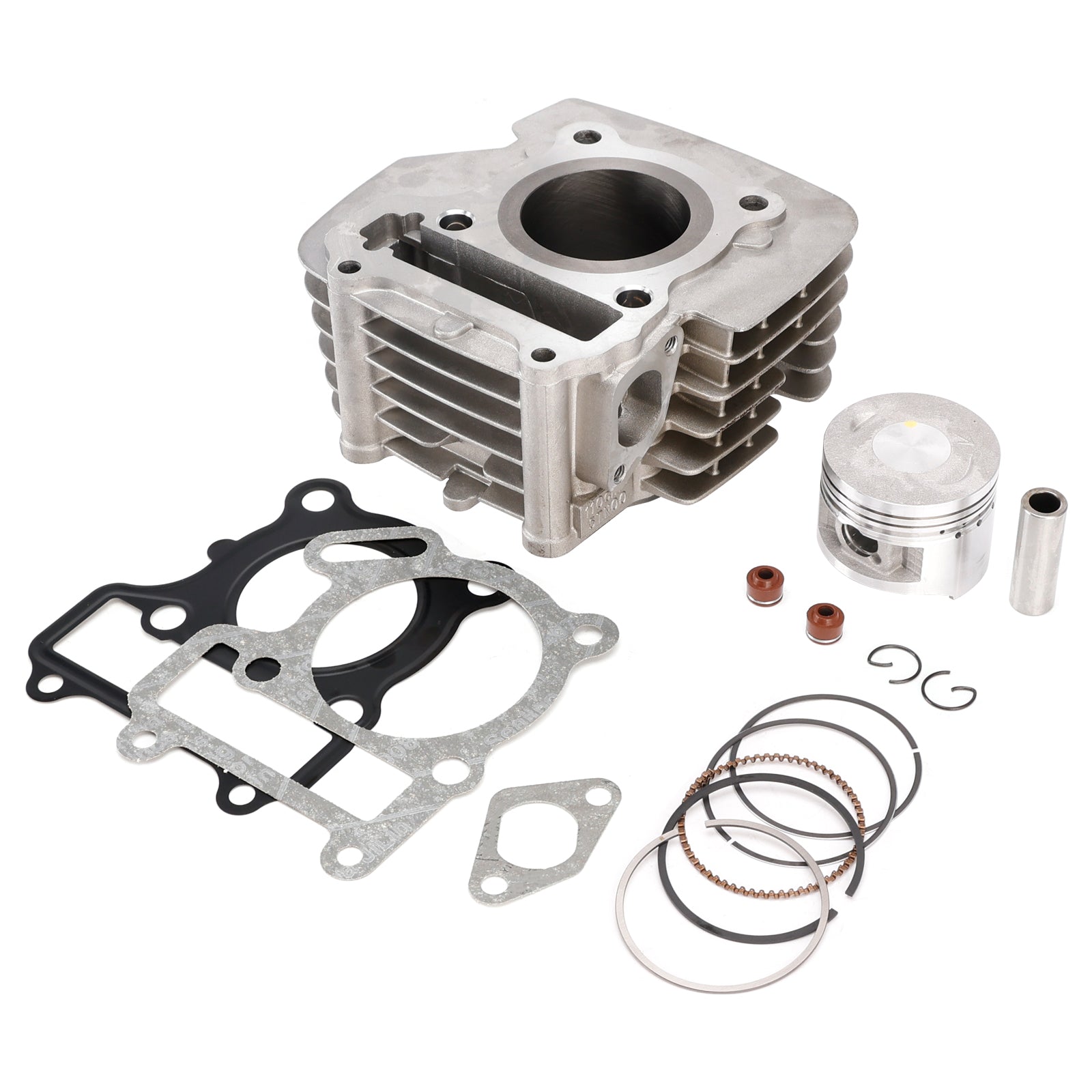

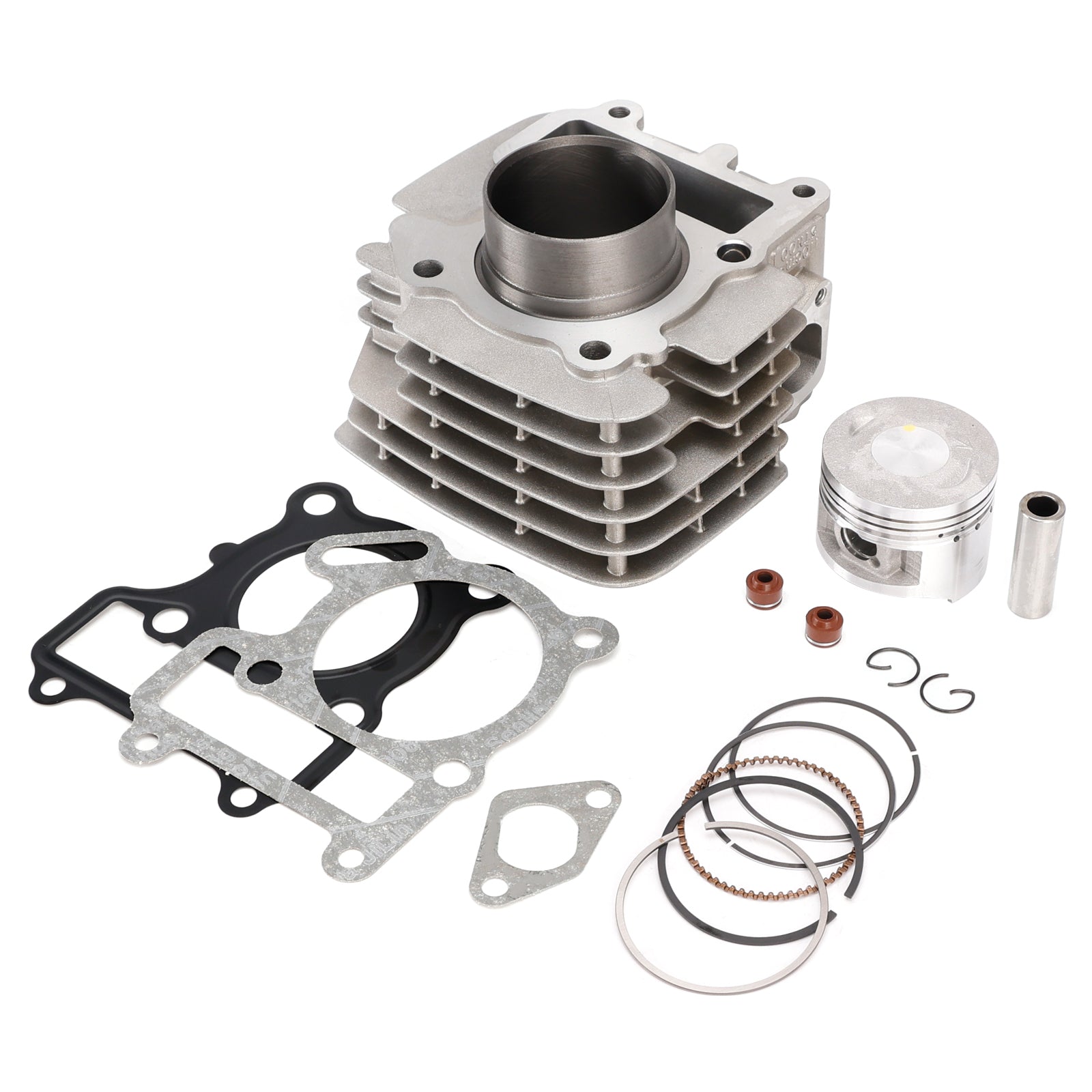

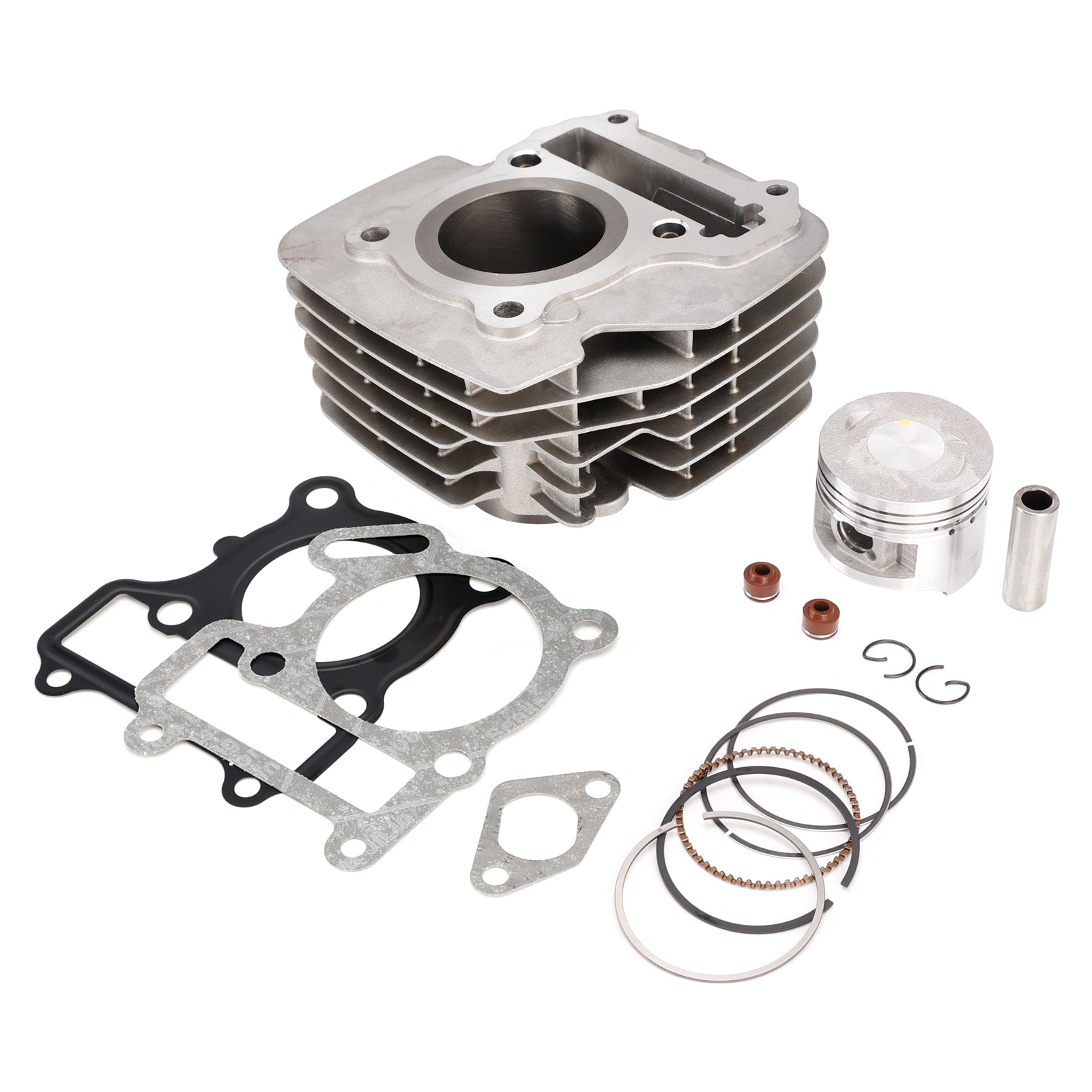

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).

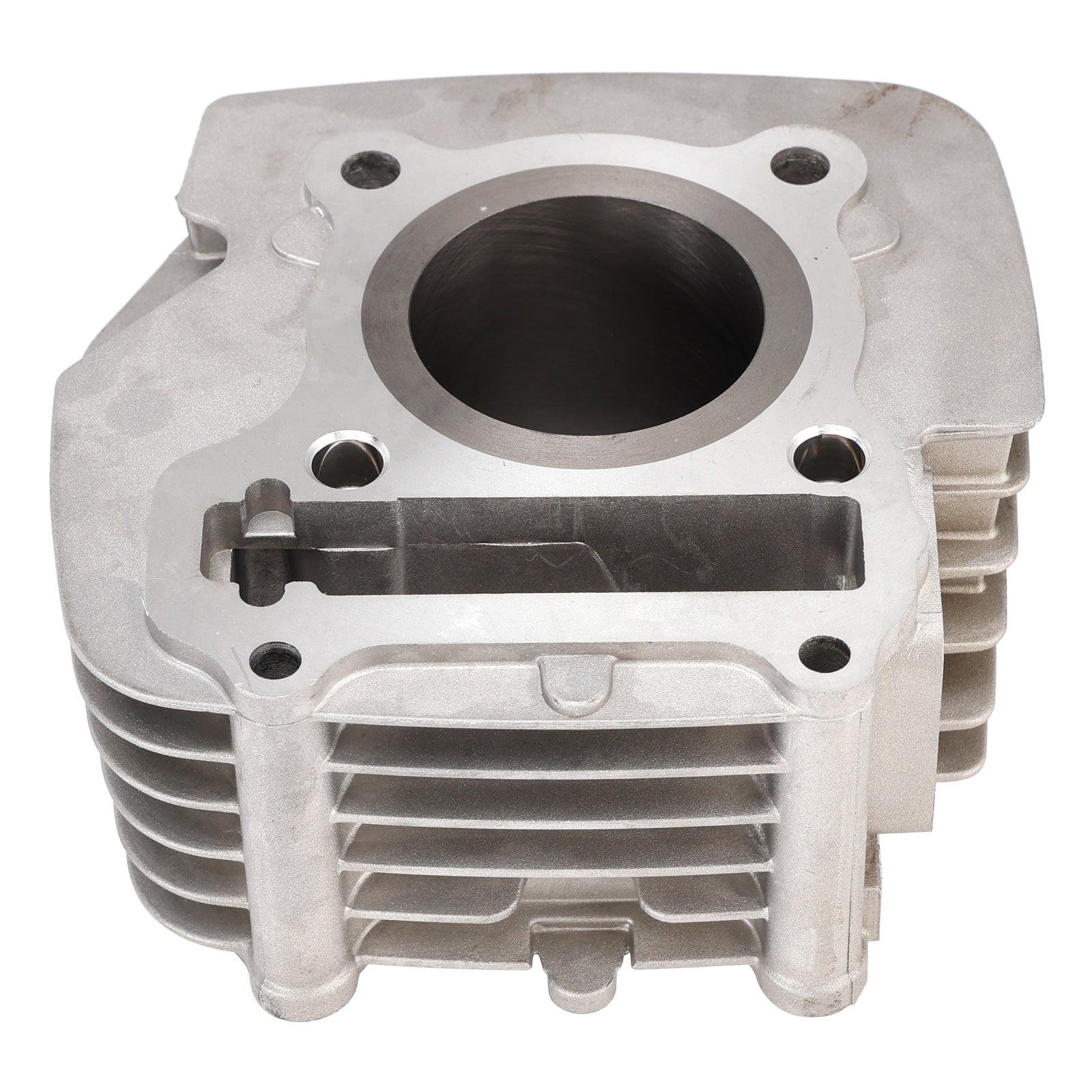

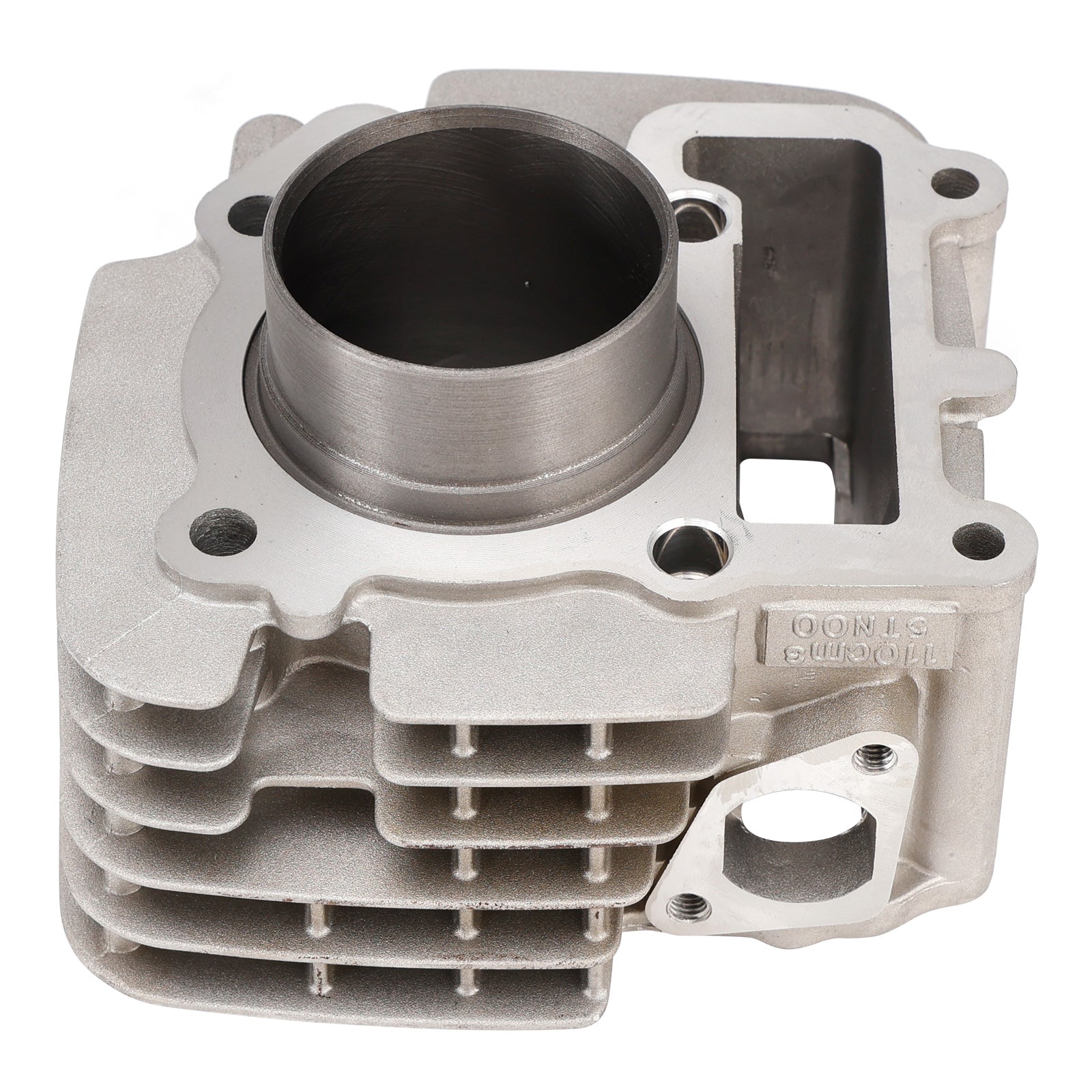

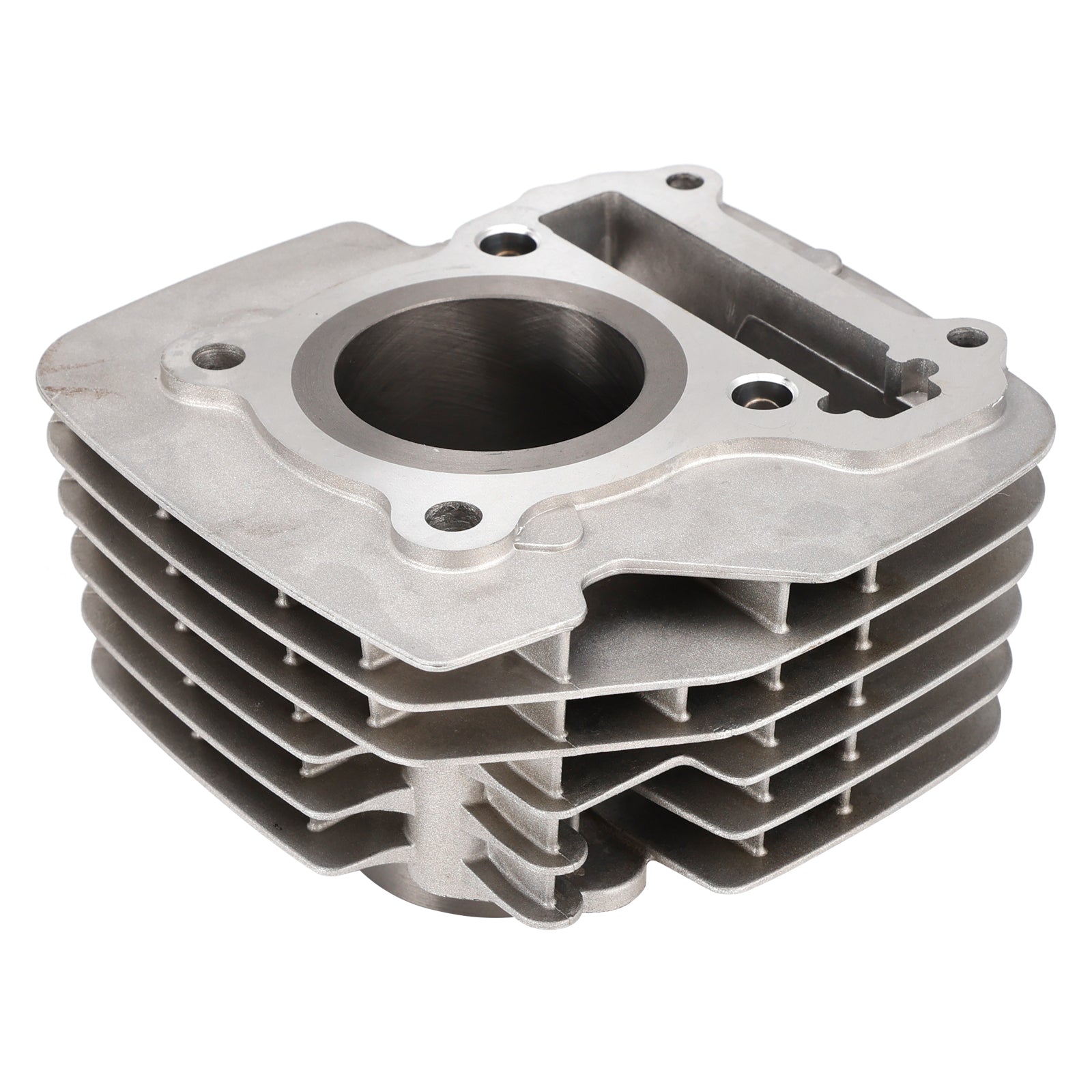

The cylinder is made of aluminum for good cooling with an internal cast iron jacket (unlike which has a nicasil treatment).
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 51 mm x 54 mm stroke, 13 mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum, Steel
Engine: 4-Stroke
Displacement: 110cc
Bore Type: Standard Bore
Bore diameter: 51 mm
Stroke: 54 mm
Pin diameter: 13 mm
Replacement Part Number:
Cylinder: 5TP-E1310-01, 5TN-E1310-01
Cylinder Base Gasket: 4ST-E1351-02
Cylinder Head Gasket: 5TN-E1181-00
Piston: 3S0-E1631-00-A0
Pin, Piston: 5LM-E1633-00
Piston Ring Set (Std): 5TP-E1603-20
Circlips, piston (2): 93450-14088
Chain Tensioner Gasket: 3S0-E2213-00
Valve Stem Seal (2): 4S9-E2119-00
Fits Make/Model/Year:
Fit for Yamaha TTR110E 2008-2025
Fit for Yamaha Spark-Z 110
Fit for Yamaha Jupiter-Z 110
Fit for Yamaha Crypton T110
Fit for Yamaha C8 New Club 110cc

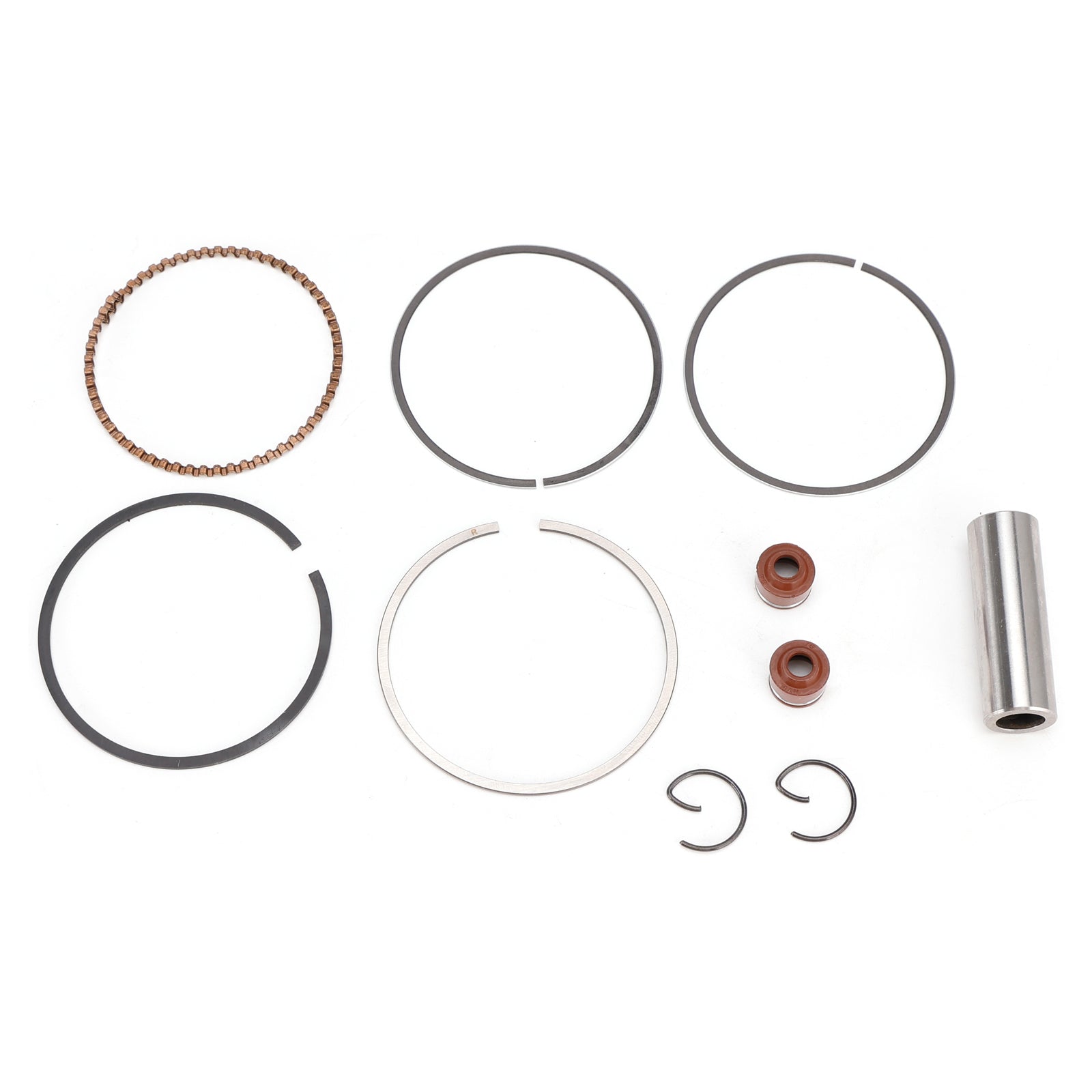

Package Includes:
1x 51mm Cylinder

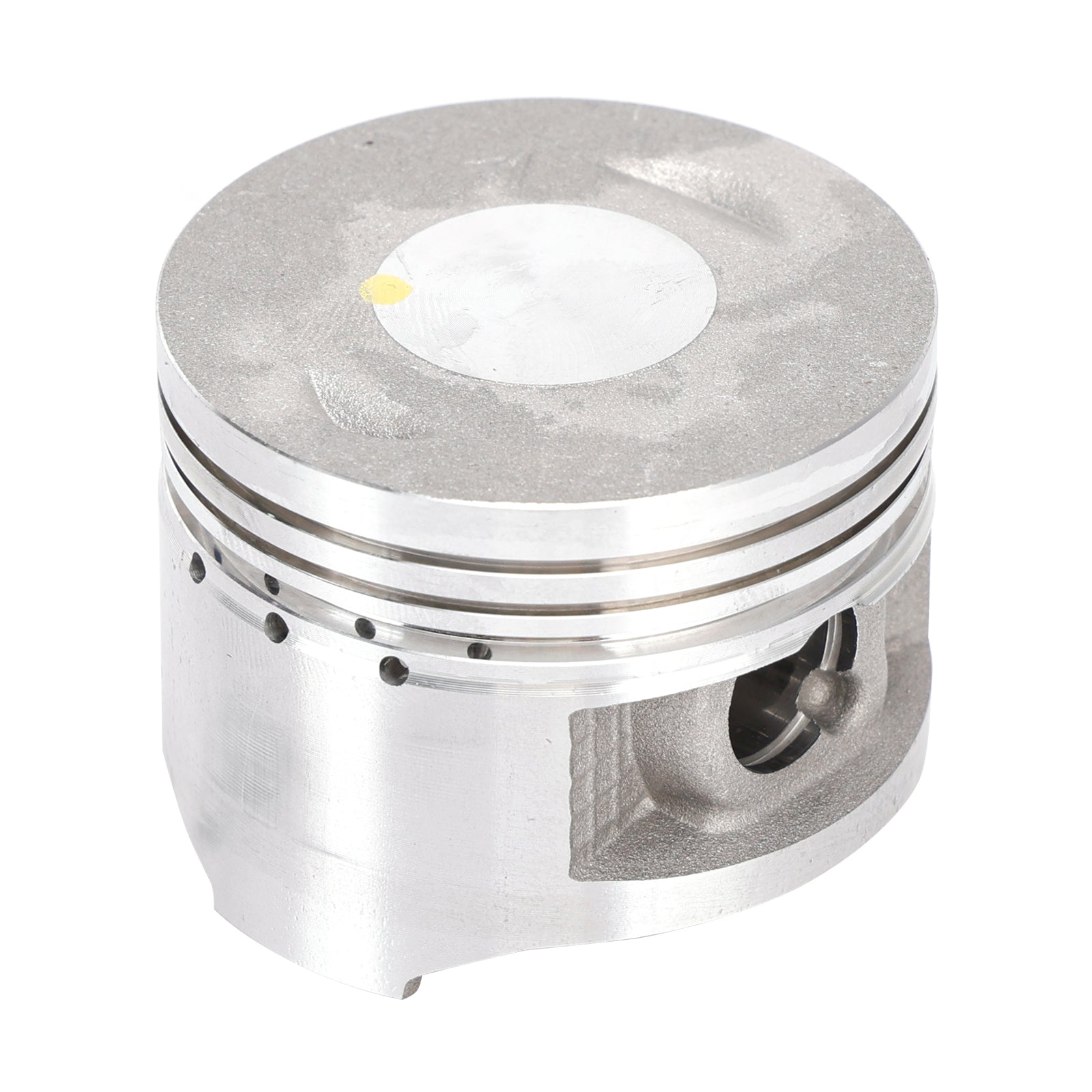

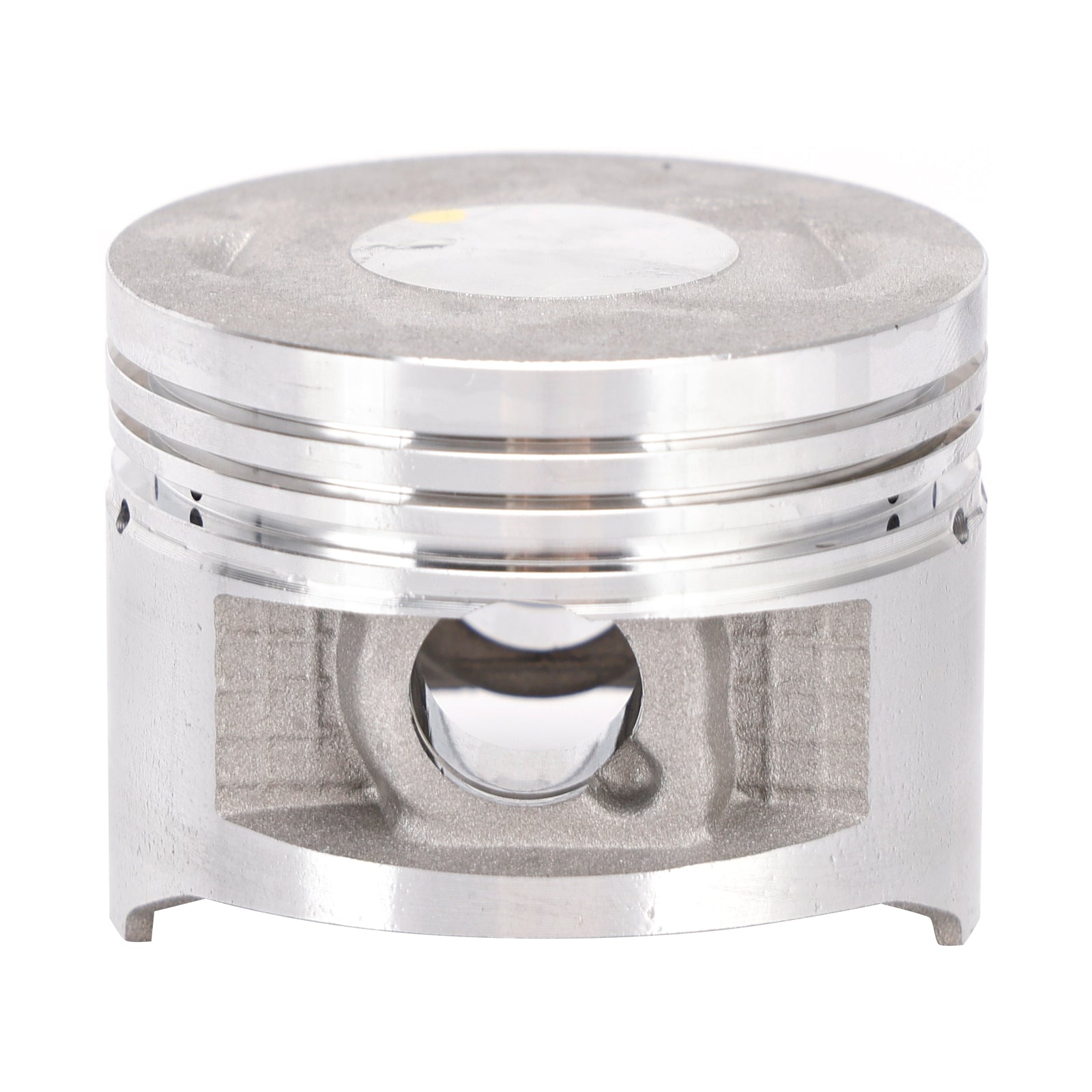

1x Piston
1x Piston Ring Set
1x 13mm Wristpin
1x Circlip(2)

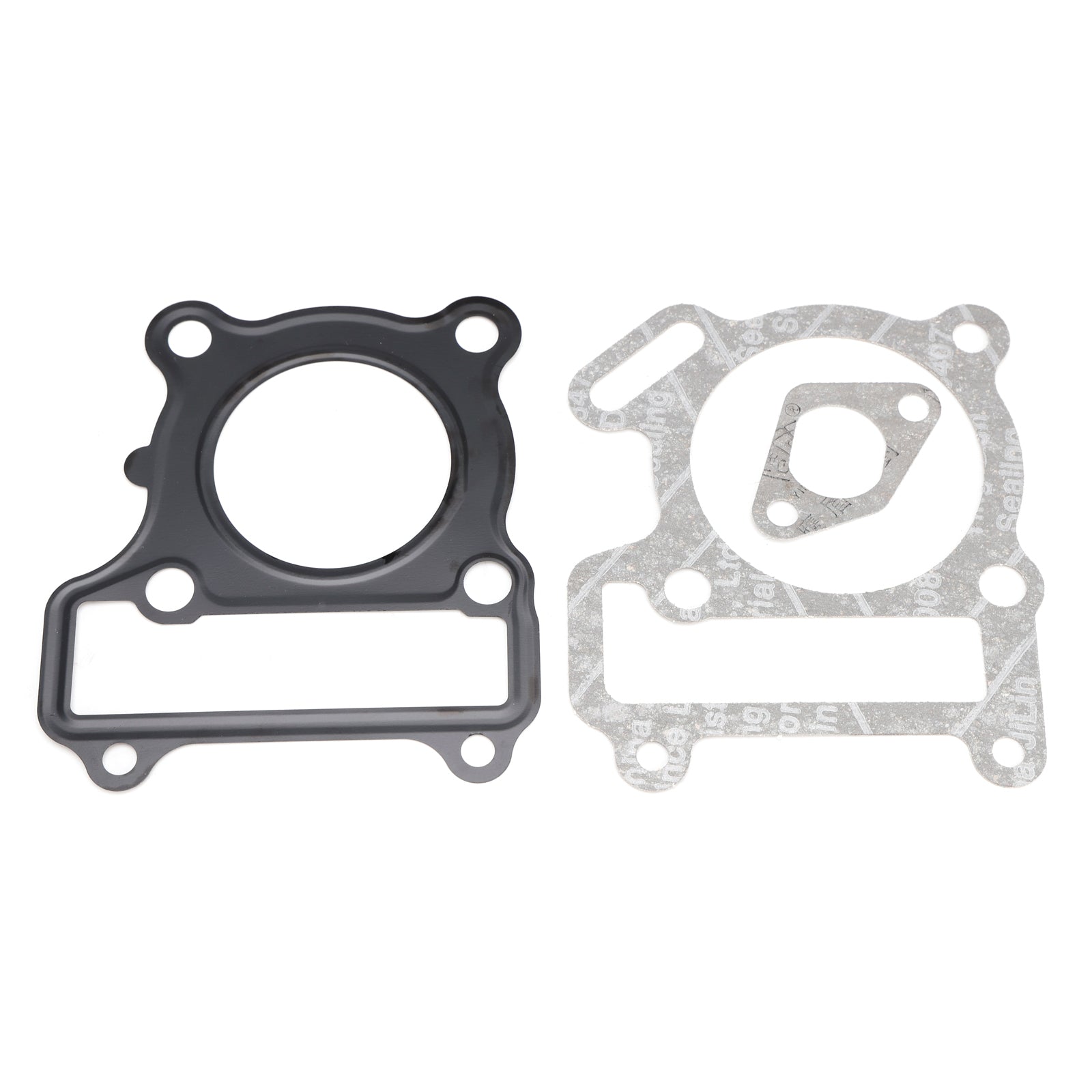

1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Chain Tensioner Gasket
2x Valve Stem Seals
