Stator Regulator Gasket For Arctic Cat Alterra 570 700 XT TBX TRV MudPro 16-21

Generator Stator Regulator Rectifier Gasket Set For Arctic Cat Alterra 570 700 XT TBX TRV MudPro 16-21

Features:
Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

Attention:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

other specification:

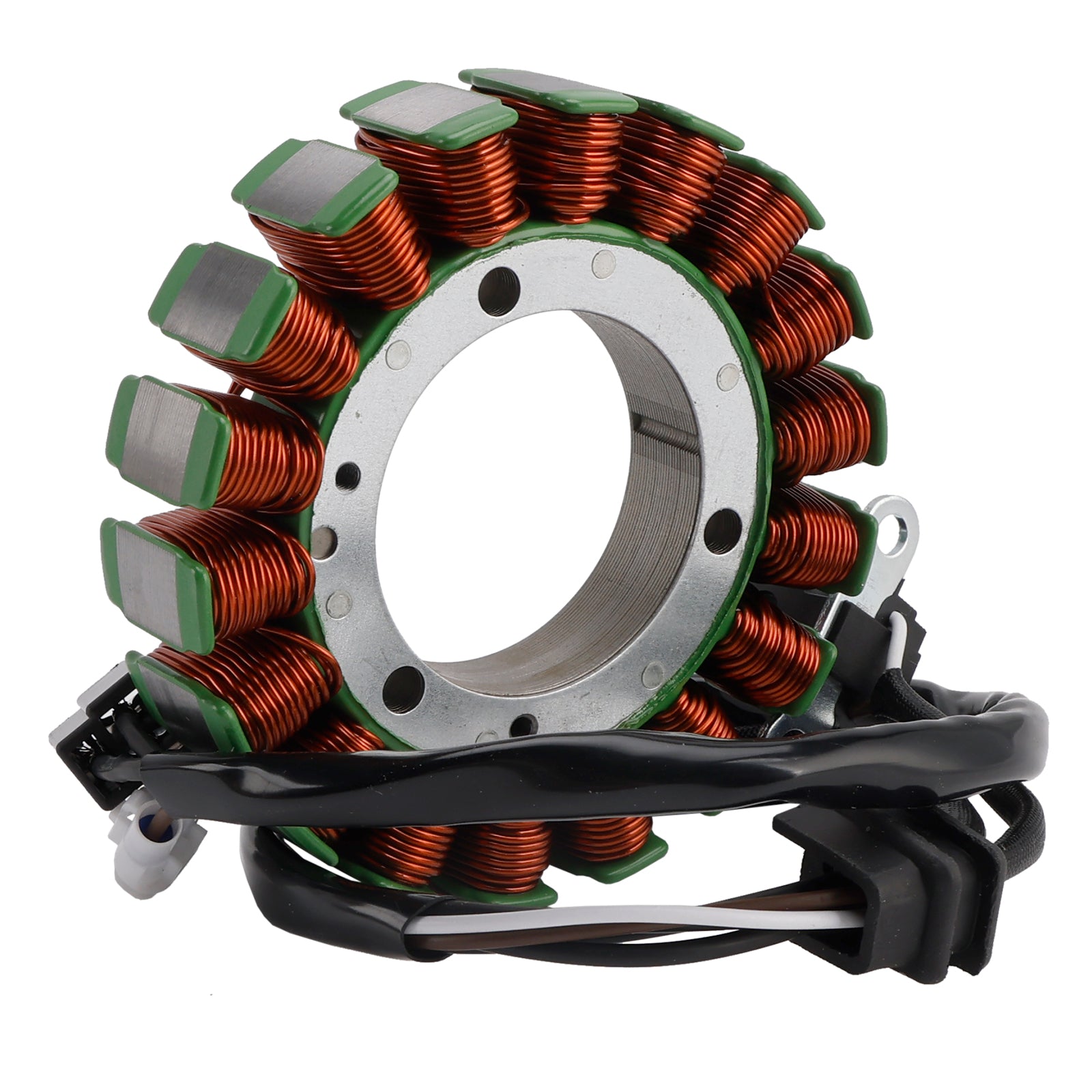

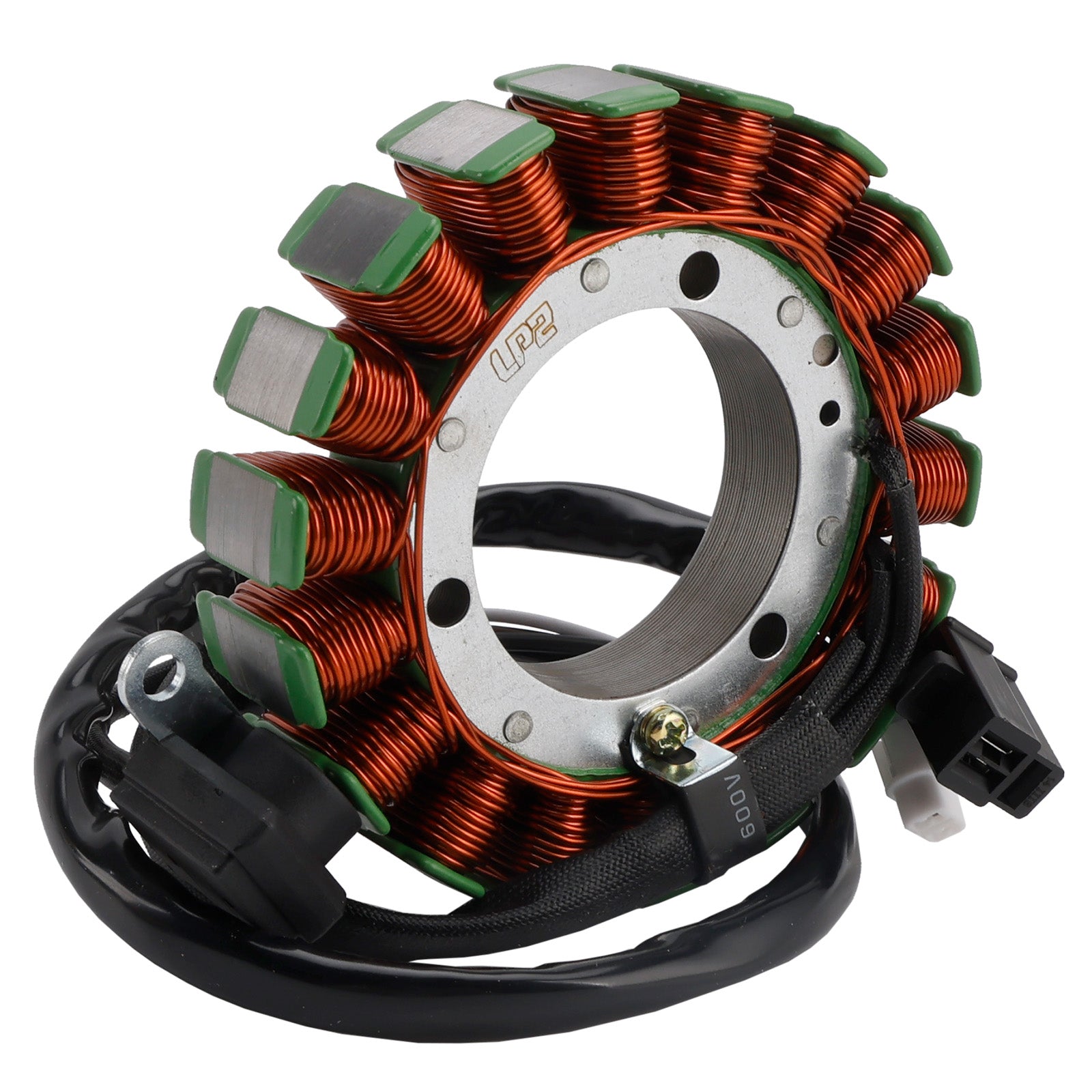

Stator
Number of wires: 5

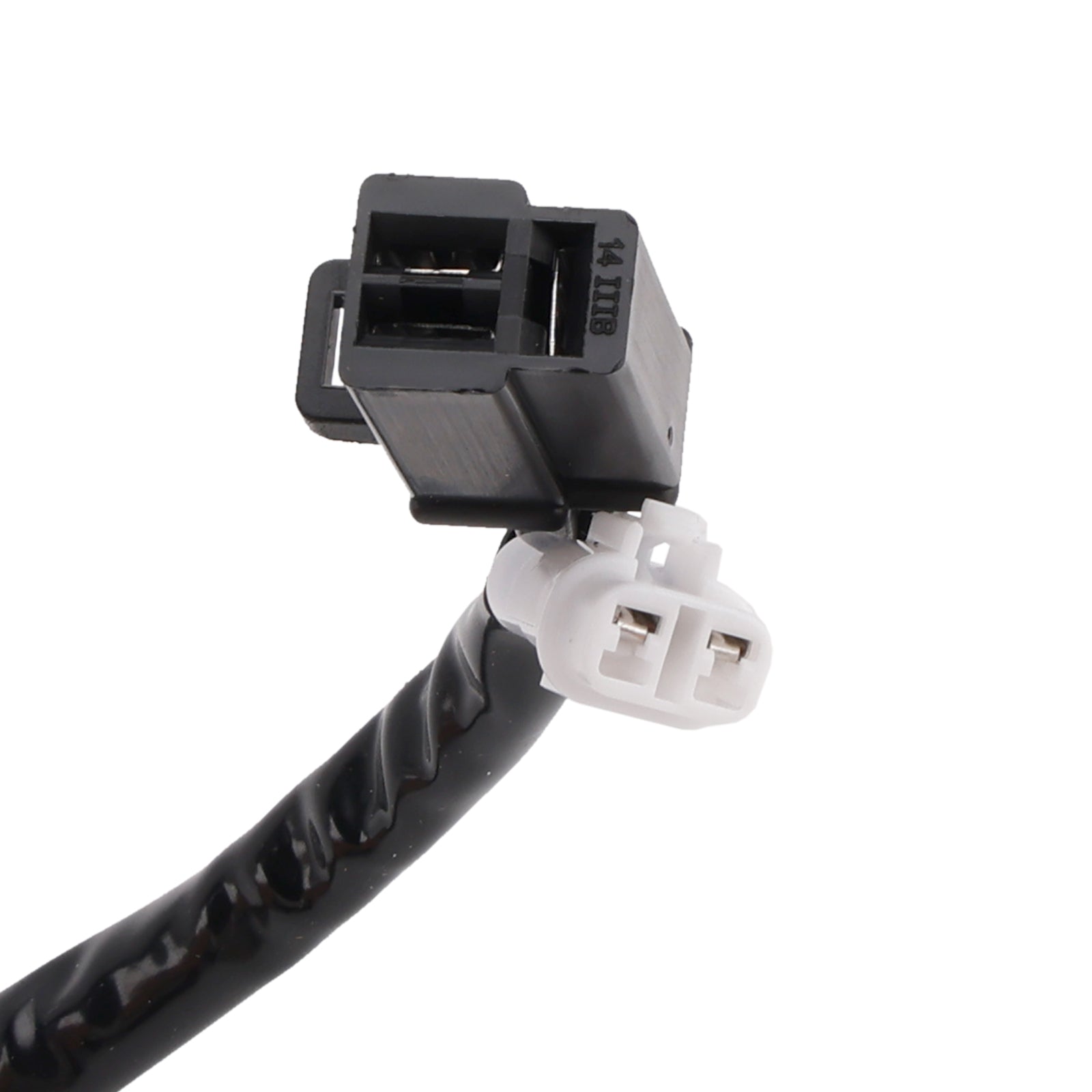

Number of plugs: 2
Number of pins: 3 + 2
Number of fixation holes: 6
Number of poles: 18
Interior diameter: 53 mm
Exterior diameter: 113 mm

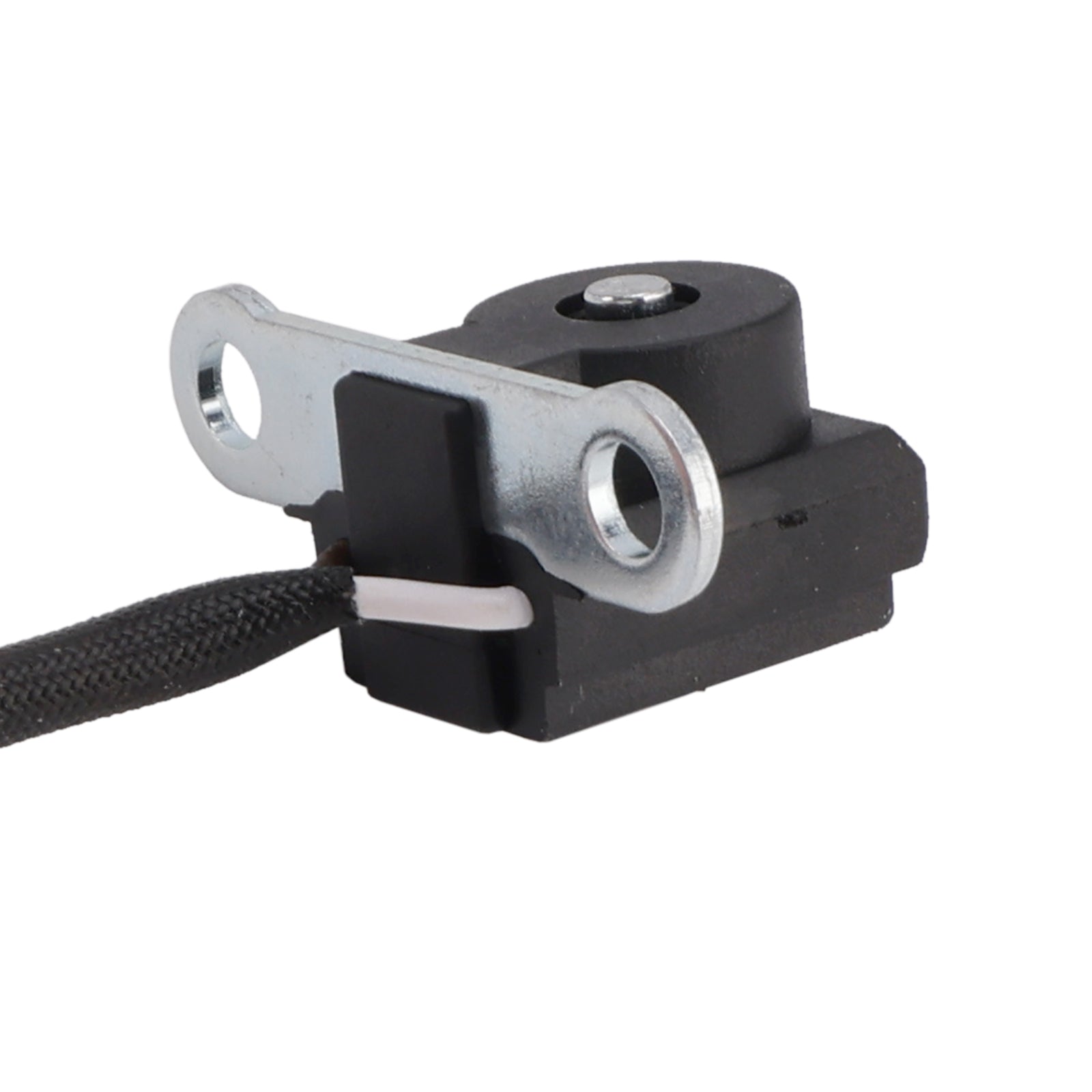

Pick up pulsar coil included.

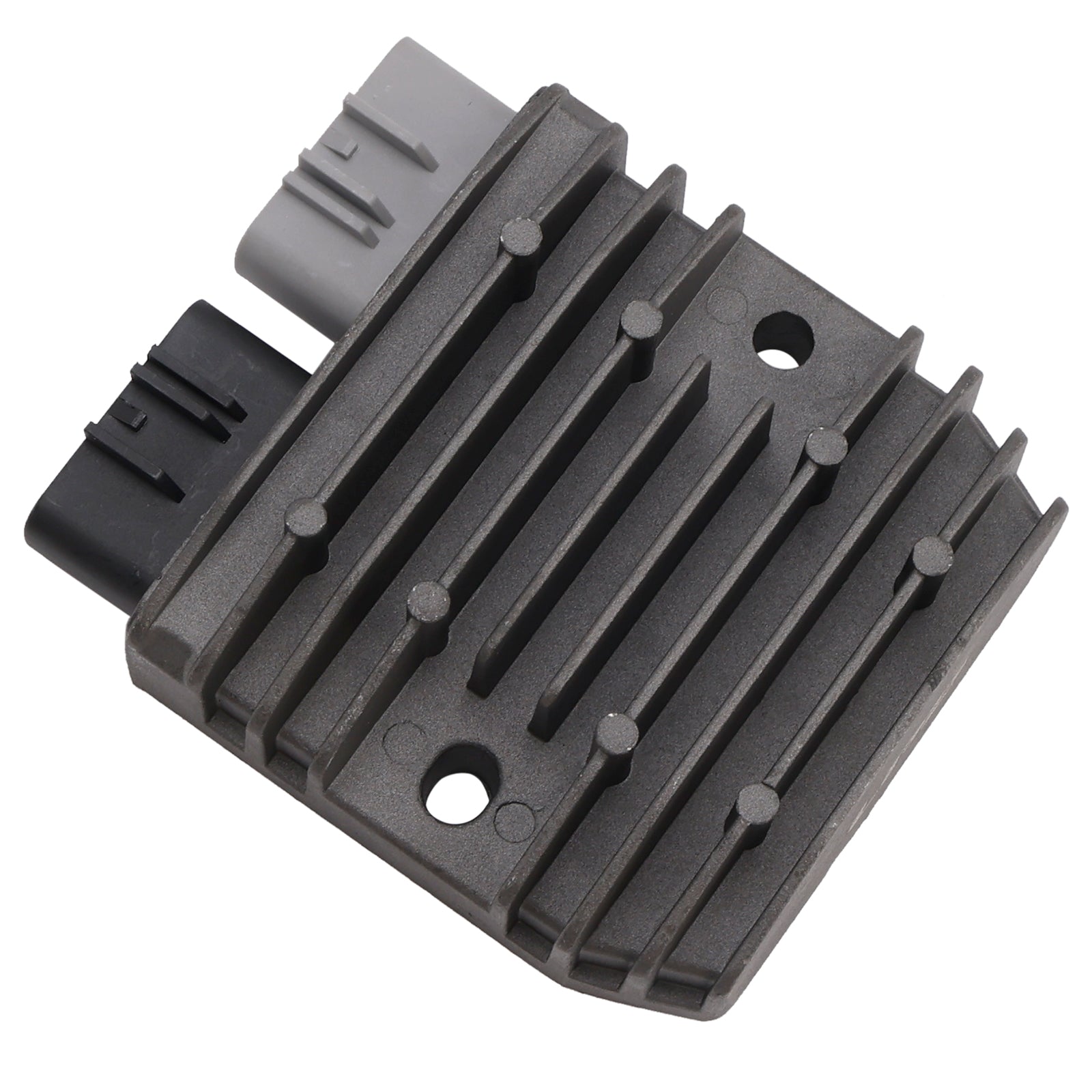

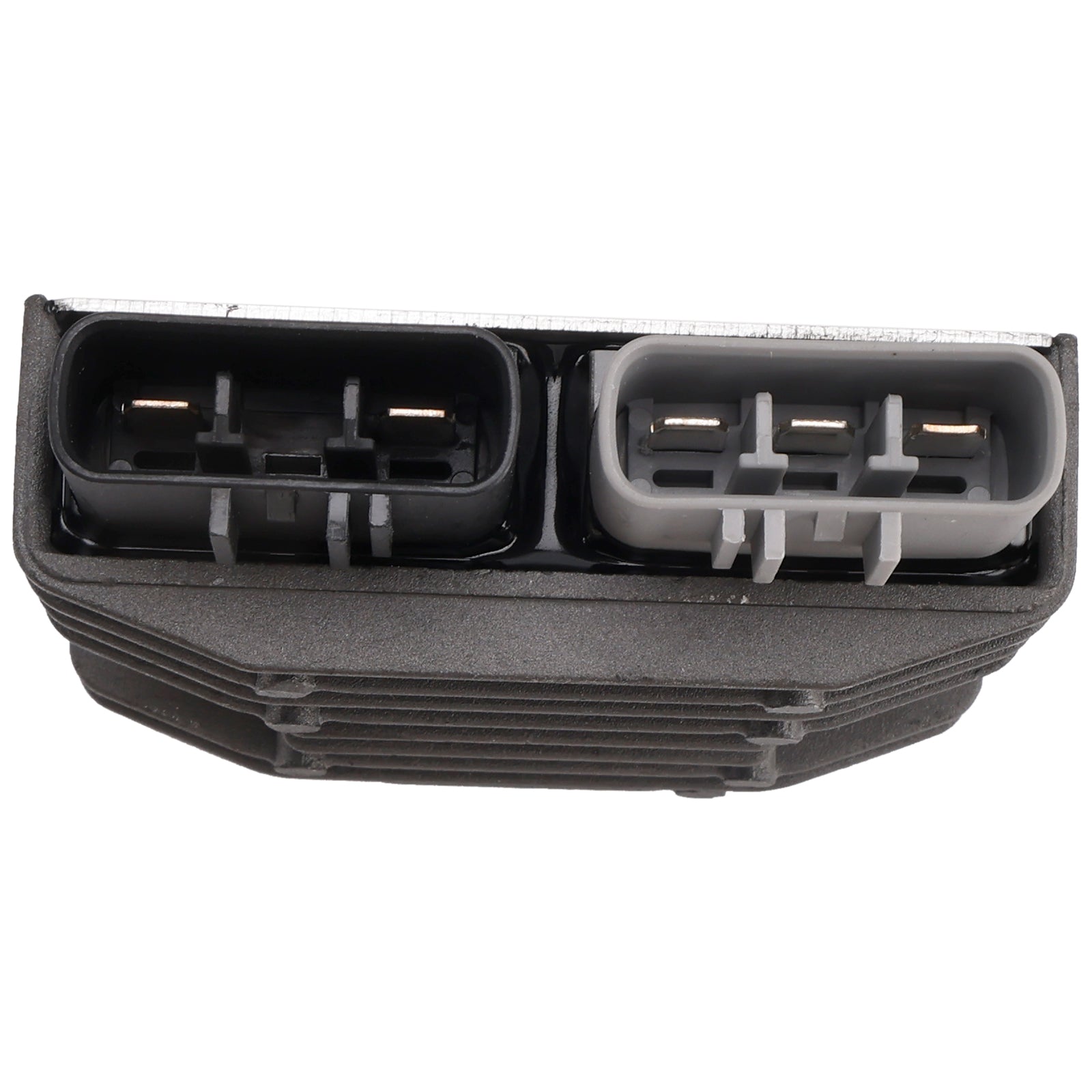

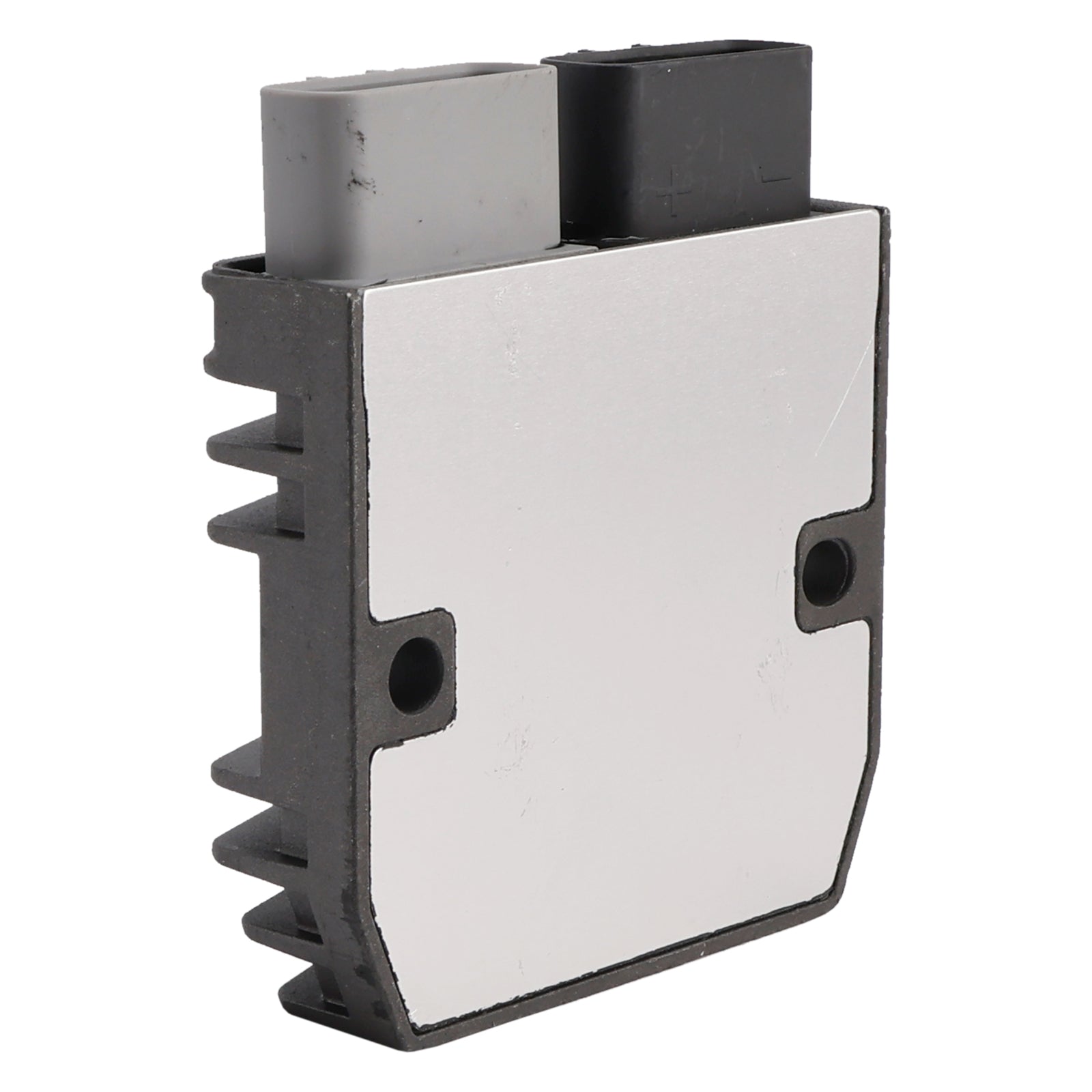

Regulator
Number of plugs: 2
Number of pins: 2 + 3

Please compare the number of pins and plugs with the old part before purchasing.

Replacement Part Number:
Stator Assy: 0802-073
Rectifier, regulator: 0824-078, 0824-072

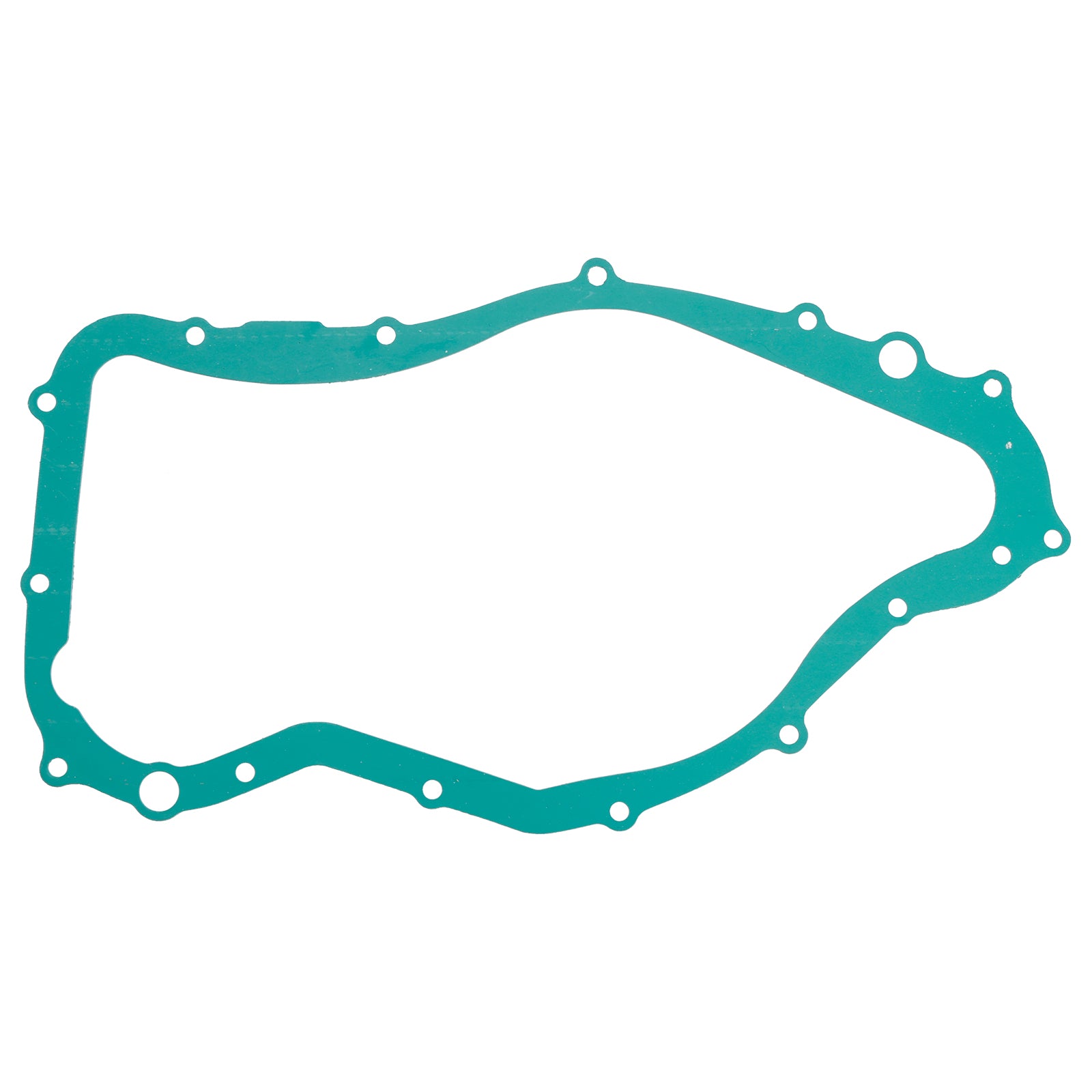

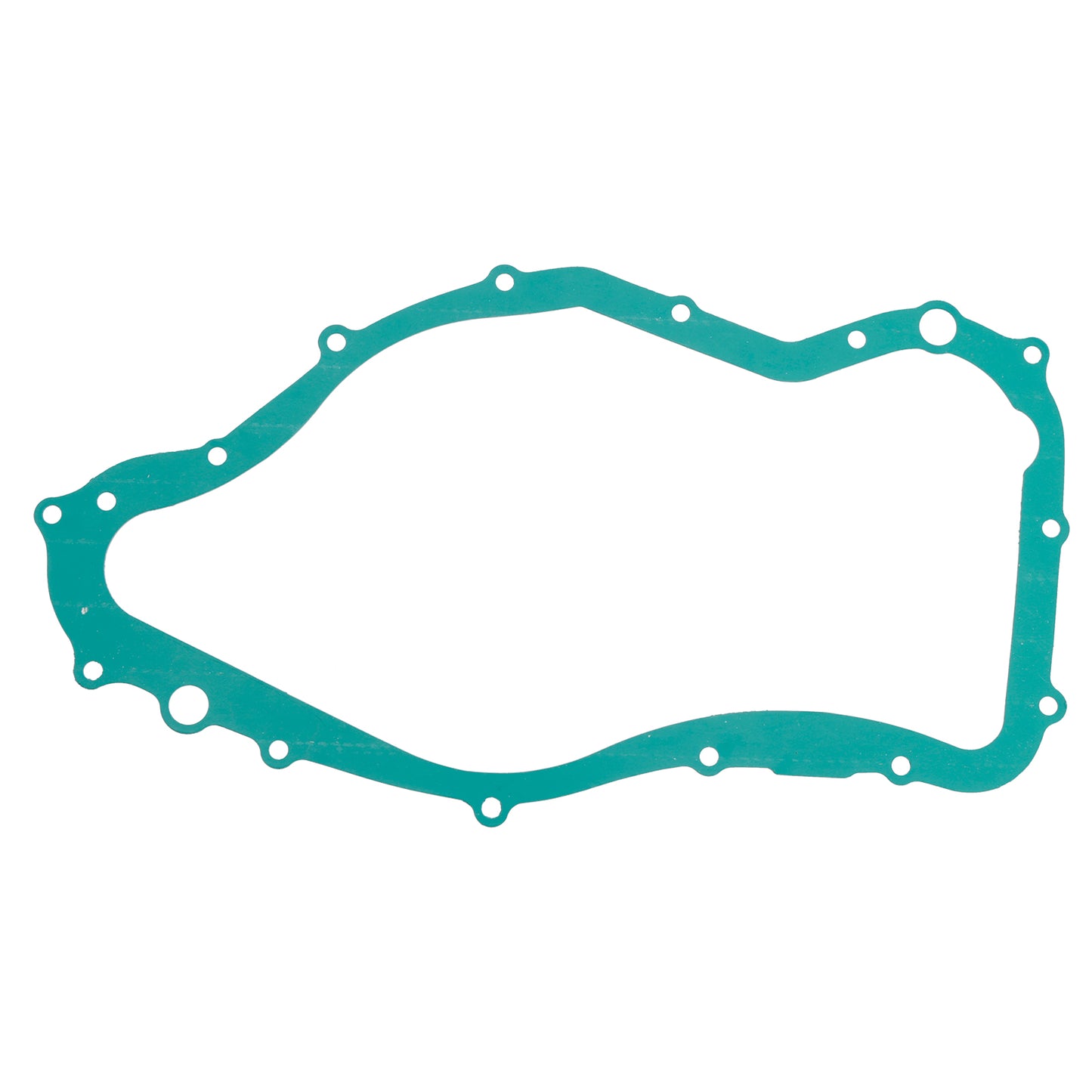

Gasket, generator cover: 0830-128

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Make/Model/Year:
Fit for Arctic Cat Alterra 570 2020
Fit for Arctic Cat Alterra 570 EPS 2019-2021
Fit for Arctic Cat Alterra 570 SE EPS 2021
Fit for Arctic Cat Alterra 570 XT EPS 2019
Fit for Arctic Cat Alterra 700 2016-2019
Fit for Arctic Cat Alterra 700 EPS 2020-2021
Fit for Arctic Cat Alterra 700 International 2016-2017
Fit for Arctic Cat Alterra 700 MUD PRO LTD EPS 2019
Fit for Arctic Cat Alterra 700 SE EPS 2021
Fit for Arctic Cat Alterra 700 XT EPS 2016-2019
Fit for Arctic Cat Alterra 700 XT EPS International 2017
Fit for Arctic Cat Alterra MudPro 700 Limited 2018
Fit for Arctic Cat Alterra TBX 700 EPS 2020
Fit for Arctic Cat Alterra TRV 550 XT 2017
Fit for Arctic Cat Alterra TRV 550 XT International 2017
Fit for Arctic Cat Alterra TRV 700 EPS 2020
Fit for Arctic Cat Alterra TRV 700 XT 2017
Fit for Arctic Cat Alterra TRV 700 XT EPS 2019
Fit for Arctic Cat Alterra TRV 700 XT EPS 2021-2022
Fit for Arctic Cat Alterra TRV 700 XT International 2017
Fit for Arctic Cat Alterra VLX 700 2018
Fit for Arctic Cat ATV 550 Alterra 550 2016
Fit for Arctic Cat ATV 550 H1 2014
Fit for Arctic Cat ATV 550 Limited Edition 2014
Fit for Arctic Cat ATV 550 XT 2014
Fit for Arctic Cat ATV 550 XT International 2014
Fit for Arctic Cat ATV 700 H1 EFI 2013
Fit for Arctic Cat ATV 700 H1 EFI Limited Edition 2013
Fit for Arctic Cat ATV 700 Limited 2013-2014
Fit for Arctic Cat ATV 700 Limited International 2013-2014
Fit for Arctic Cat ATV 700 XT 2013-2014
Fit for Arctic Cat ATV 700 XT International 2013-2014
Fit for Arctic Cat HDX 700 Crew XT 2017
Fit for Arctic Cat HDX 700 Crew XT International 2017
Fit for Arctic Cat HDX 700 XT 2016-2017
Fit for Arctic Cat HDX 700 XT International 2016-2017
Fit for Arctic Cat HDX 700 XT SE Hunter Edition 2016
Fit for Arctic Cat MudPro 700 Limited 2013-2017
Fit for Arctic Cat MudPro 700 Limited International 2013-2017
Fit for Arctic Cat Prowler 550 XT 2015
Fit for Arctic Cat Prowler 550 XT International 2015
Fit for Arctic Cat Prowler 700 HDX 2013-2014
Fit for Arctic Cat Prowler 700 HDX International 2013-2014
Fit for Arctic Cat Prowler 700 HDX XT 2015
Fit for Arctic Cat Prowler 700 HDX XT International 2015
Fit for Arctic Cat Prowler 700 XT 2017
Fit for Arctic Cat Prowler 700 XT EPS 2015-2017
Fit for Arctic Cat Prowler 700 XT EPS International 2015-2016
Fit for Arctic Cat Prowler 700 XTX EPS 2013-2014
Fit for Arctic Cat Prowler 700 XTX EPS International 2013-2014
Fit for Arctic Cat TBX 700 EPS 2017-2019
Fit for Arctic Cat TRV 550 Limited 2014-2015
Fit for Arctic Cat TRV 550 Limited International 2014-2015
Fit for Arctic Cat TRV 550 XT 2014-2015
Fit for Arctic Cat TRV 550 XT International 2014-2015
Fit for Arctic Cat TRV 700 Limited 2013-2015
Fit for Arctic Cat TRV 700 Limited International 2013-2015
Fit for Arctic Cat TRV 700 Special Edition 2016
Fit for Arctic Cat TRV 700 Special Edition International 2016
Fit for Arctic Cat TRV 700 XT 2013-2015
Fit for Arctic Cat TRV 700 XT International 2013-2015
Fit for Arctic Cat VLX 700 2017

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

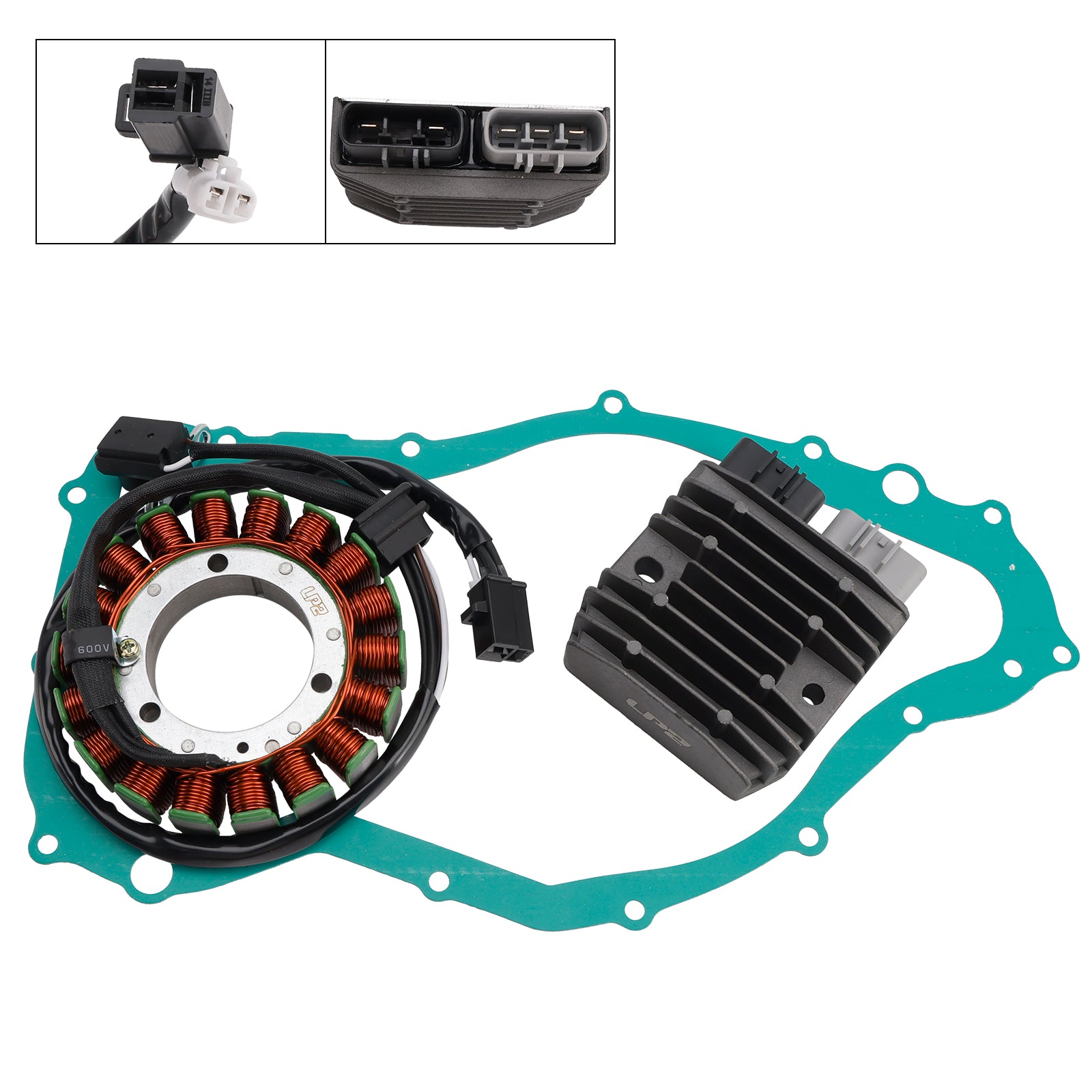

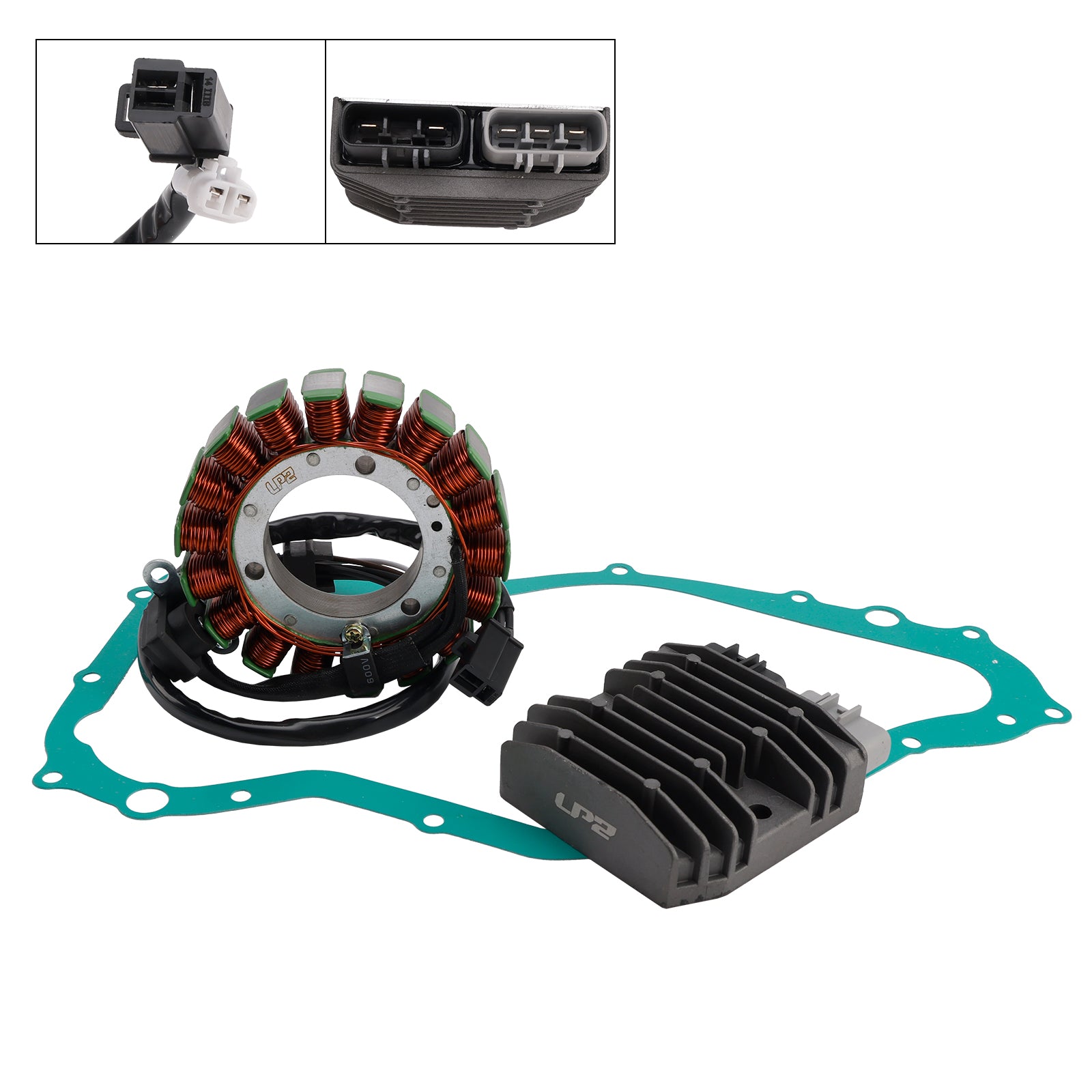

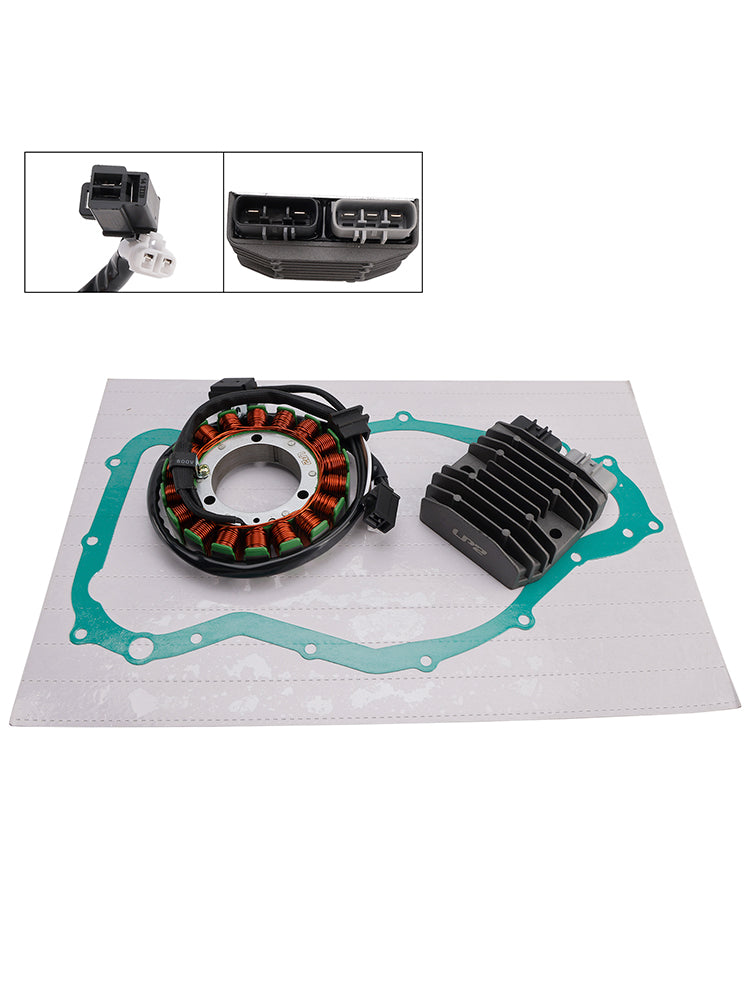

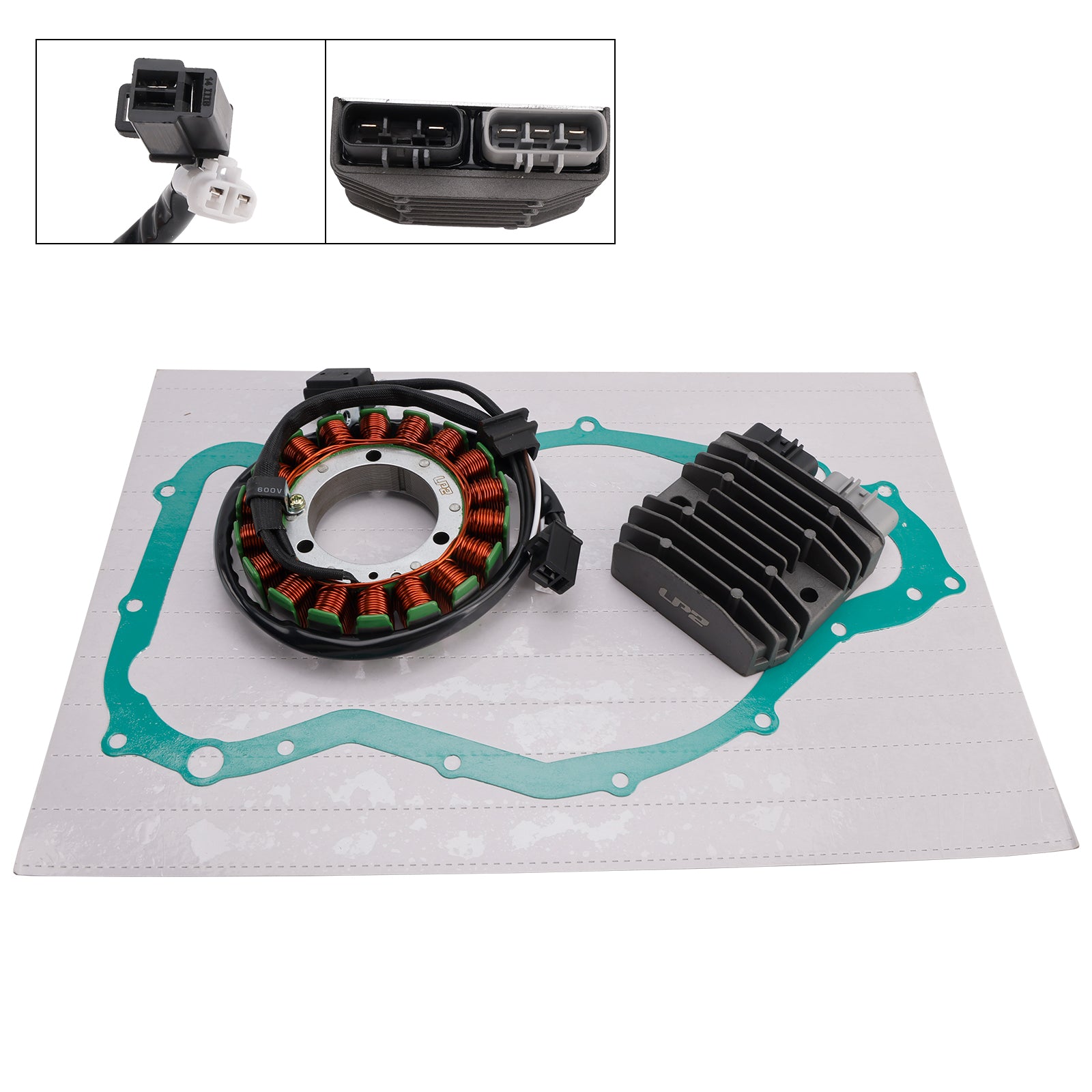

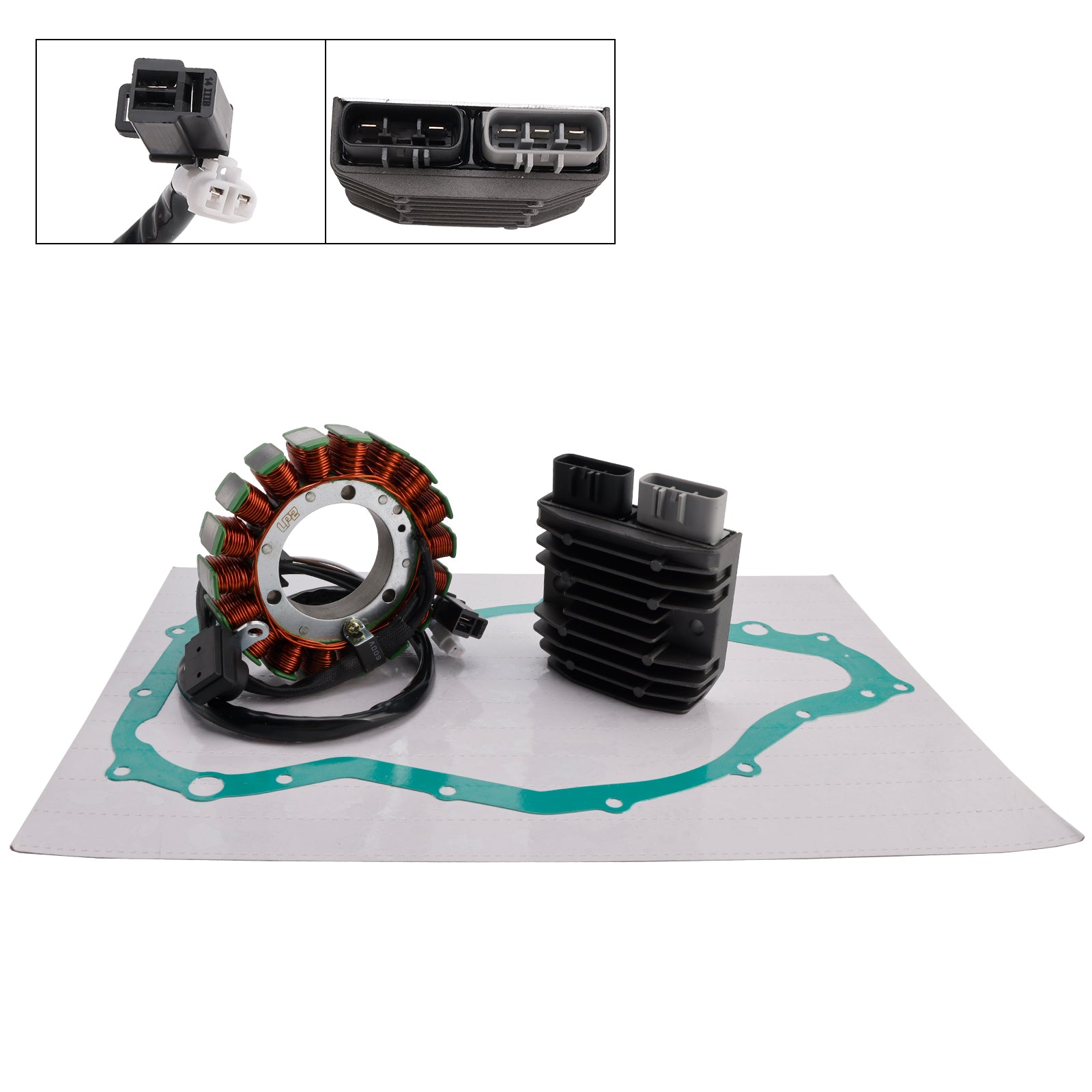

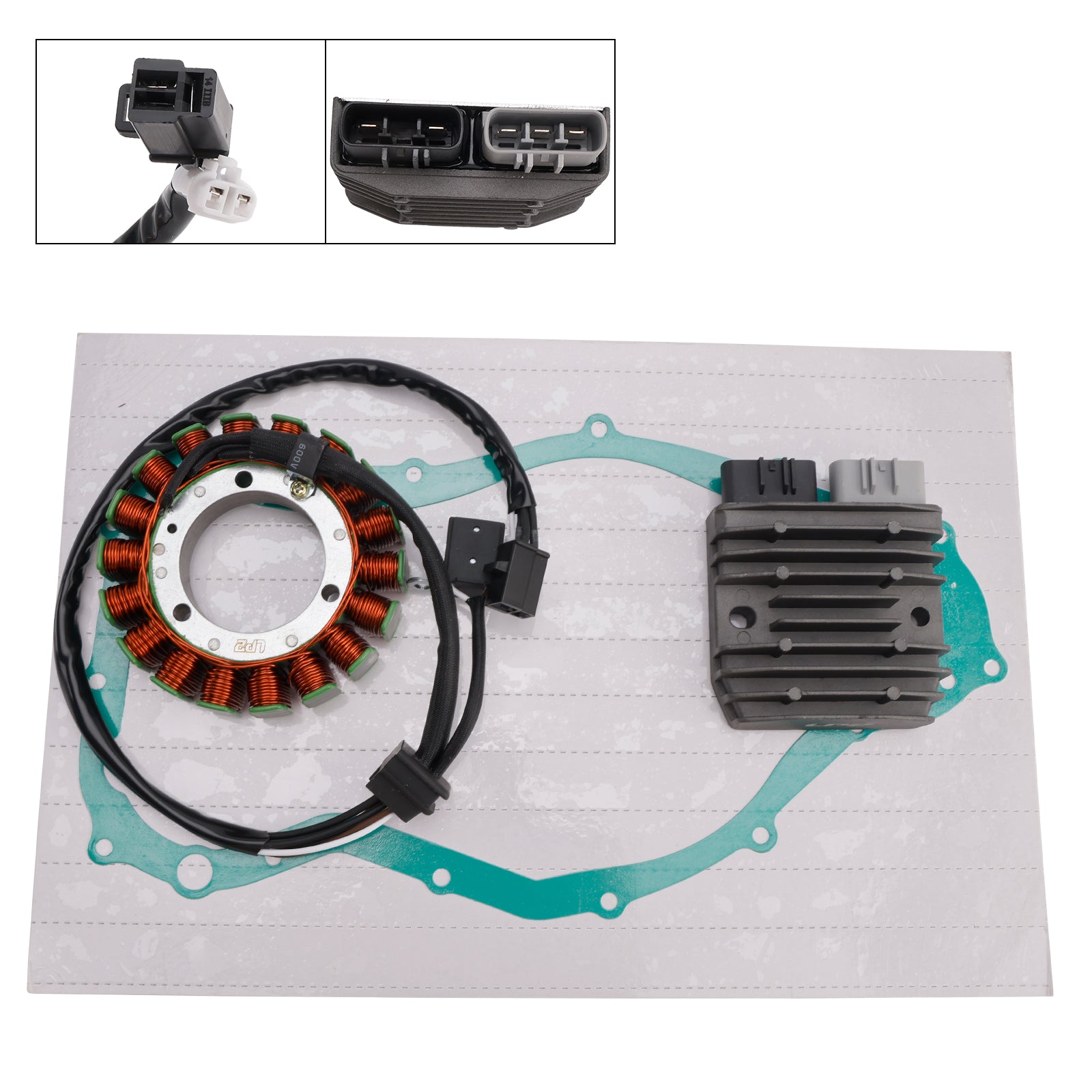

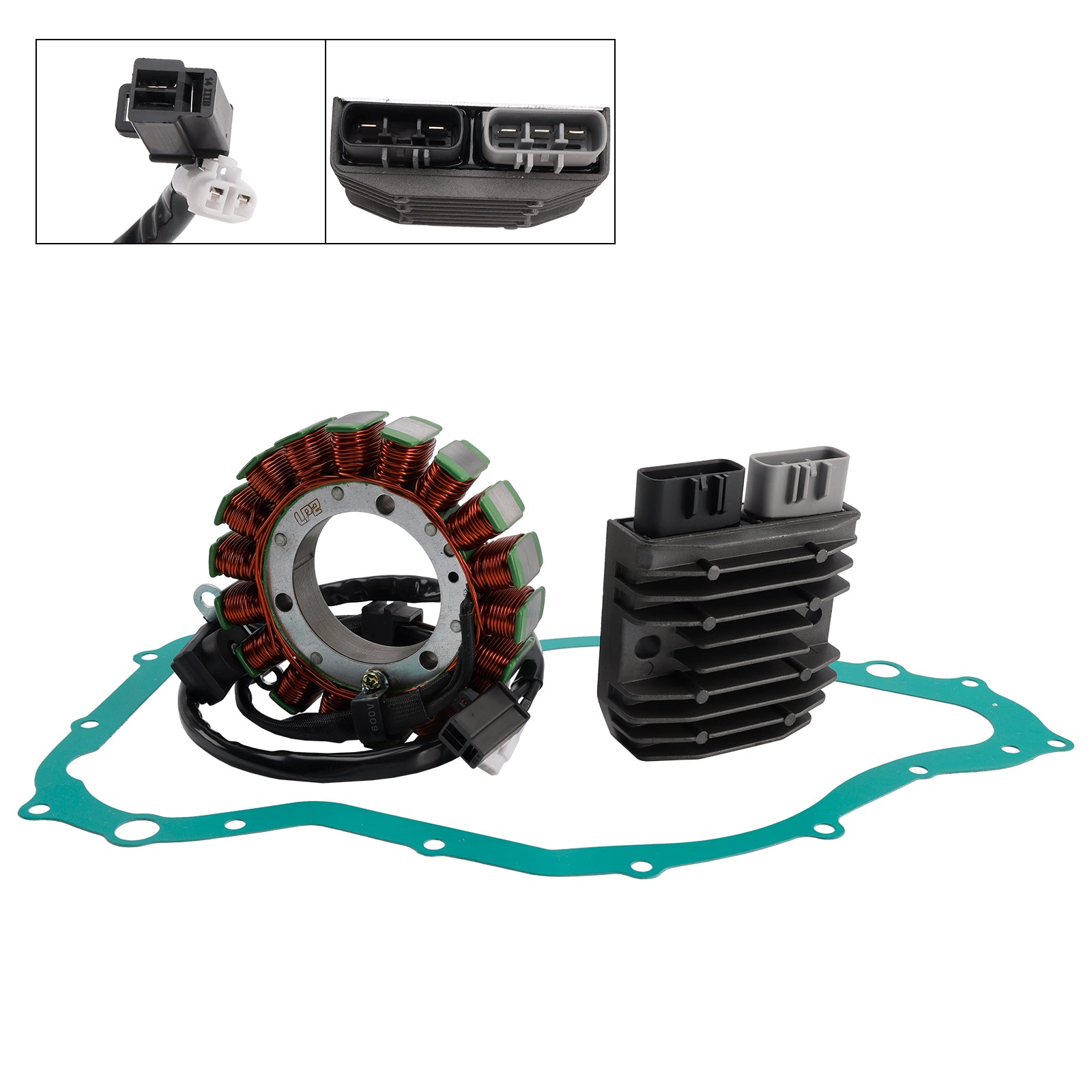

Package Includes:
1 x 5-Wire Generator Stator
1 x 5-Pin Regulator Rectifier
1 x Crankcase Gasket

(Comes exactly as pictured.)

Note:
Before installing your new stator regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
