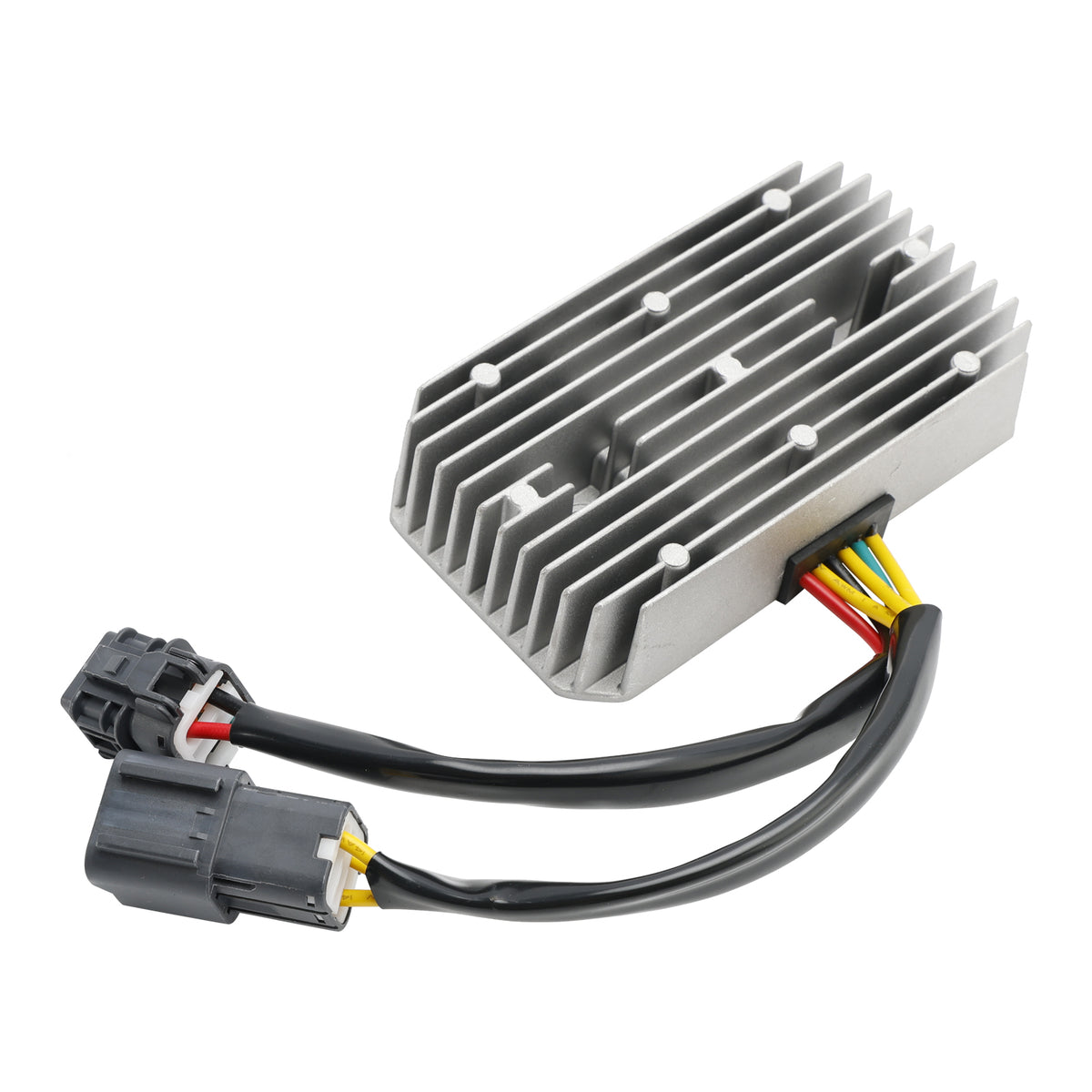

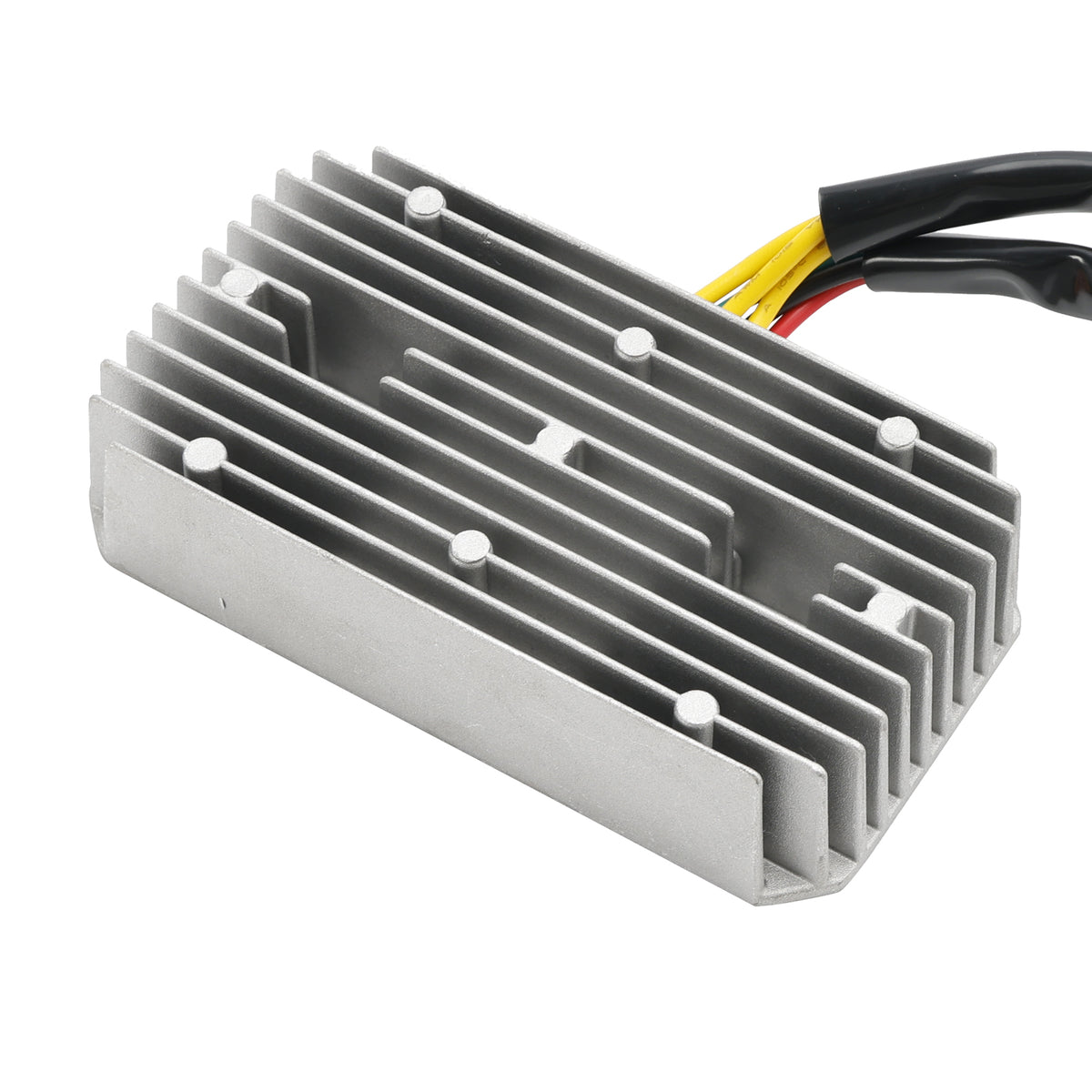

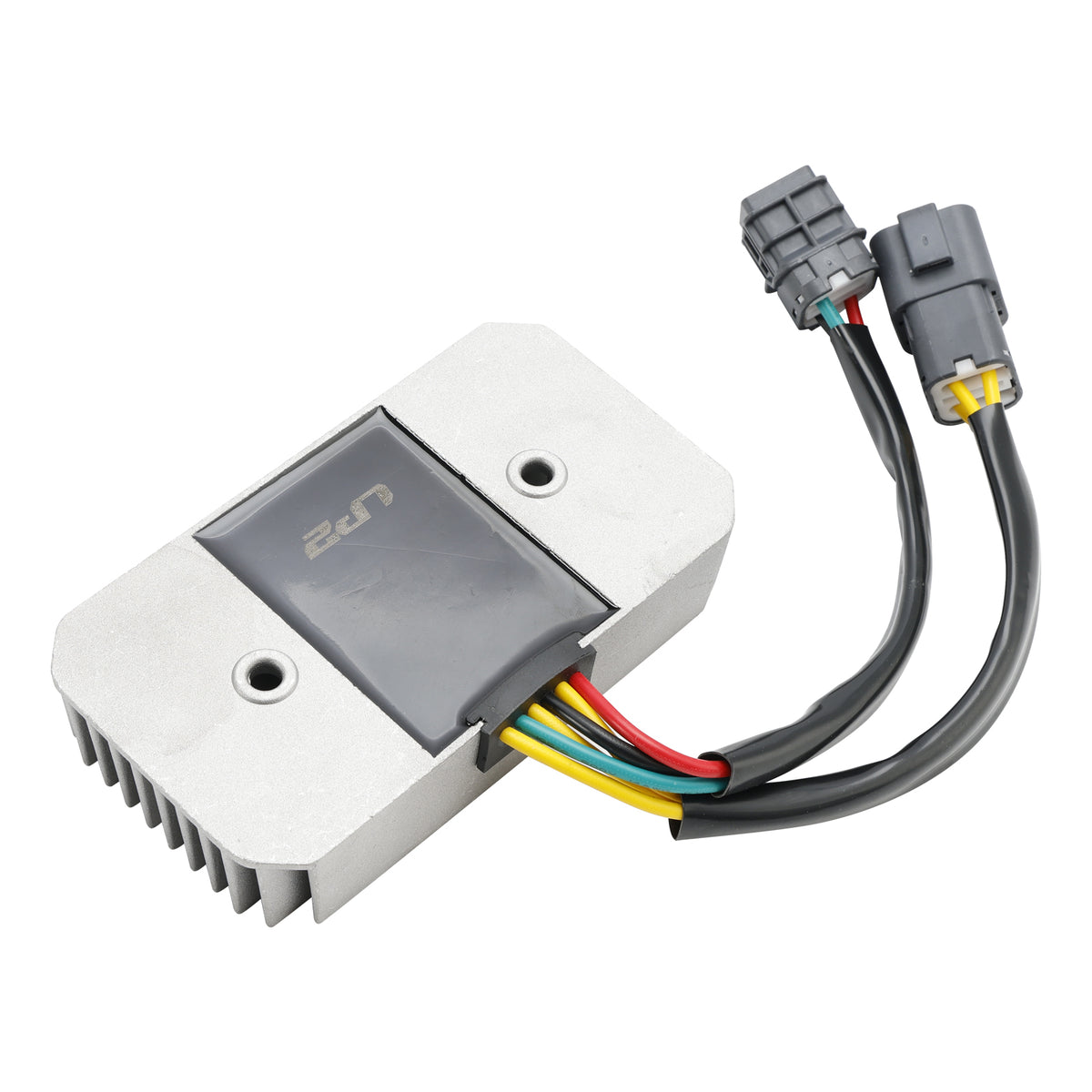

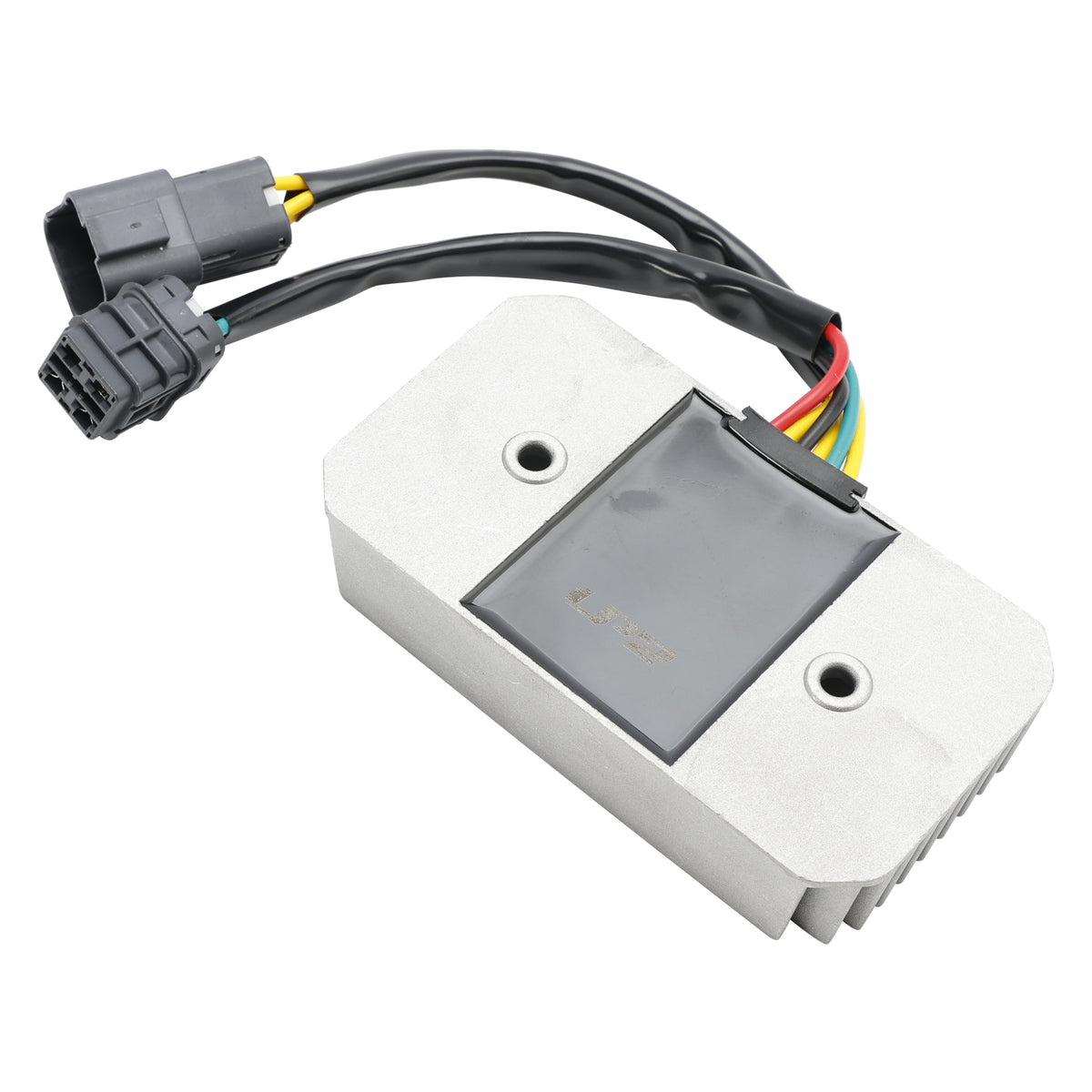

SMC Max Jumbo 720 Voltage Regulator Rectifier

6-Wire Voltage Regulator Rectifier Fit for Kymco MXU 550i IRS 700i EX EXi EPS

Features:
OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
All products shipped are tested.
Instruction is NOT included.

Attention:
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1 PC
Type: Voltage Regulator

Other specifications :
Number of wires: 6
Number of plugs: 2
Number of pins: 3 + 3

Please compare the number of pins with the old part before purchasing.

Replacement Part Number:
62360-MAX-00
31600-LKM5-E00

Fits Make/Model/Year:
SC-62360-MAX-00
Fit for SMC Max Jumbo 700
Fit for SMC Max Jumbo 720
Fit for SMC Max Jumbo 750

31600-LKM5-E00
Fit for Kymco MXU 550i IRS T3b EPS 2023
Fit for Kymco MXU 700i EX EPS IRS Euro 4 2018-2020
Fit for Kymco MXU 700i EXi EPS IRS T3B 2019-2020
Fit for Kymco MXU 700i IRS Euro 2
Fit for Kymco MXU 700i EX EPS IRS T3B 2013-2016
Fit for Kymco MXU 700i EX EPS IRS Euro 2
Fit for Kymco UXV 450
Fit for Kymco UXV 700i Turf Sport EPS 2023

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package includes:
1x Voltage Regulator Rectifier

Note:
Signs that your regulator needs replacing:
Depending on the location of the regulator rectifier, the part can easily overheat. Other causes for a dead regulator rectifier center on the battery. Ground connections are important for good voltage, and if there is a faulty voltage, the regulator rectifier can run hot. Bad grounding, corroded battery connection and poor or loose battery connections will cause faulty voltage too.

There are generally two ways for the regulator rectifier to fail:
The first deals with diode burnout, resulting in battery drain. It is easy to assume that the issue is a bad battery because of symptoms such as dimming headlights and poor starts. Checking the voltage with a voltmeter versus relying on symptoms alone will prove highly beneficial. If the voltage drops below 13 volts, the motorcycle will begin to drain the battery and eventually the engine will stop. Check for bad connections and corrosion; these can also cause voltage issues.
The other failure type is shunt regulator burnout, where the regulator rectifier fails to control the voltage, resulting in battery overcharge. Again, a voltmeter will be useful for diagnosis. Though generally, readings above 17 volts mean the regulator rectifier is not converting the excess power correctly and all of that excess voltage may cause the headlights to become extremely bright and then blow.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
