Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

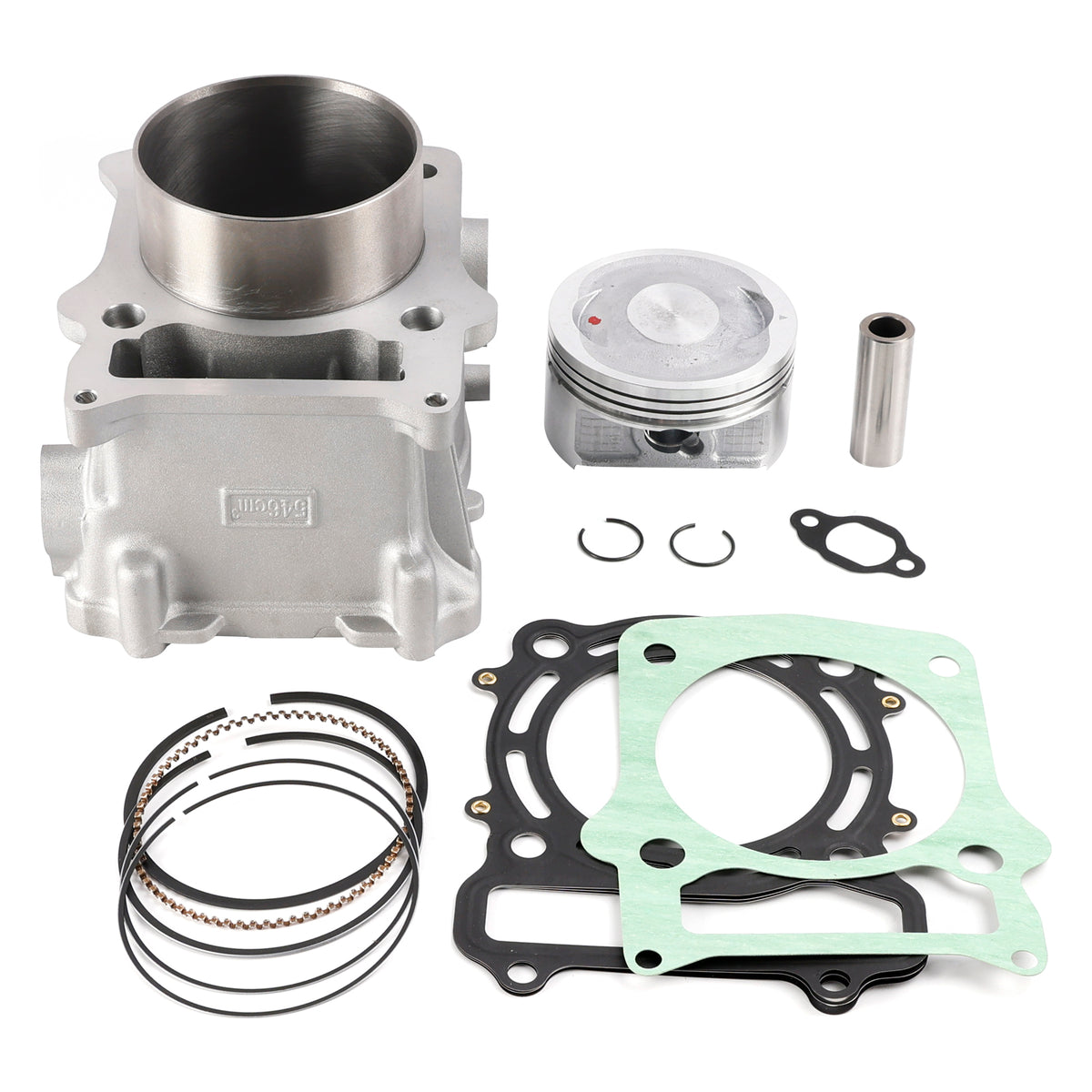

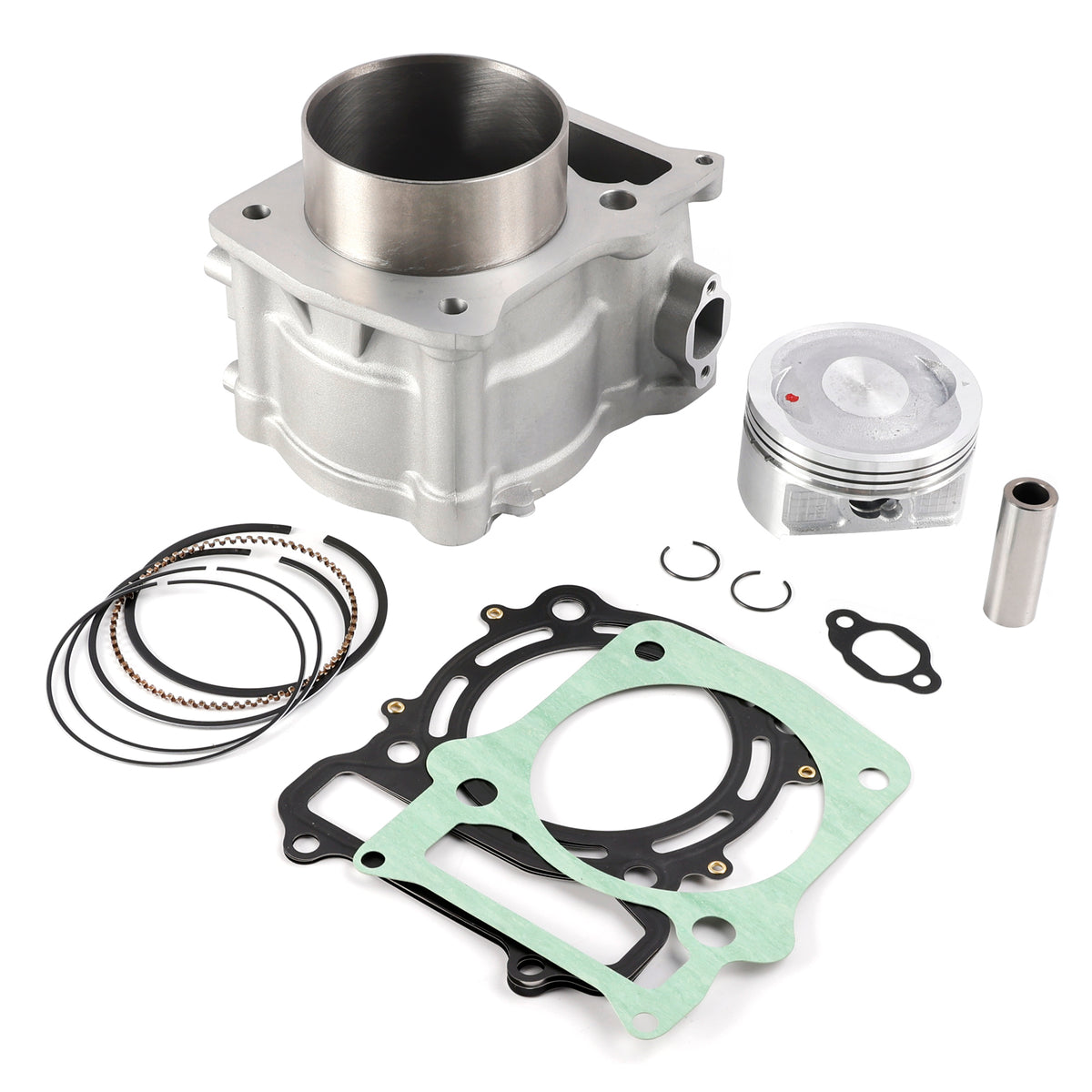

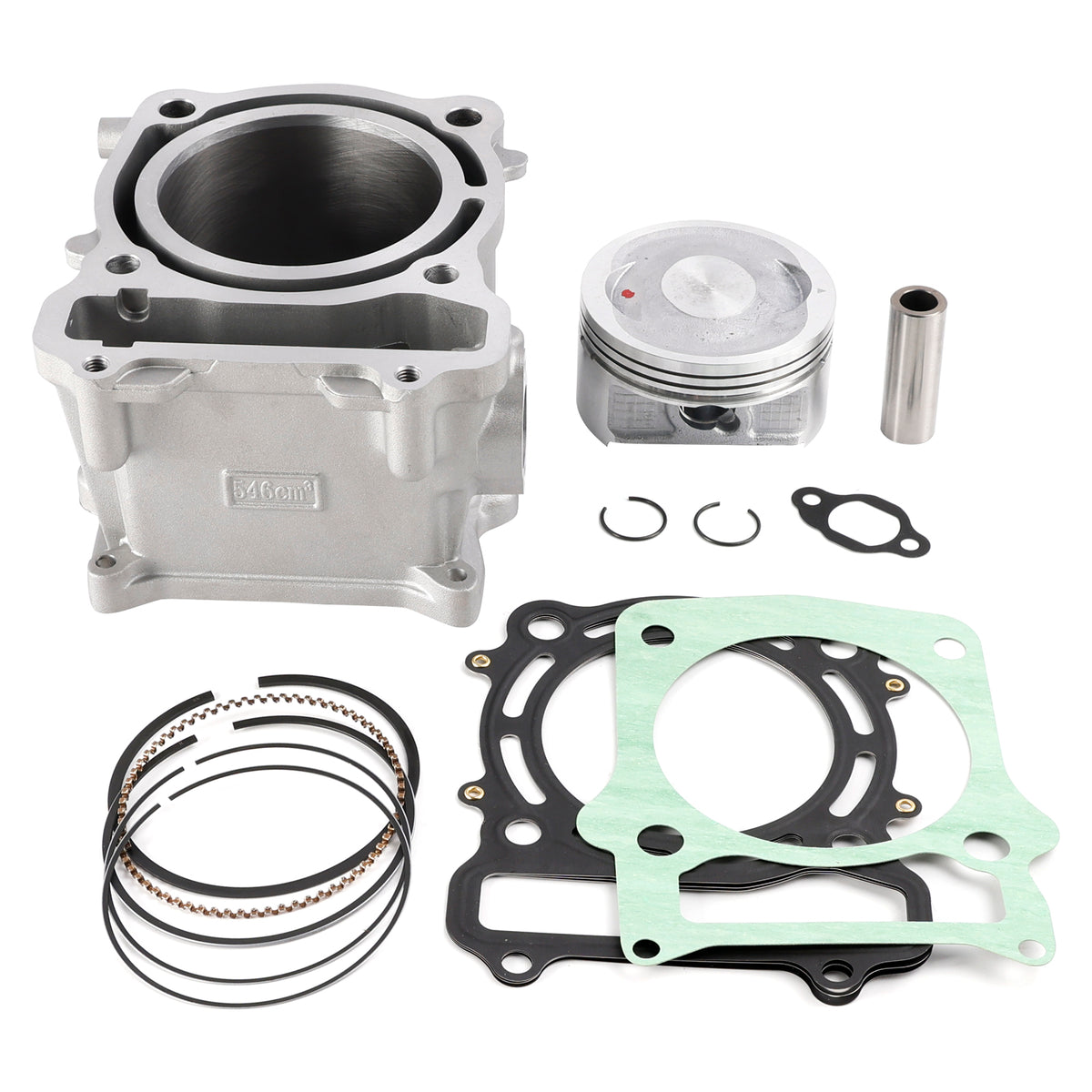

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 91mm.
This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 546cc
Bore Type: Standard Bore
Placement on Vehicle: Front
Bore diameter: STD 91mm
Pin diameter: 20mm
Pin Overall Length: 56mm
Replacement Part Number:
Cylinder: P0150001211A0000, 1211A-015-0000, 12100-015-0000
Cylinder Base Gasket: P015000120090000, 12150-015-0000
Cylinder Head Gasket: P0150001207A0000, 12250-015-0000
Tensioner Gasket: P002000145080000, 14508-002-0000, 14508-F11-0000
Piston (Std): P015000131010000, 13101-015-0000
Pin, Piston: P010000131020000, 13111-F68-0000
Piston Ring Set (Std): P0100001311A0000, 1311A-010-0000, 13120-F68-0000
Circlips, Piston Pin: P010000131070000, 91301-F68-0000
Fits Models:
Fit for HiSun Tactic 550 2017-2023
Fit for HiSun Sector 550 2017-2023
Fit for HiSun Strike 550 2017-2023
Fit for Cub Cadet Challenger 550 2017-2023
Fit for Masai A550i / EPS
Package Includes:

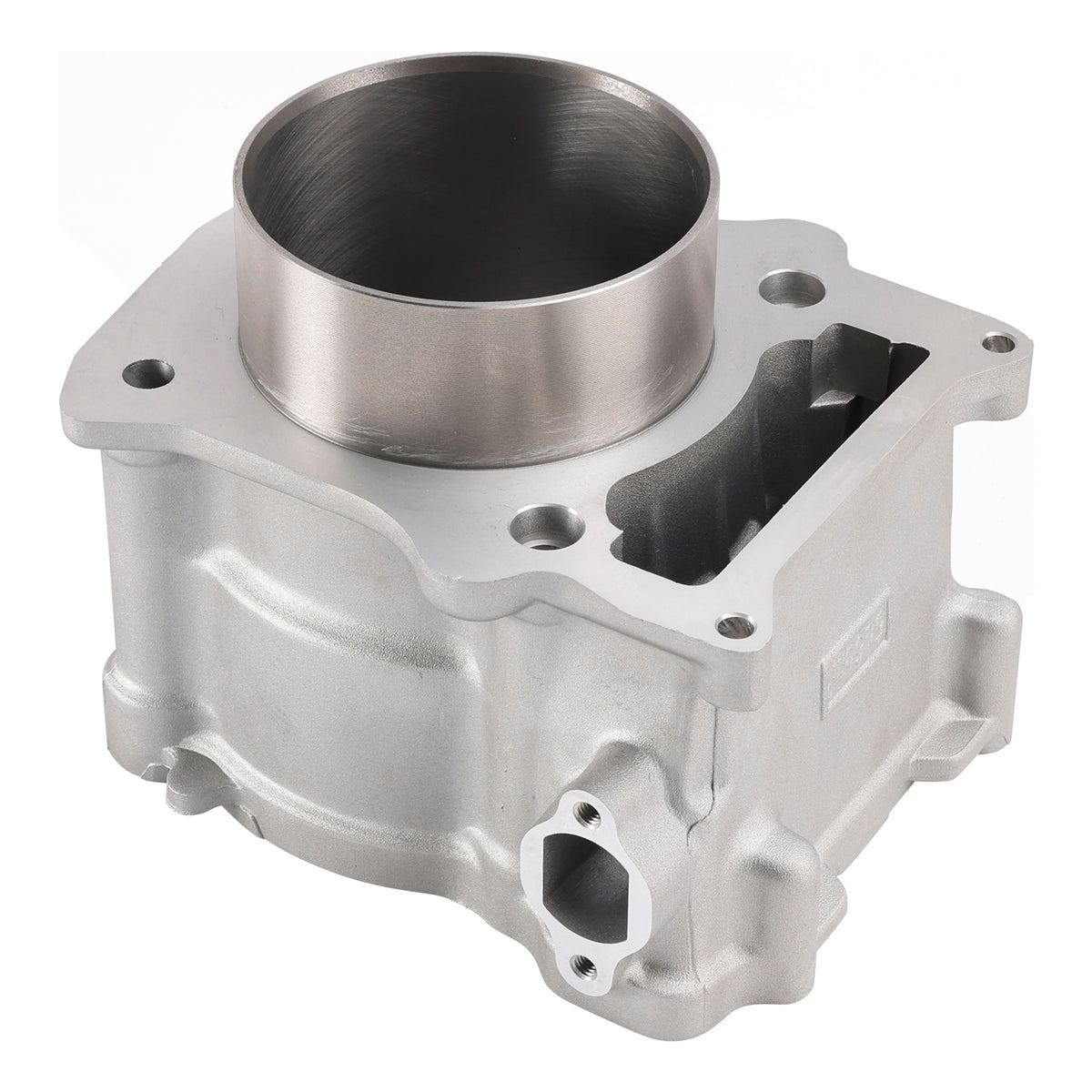

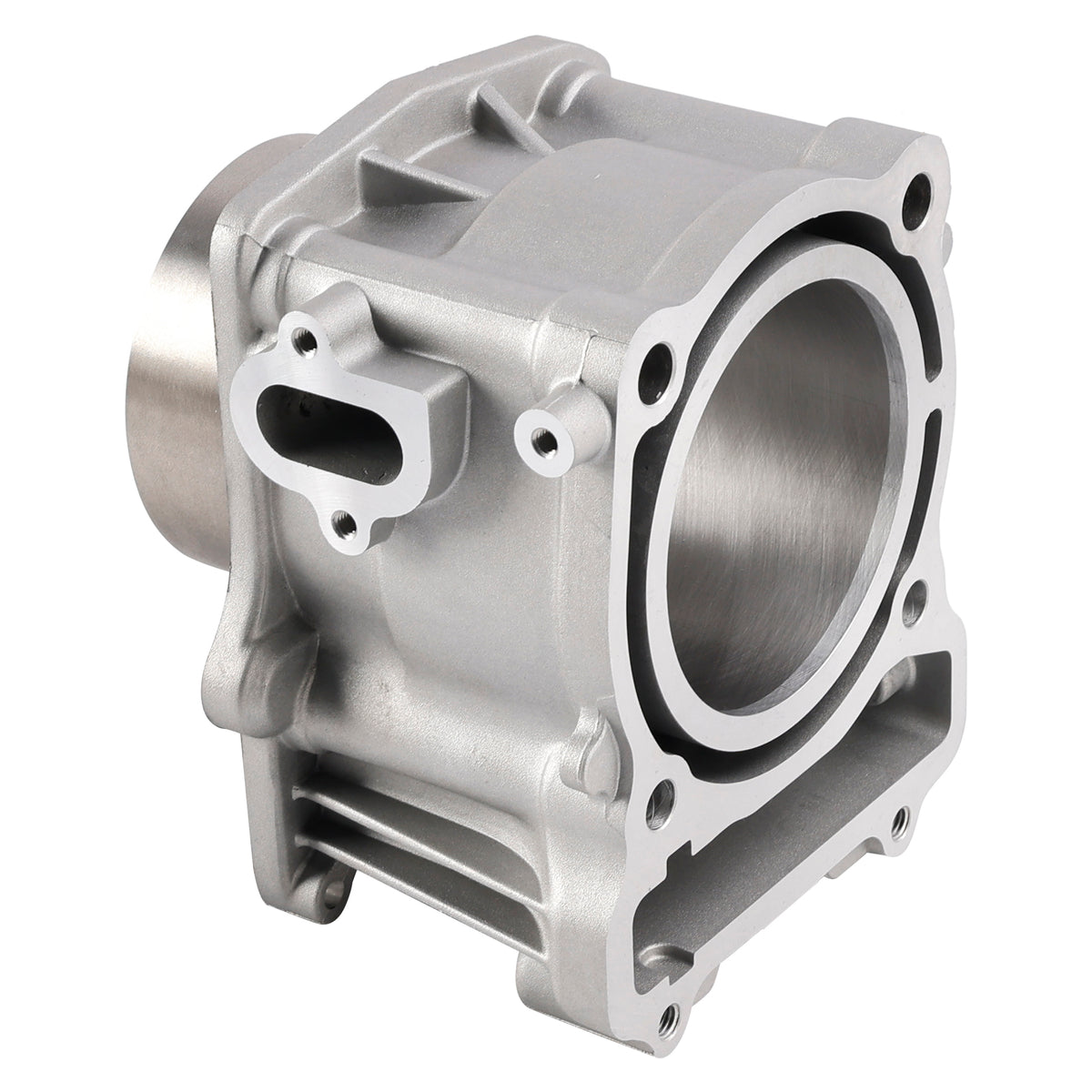

1x Cylinder

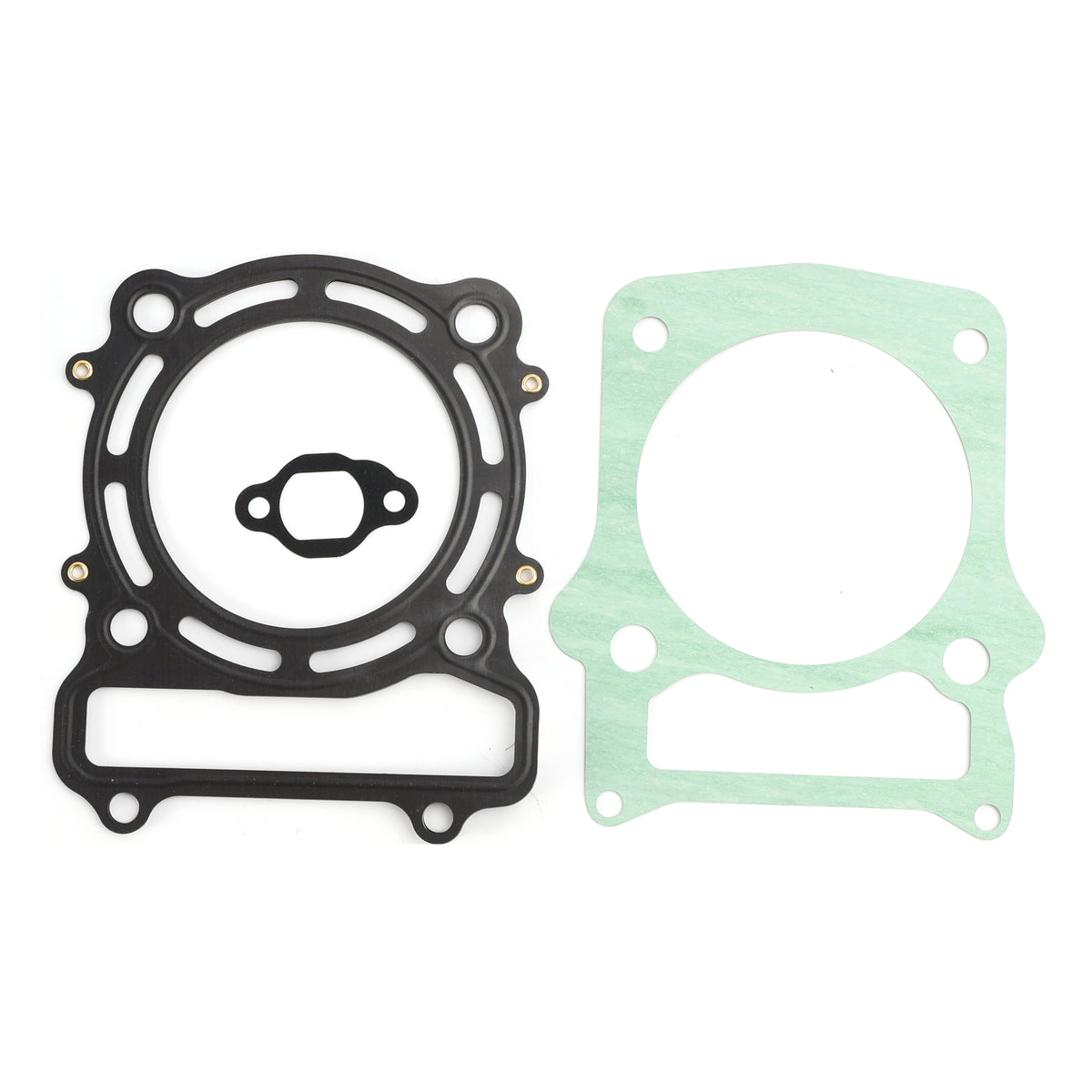

1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Tensioner Gasket

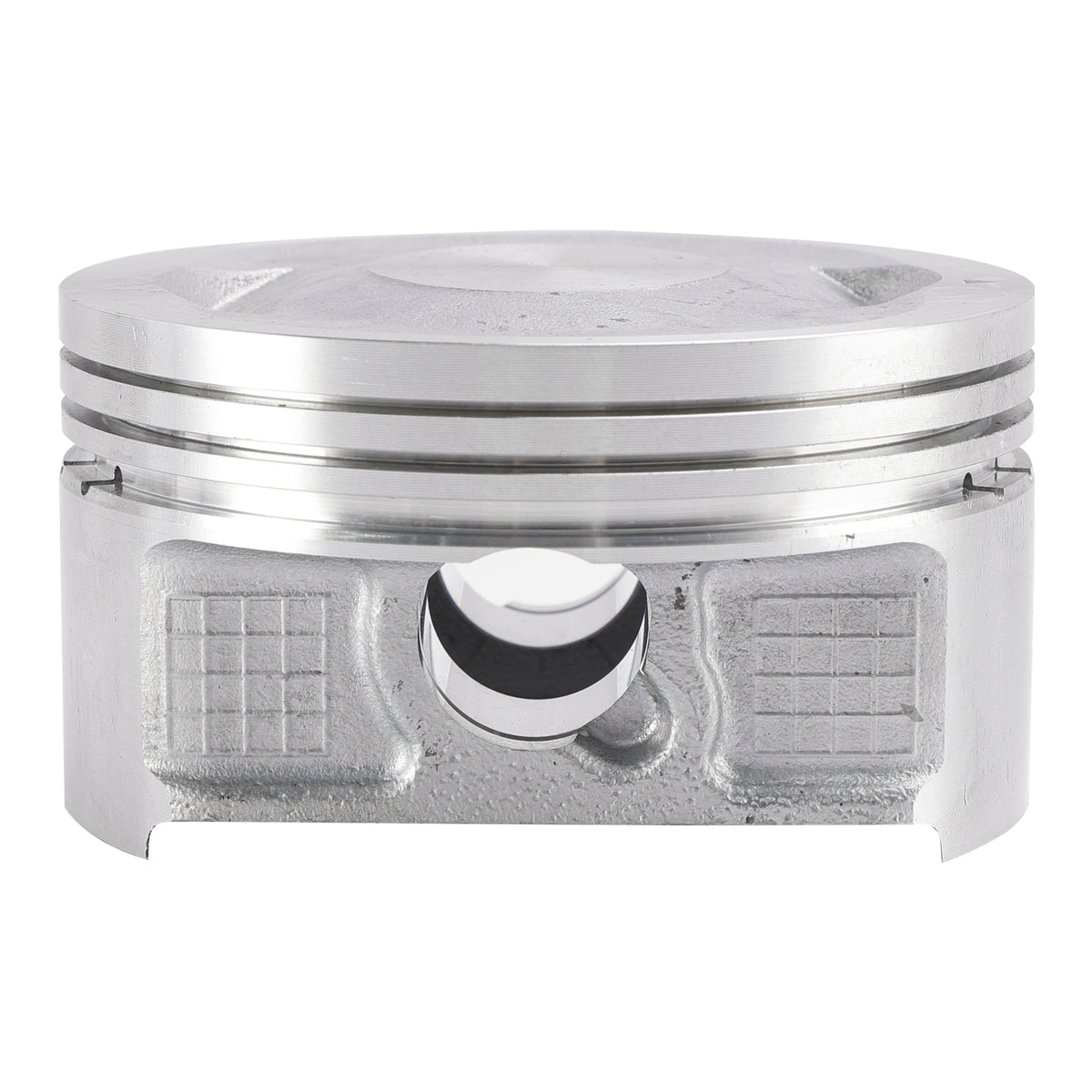

1x Piston
1x Wristpin

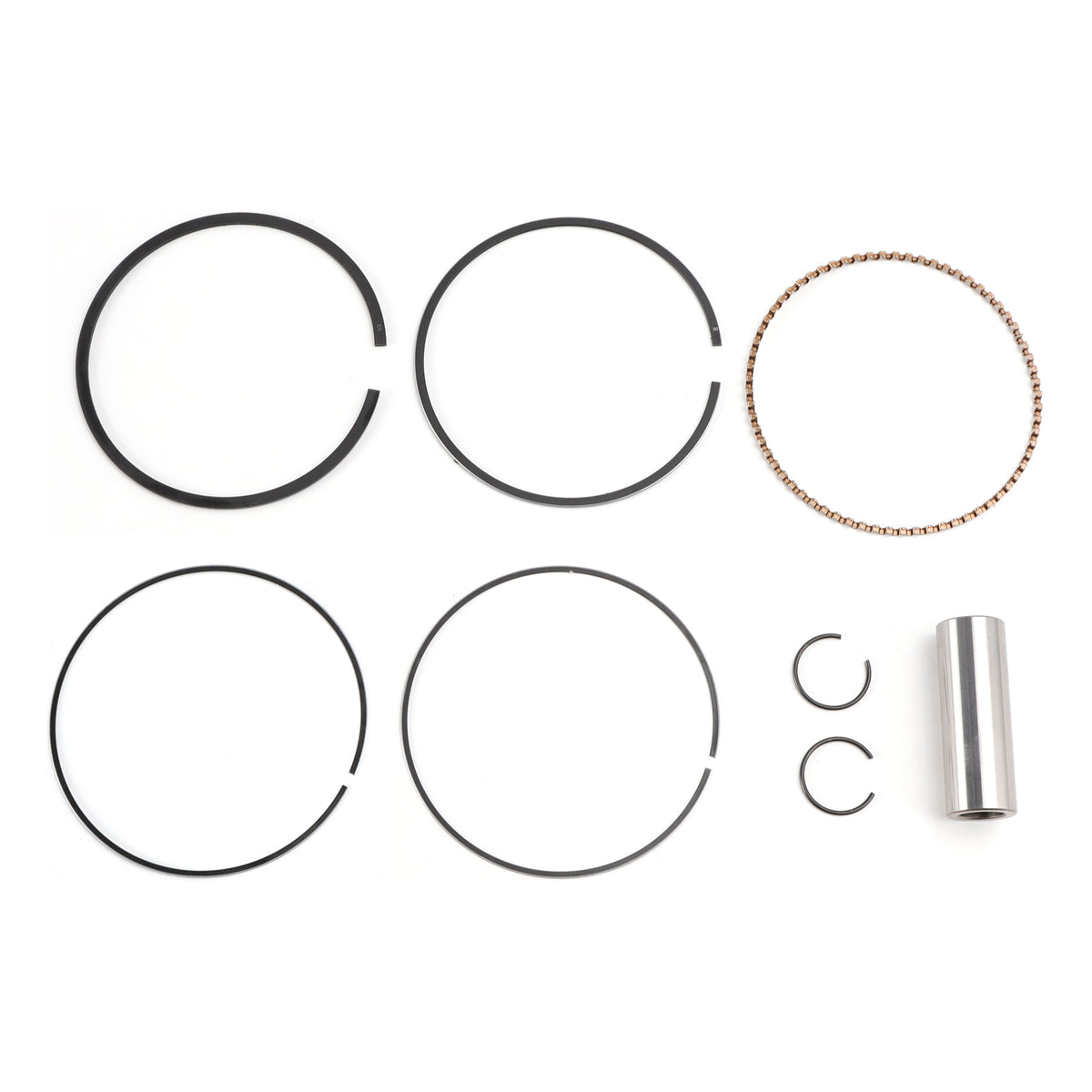

1x Piston Ring Set
2x Circlips
