Complete Cylinder Barrel Piston Kit 110cc Fits Honda CB1 CB110 (KWS) 2015-2019
Complete Cylinder Barrel Piston Kit 110cc Fits Honda CB1 CB110 (KWS) 2015-2019
50mm Cylinder Piston Gasket Top End Rebuild Kit For Honda CB1 CB-1 CB 110cc 2015 - 2019
Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

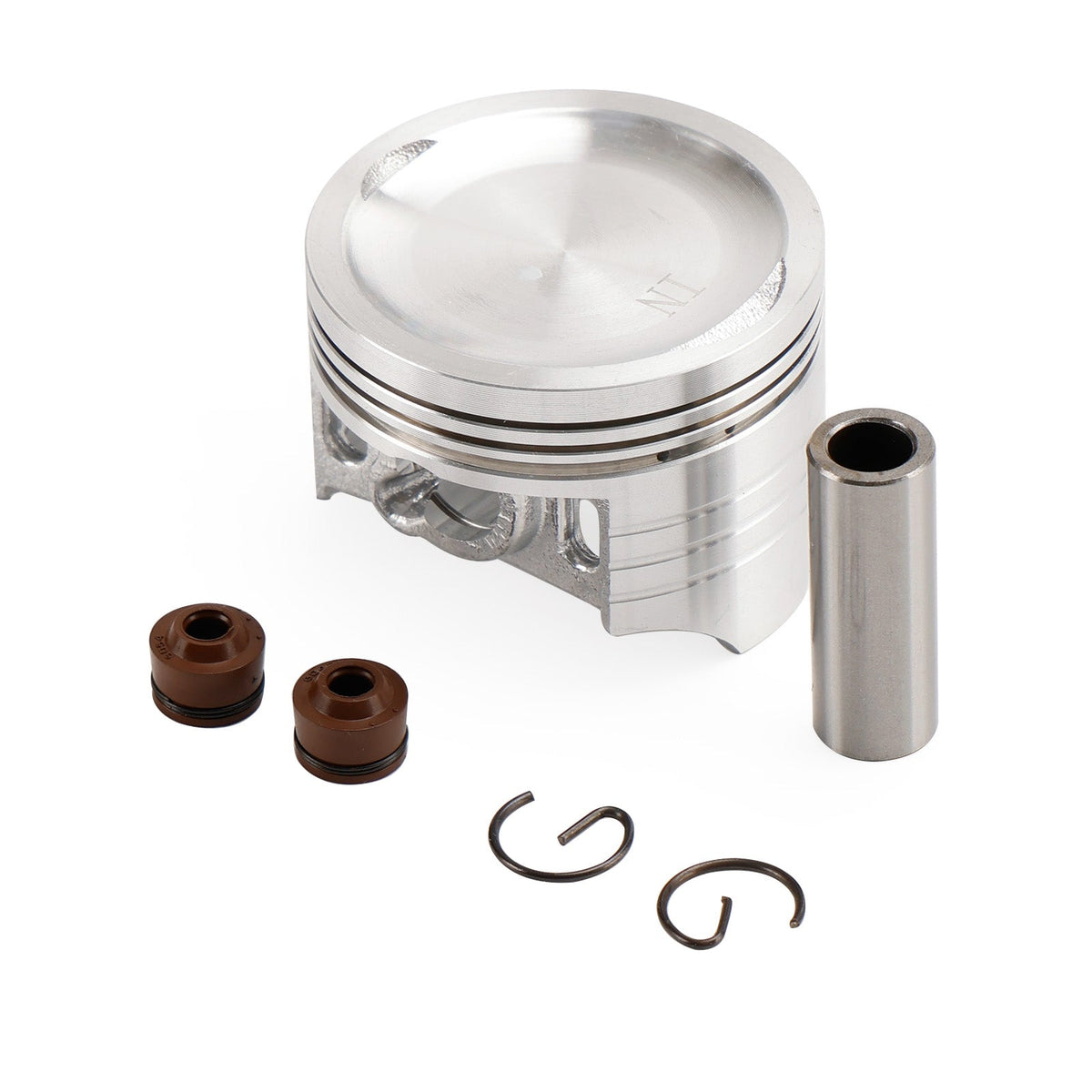

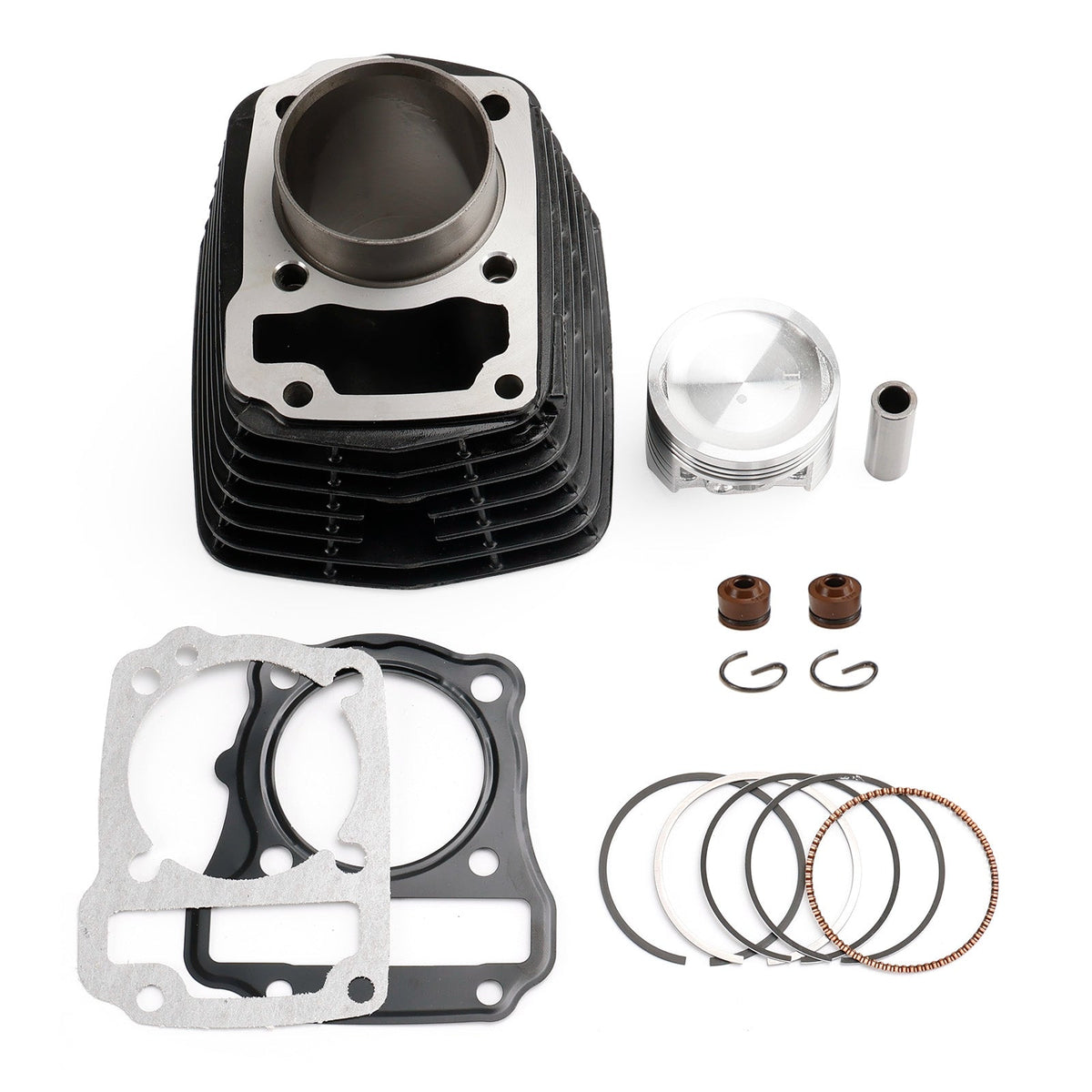

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 50mm, 12mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Bore Type: Standard Bore
Bore diameter: 50mm
Piston pin: 12mm x 33mm
Replacement Part Number:
Cylinder: 12100-K14-900, 12100-KWS-900
Cylinder Base Gasket: 12191-KWS-900
Cylinder Head Gasket: 12251-KWS-901
Piston (Std): 13101-KWS-900
Pin, Piston: 13111-KWS-900
Piston Ring Set (Std): 13011-KWS-900
Circlips, piston: 13115-K23-900
Fits Models:
Fit for Honda CB-1 110cc 2015 - 2016 - 2017 - 2018 - 2019
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package includes:

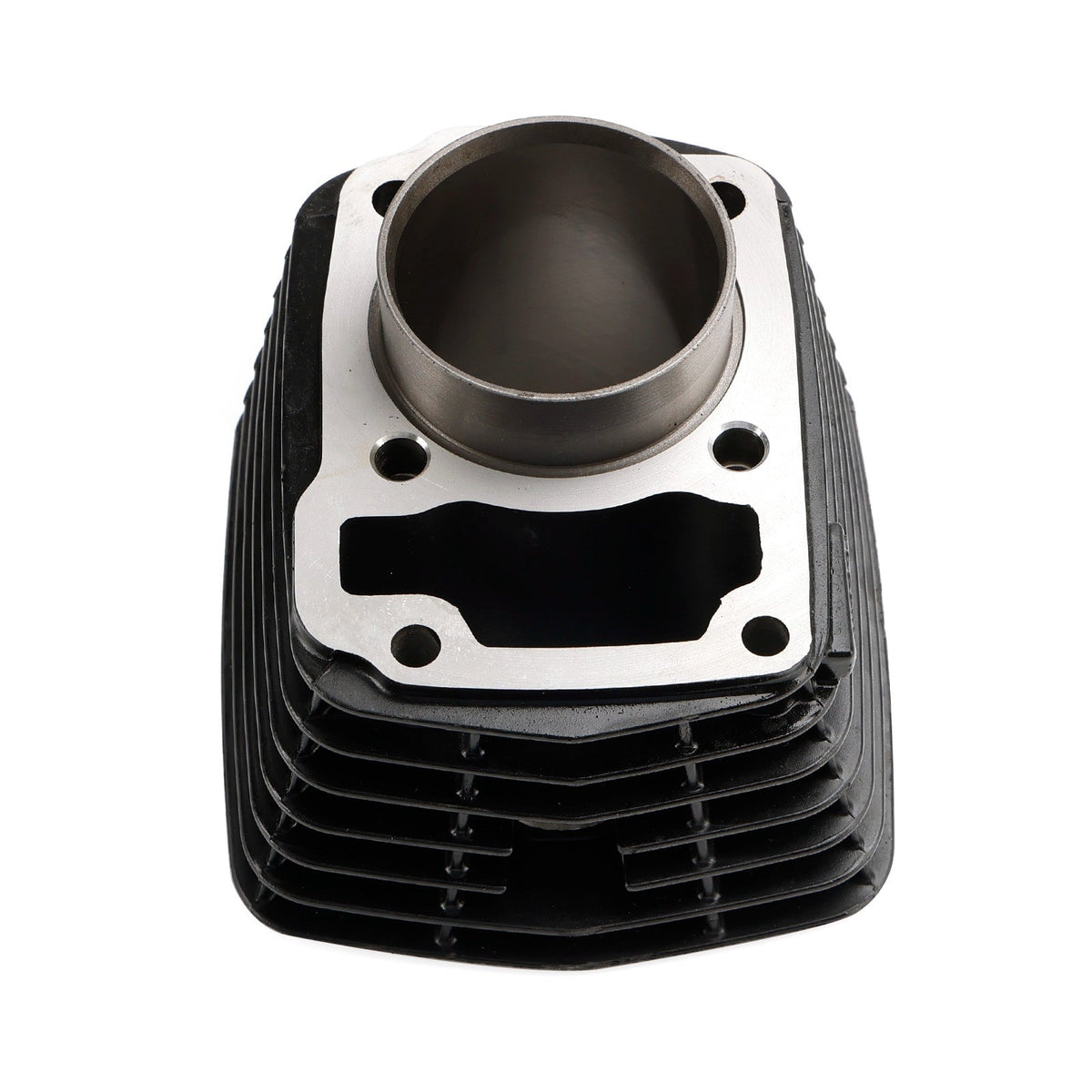

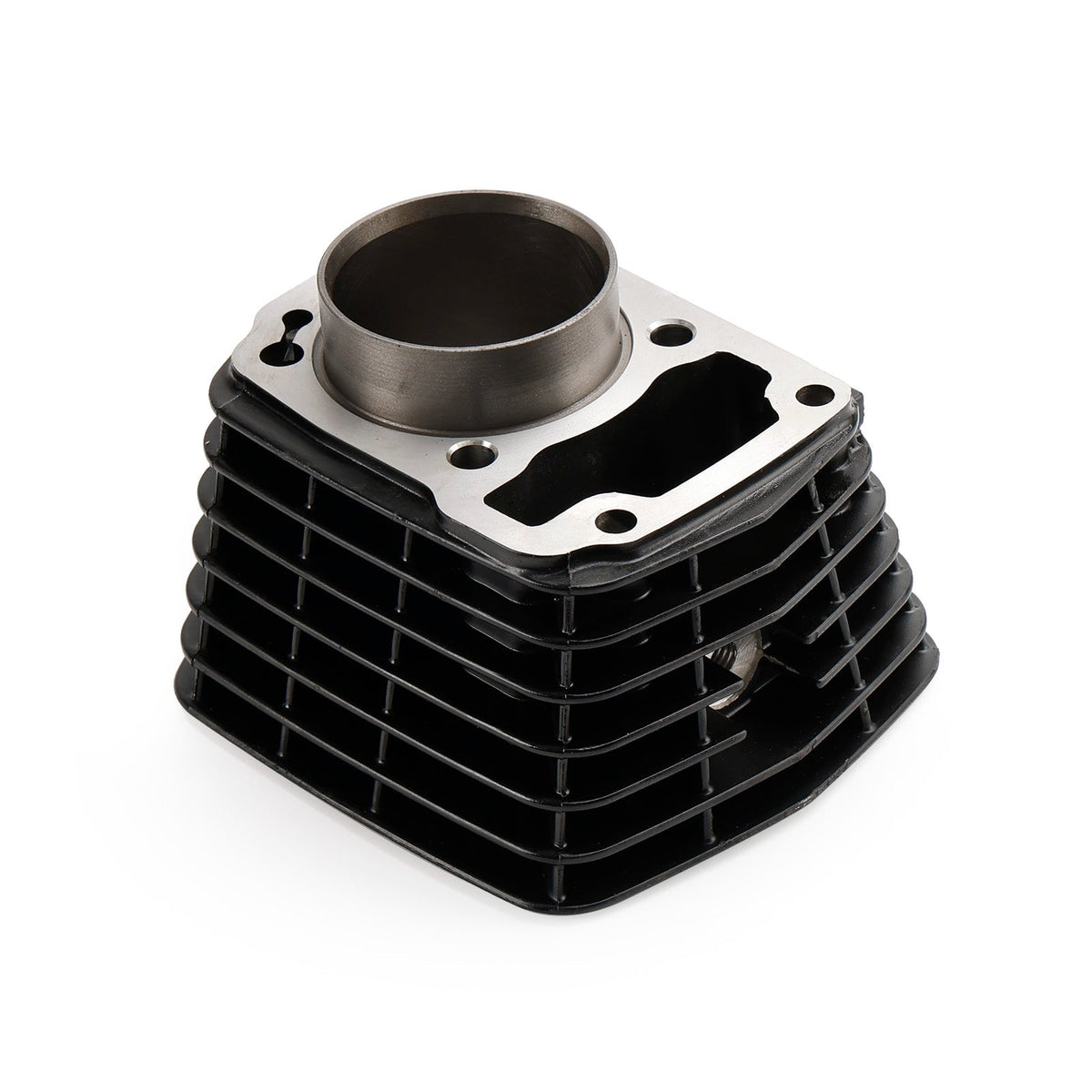

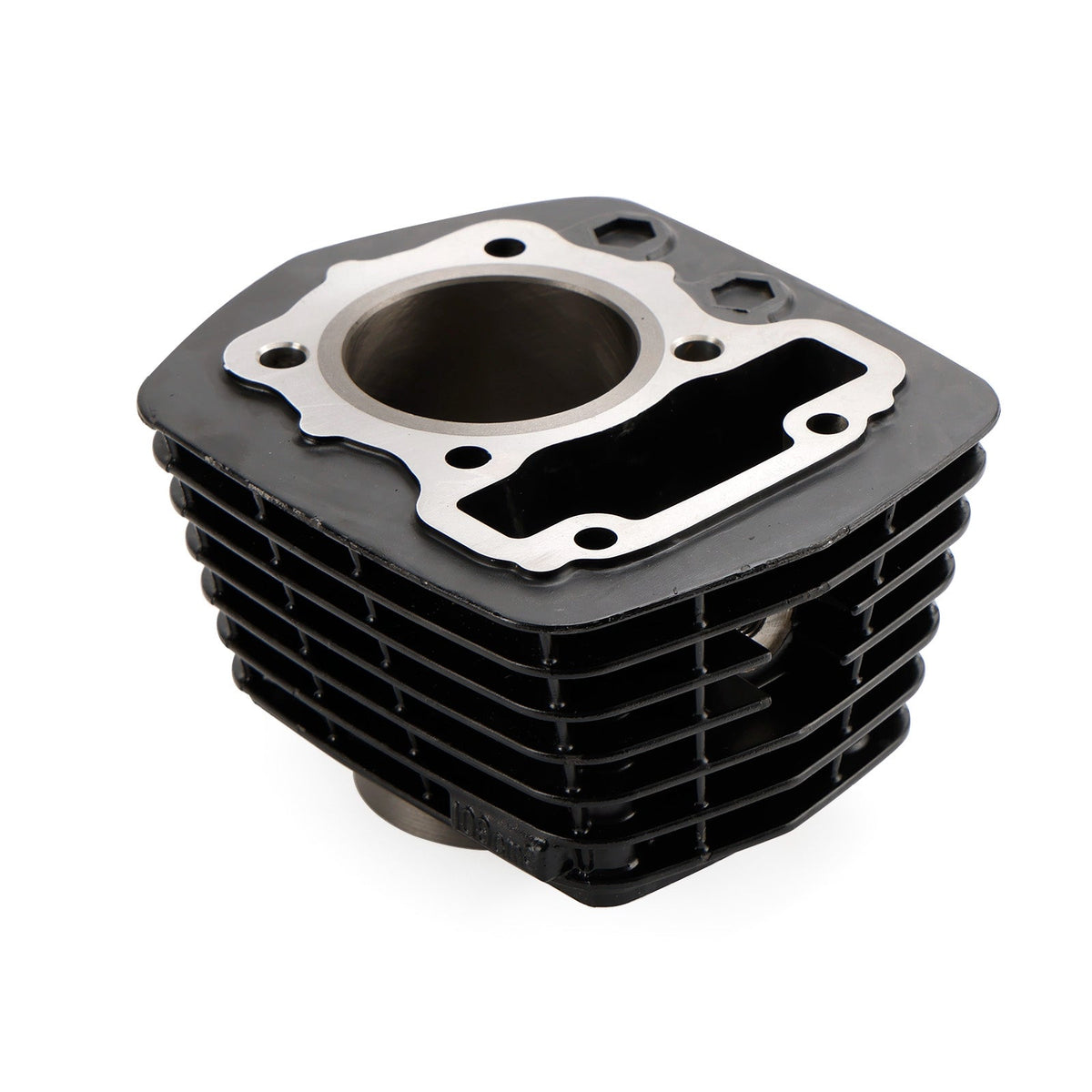

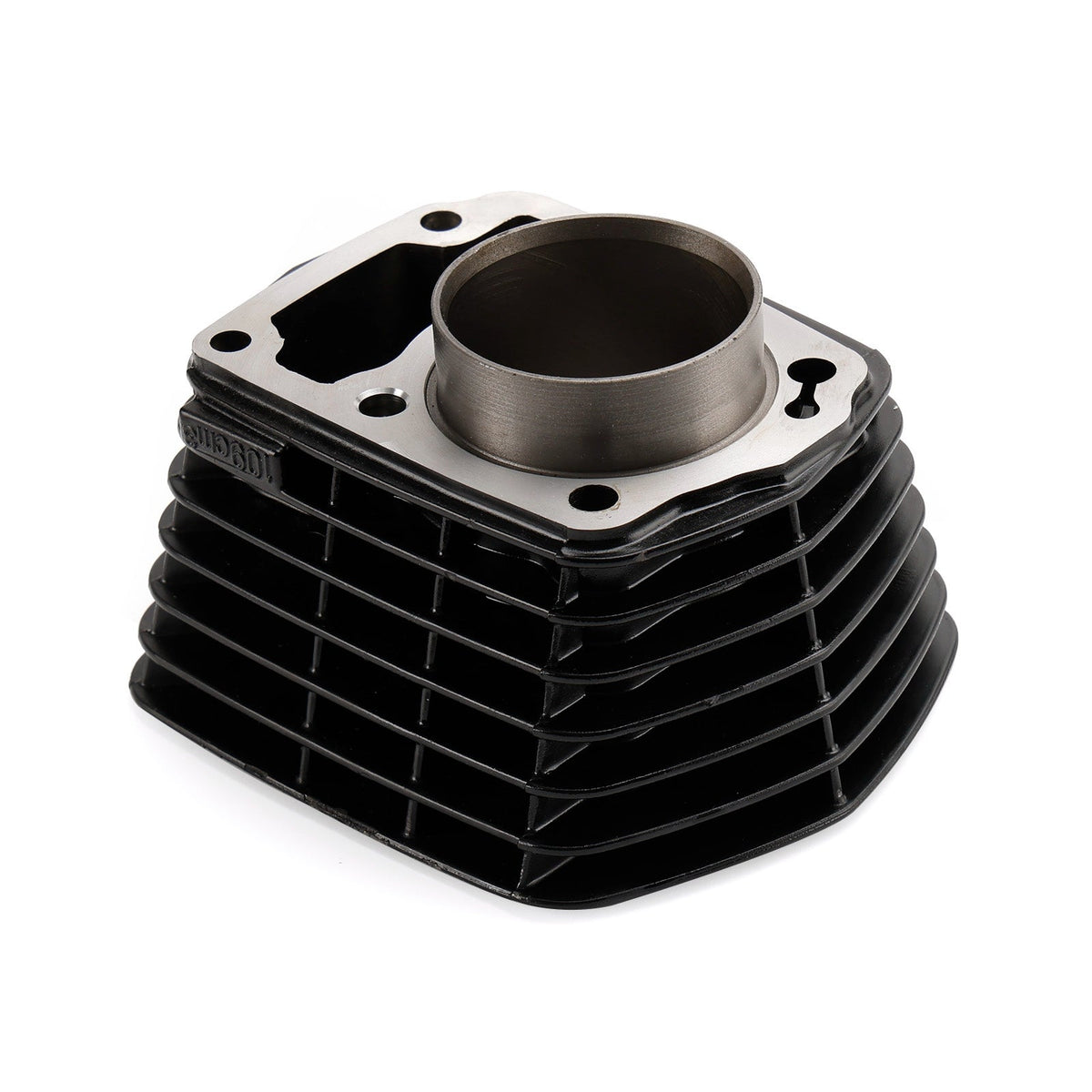

1x Cylinder
1x Piston

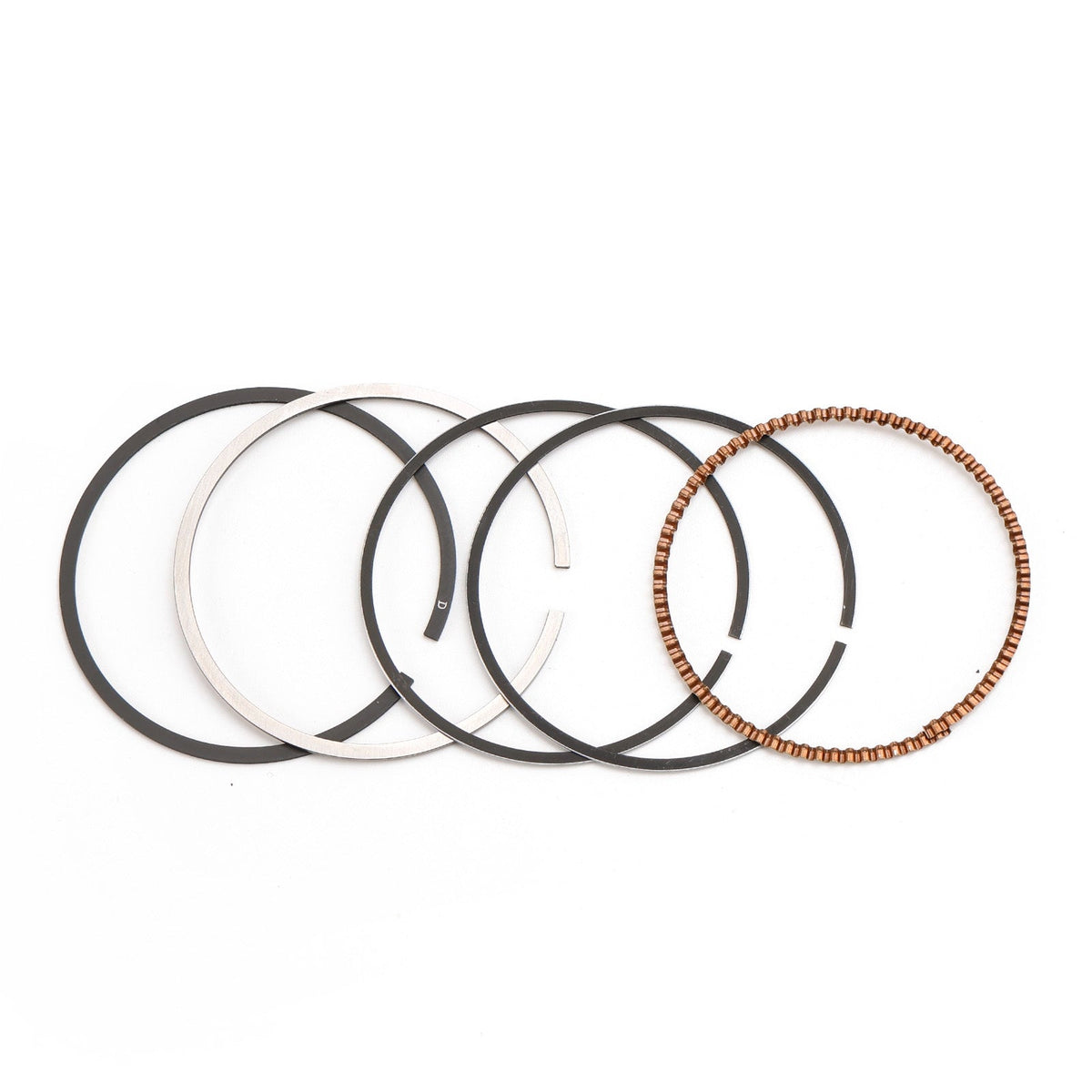

1x Piston Ring Set
1x 12mm Wristpin
2x Circlips

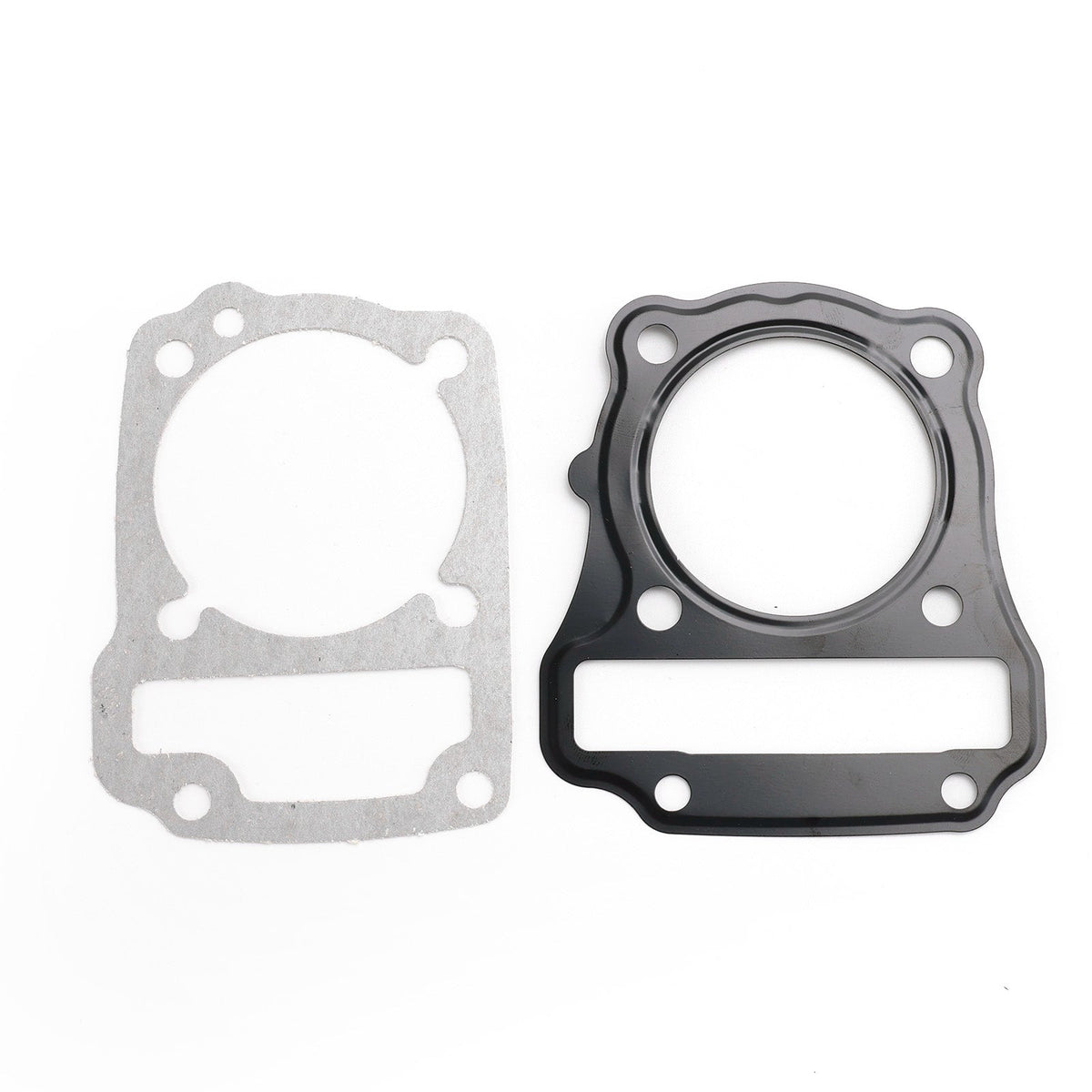

1x Cylinder Base Gasket
1x Cylinder Head Gasket
2x Valve Stem Seals
(Comes exactly as pictured.)
Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
