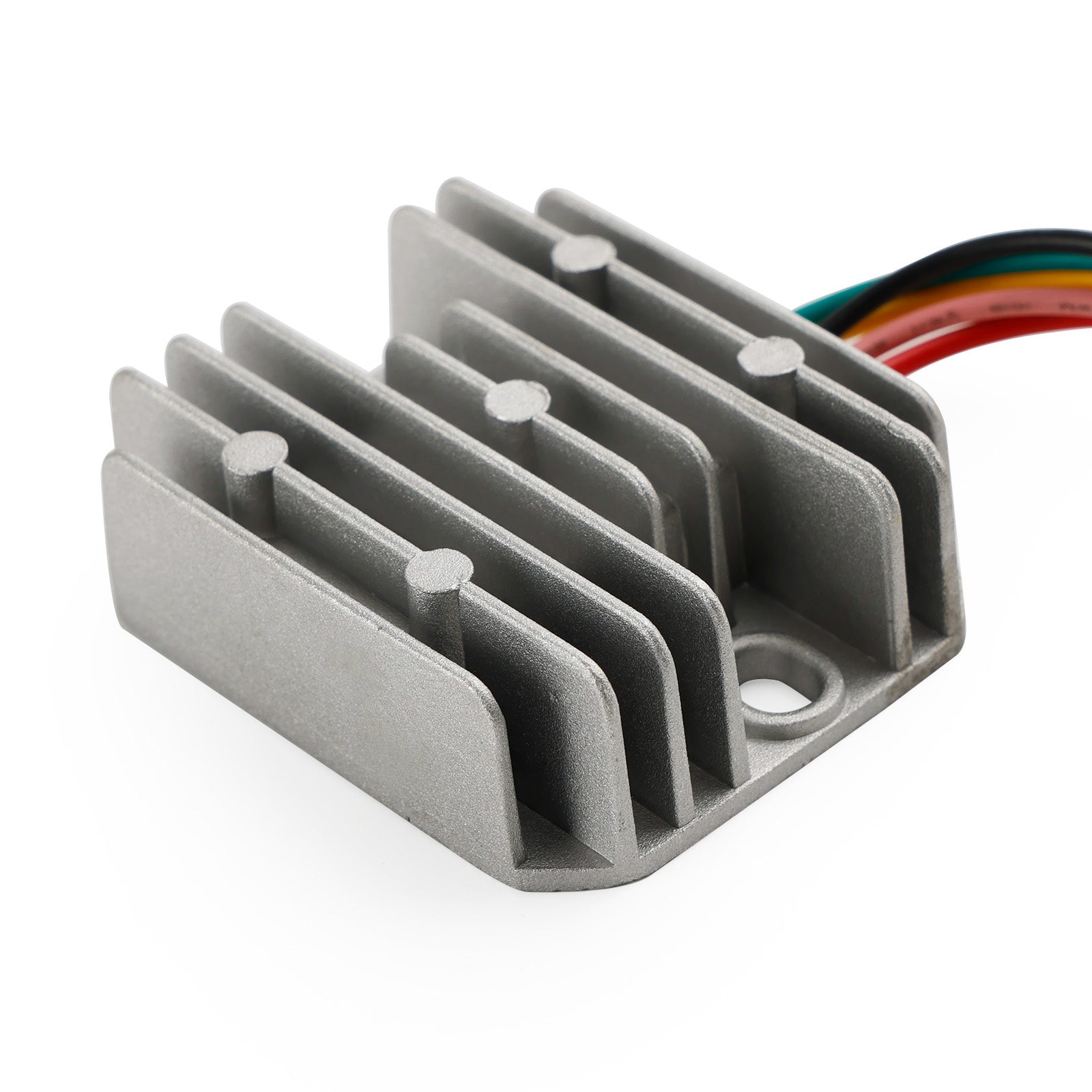

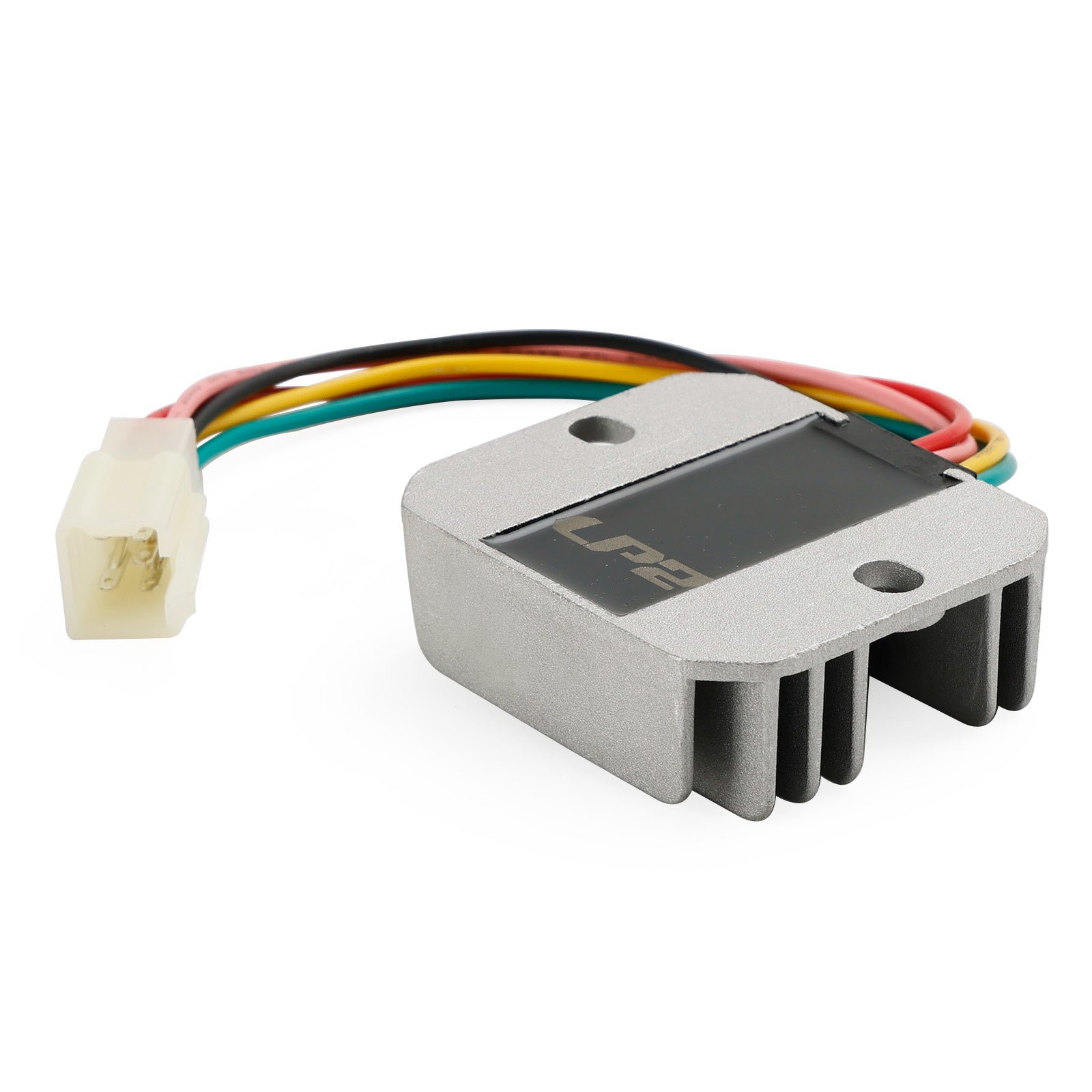

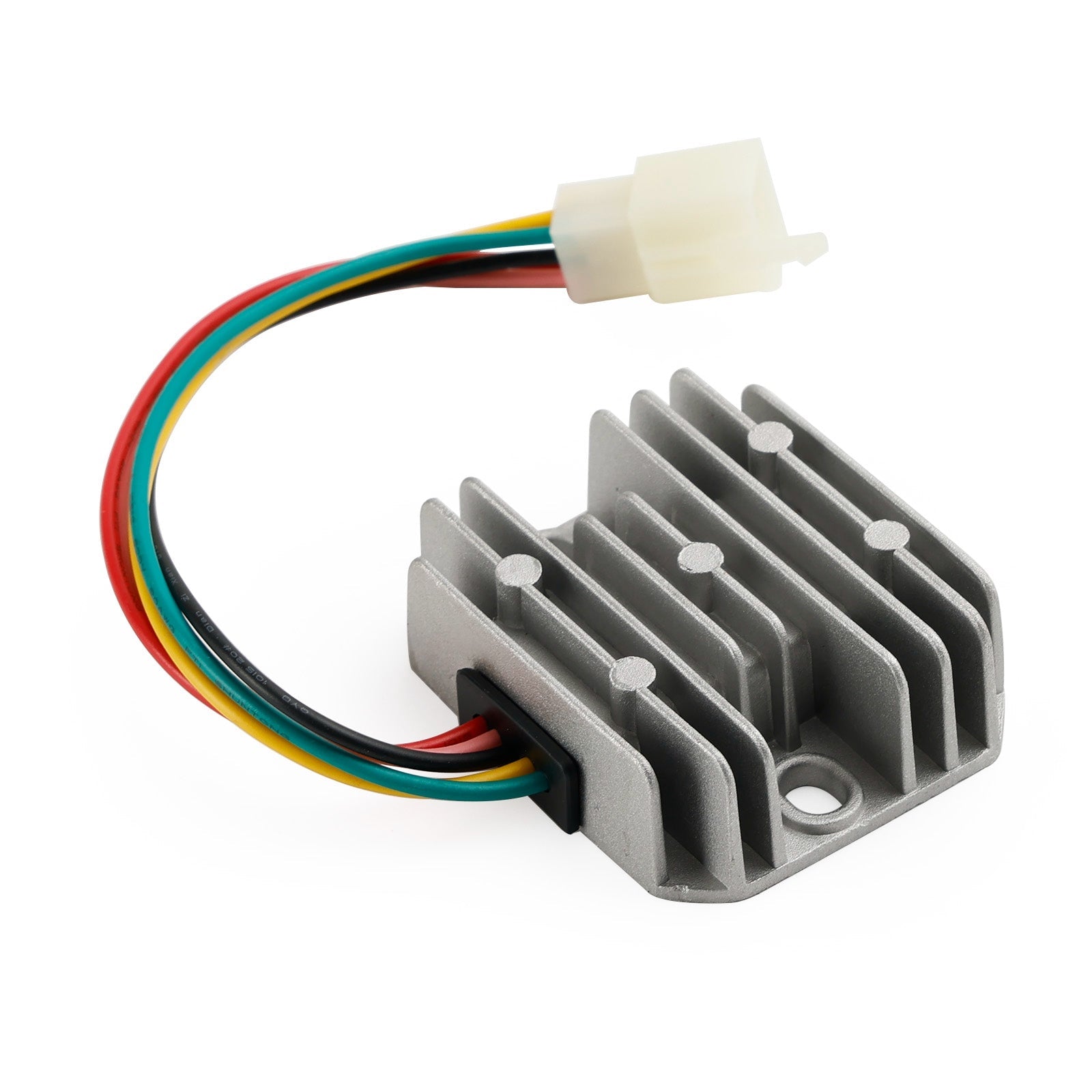

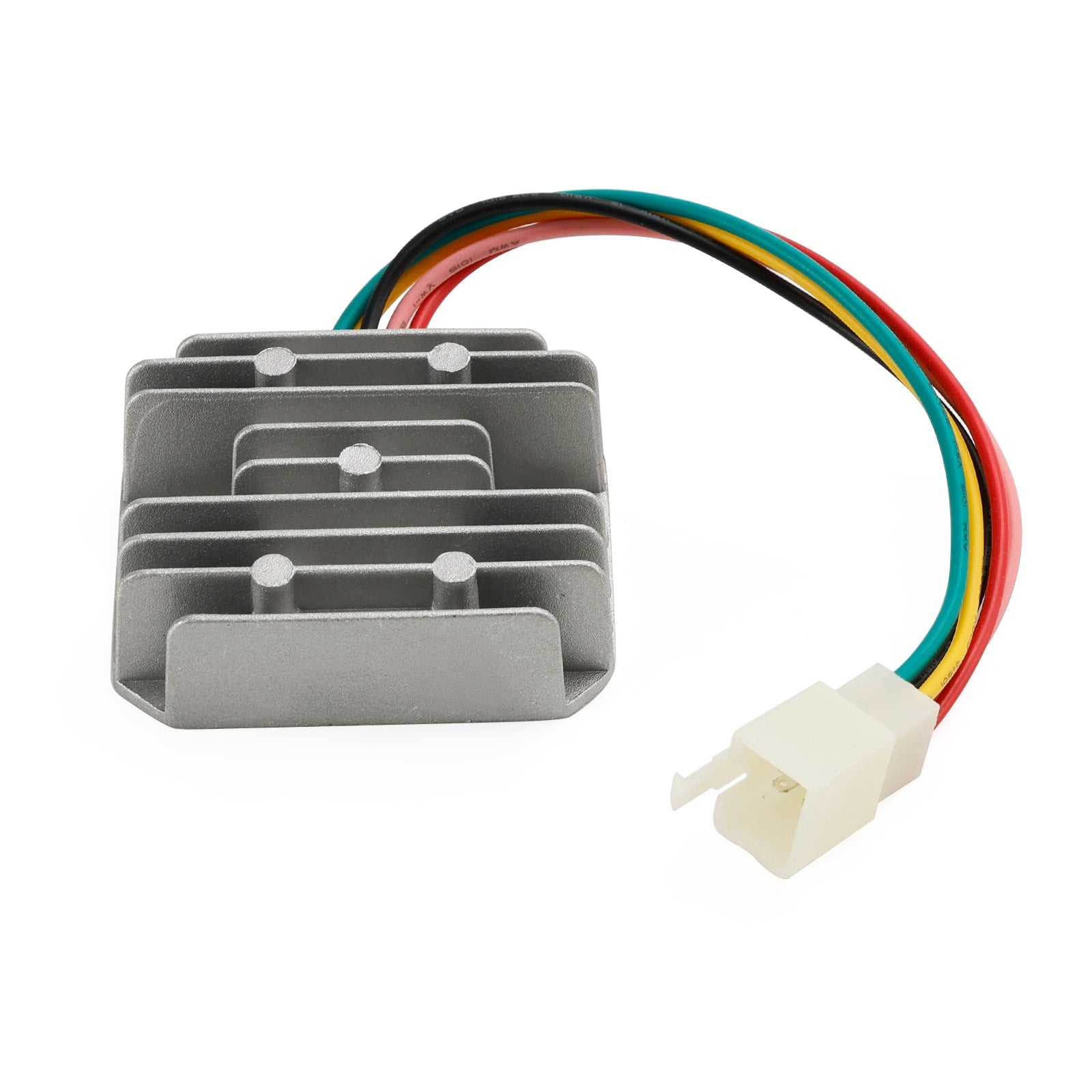

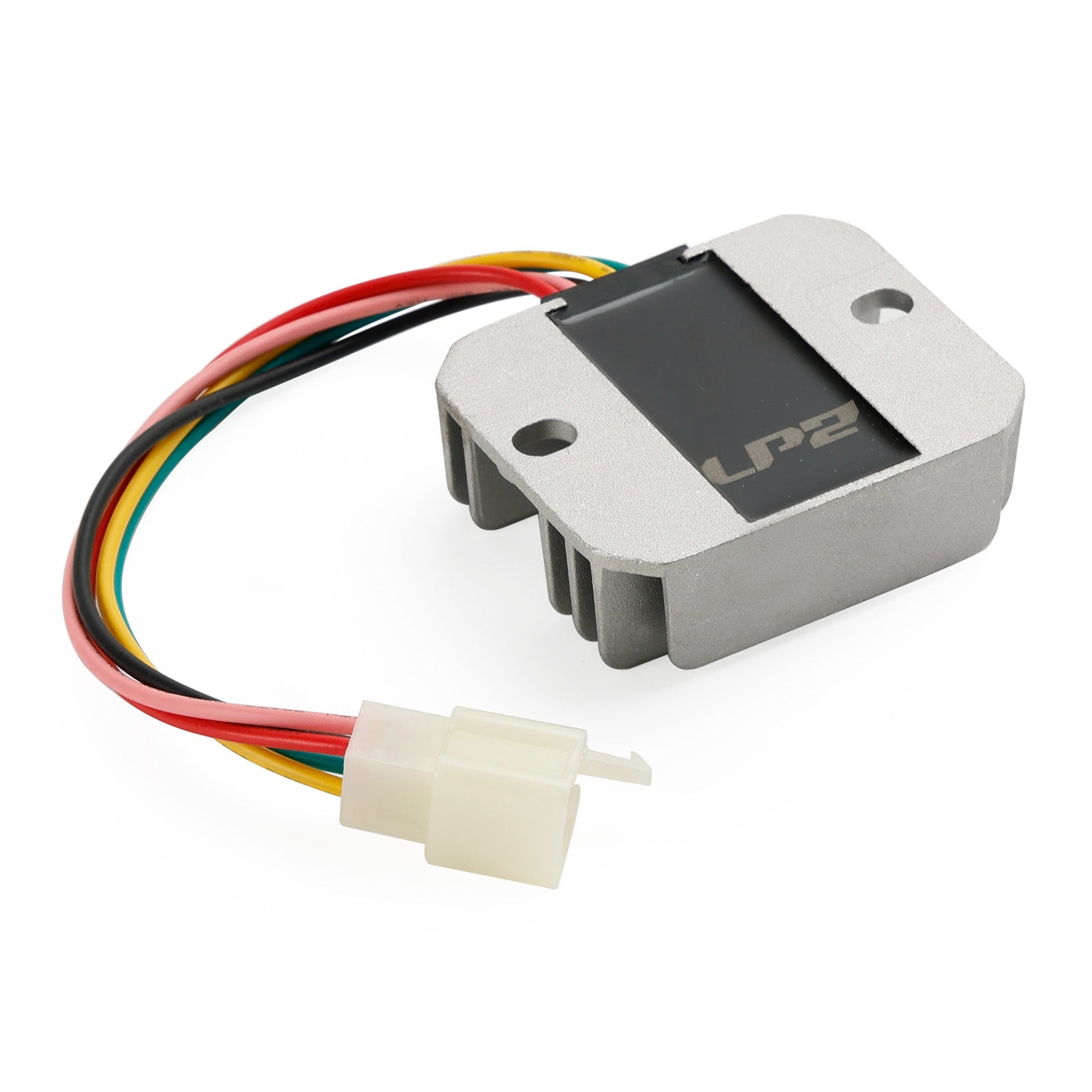

88-90 Honda NSR 125 F / NSR 125 R / NX 125 12A Regulator Rectifier
88-90 Honda NSR 125 F / NSR 125 R / NX 125 12A Regulator Rectifier
SKU:Regulator-A498
Couldn't load pickup availability
Features:
OEM Spec Black Finish Ceramic Hybrid construction.
Perfect fit and ready to install.
All products shipped are tested.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

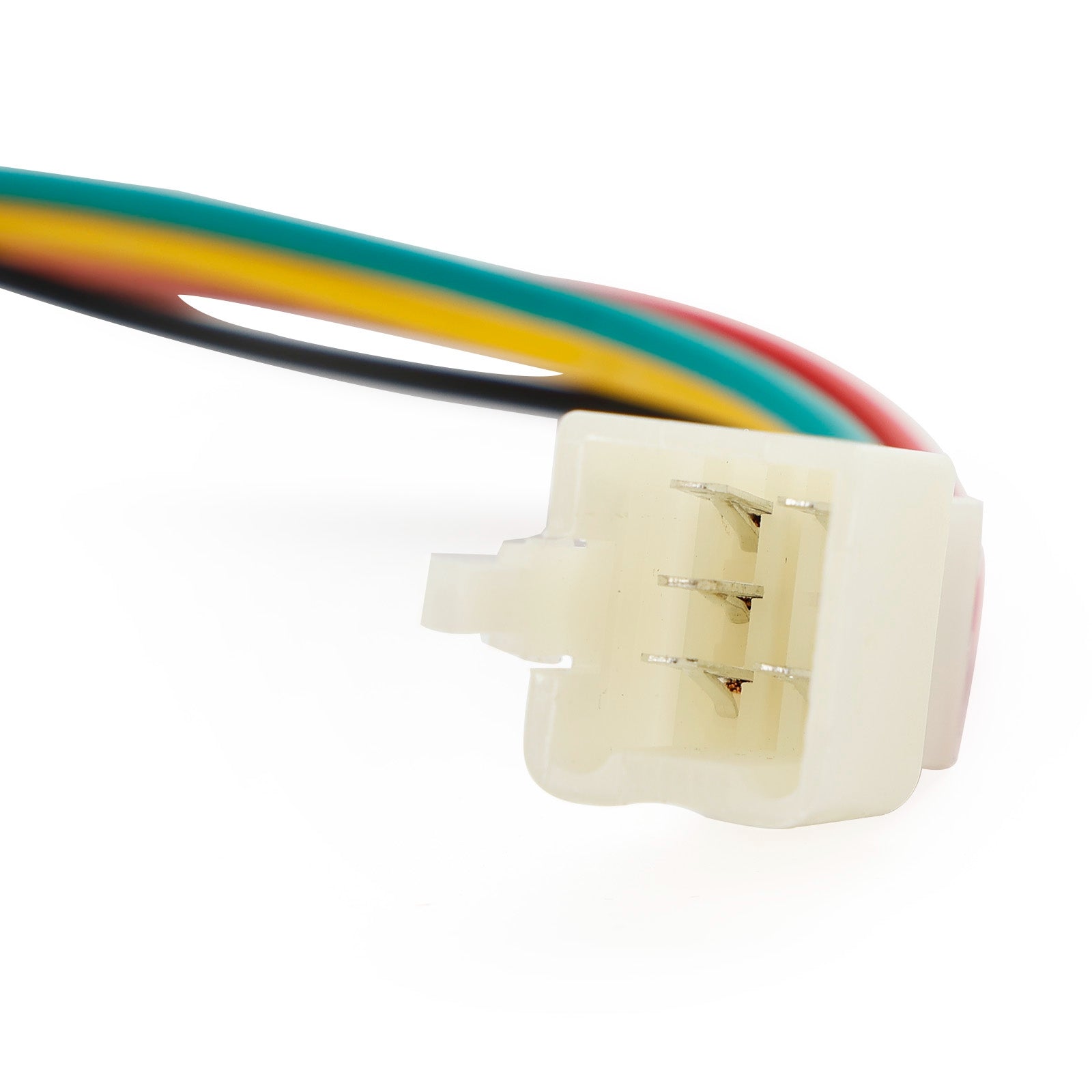

5 wire connector features the square shape 5-pin plug.
Attention:
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1 PC
Type: Regulator / Rectifier
Other specifications :
Number of wires: 5
Number of plugs: 1
Number of pins: 5
Terminal ID:
Yellow - Charging Coil
Pink - Charging Coil
Red - Battery +
Black - Sensor (Ignition Key)
Green - Battery - (Ground)
Replacement Part Number:
31600-KY7-000
31600-KR1-761
Fits Make/Year/Model:
Fit for Honda Motorcycle 1988 NX125 A
Fit for Honda Motorcycle 1988 NX125 AC
Fit for Honda Motorcycle 1989 NX125 A
Fit for Honda Motorcycle 1989 NX125 AC
Fit for Honda Motorcycle 1990 NX125 A
Fit for Honda Motorcycle 1990 NX125 AC
Fit for Honda 1988-1993 NSR125F
Fit for Honda 1989-1993 NSR125R
(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package includes:
1x Regulator Rectifier
Note:
Before installing your new regulator rectifier;
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
How to distinguish CDI box with AC fired or CDI box with DC fired?
If headlights turn on without the engine running(with just the key on), it is a DC system. In the AC system, turning ?headlights on require the engine to be running. Another indication is, if the engine will only runs with a battery it is DC. If it will runs without a battery, it is a AC system.
What does the voltage regulator do?
This regulator has the task of converting the alternating voltage (AC) generated by the alternator into the direct voltage (DC) 12V used in the vehicle electrical system and keeping the voltage within a certain range.
The voltage regulator is also responsible for ensuring that the battery is charged and that the light bulbs do not burn out.
How do I know if the charge regulator can be defective?
- Incandescent lamps burn out all the time.
- Headlights get brighter and darker.
- The battery is constantly empty.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
Shipping:
Free Shipping
Handling?time: Ship within 24 hours
Delivery Time: 3-7 business days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
