YX160 Pitbike Dirtbike Stomp 160cc 60mm Cylinder Barrel Piston Gaskets Kit

60mm Cylinder Piston Gasket Top End Rebuild Kit For Pit Bike Dirt Bike YX160 Z155 Engine

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

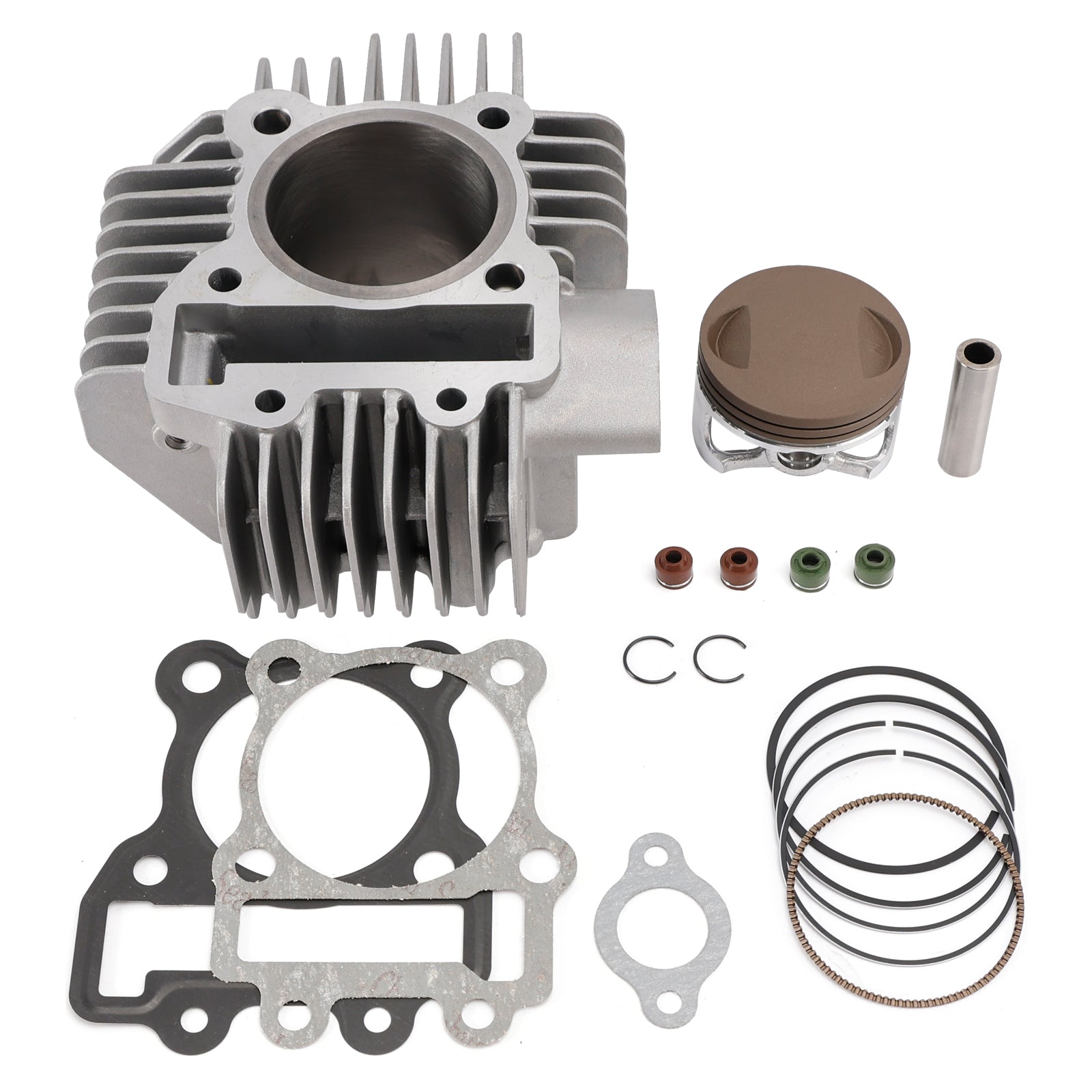

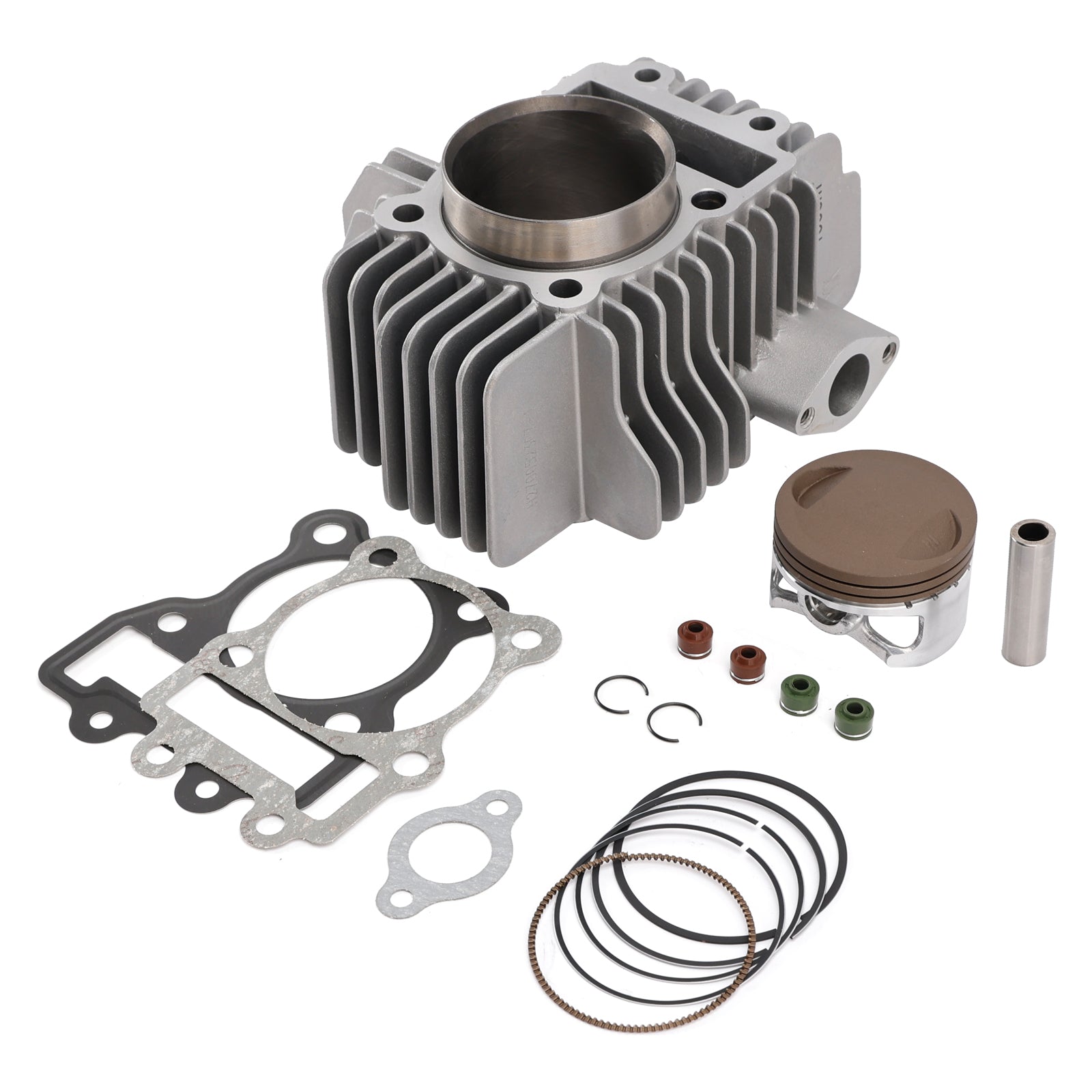

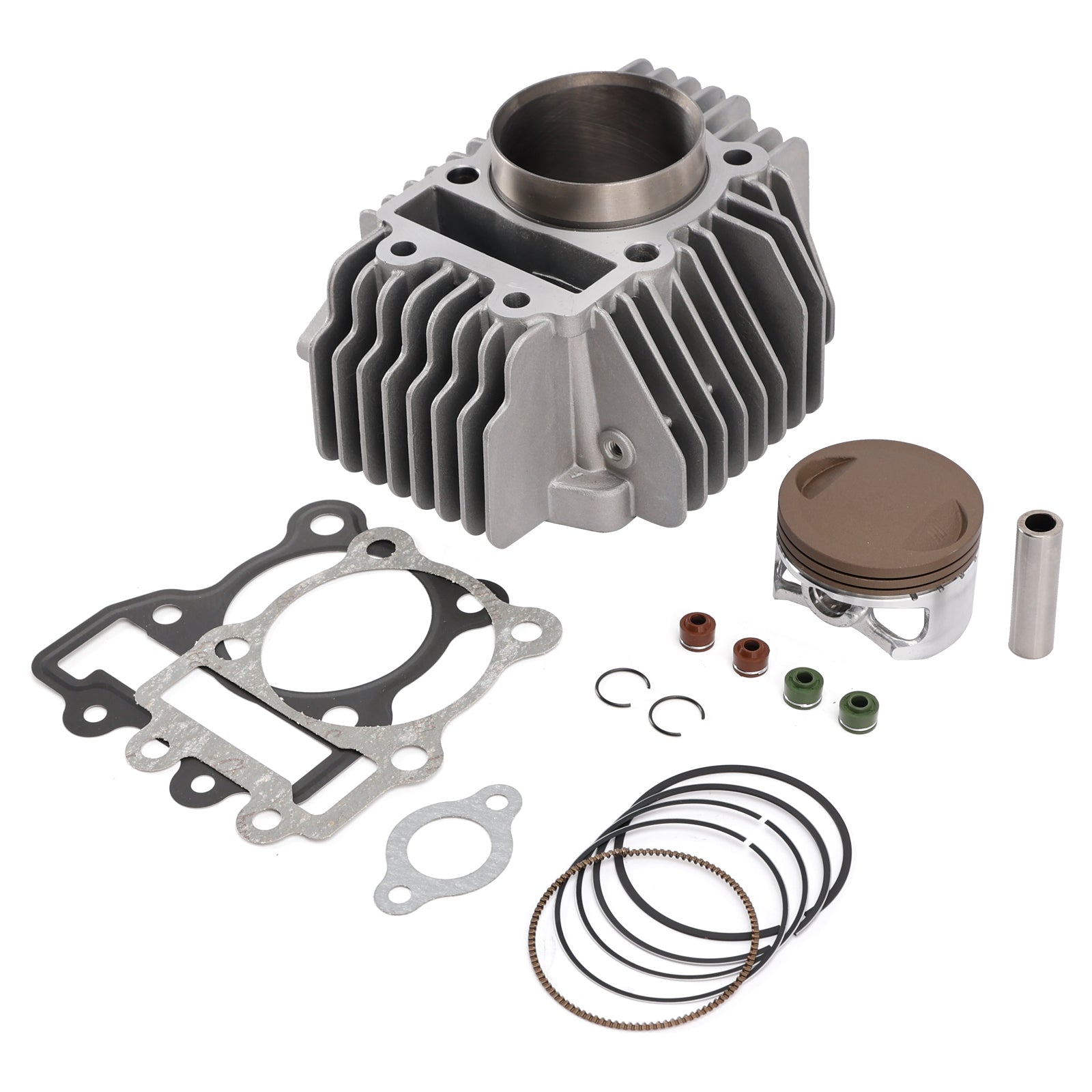

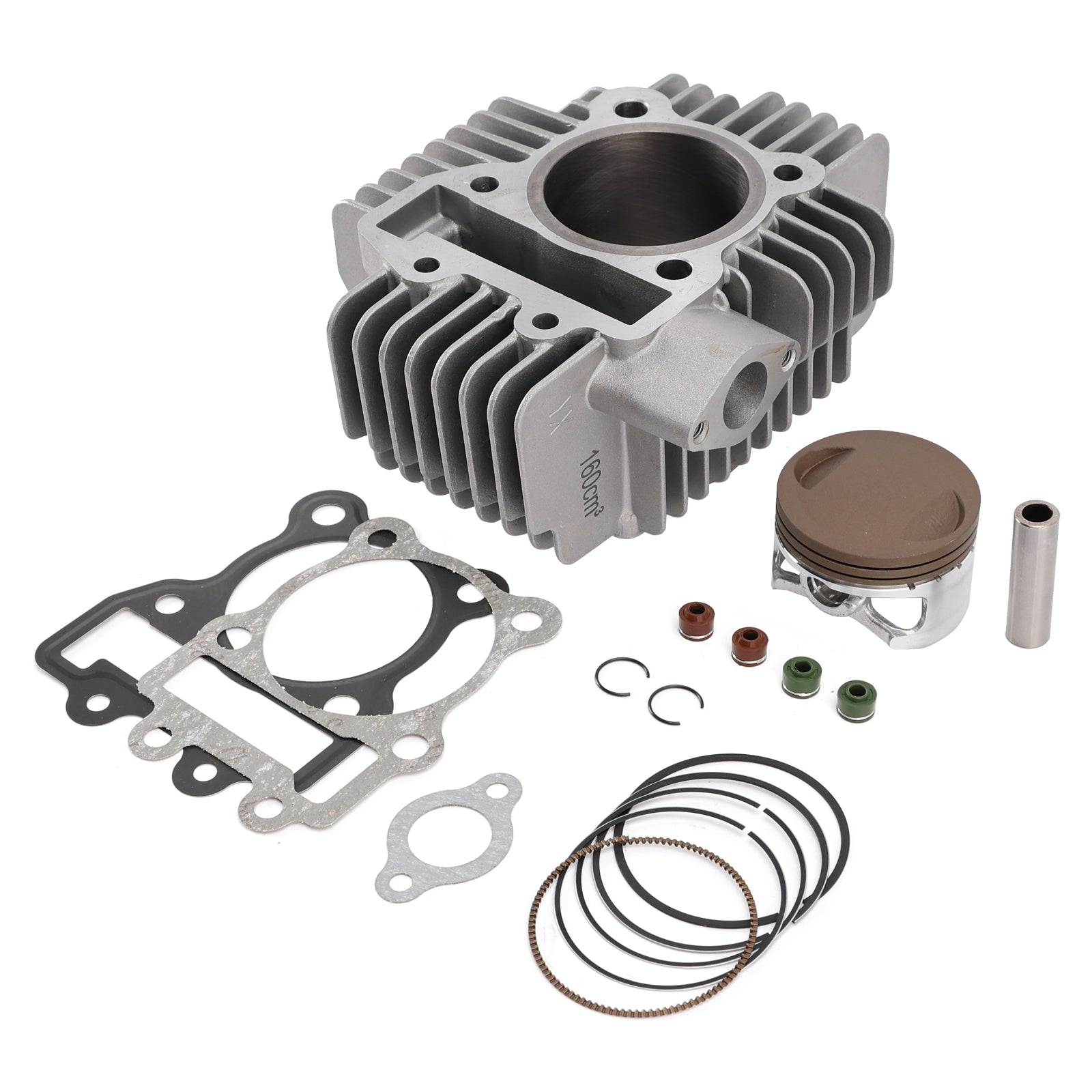

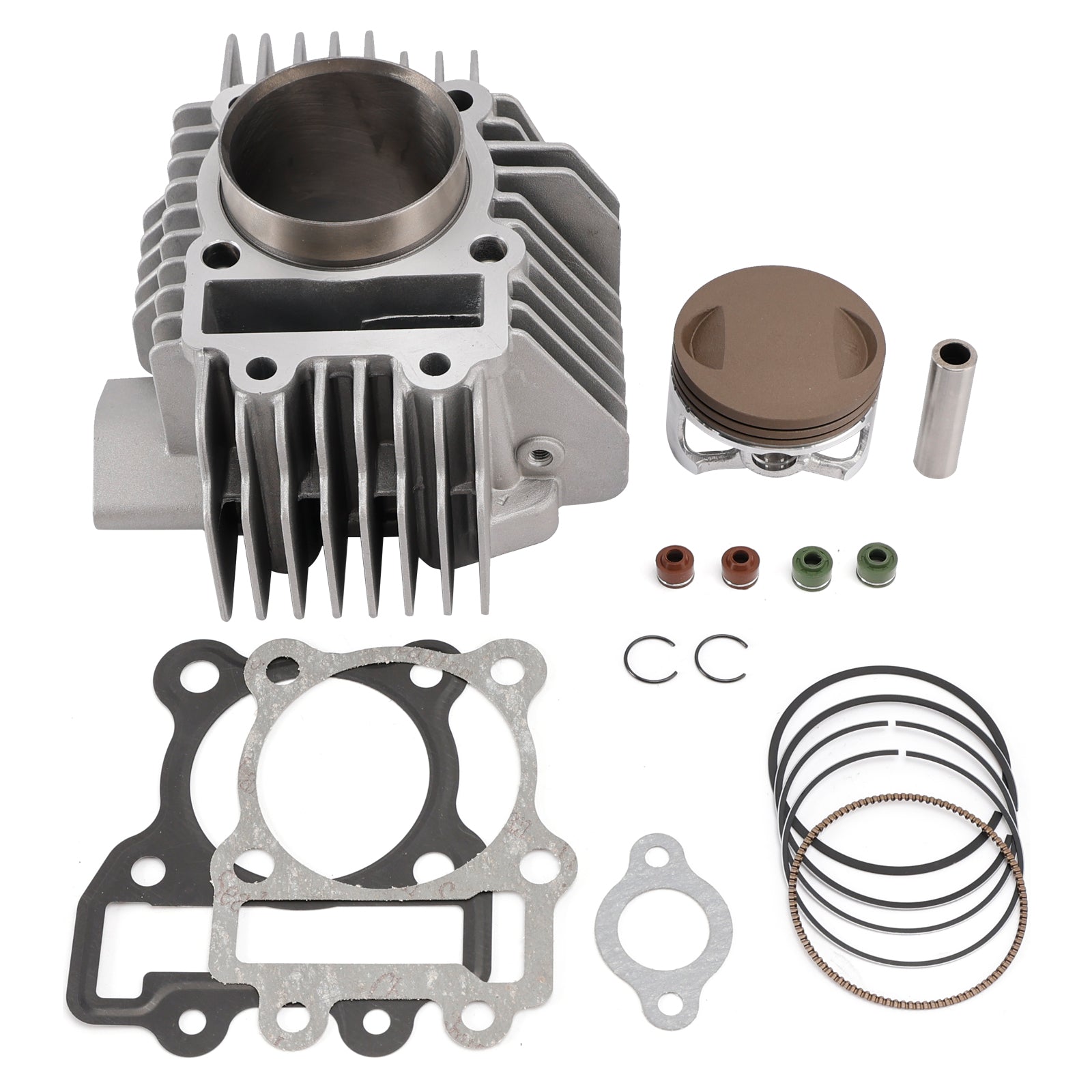

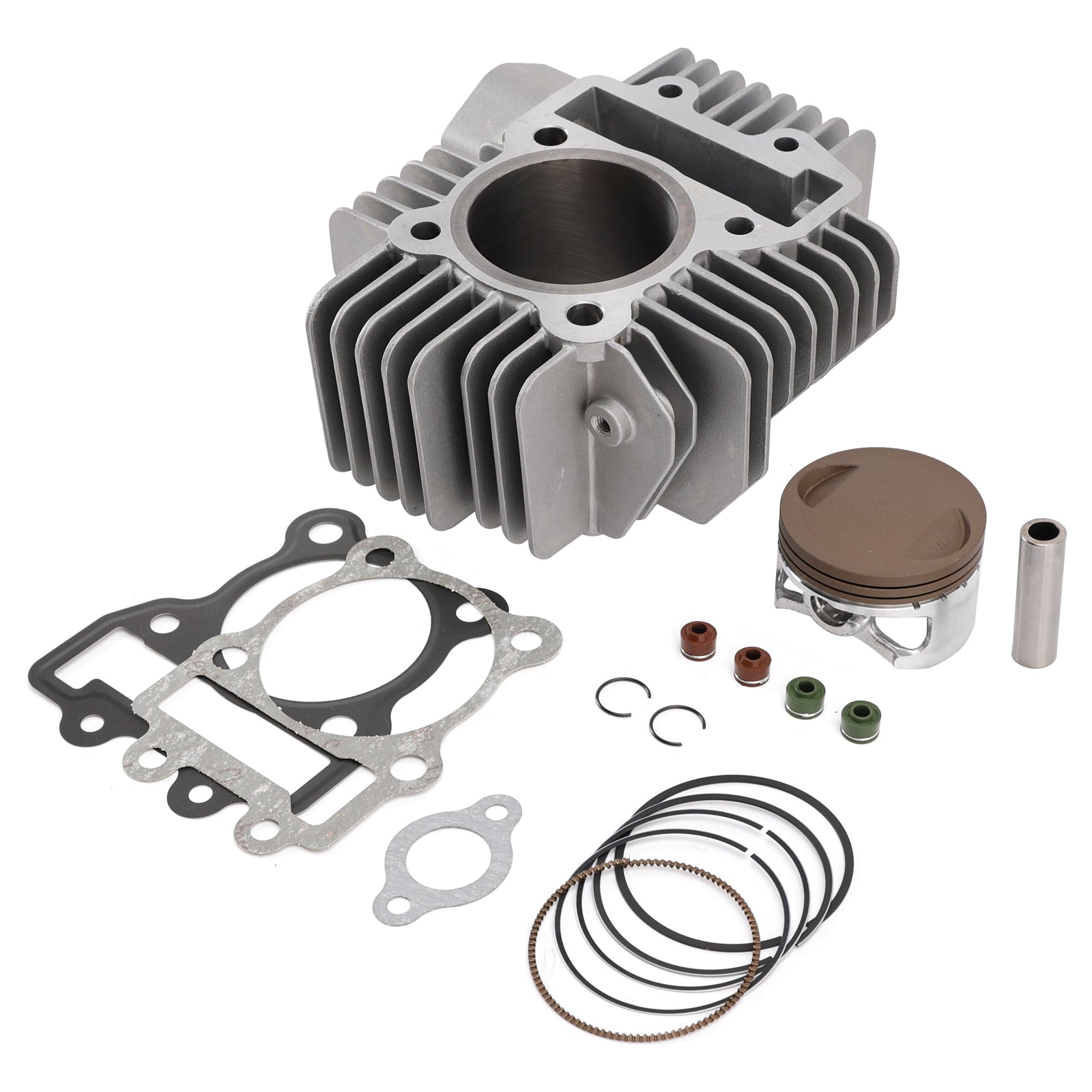

Kit includes cylinder, piston(2-valve), rings, pin, clips & top end gasket kit (you get exactly what is pictured).

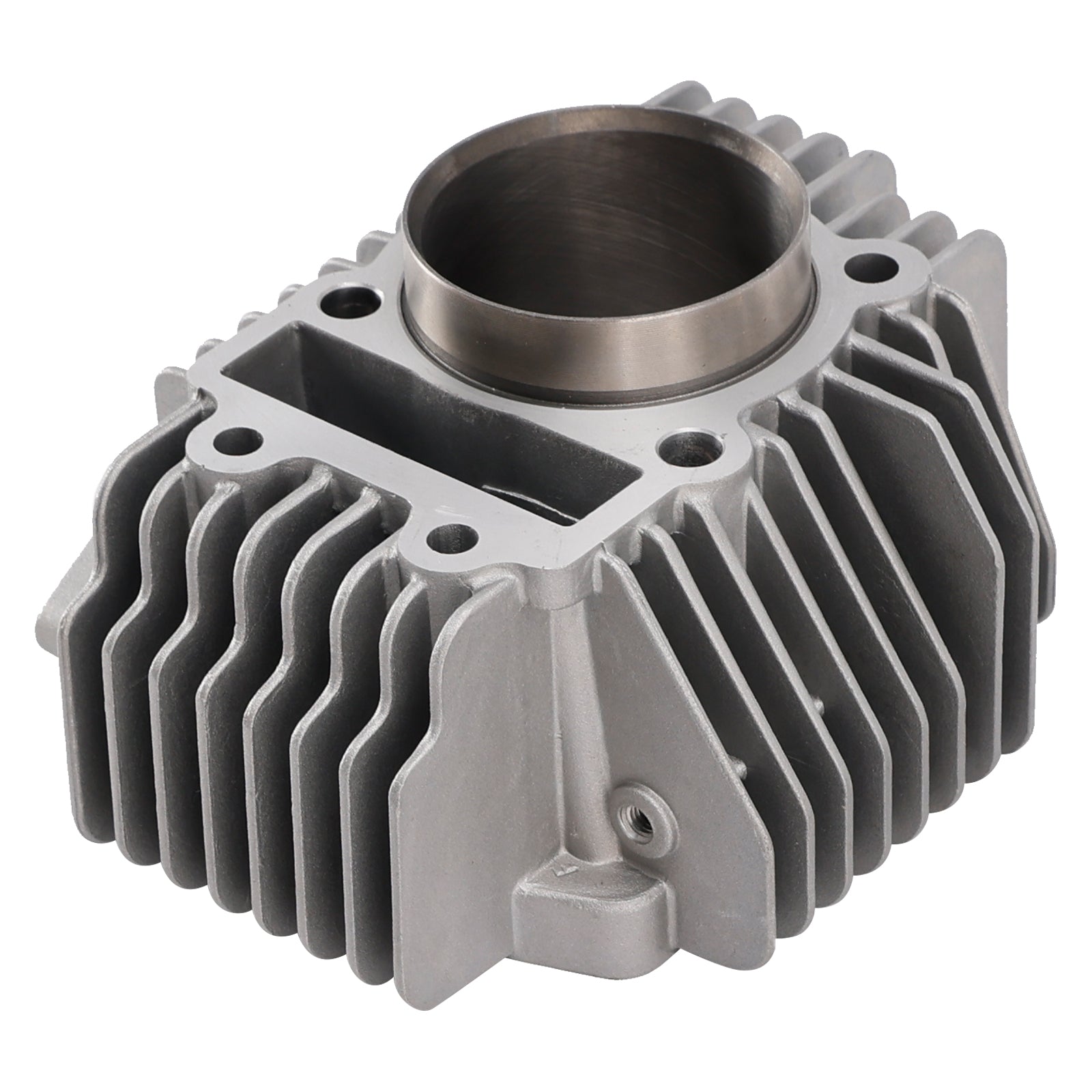

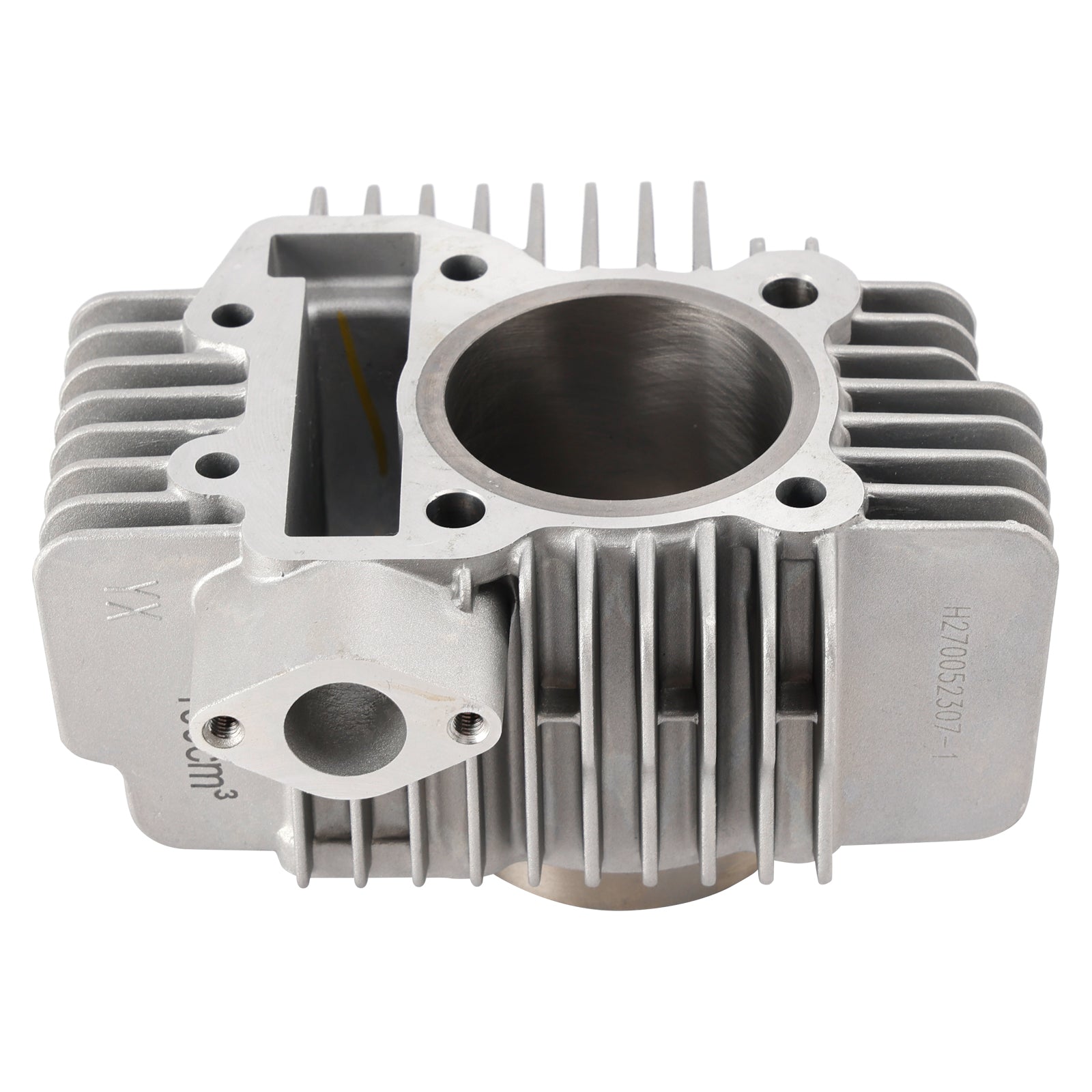

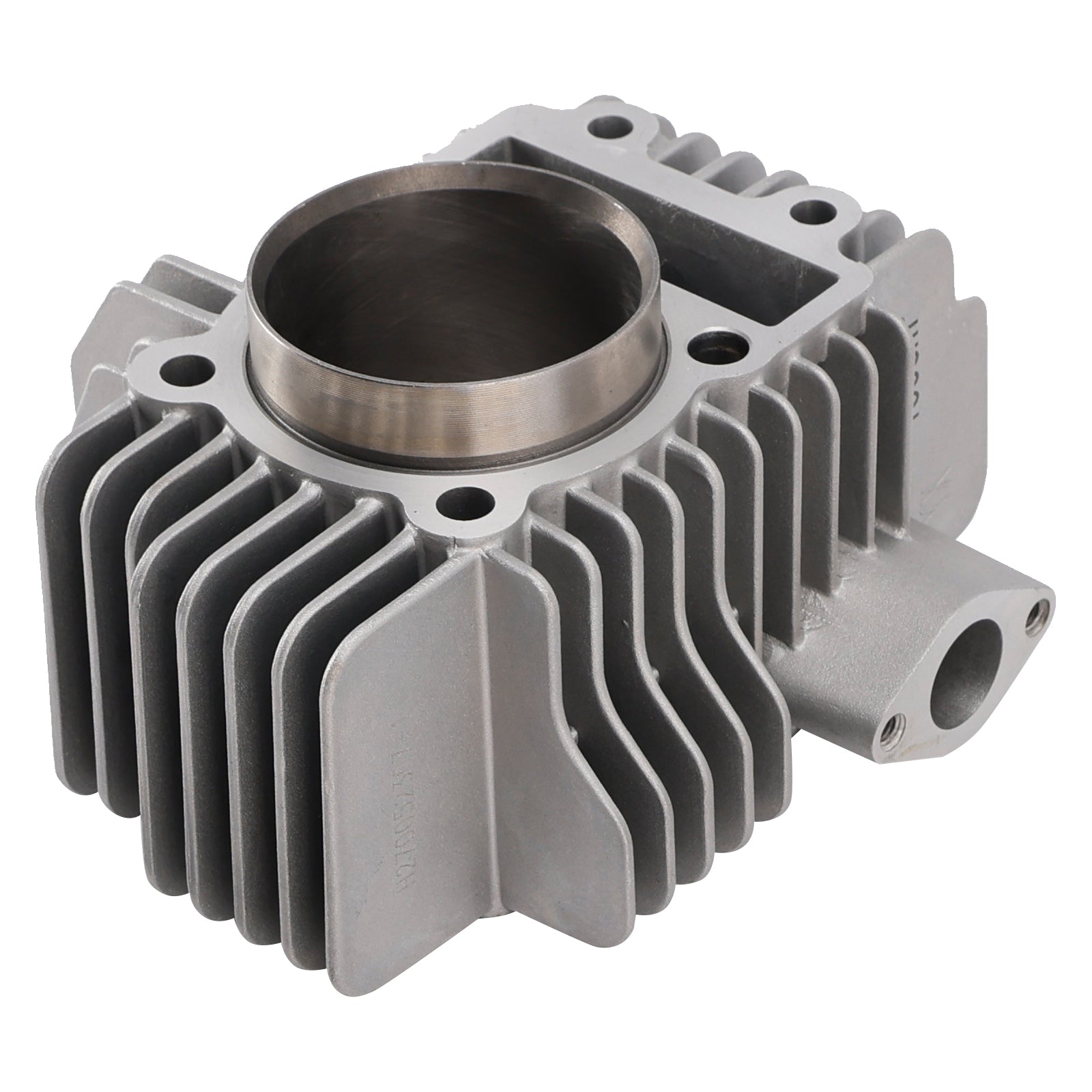

The cylinder is made of aluminum for good cooling with an internal cast iron jacket (unlike which has a nicasil treatment).

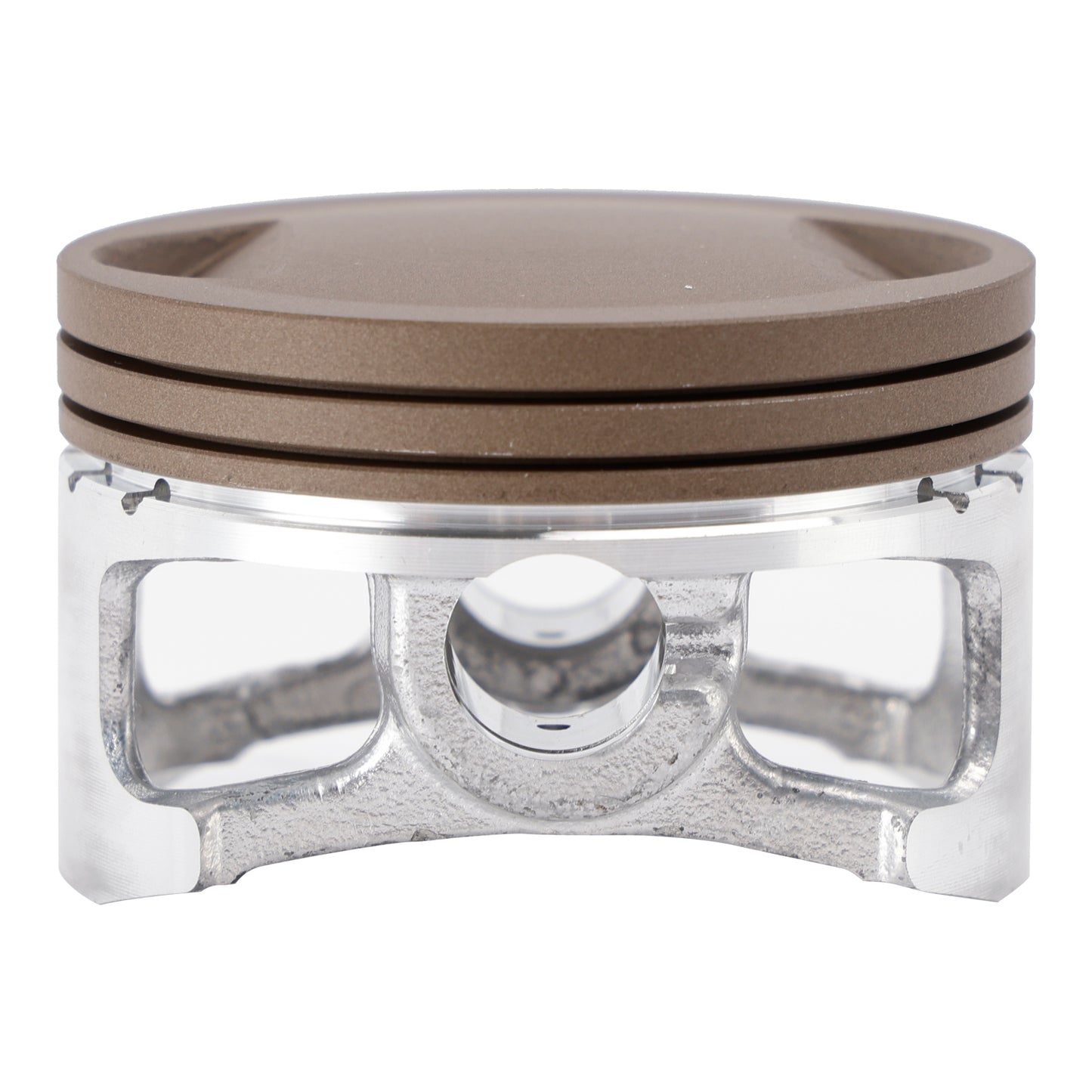

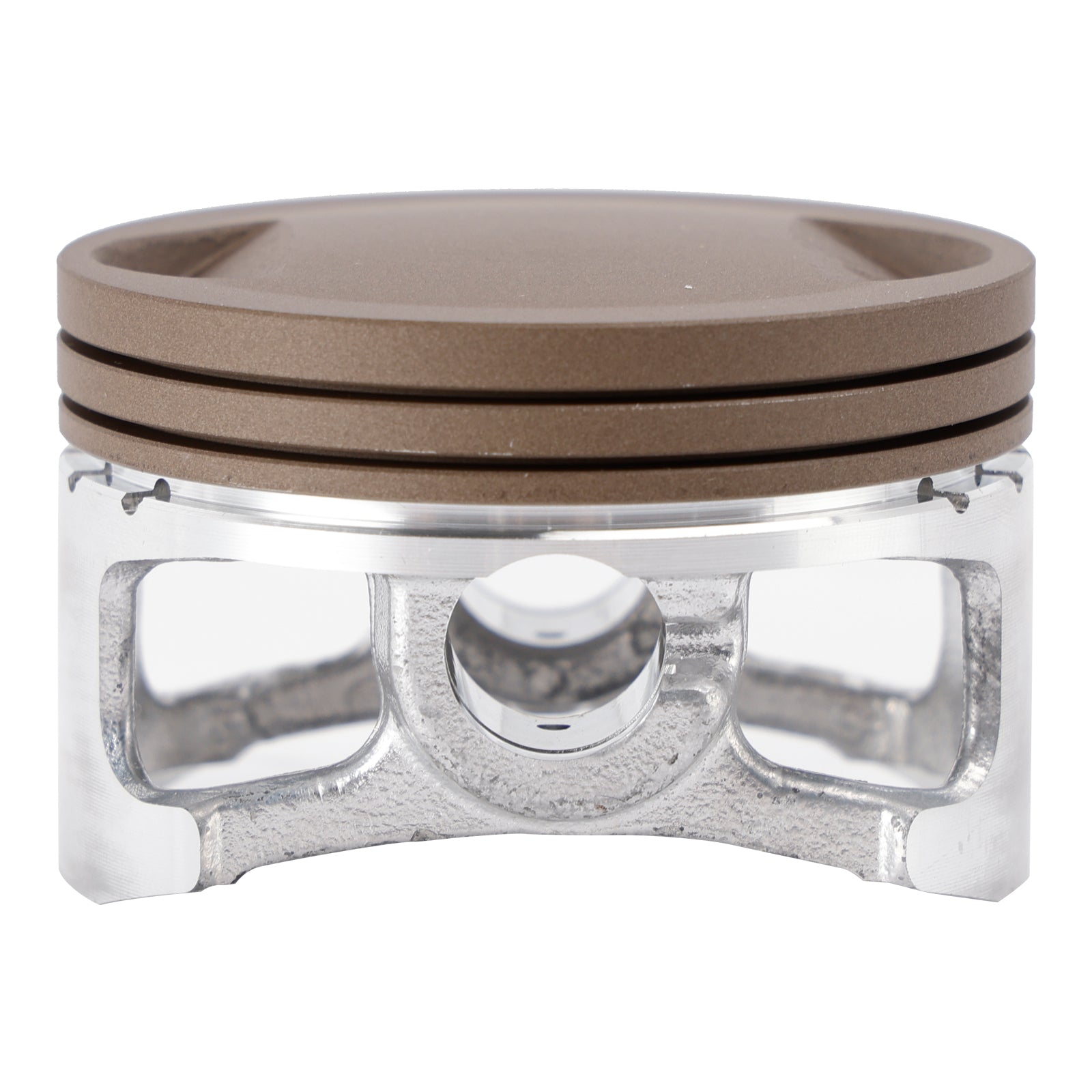

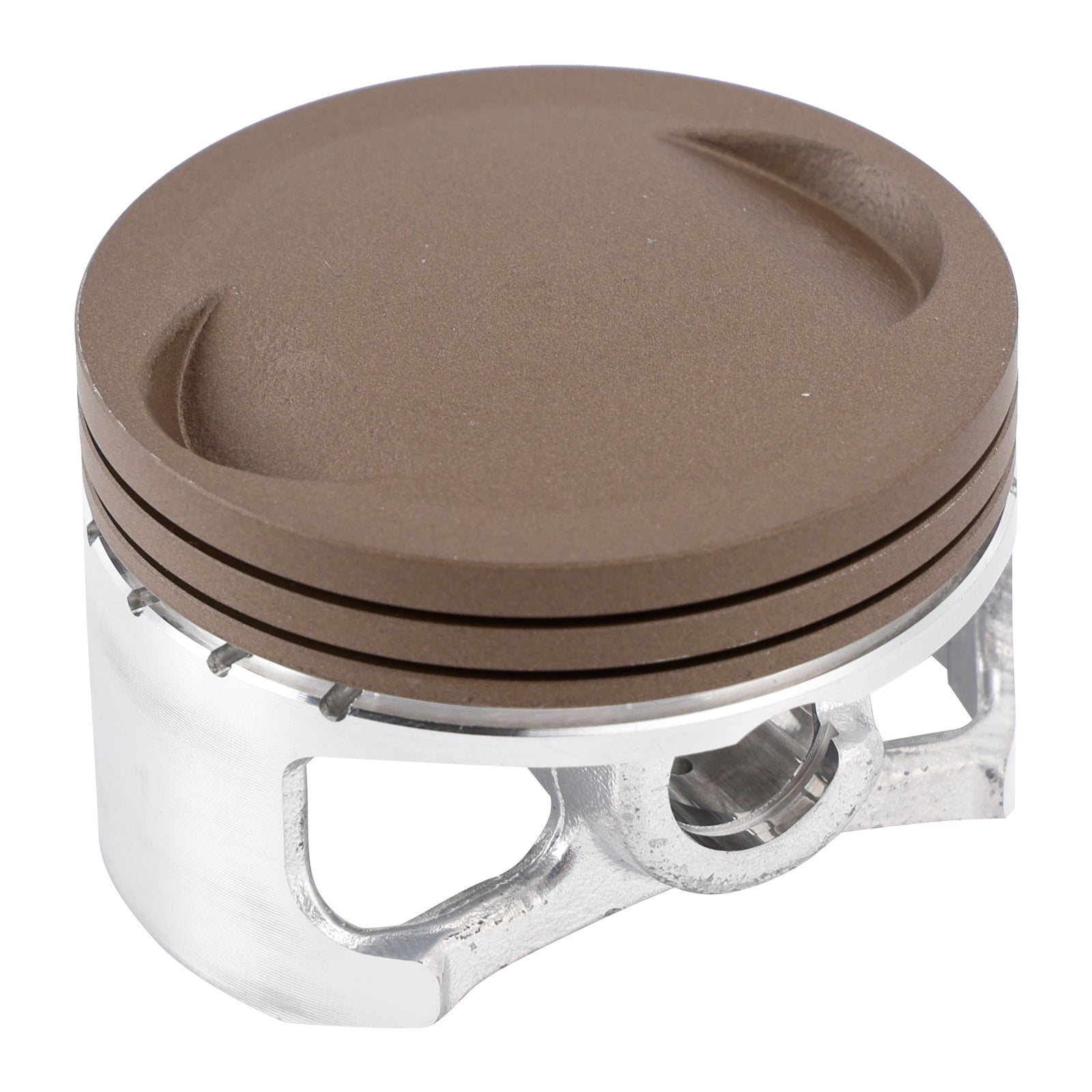

Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for cylinder bore size - 60 mm, 13mm steel piston pin.
This kit is an excellent choice for those who want to improve the performance of their machine.
Easy installation; professional assistance recommended if needed.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum, Steel
Displacement: 160cc
Engine: 4 stroke
Code: 1p60
Bore diameter: 60 mm
Pin diameter: 13 mm
Pin Overall Length: 45 mm
Total cylinder height: 90.5 mm
Cylinder height without sleeve: 74.7 mm
Outer diameter of sleeve: 65.8 mm
Diagonal hole spacing: 85.88 mm

Fits Models:
Fit for YX160 with engine code 1p60. Contains Proper Piston for use with 2 valve heads only.

Fit for Yinxiang YX160 engines
Fit for MRF 160 SM-R / 160-R
Fit for Kayo TT 160 Pit Bike Cross
Fit for Z155 Engine - Fin pattern different but same size piston and barrel

Package Includes:
1x 60mm Cylinder
1x Piston (2-valve)

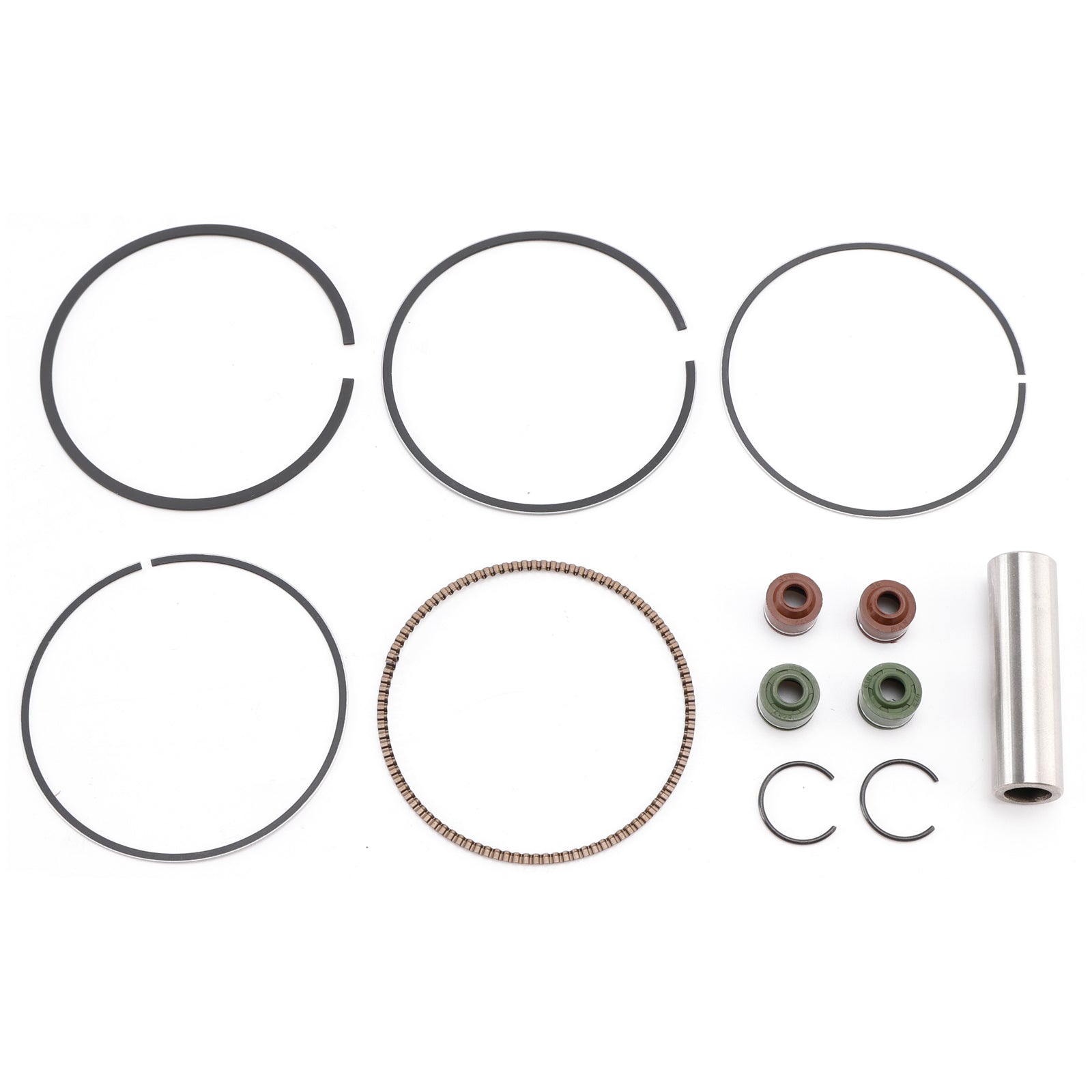

1x Piston Ring Set
1x 13mm Wristpin
1x Circlip(2)

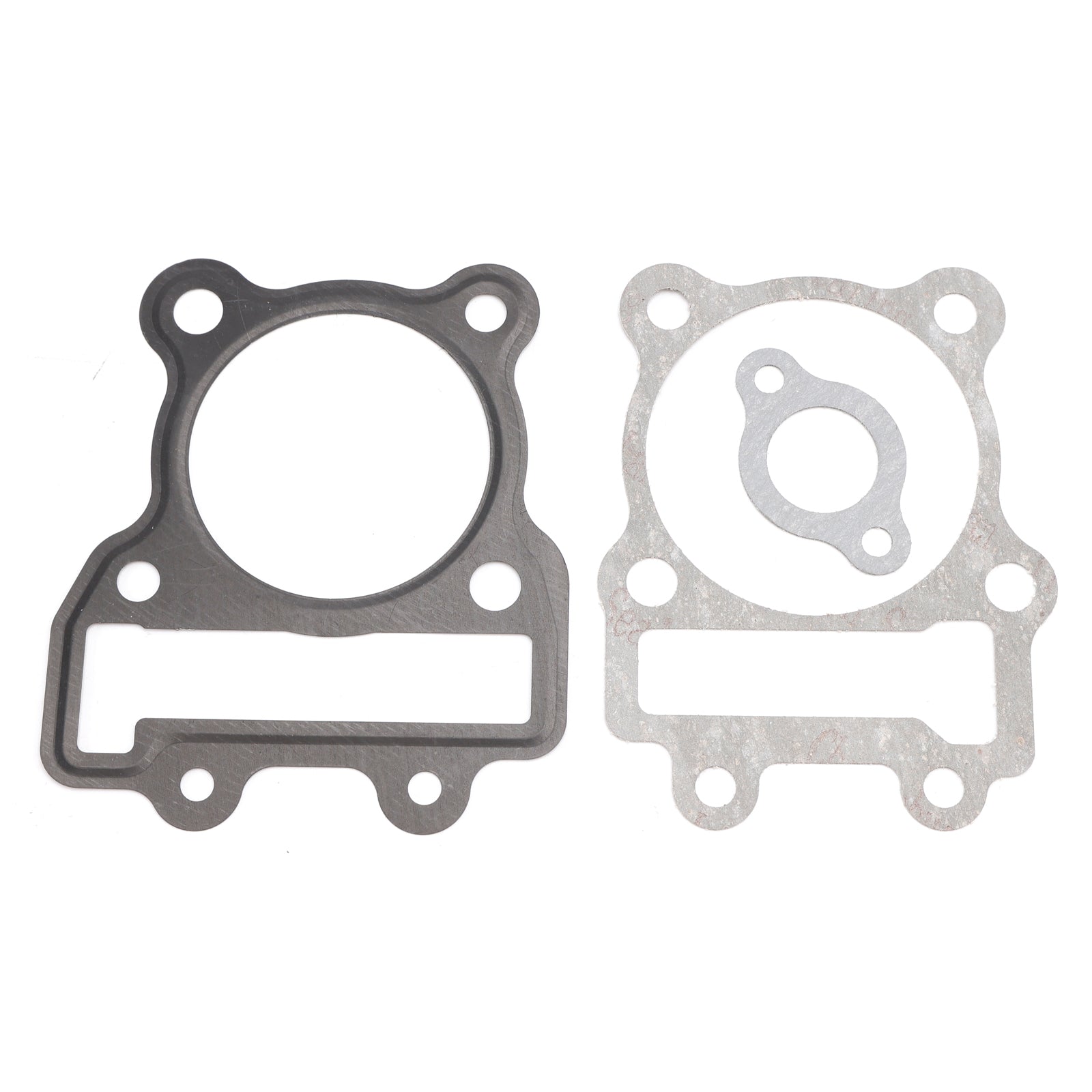

1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Chain Tensioner Gasket
