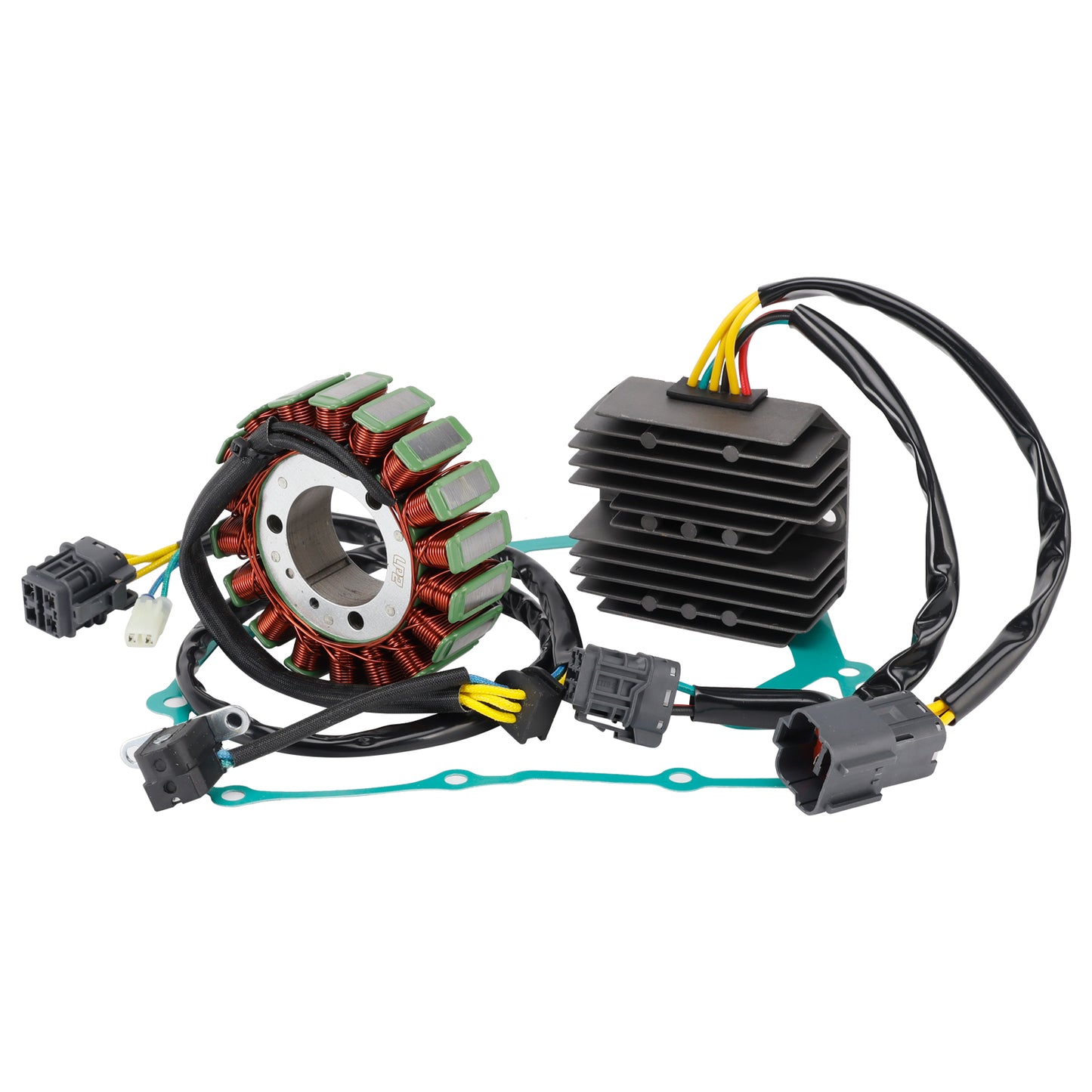

2015-2017 SYM ATV Quad Lander 300S UA30A5H-F L5-L7 31120-RCA-000 Stator & Regulator Rectifier Gasket

2015-2017 SYM ATV Quad Lander 300S UA30A5H-F L5-L7 31120-RCA-000 Stator & Regulator Rectifier Gasket

SKU:M550-C534~8

Regular price $127.99 USD
Regular price Sale price $127.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Magneto Coil Stator + Voltage Regulator + Gasket Assy For SYM Quadlander 250 300

Features:

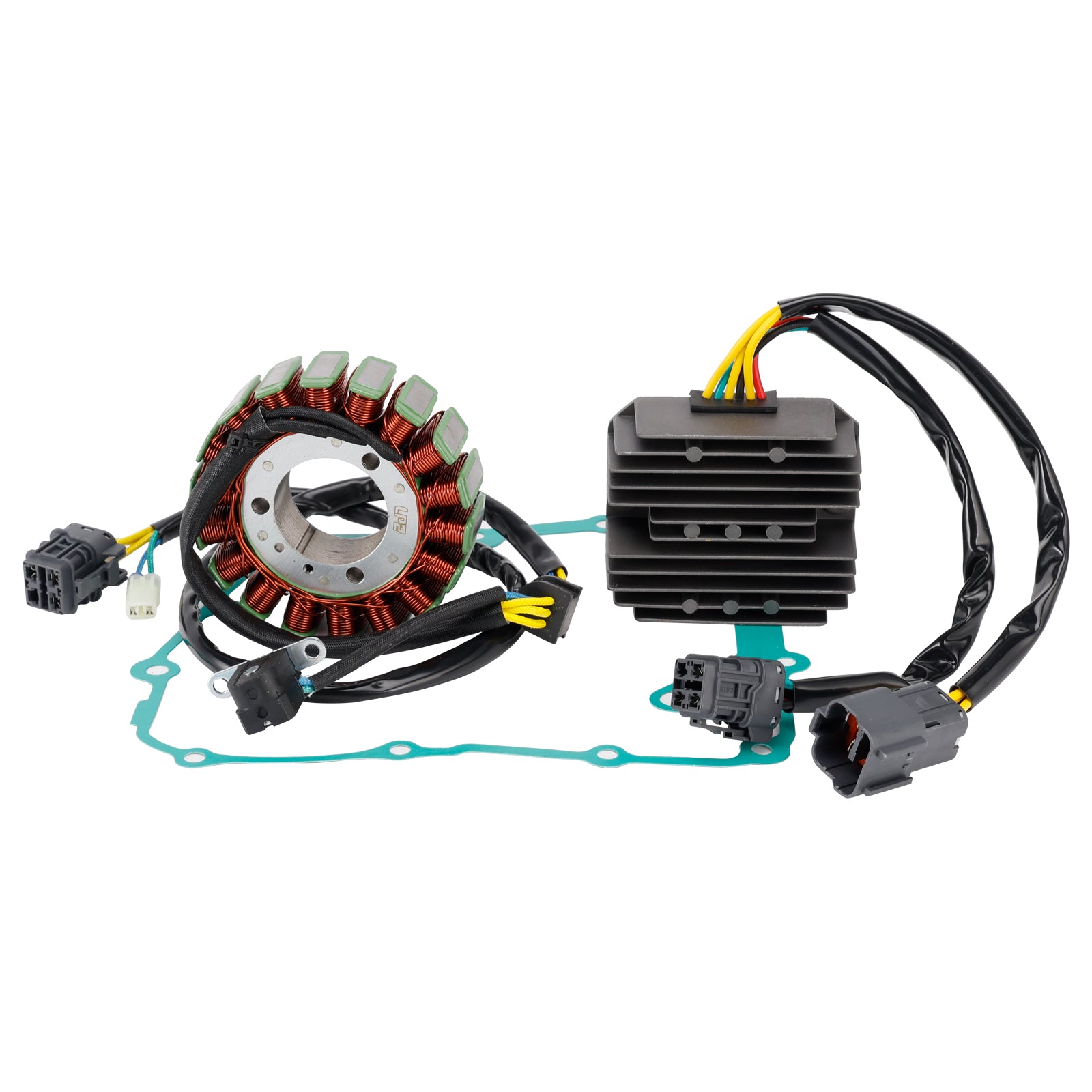

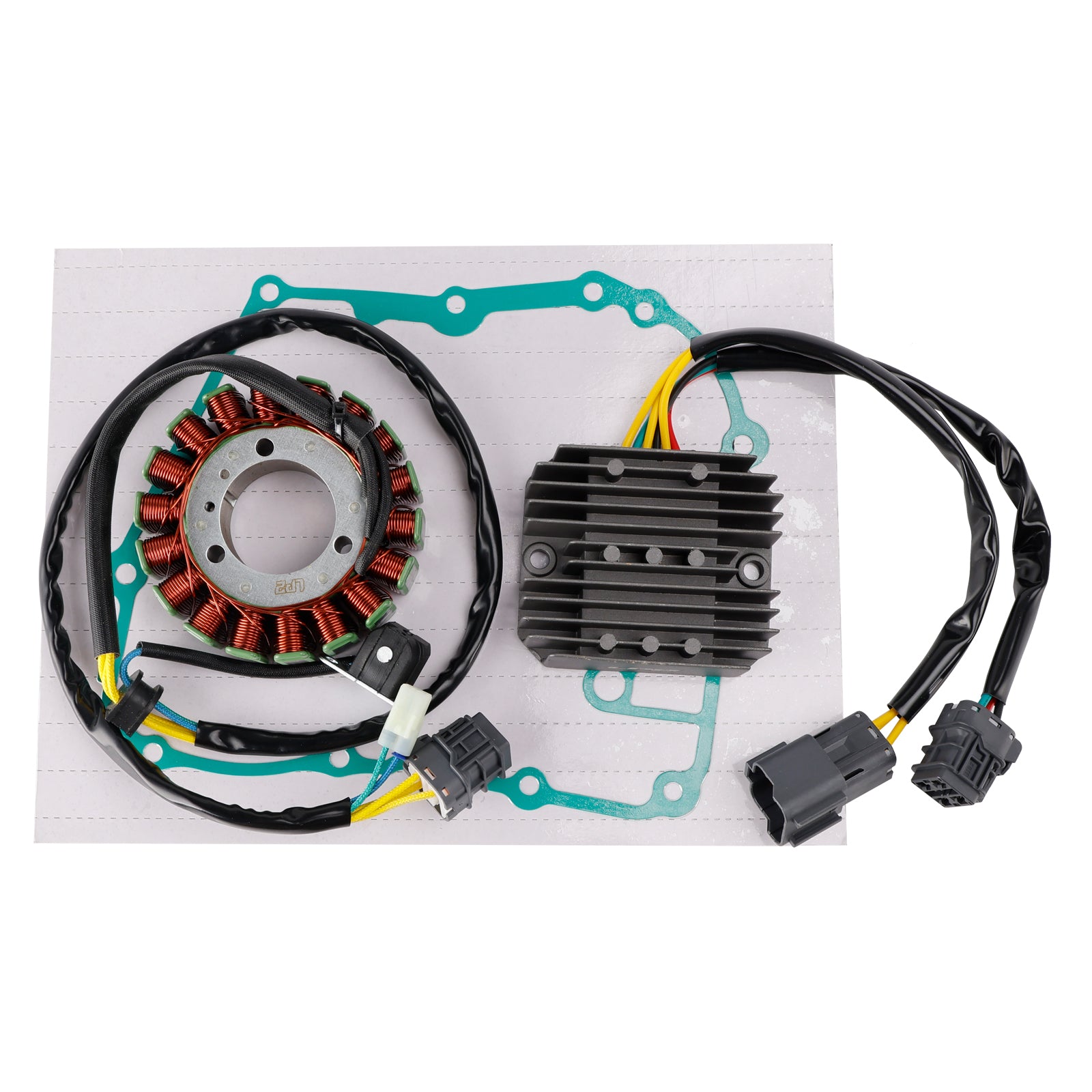

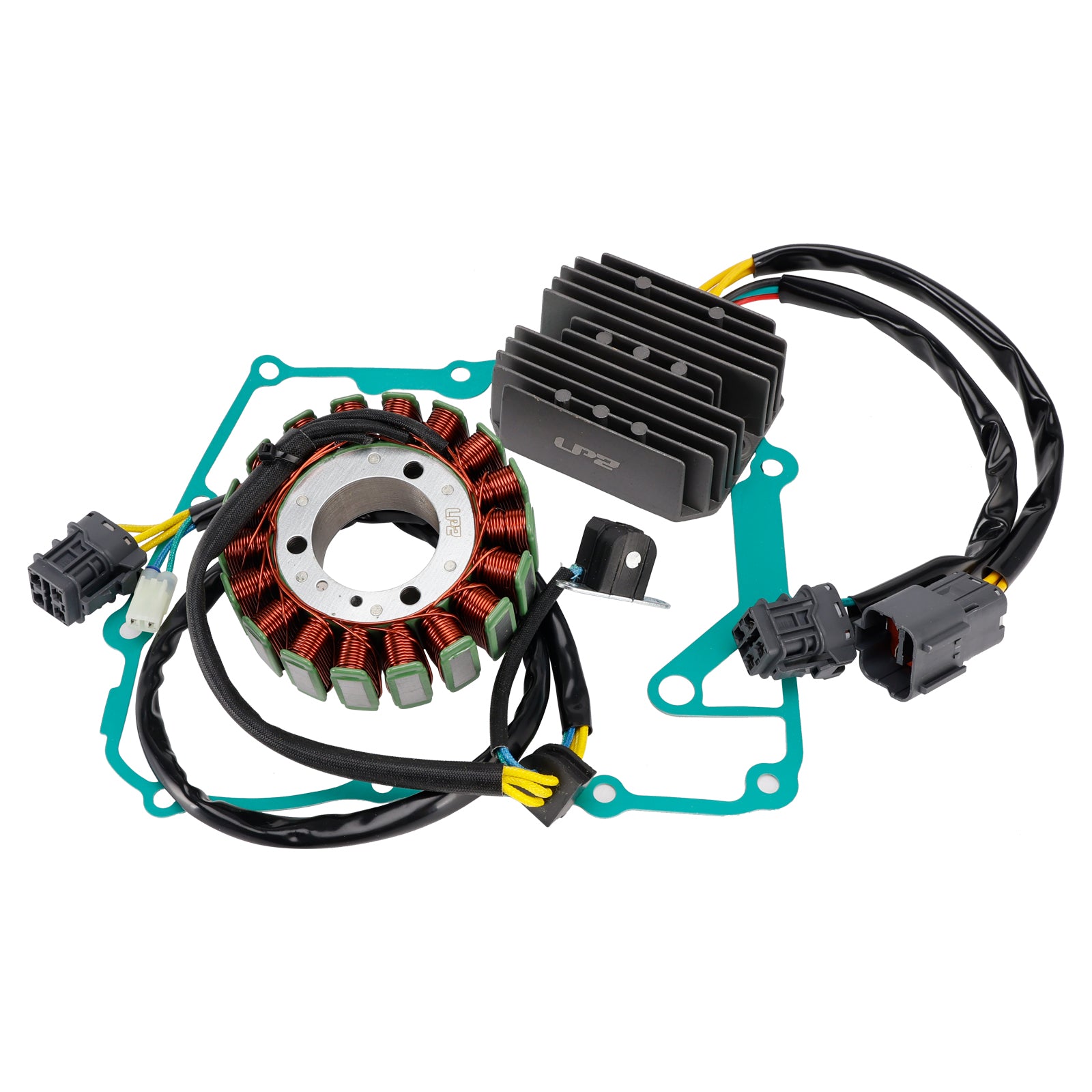

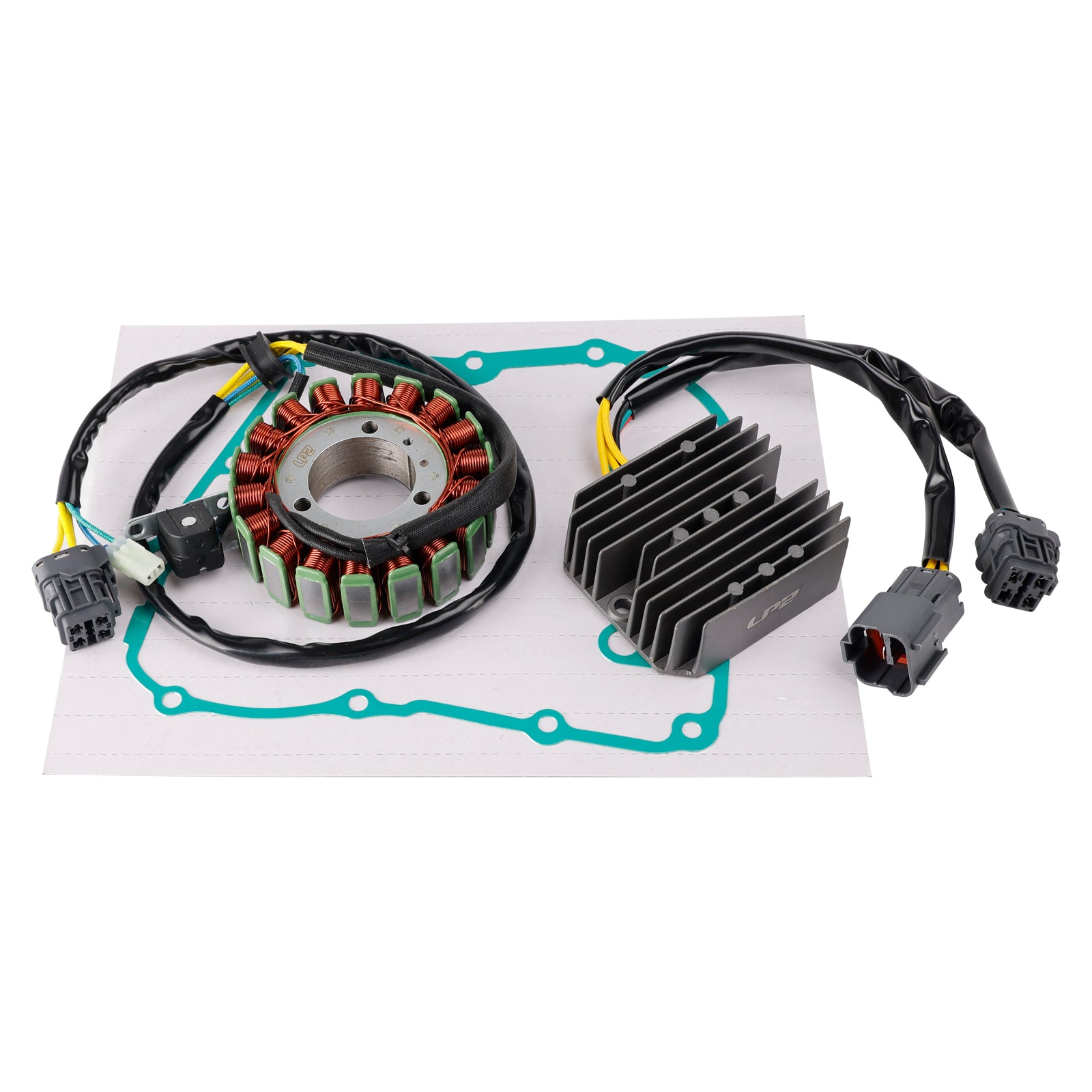

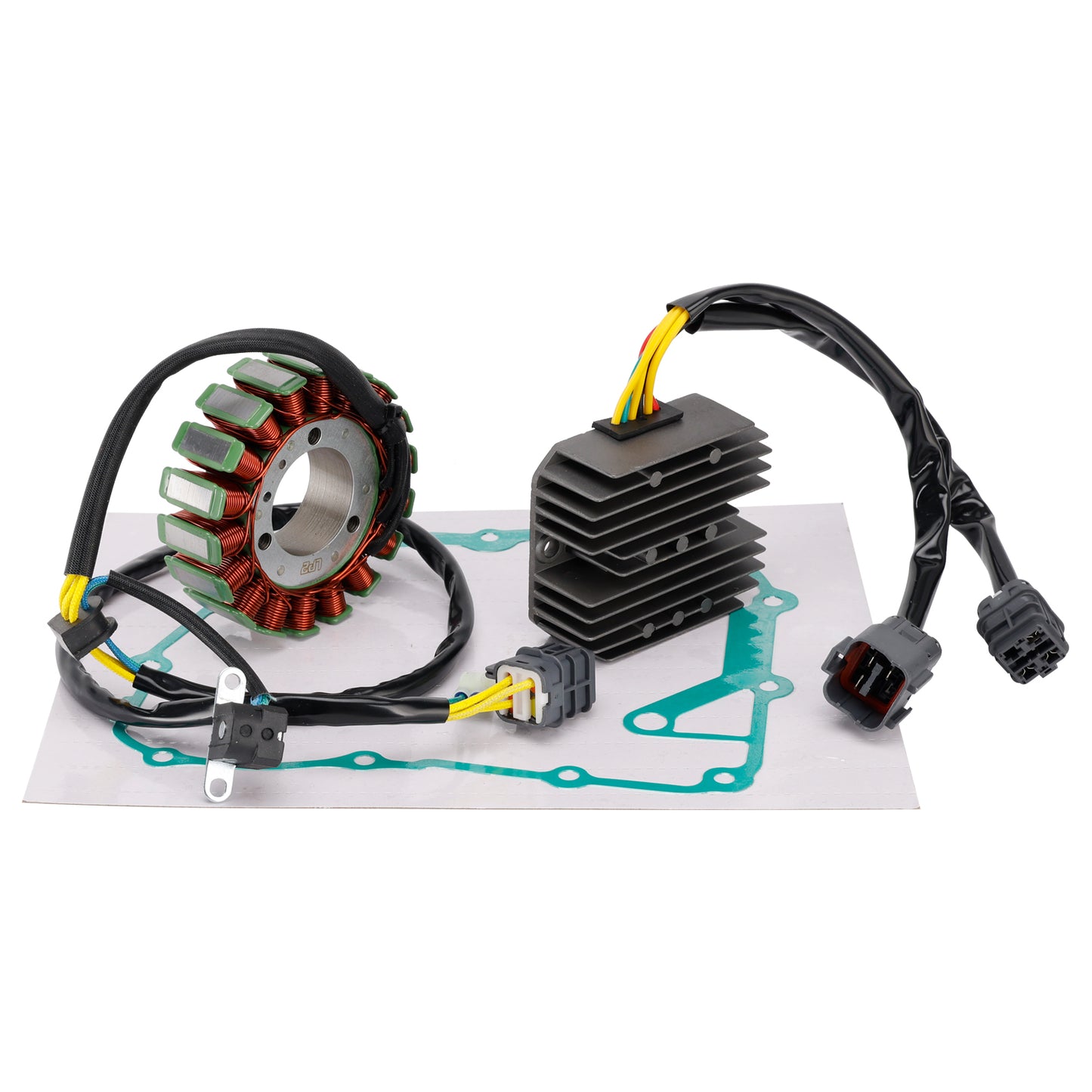

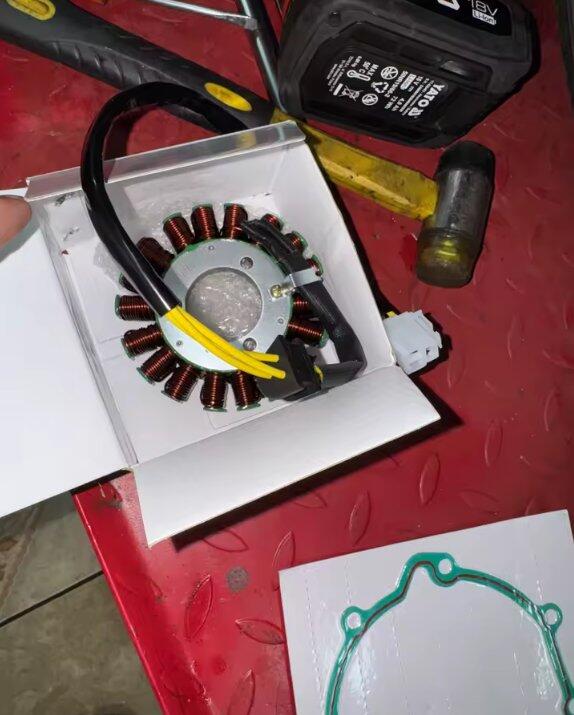

Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

Attention:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

other specification:

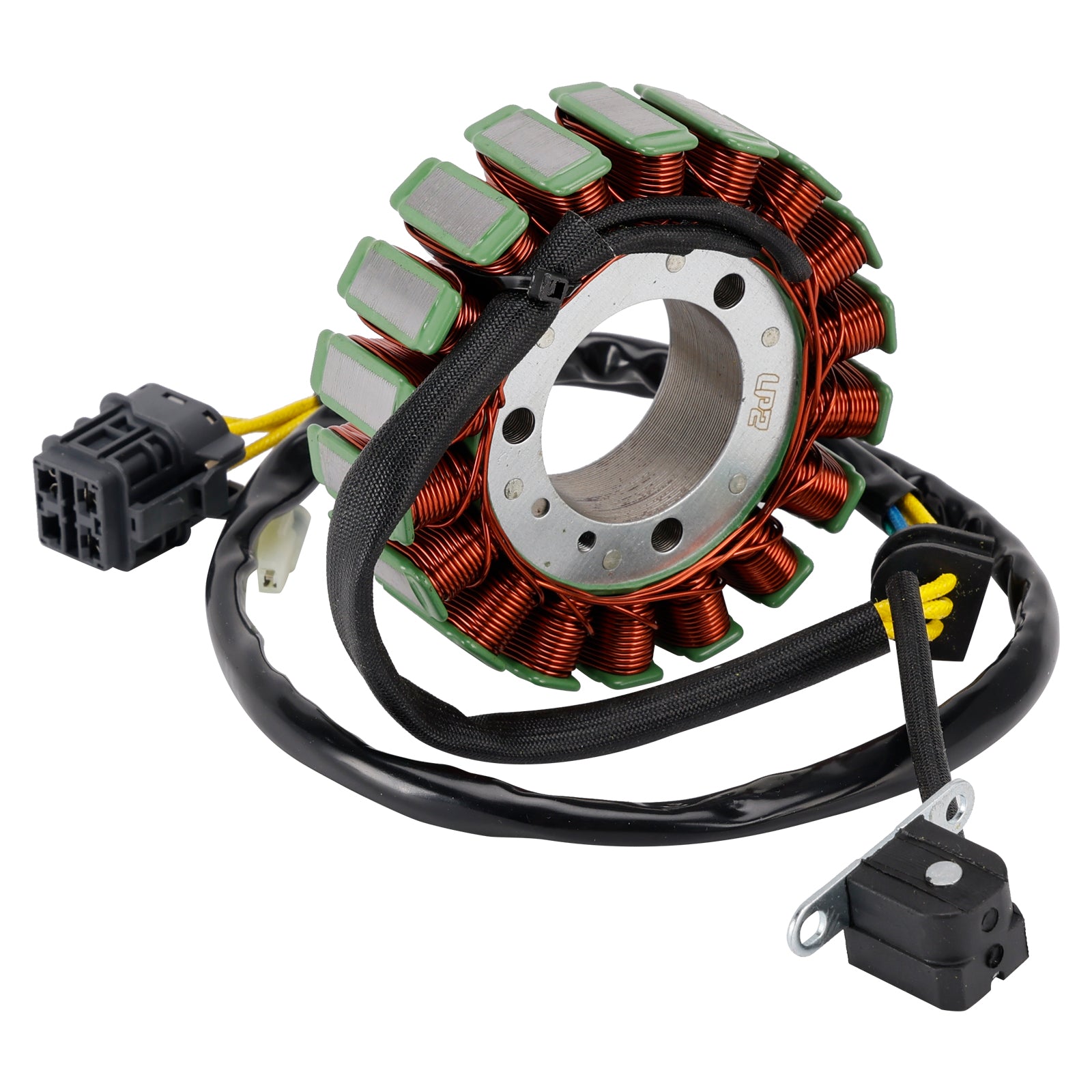

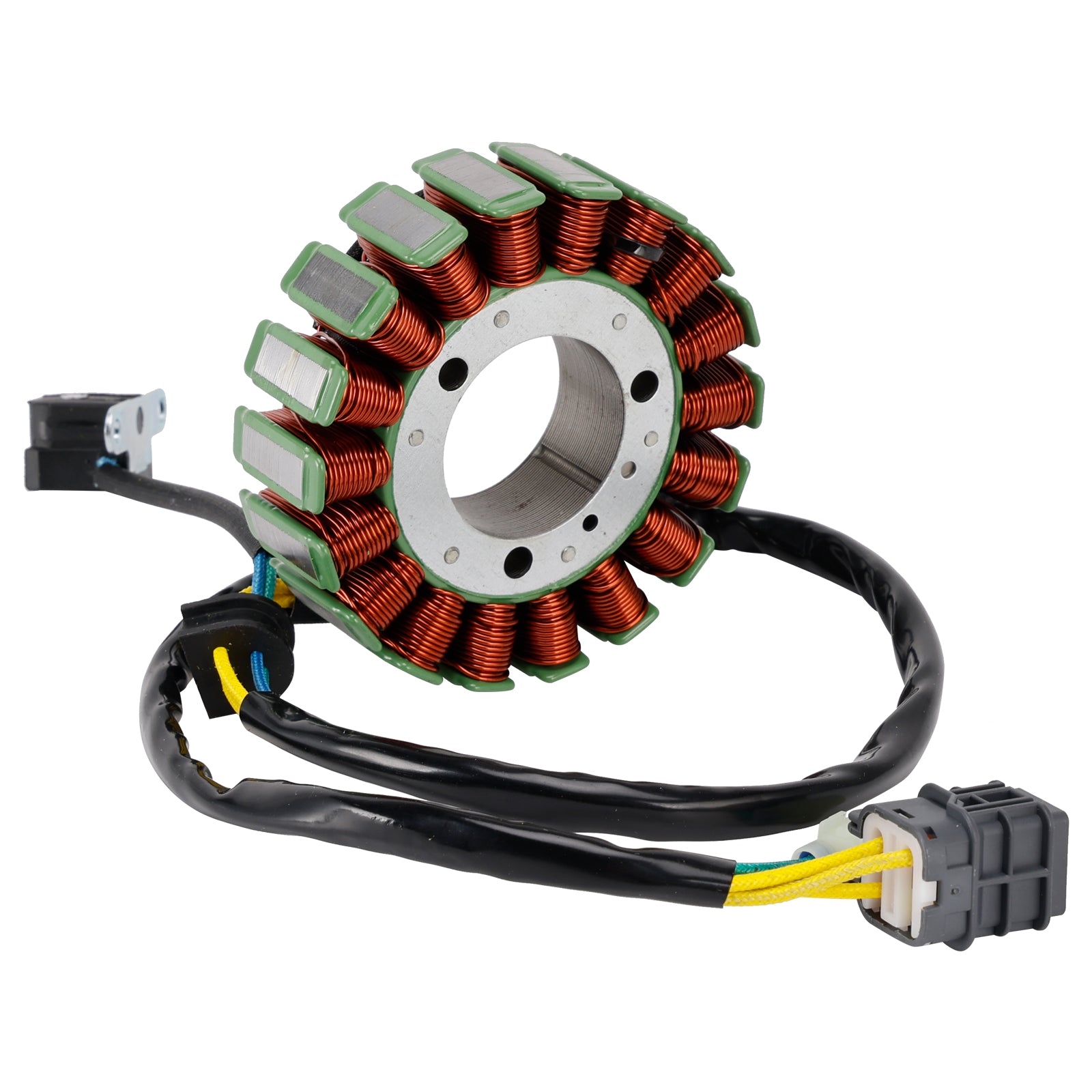

Stator
Number of wires: 5

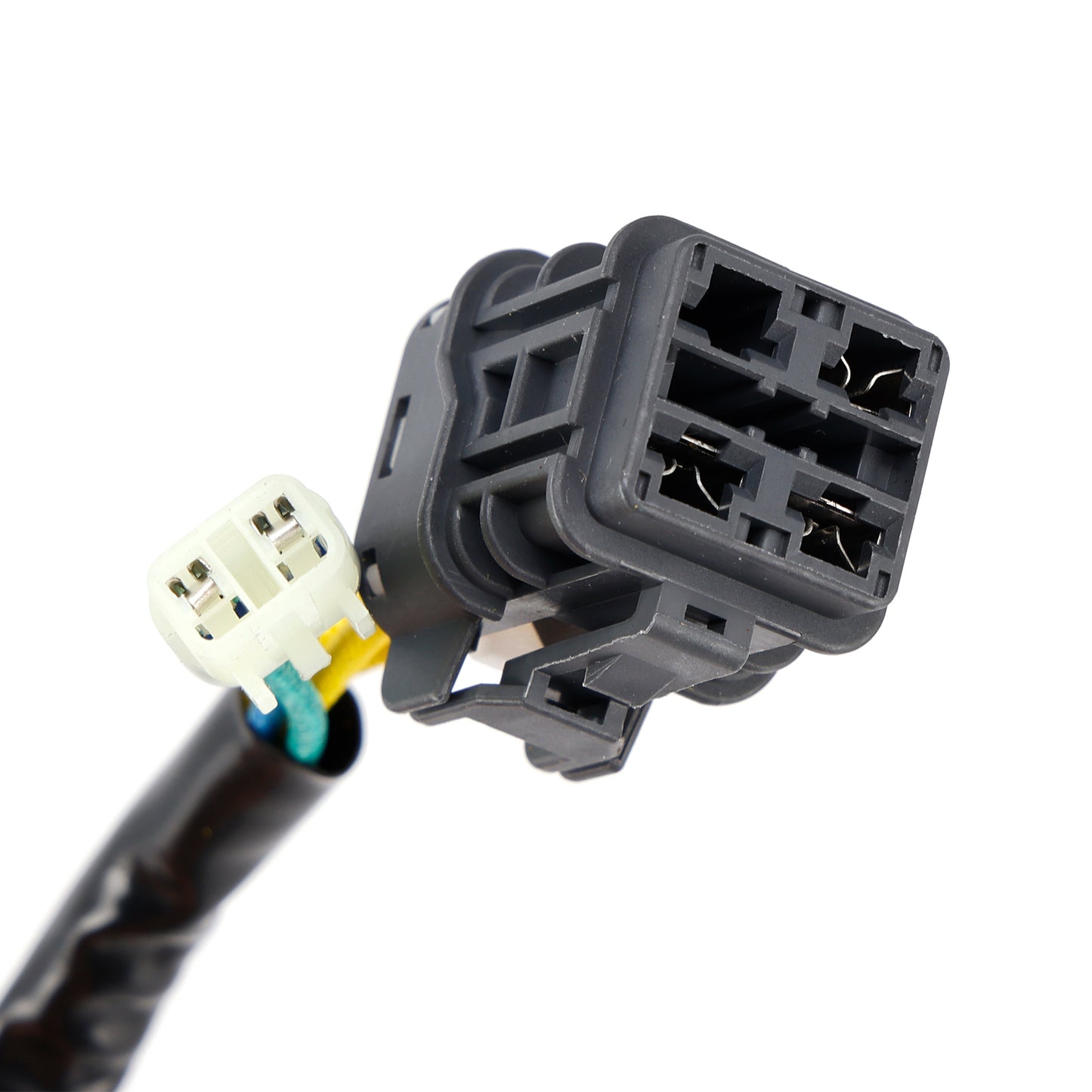

Number of plugs: 2
Number of pins: 3 + 2
Number of fixation holes: 3
Number of poles: 18

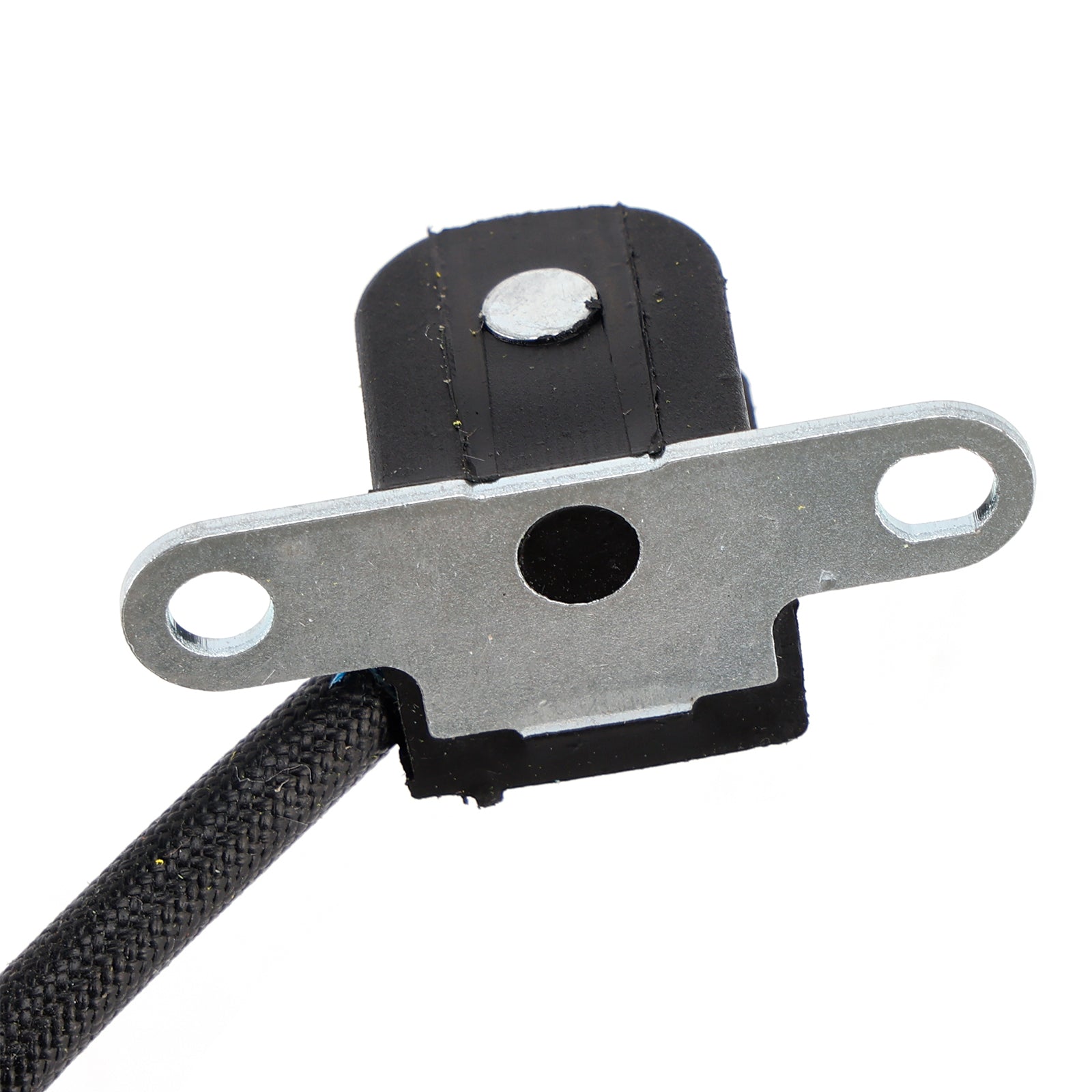

Pick up pulsar coil included.

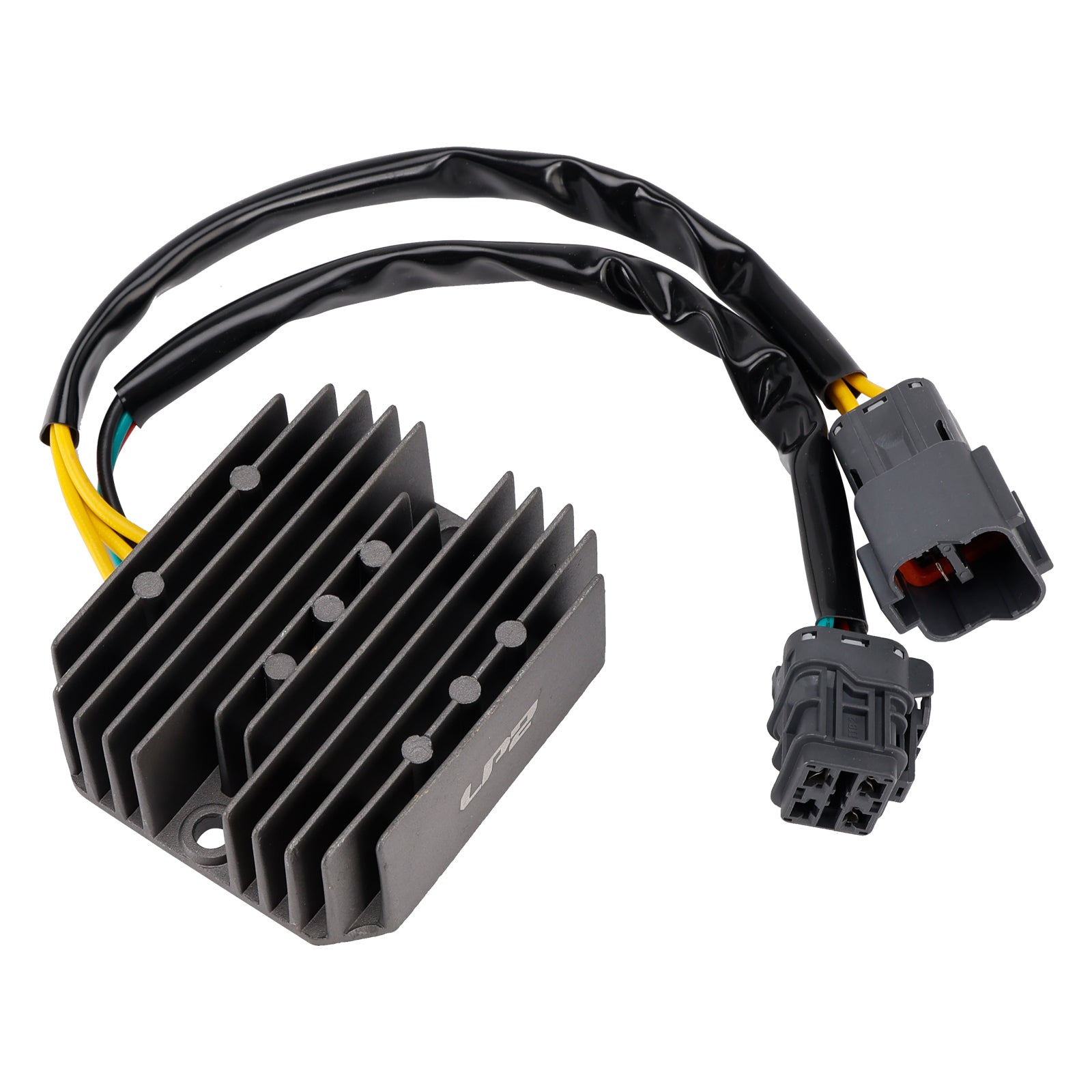

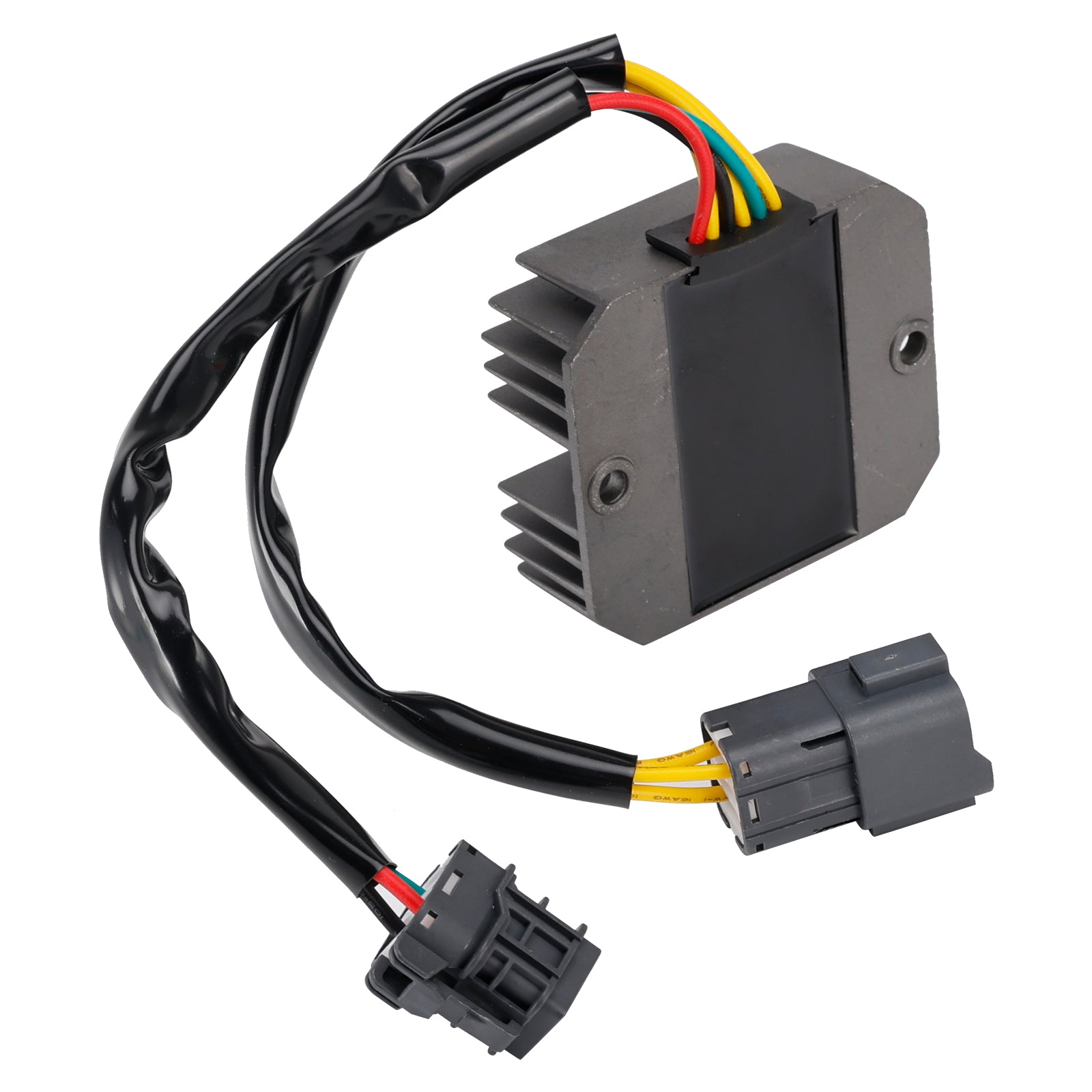

Regulator
Number of wires: 6

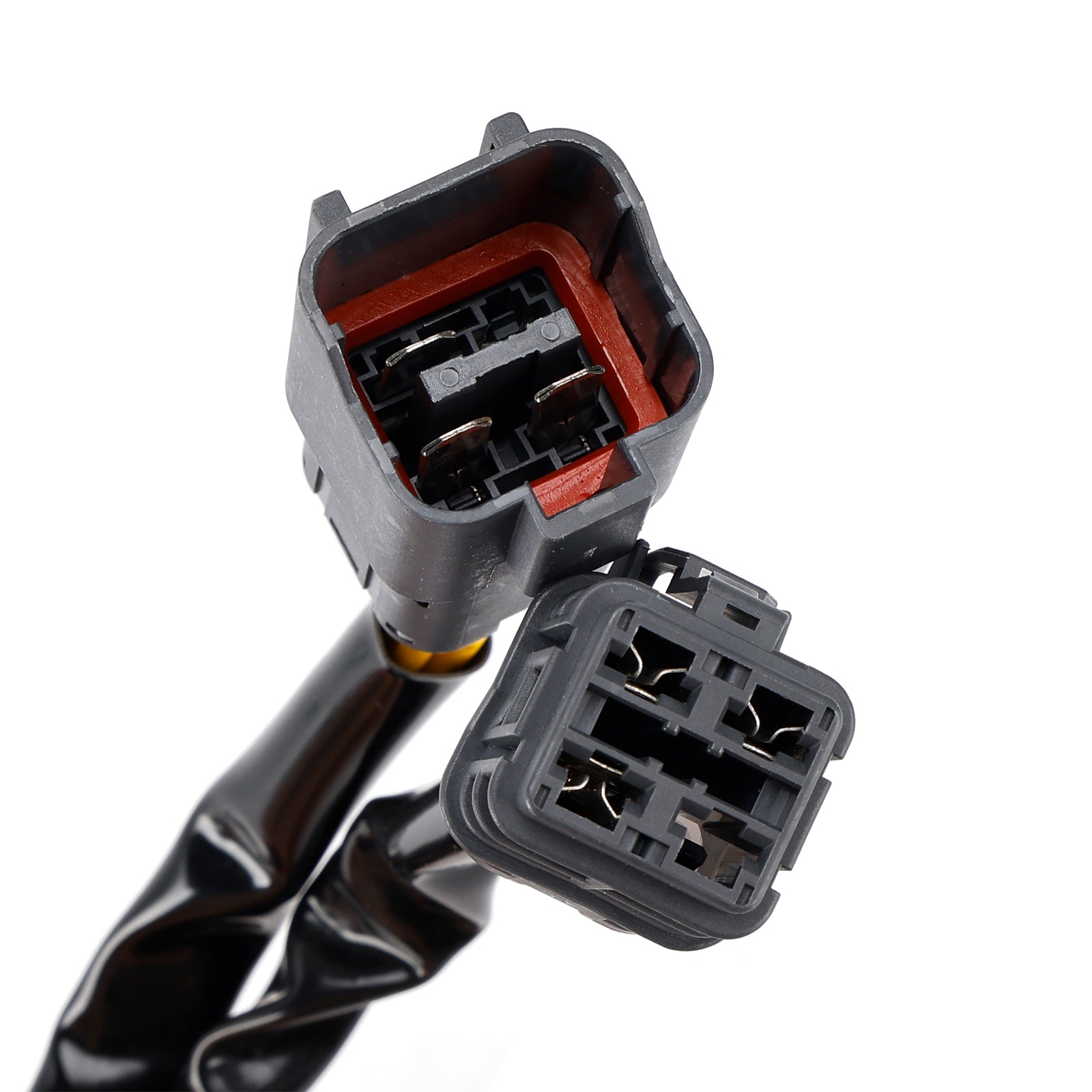

Number of plugs: 2
Number of pins: 3 + 3

Please compare the number of pins and plugs with the old part before purchasing.

Replacement Part Number:
Stator Assy: 31120-RCA-000, 31120-RB1-000
Rectifier, regulator: 31600-RB1-000, 31600-RB1-010, 31600-RCA-000, 31600-RCA-010, C1600-LRA0-0000

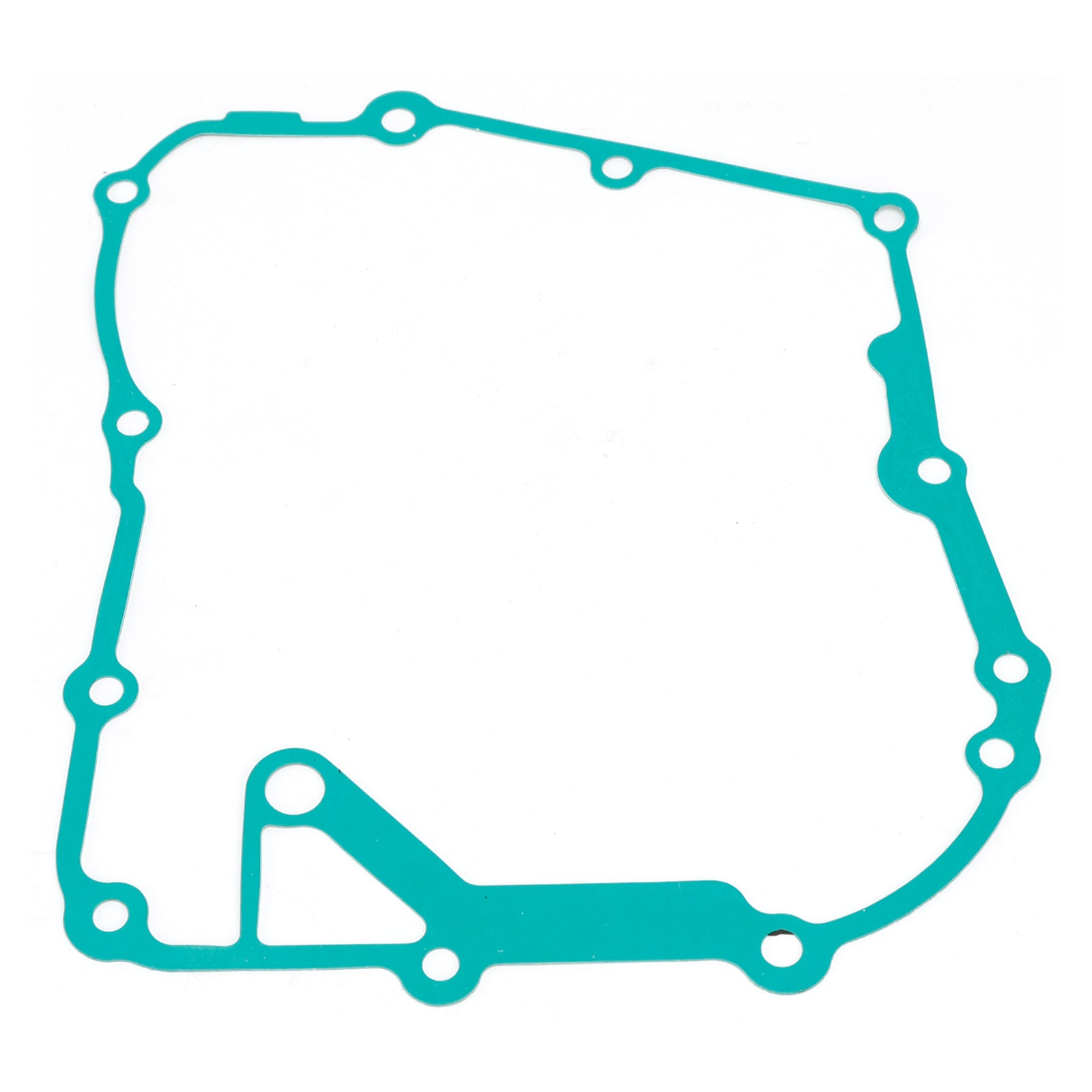

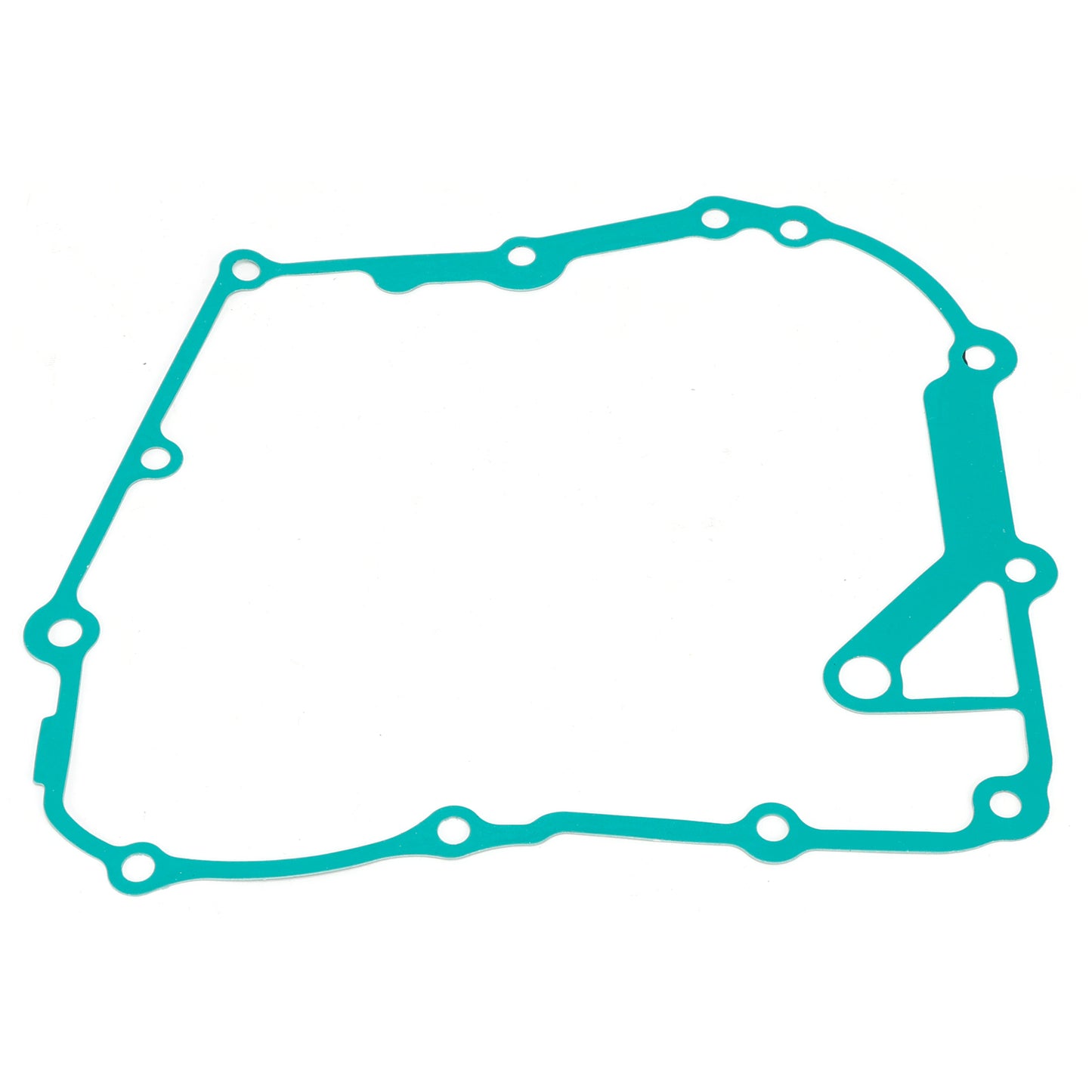

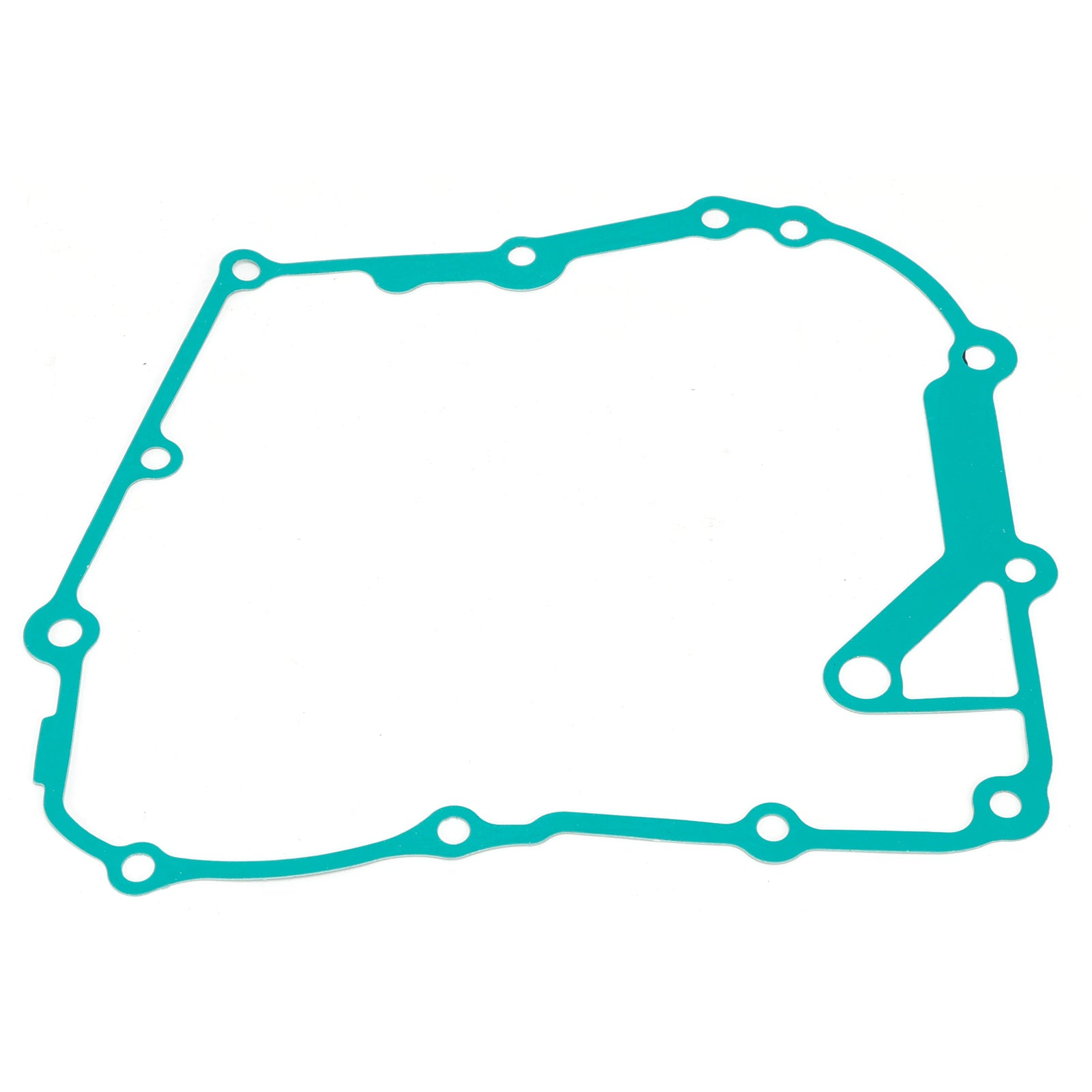

Gasket, generator cover: 11394-RB1-000, 11394-RB1-003

Fits Make/Model/Year:
Fit for Gamax ATV AX250
Fit for Gamax ATV AX300
Fit for E-Ton ATV Vector 250
Fit for E-Ton ATV Vector 300

Fit for SYM ATV Quad Lander 250 2004-2010
Fit for SYM ATV Quad Lander 300S 2006-2014
Fit for SYM ATV Quad Lander 300S (UA30A5H-F) (L5-L7) 2015-2017
Fit for SYM ATV Quad Lander 300 2008-2010
Fit for SYM ATV Quad Lander 300SL 2008
Fit for SYM ATV Quad Lander 300S ENTRY 2010

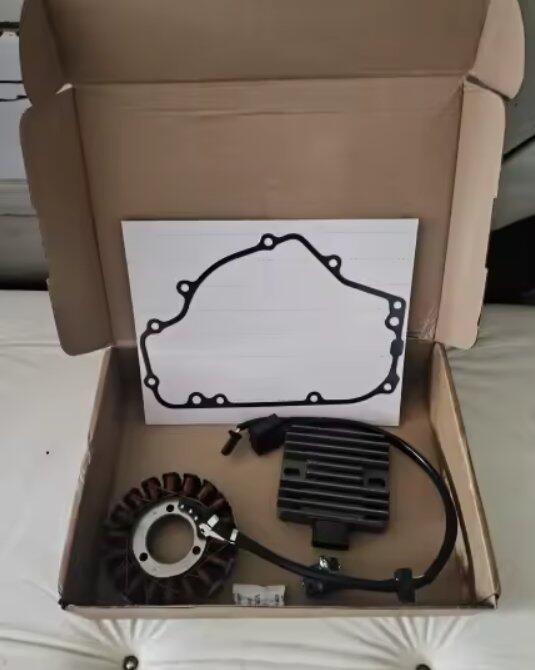

Package Includes:
1 x 18-Pole Generator Stator
1 x 6-Wire Voltage Regulator
1 x Crankcase Gasket
