Magneto Coil Stator + Voltage Regulator + Gasket Assy For Honda NSS 250 X EX Forza 2008-2009
Features:

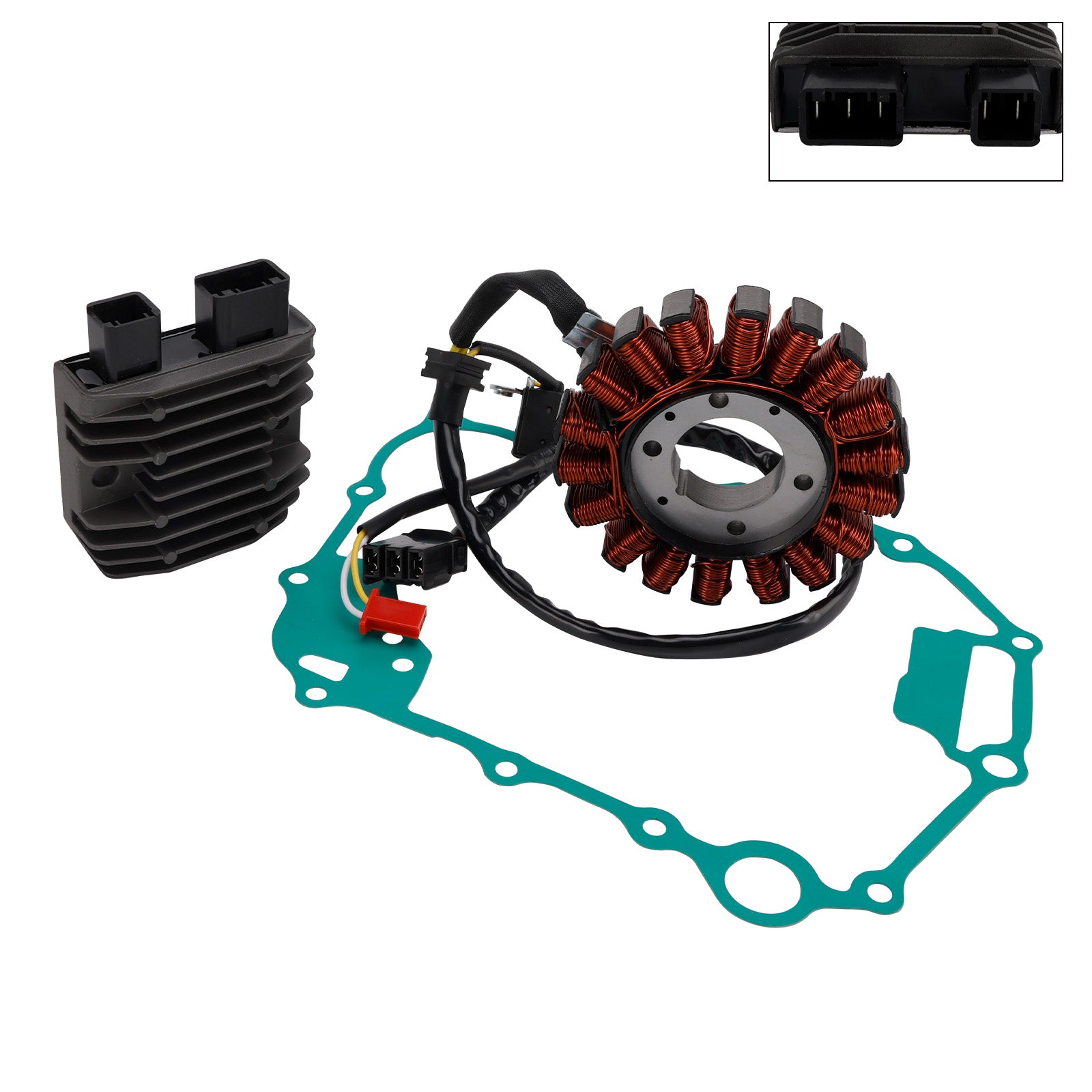

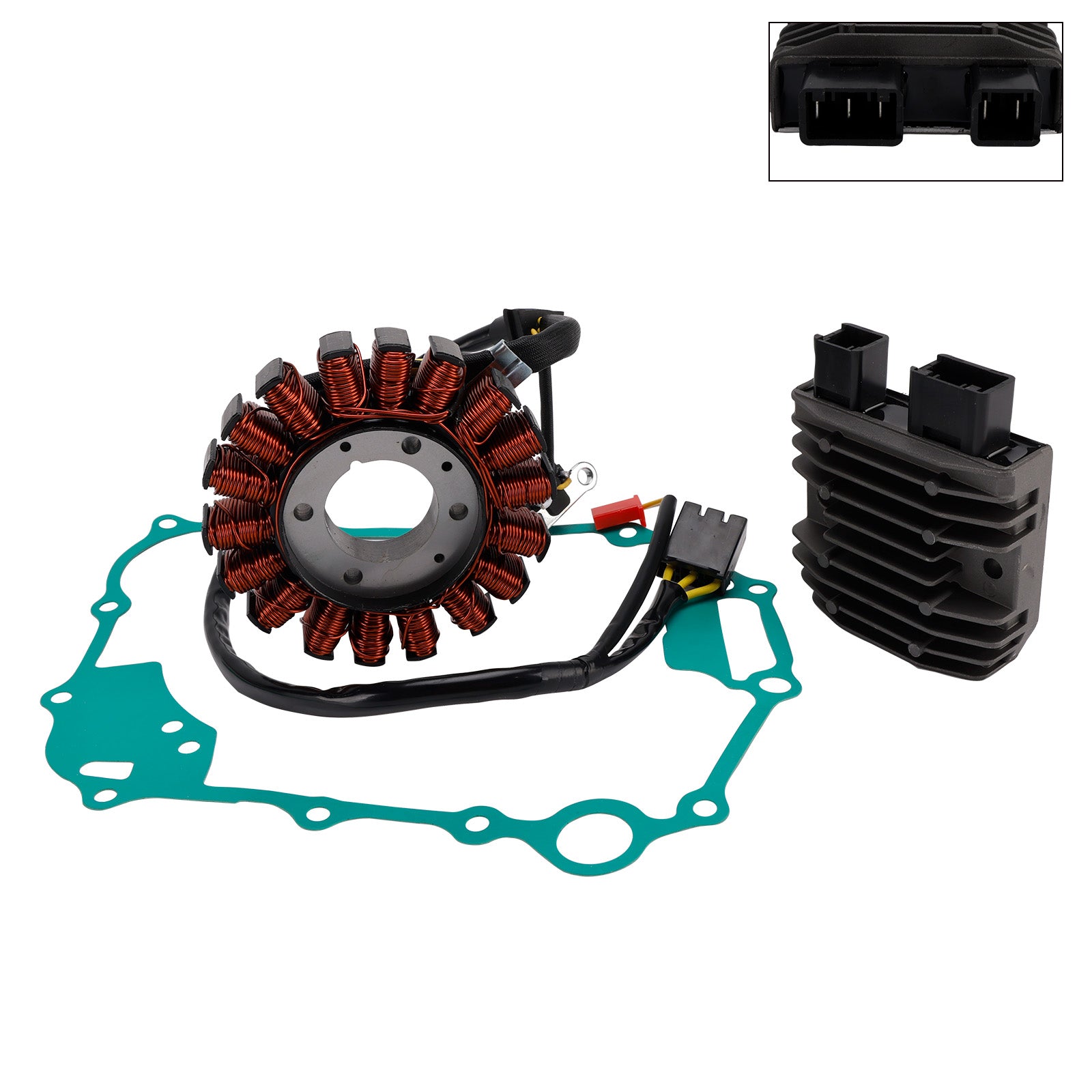

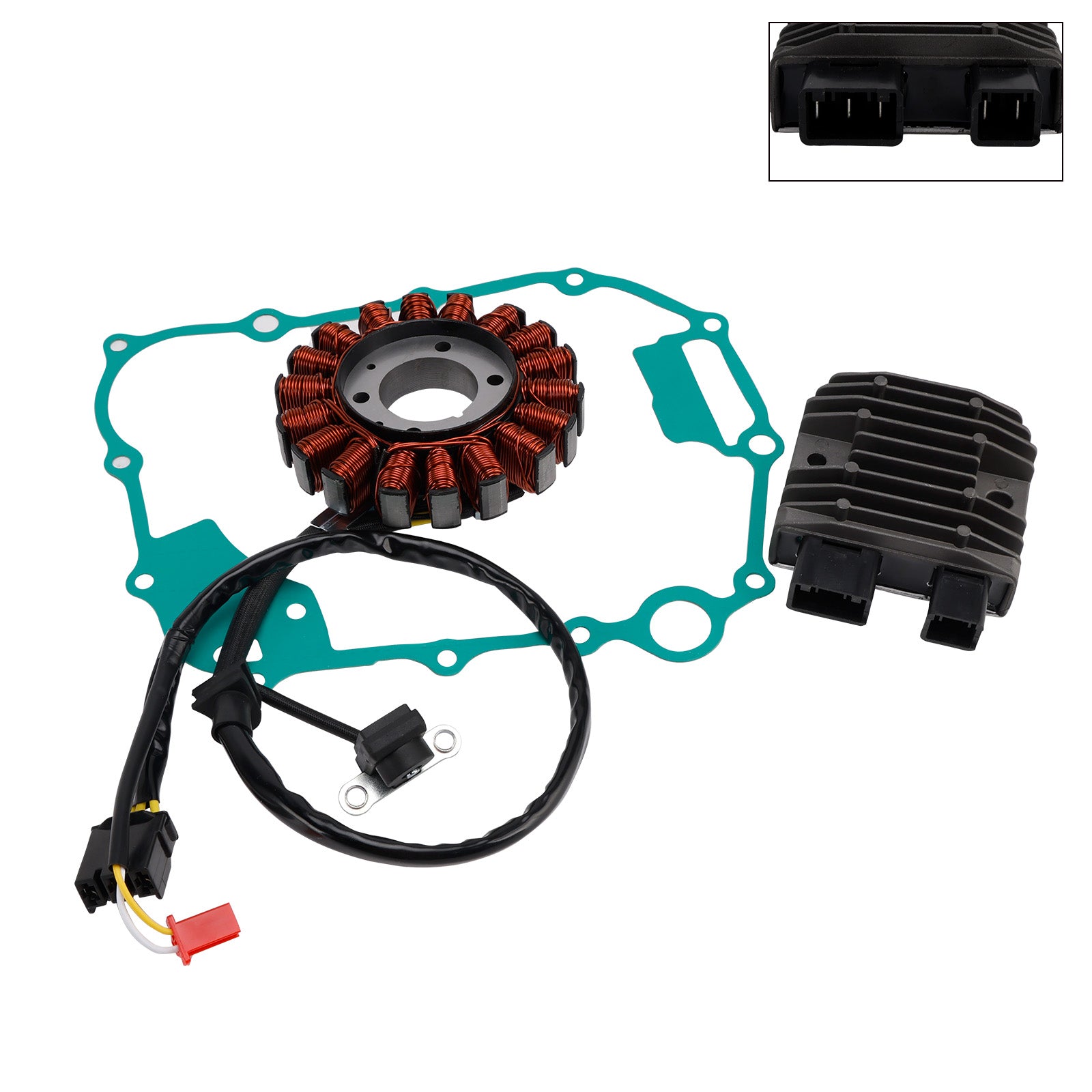

Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.
Attention:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.
Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit
other specification:

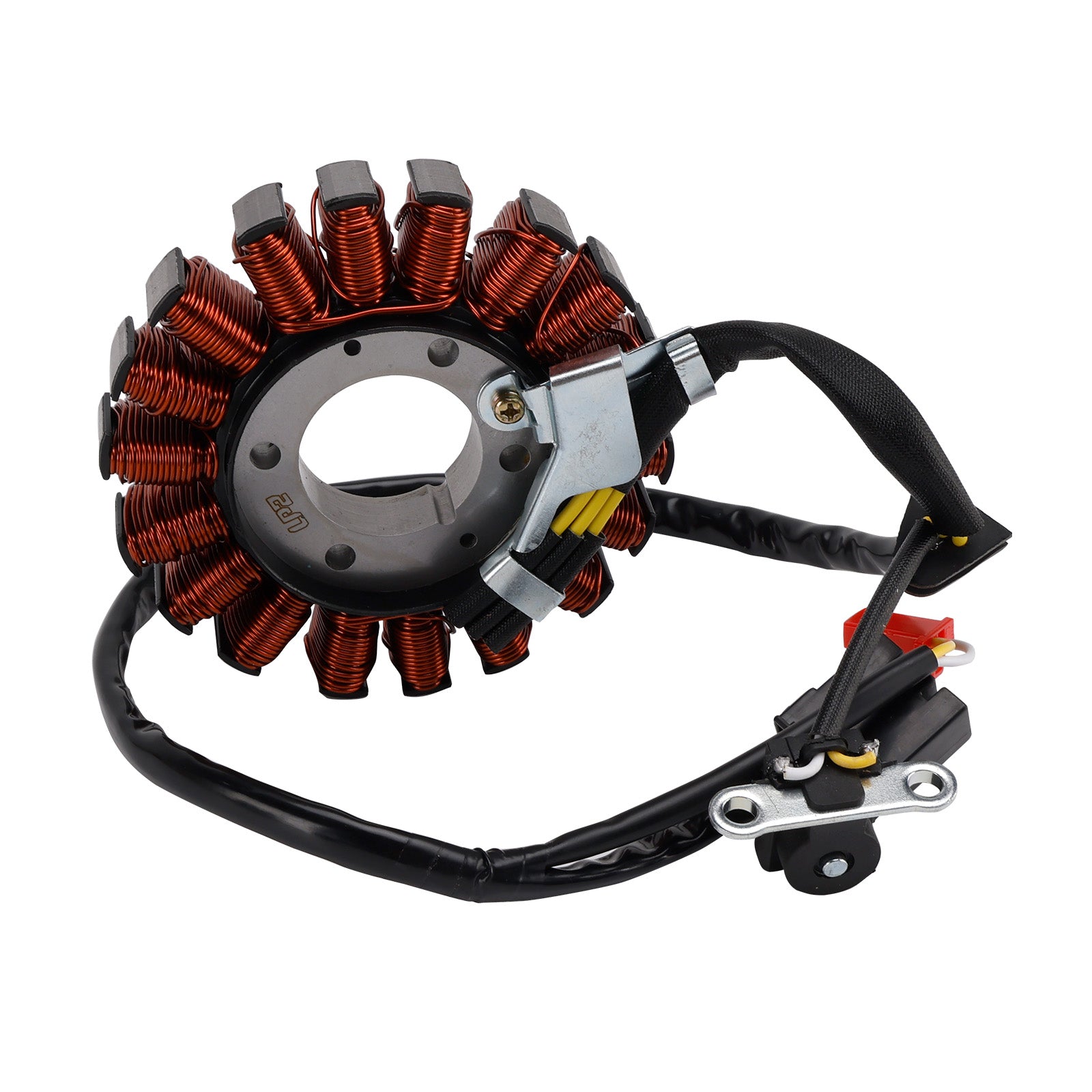

Stator
Number of wires: 5

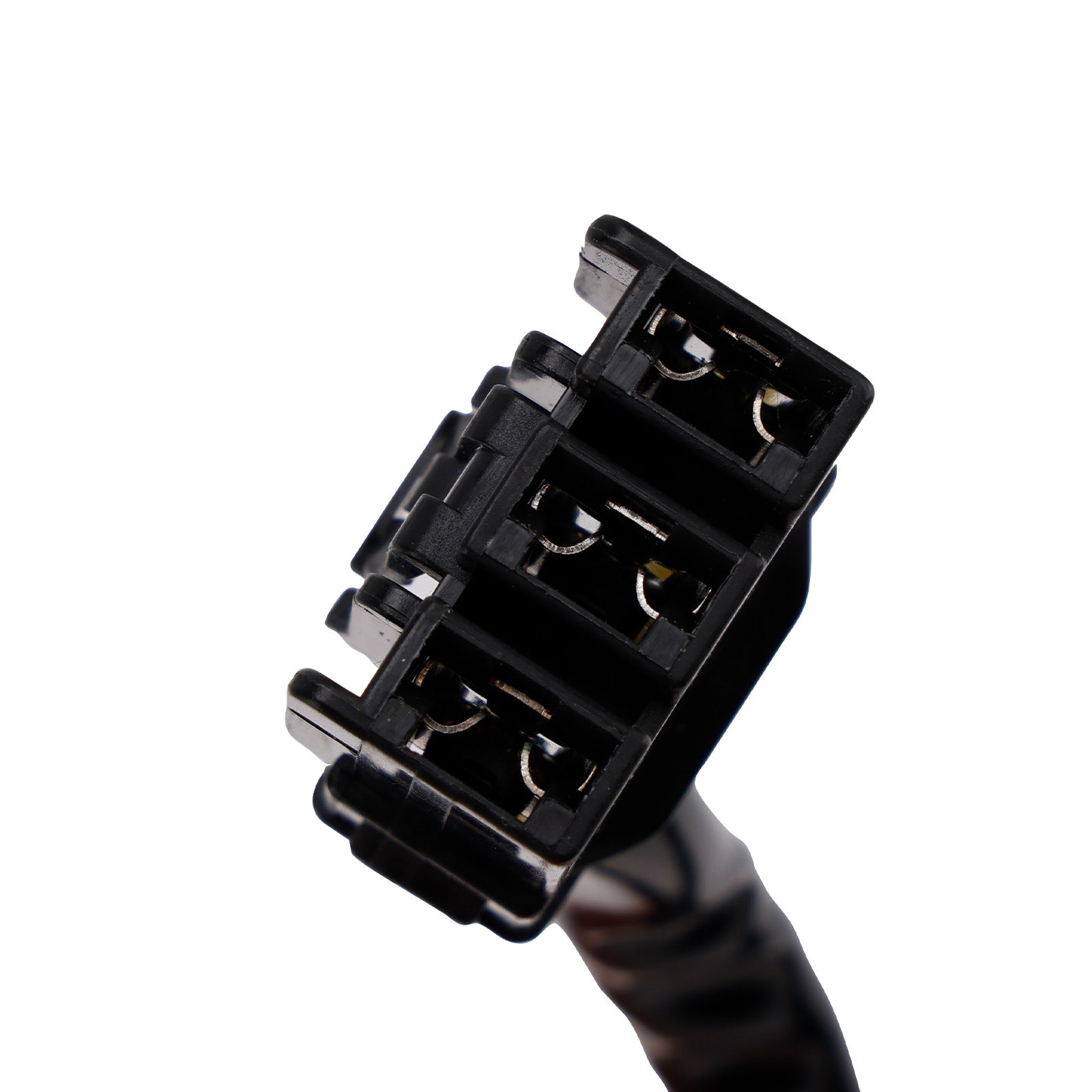

Number of plugs: 2

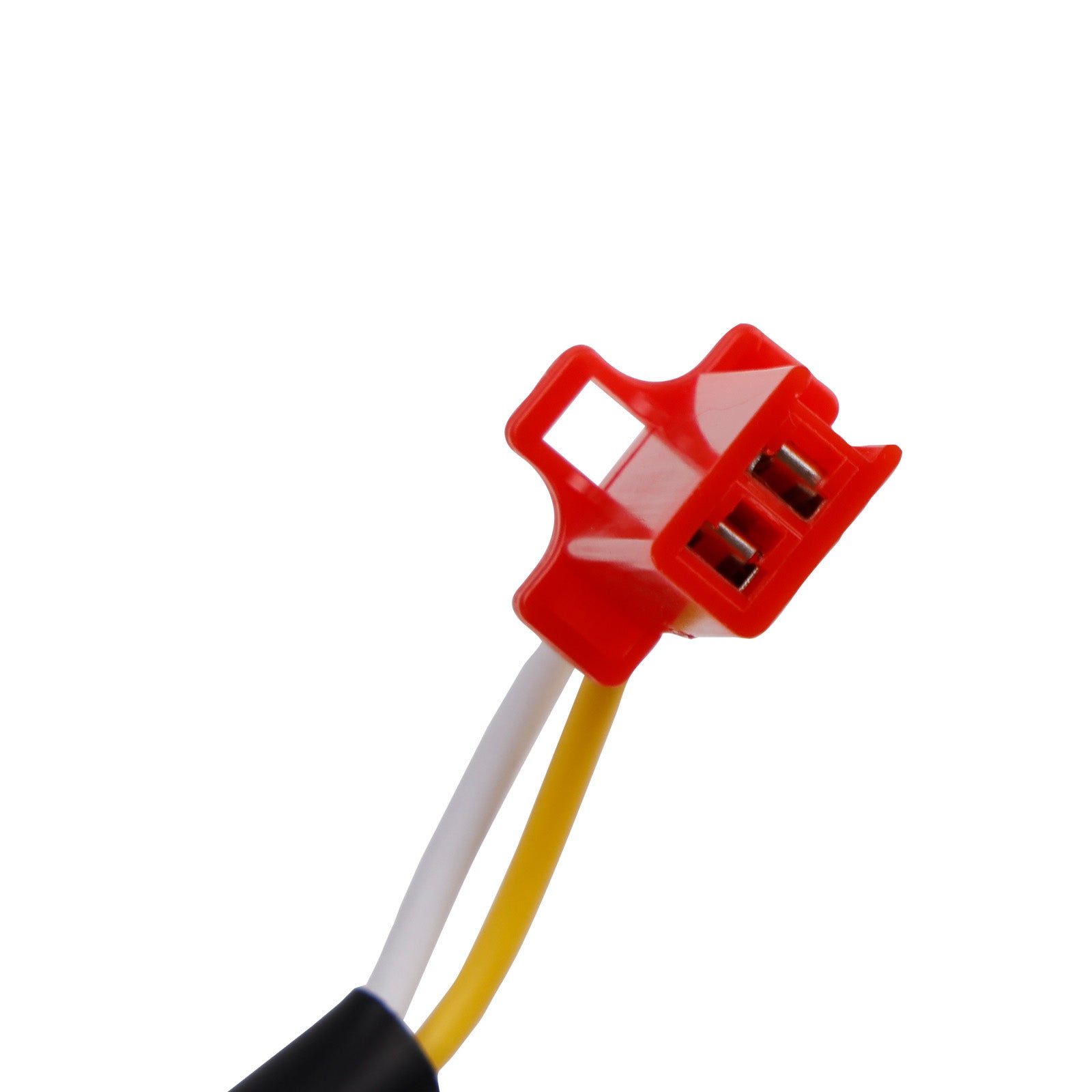

Number of pins: 3 + 2
Number of fixation holes: 4
Number of poles: 18

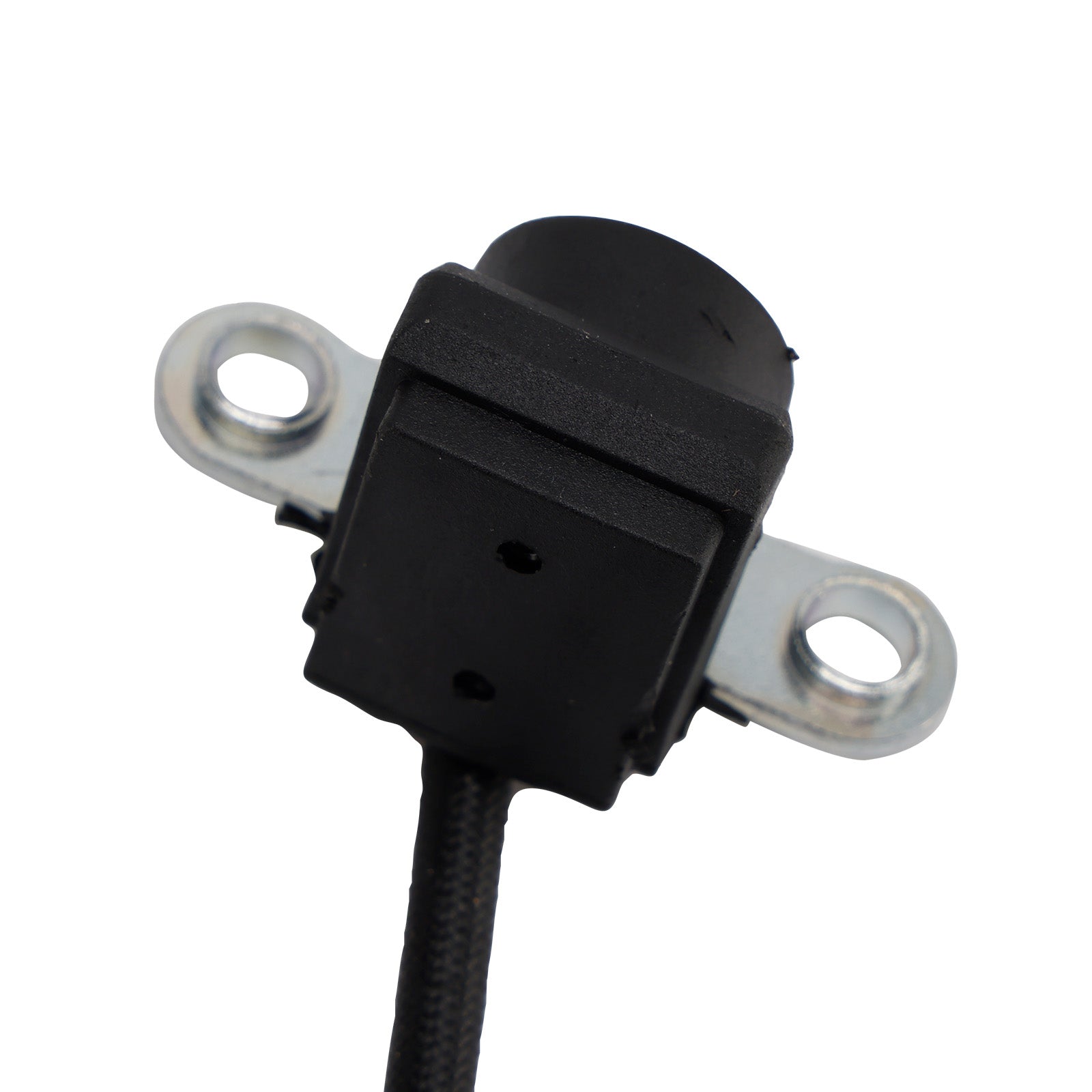

Pick up pulsar coil included.

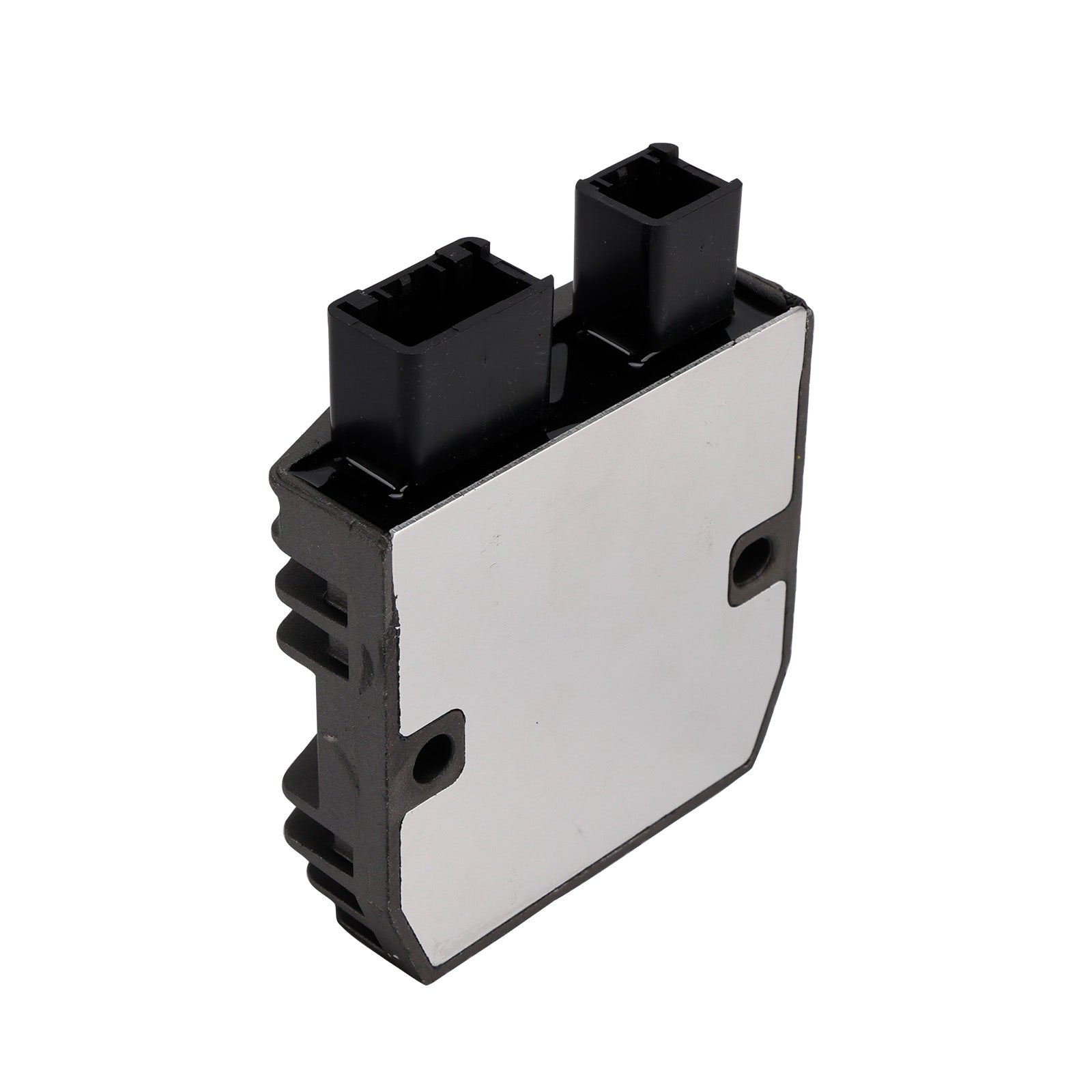

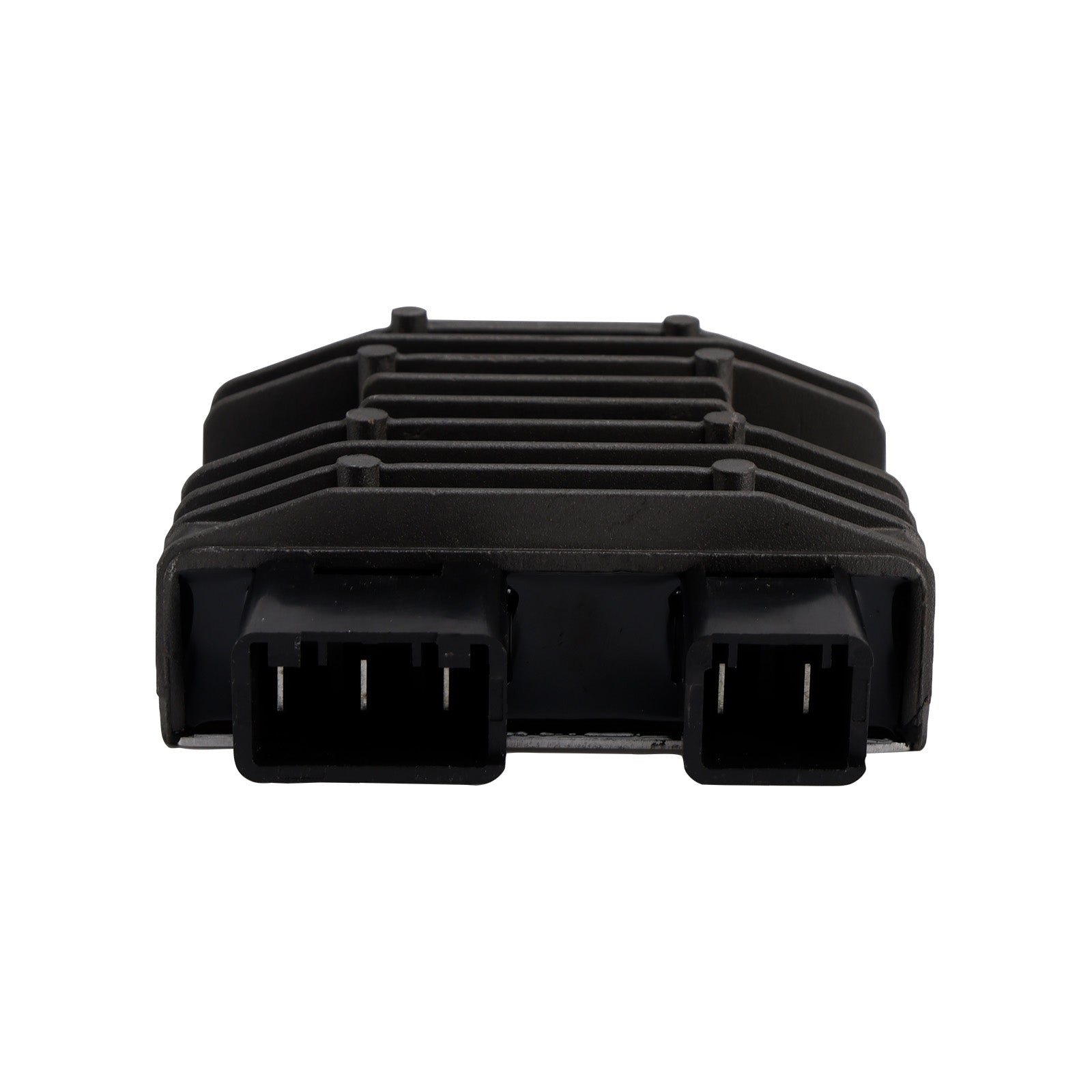

Regulator
Number of plugs: 2
Number of pins: 3 + 2
Please compare the number of pins and plugs with the old part before purchasing.
Replacement Part Number:
Stator Assy: 31120-KVZ-632, 31120-KVZ-631
Rectifier, regulator: 31600-KVZ-631
Gasket, generator cover: 11394-KVZ-630,11394-KWR-000,11394-KVZ-K11,11394-KVZ-K10
Fits Make/Model/Year:
Fit for Honda NSS250 Forza 250 MF10 ABS 2008-2009
Fit for Honda NSS250 Forza 250 MF10 Special Edition Style S 2008
Fit for Honda NSS250EX Forza 250 MF10 ABS 2008
Fit for Honda NSS250S Forza 250 MF10 2008
Fit for Honda NSS250Z Forza 250 MF10 2008-2017
Fit for Honda NSS250Z Forza 250 MF10 Special Edition 2008/2012
Fit for Honda NSS250Z Forza 250 MF10 Audio 2008-2017
Fit for Honda NSS250Z Forza 250 MF10 ABS 2008-2017
Fit for Honda NSS250Z Forza 250 MF10 ABS Special Edition 2008
Fit for Honda NSS250Z Forza 250 MF10 ABS Audio 2008-2017
Fit for Honda NSS250X Forza 250 MF10 2008-2009
Fit for Honda NSS250X Forza 250 MF10 Audio 2008-2009
Fit for Honda NSS250 Reflex 250 Sport MF10 2008

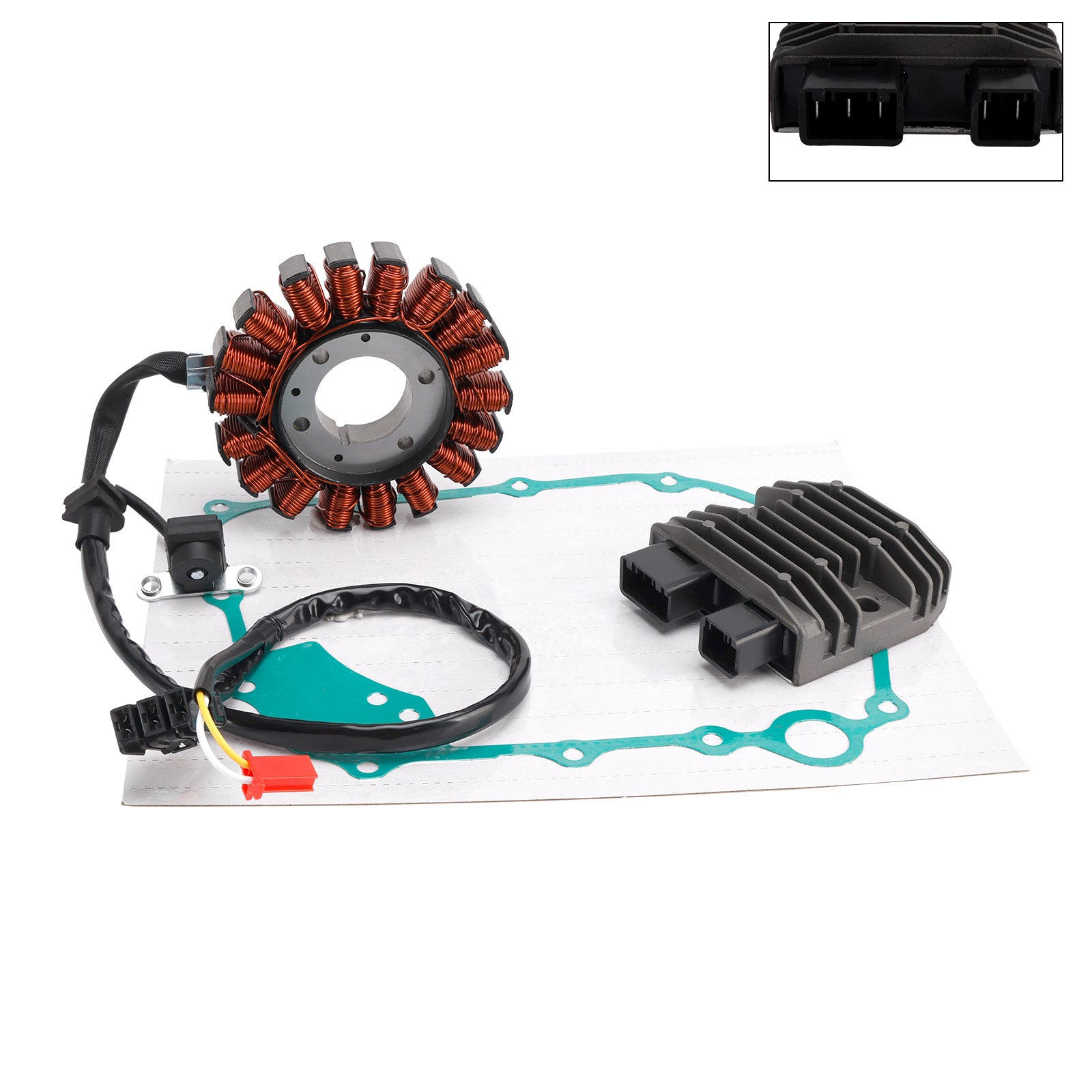

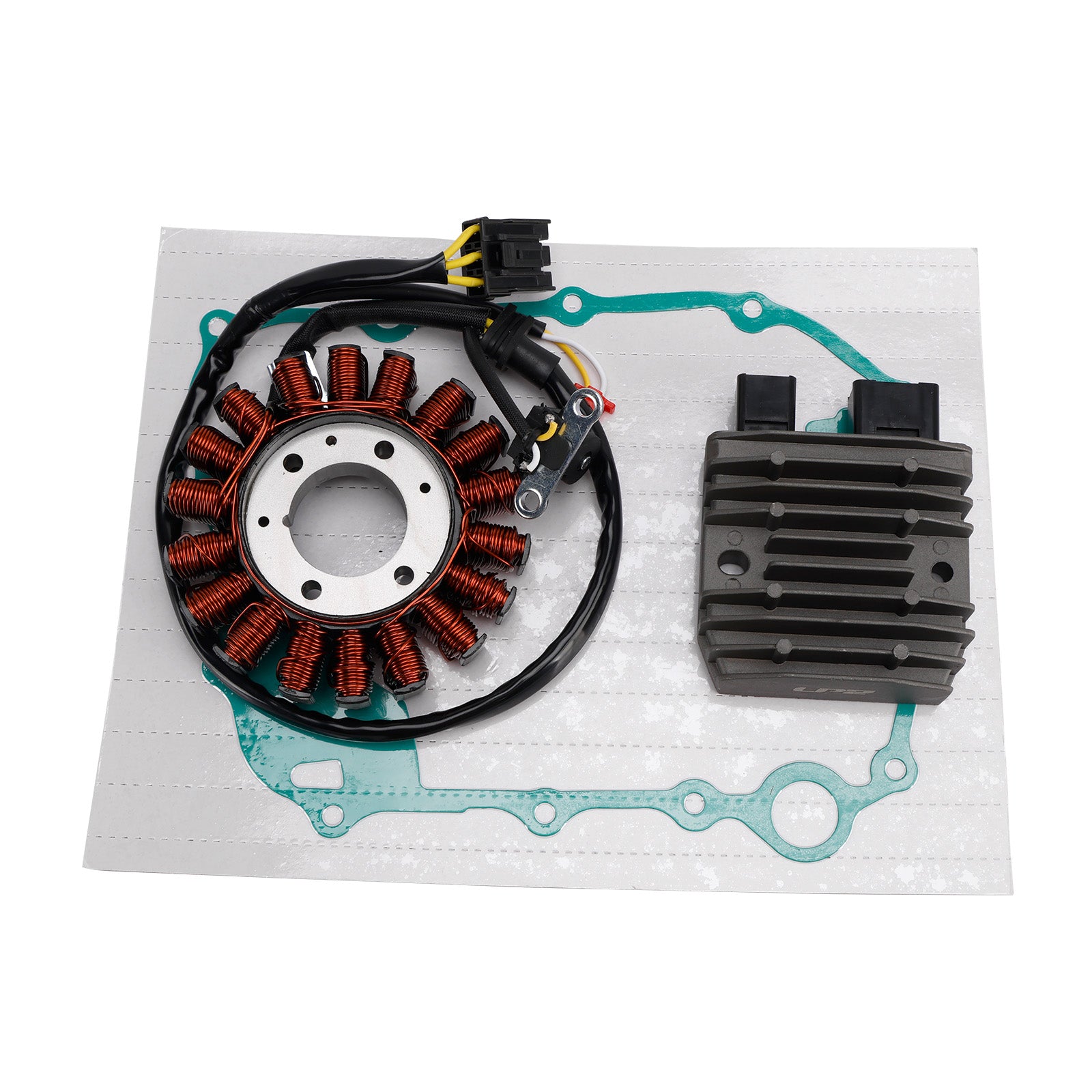

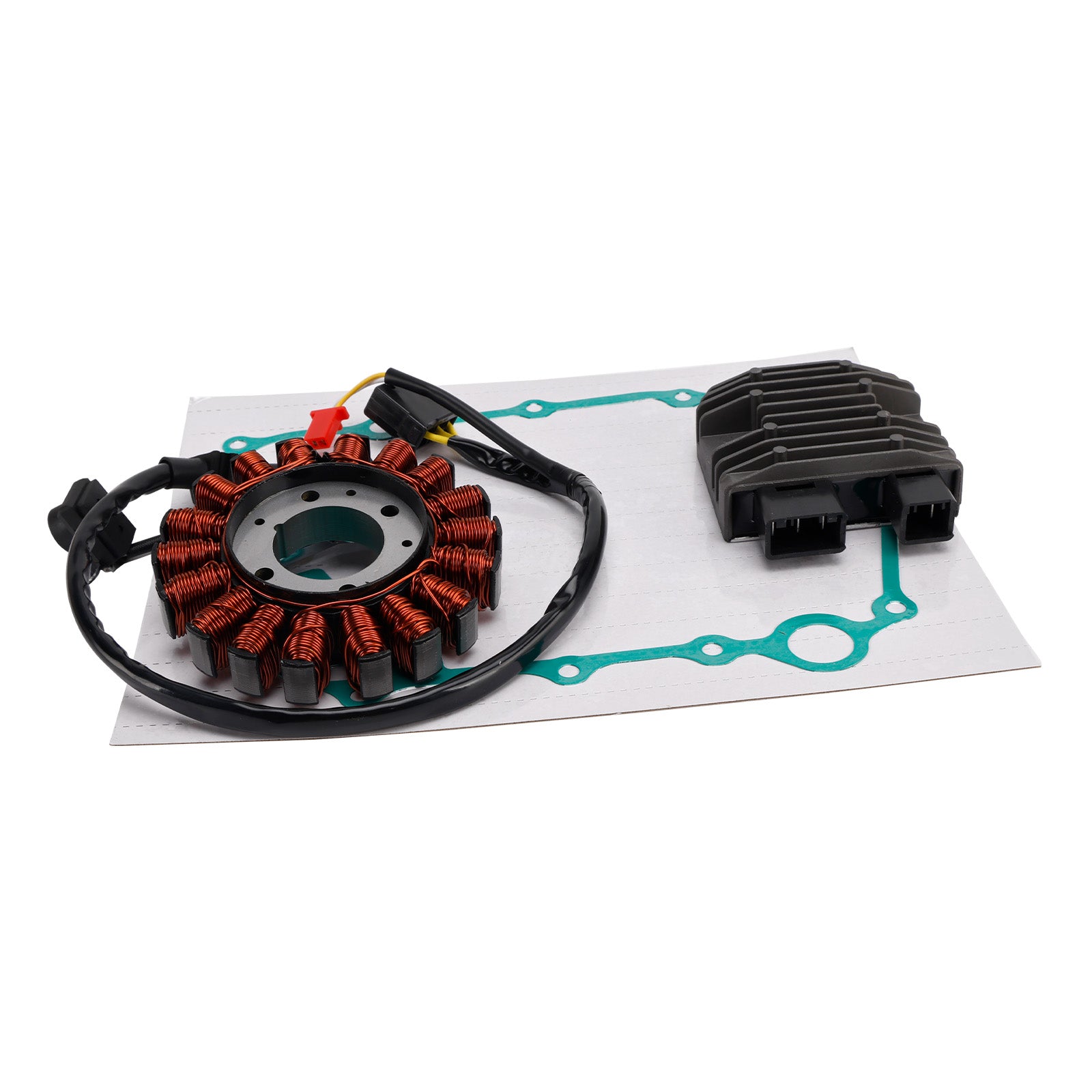

Package Includes:

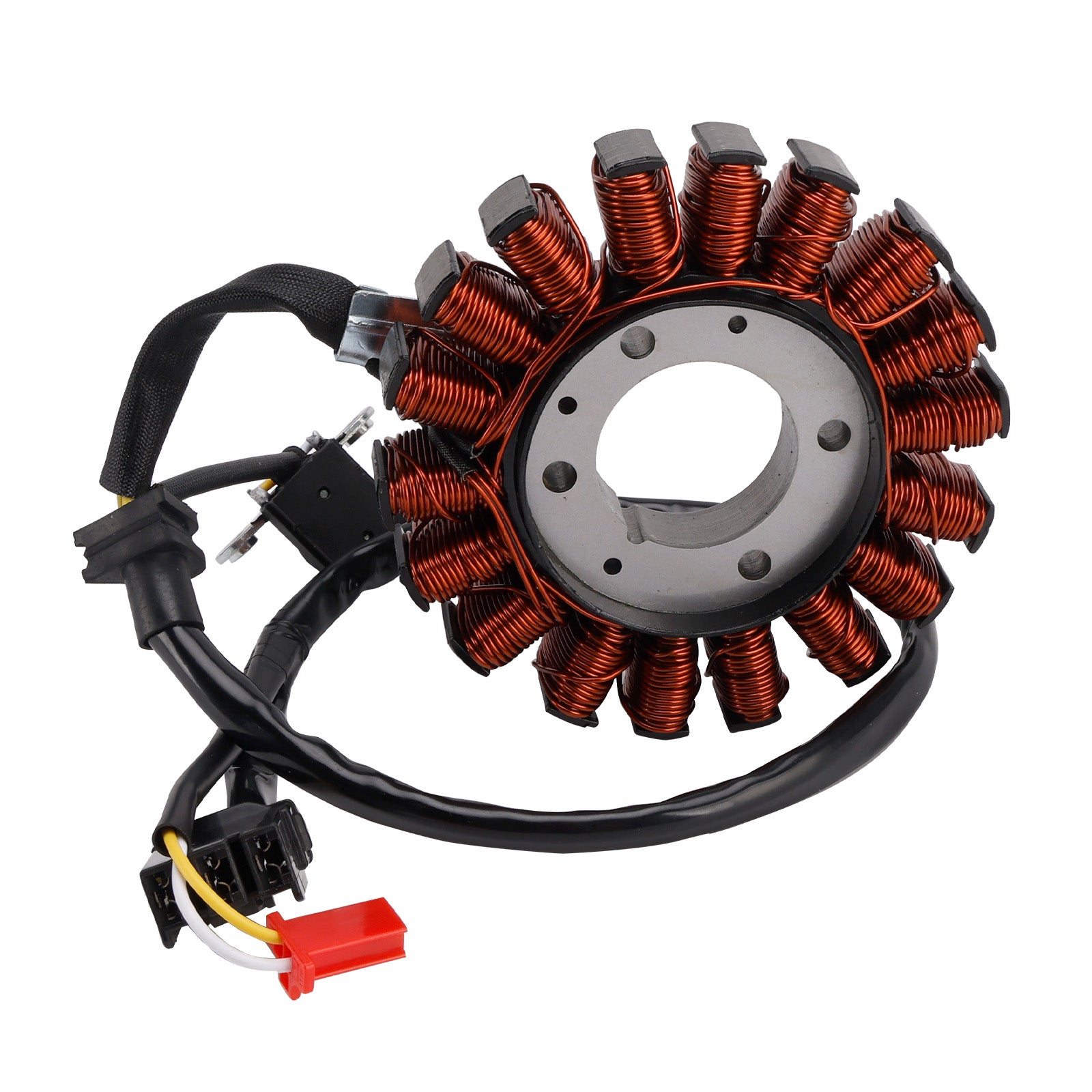

1 x 15-Pole Generator Stator

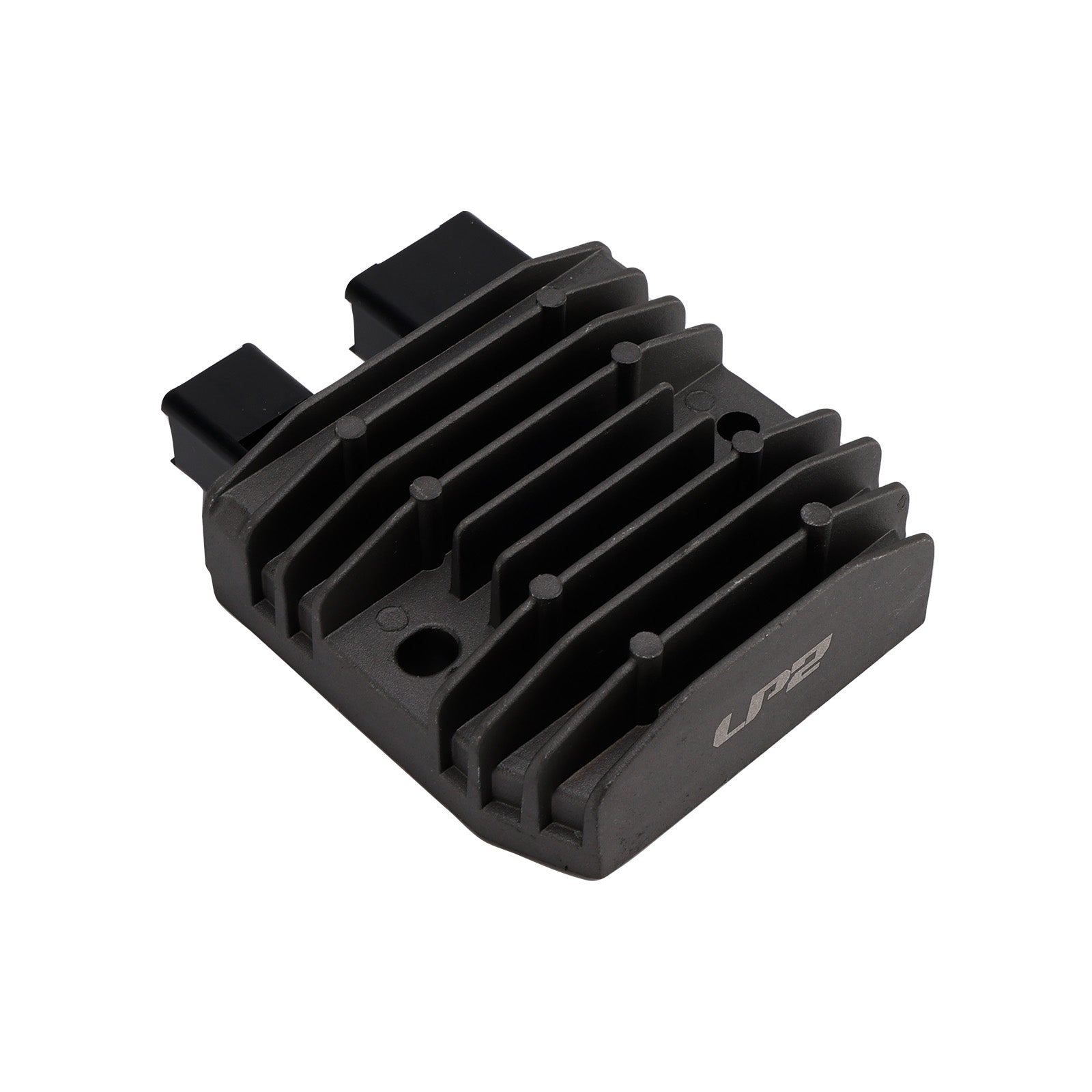

1 x 5-Pin Voltage Regulator

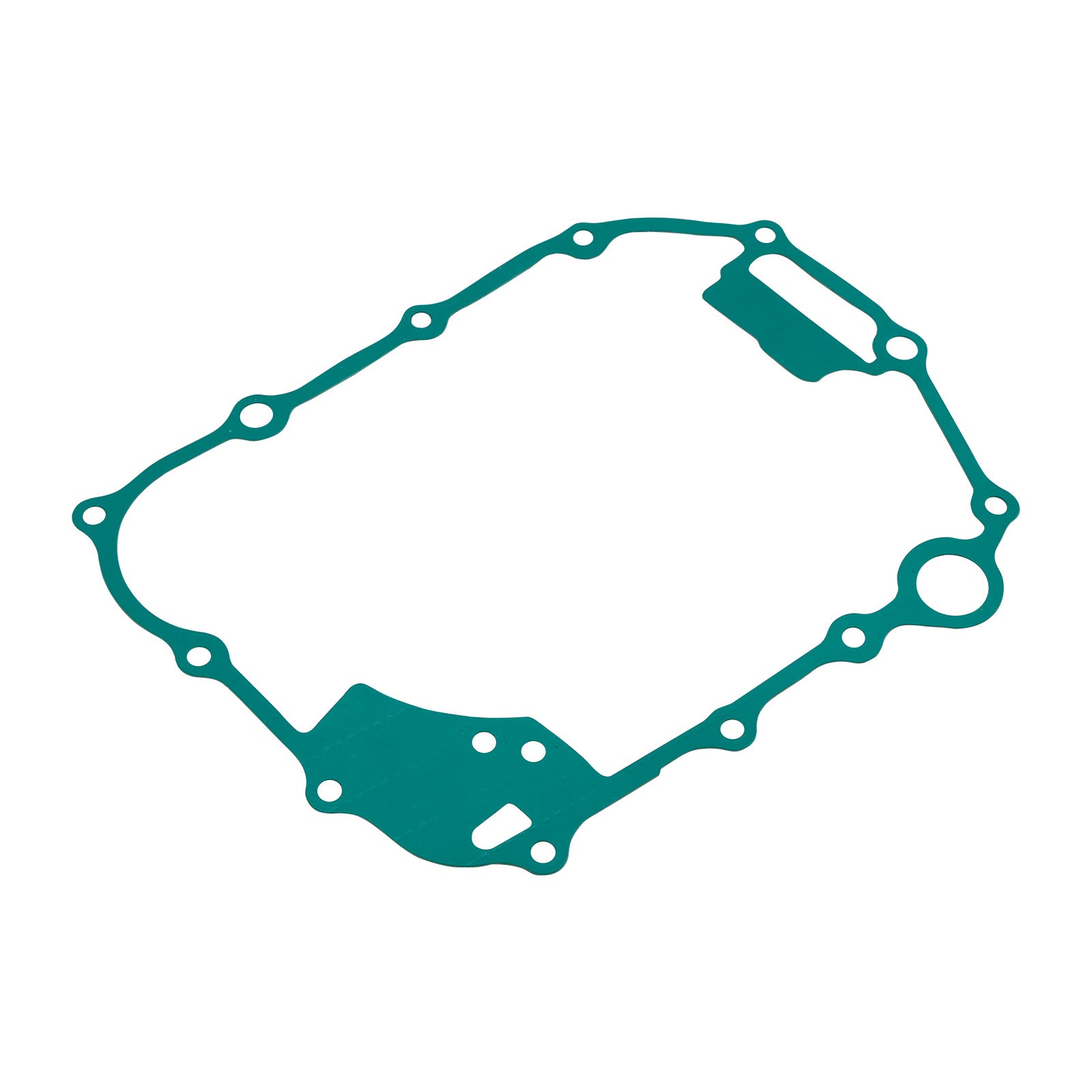

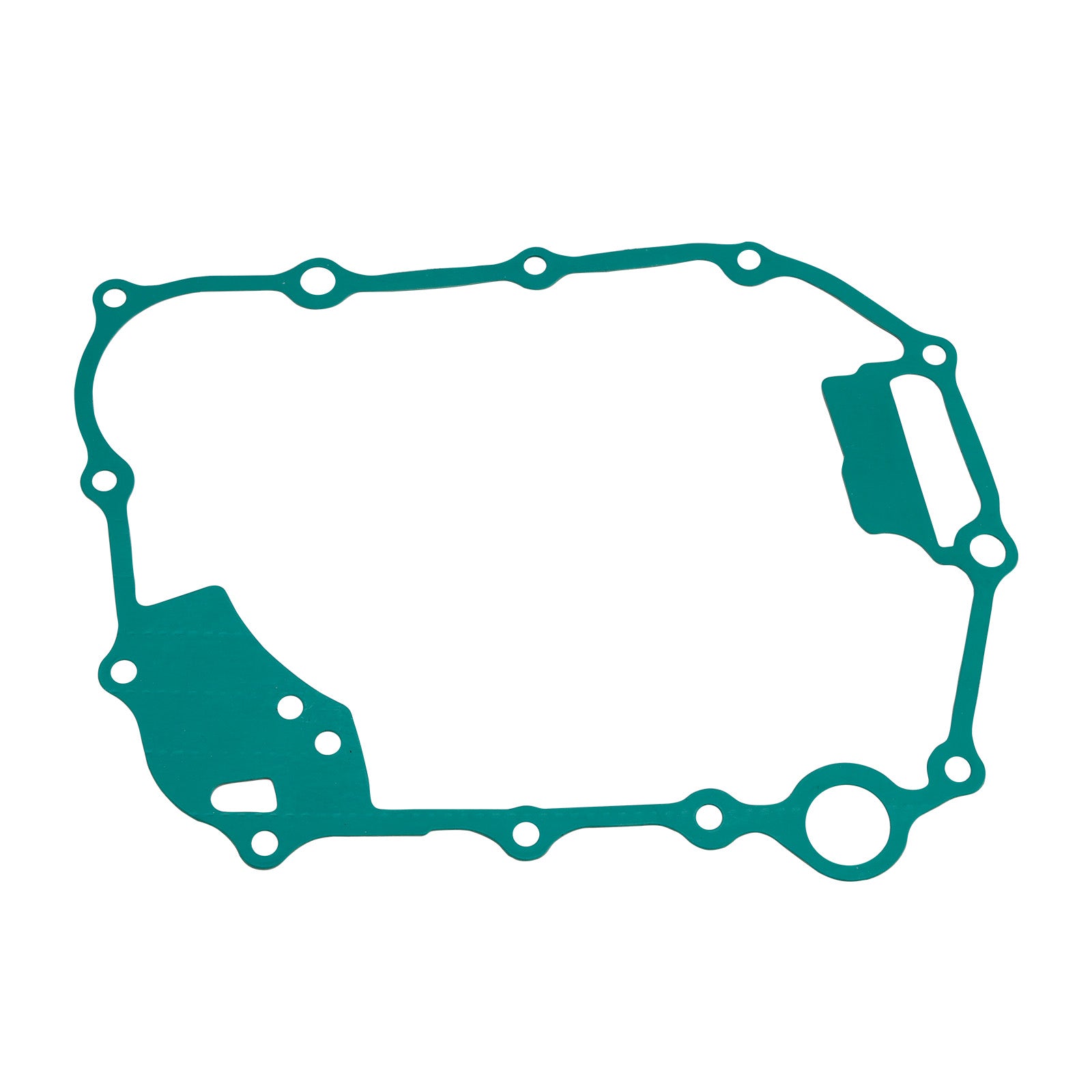

1 x Crankcase Gasket
