2002-2005 3C7061230 Nissan NS / Tohatsu M 115 120 140 Hp 2-Stroke Alternator

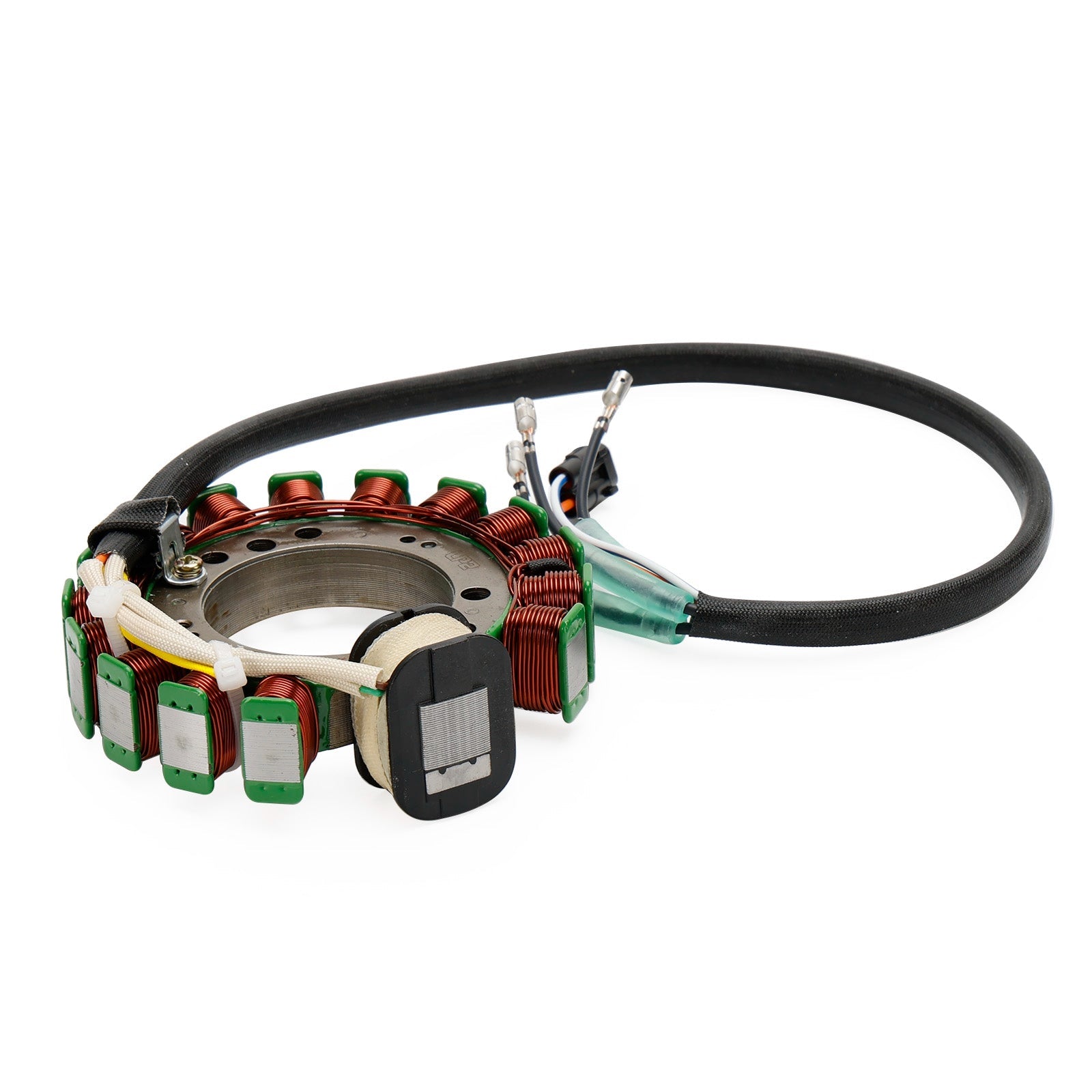

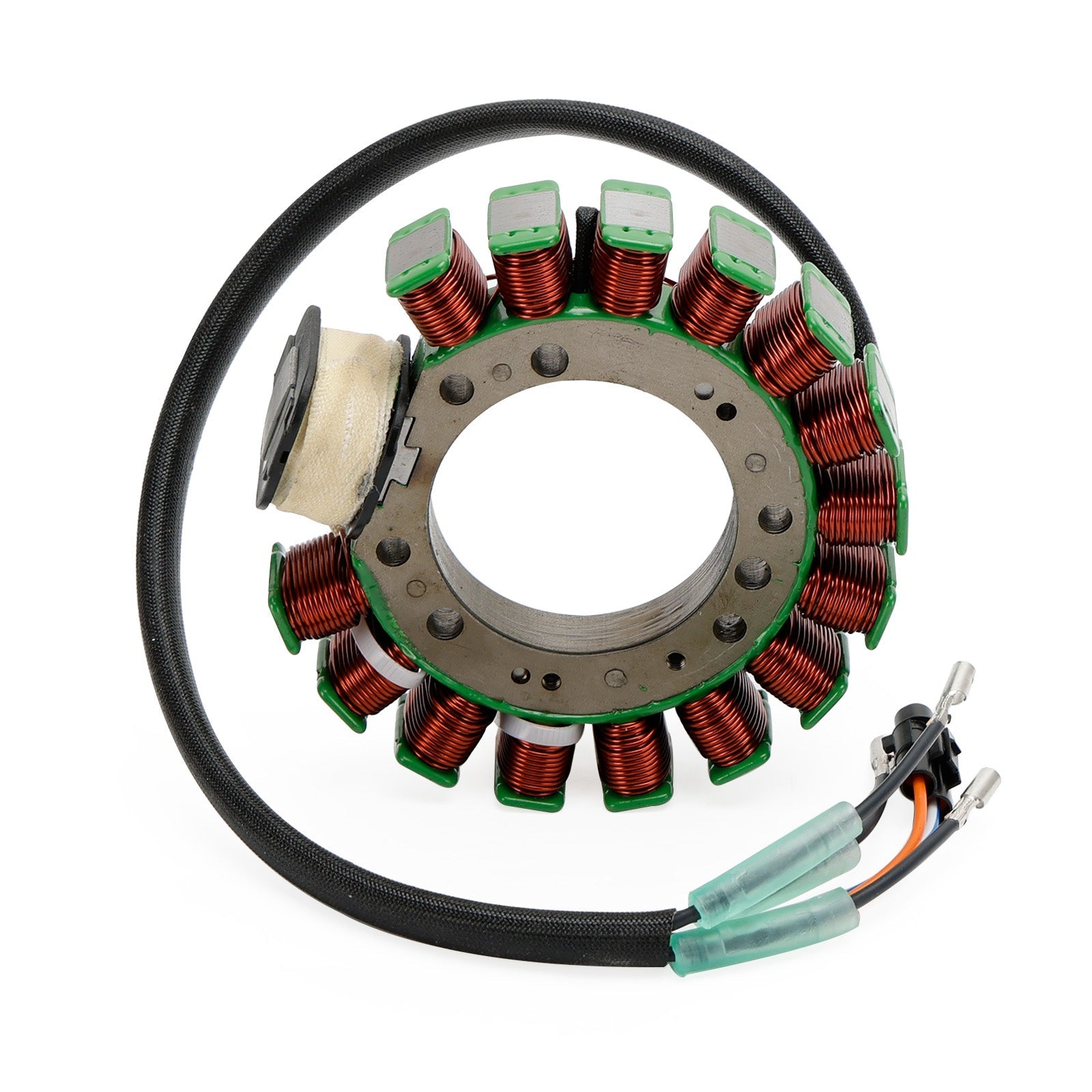

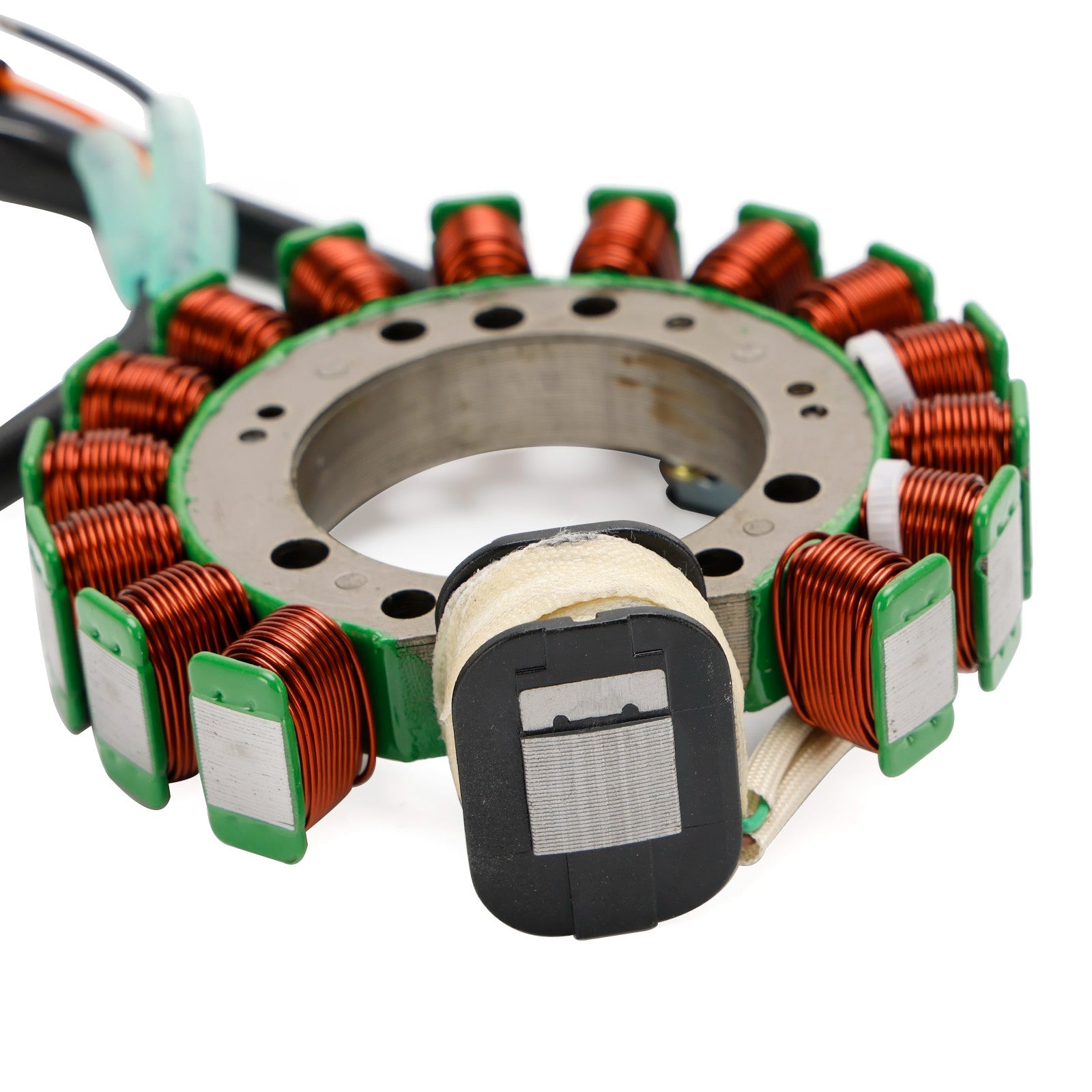

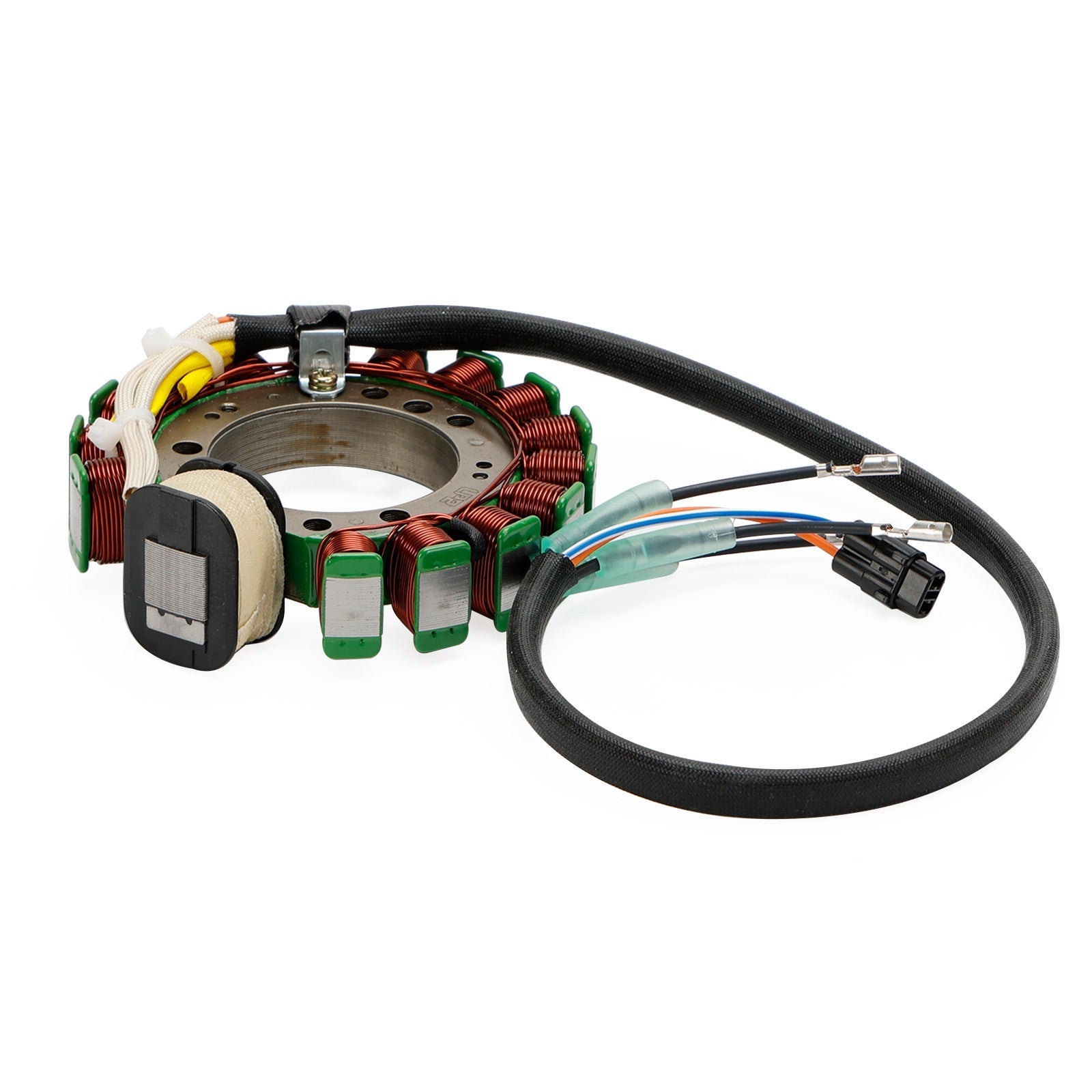

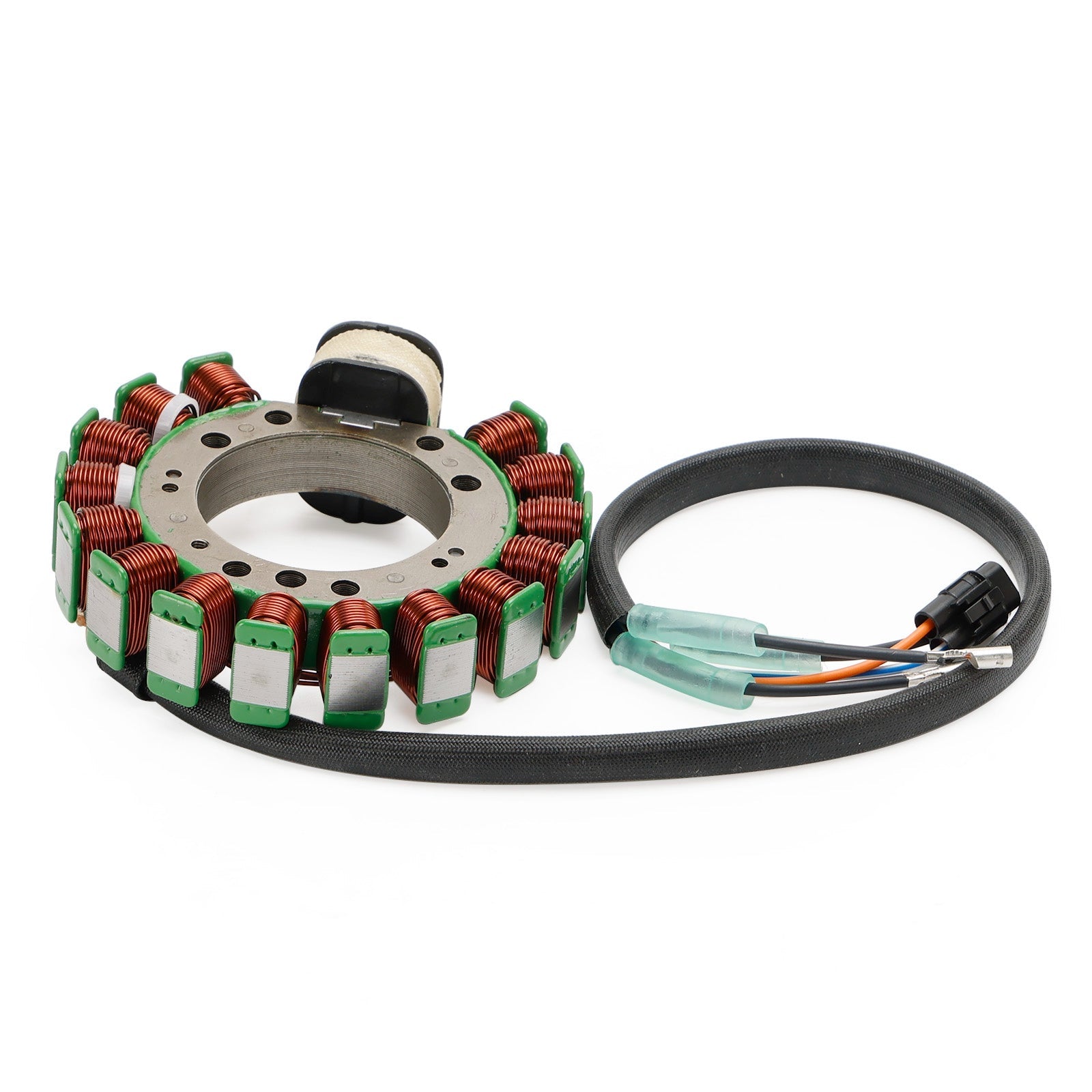

Stator Alternator Assy Fit for Tohatsu / Nissan Outboard 115Hp 120Hp 140Hp 2-Stroke 2002-2005 Repl. # 3C7-06123-0

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Other specifications:

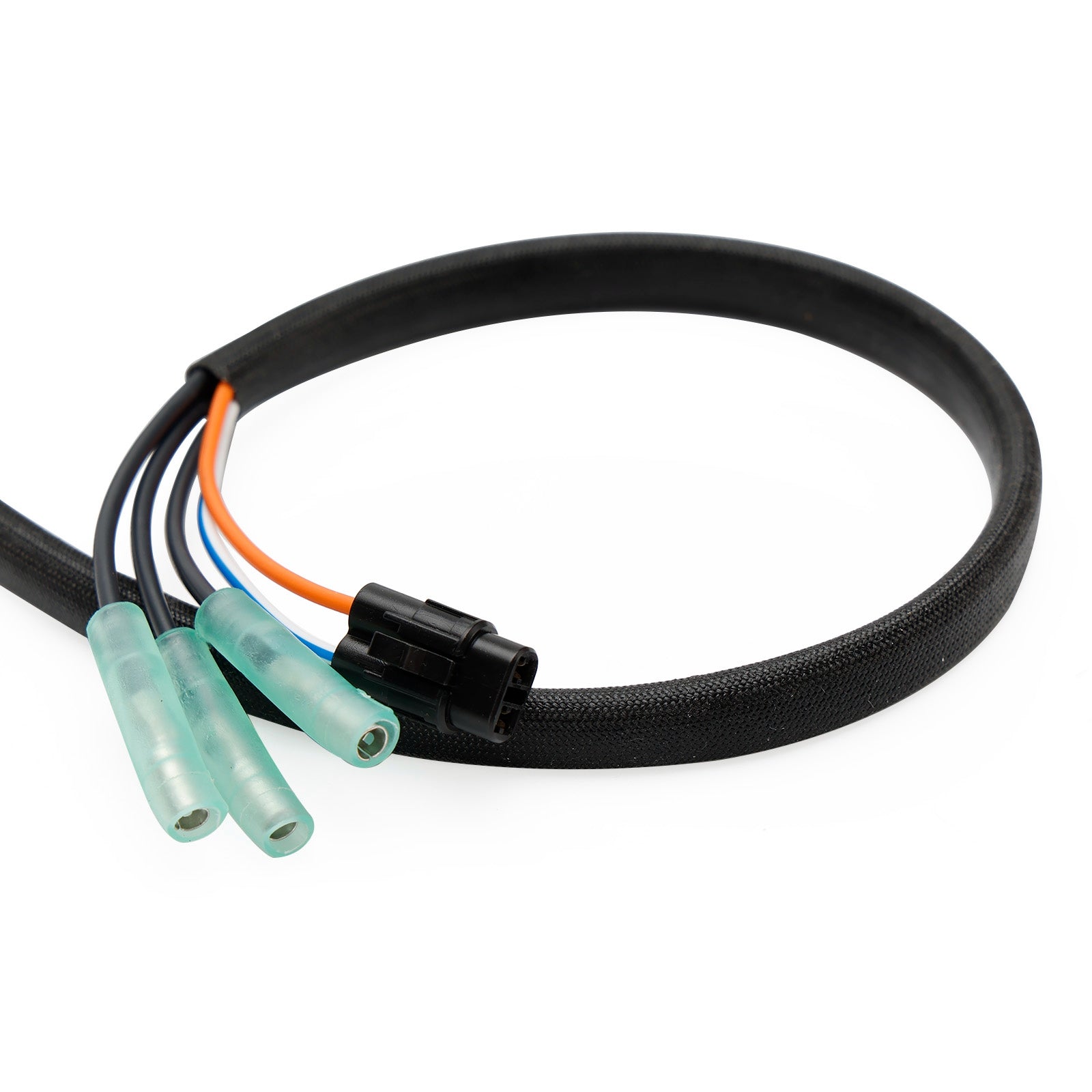

Number of wires: 5
Number of plugs: 1 + 3
Number of pins: 5
Number of poles: 15 + 1

Replacement Part Number:
3C7061230
3C7-06123-0

Fits Models:
Fit for Tohatsu Outboard 115HP M115A 2003
Fit for Tohatsu Outboard 120HP M120A 2002
Fit for Tohatsu Outboard 120HP M120A2 2002-2003
Fit for Tohatsu Outboard 140HP M140A 2002
Fit for Tohatsu Outboard 140HP M140A2 2002/2004-2005

Fit for Nissan Outboard 115HP NS115A2 2 Stroke 2003
Fit for Nissan Outboard 120HP NS120A 2-stroke 2002
Fit for Nissan Outboard 120HP NS120A2 2-stroke 2002-2005
Fit for Nissan Outboard 140HP NS140A 2-Stroke 2002
Fit for Nissan Outboard 140HP NS140A2 2-Stroke 2002/2005

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Alternator Assy

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

Battery condition is extremely important. No stator can work correctly with a bad or weak battery.
Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
