1981-1983 1986-2002 Honda XR200R (2 valve engines) Cylinder Piston Gasket Top End Rebuild Kit 63mm

Cylinder Piston Gasket Top End Rebuild Kit 63mm For Honda XL200r XL185 XR200R

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

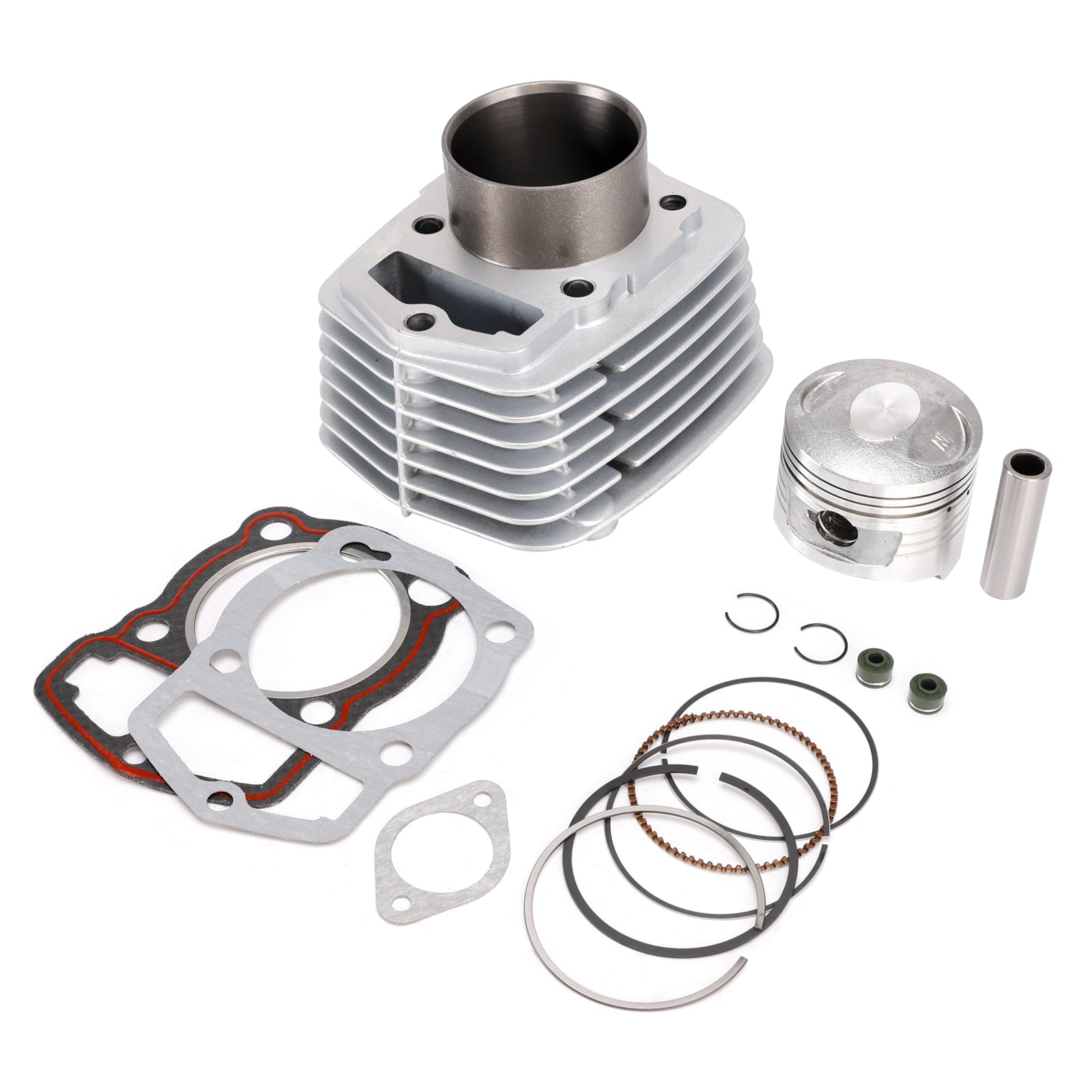

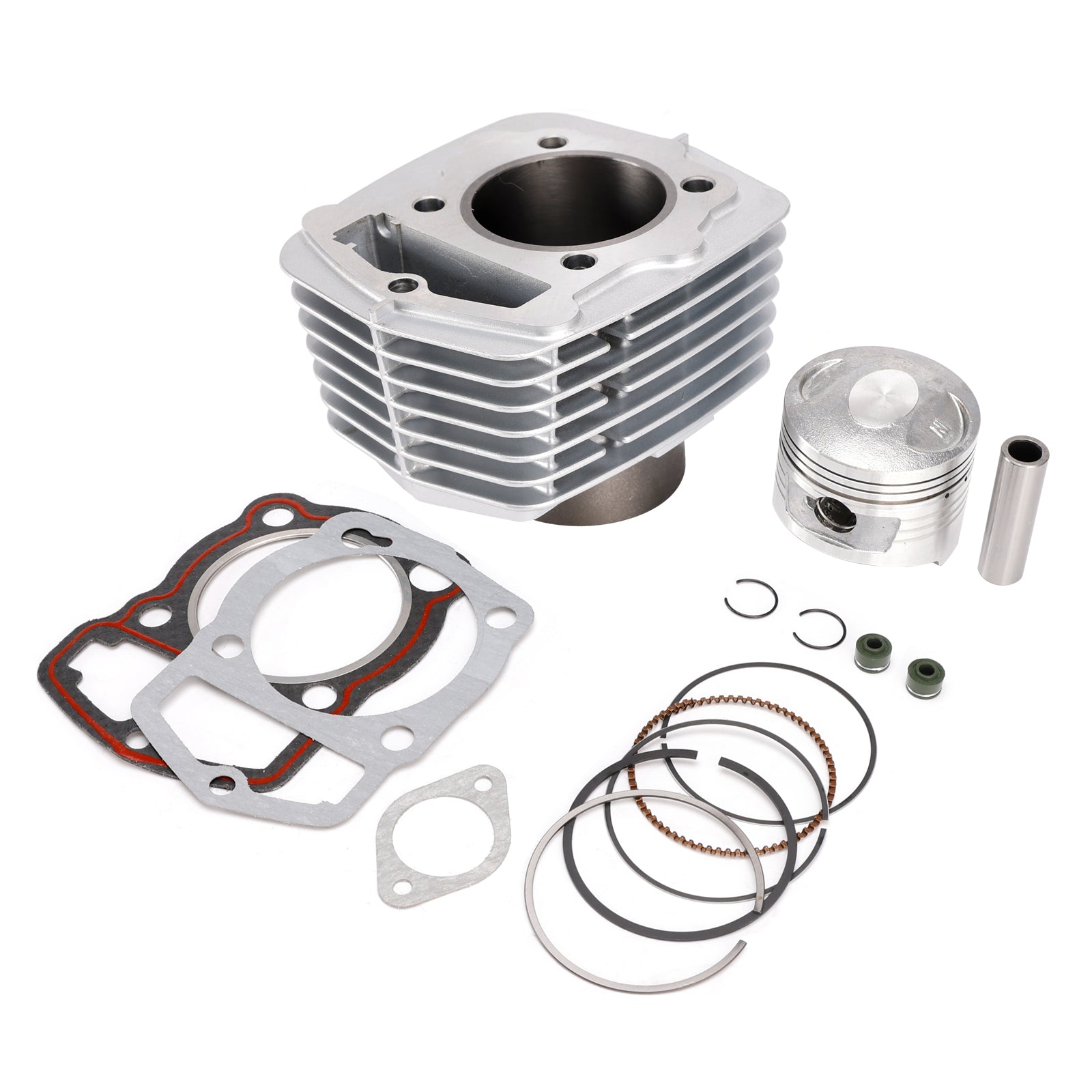

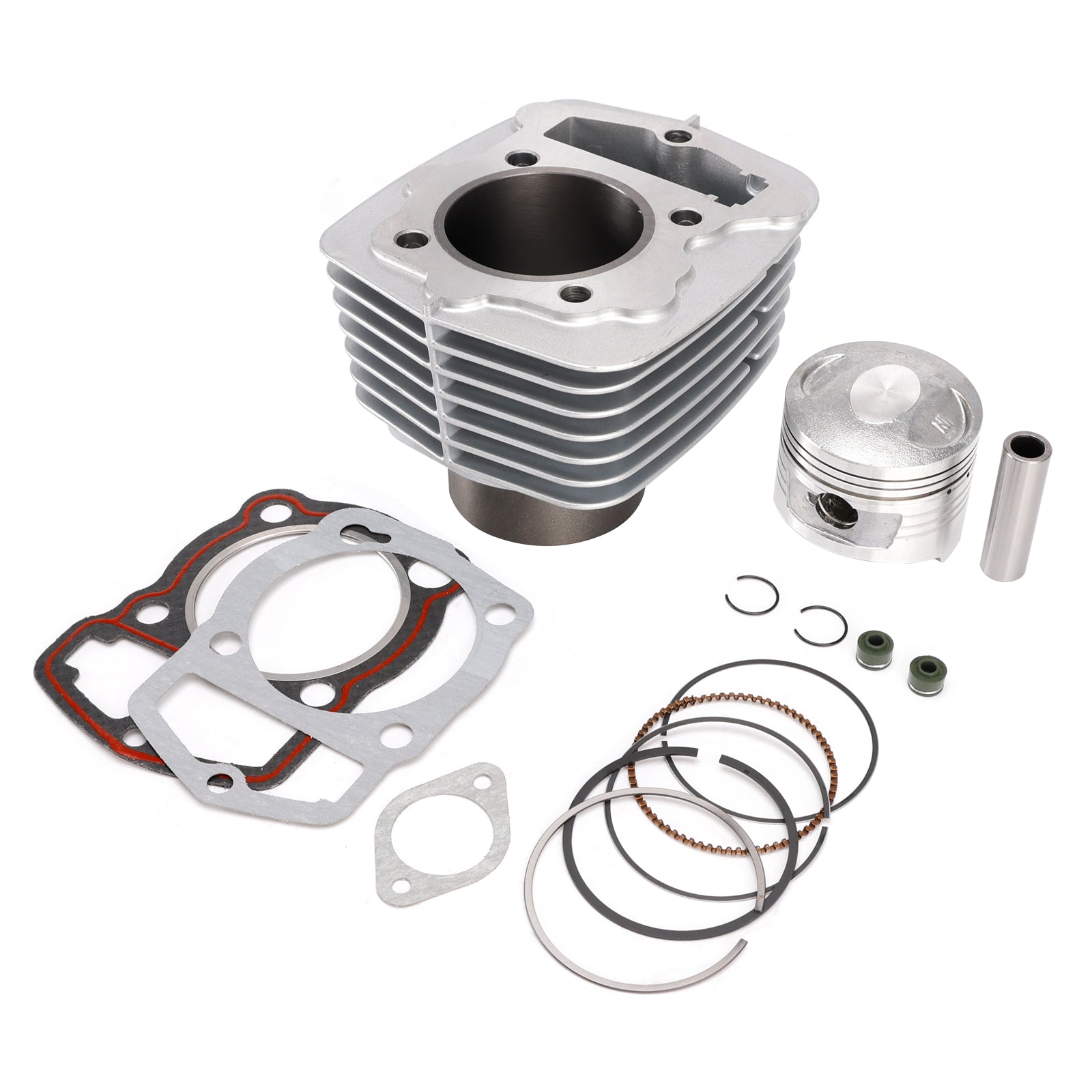

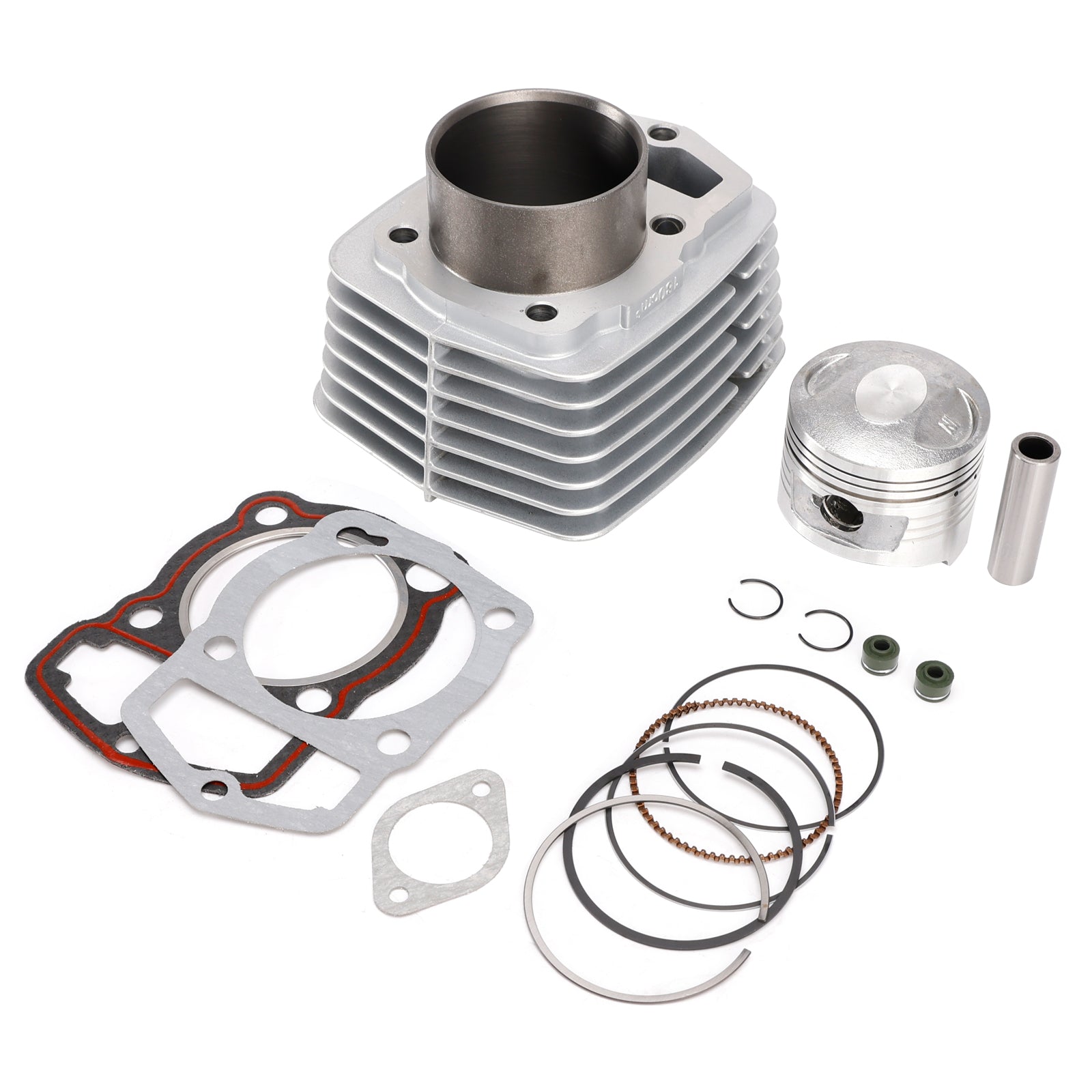

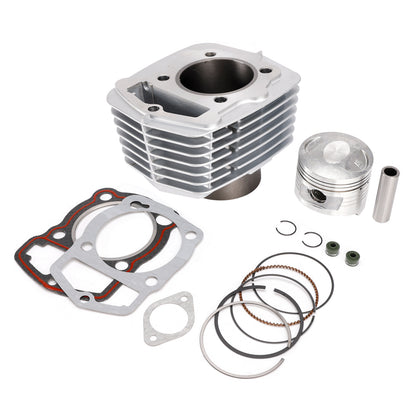

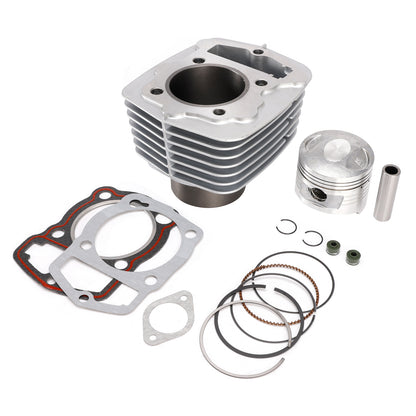

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).

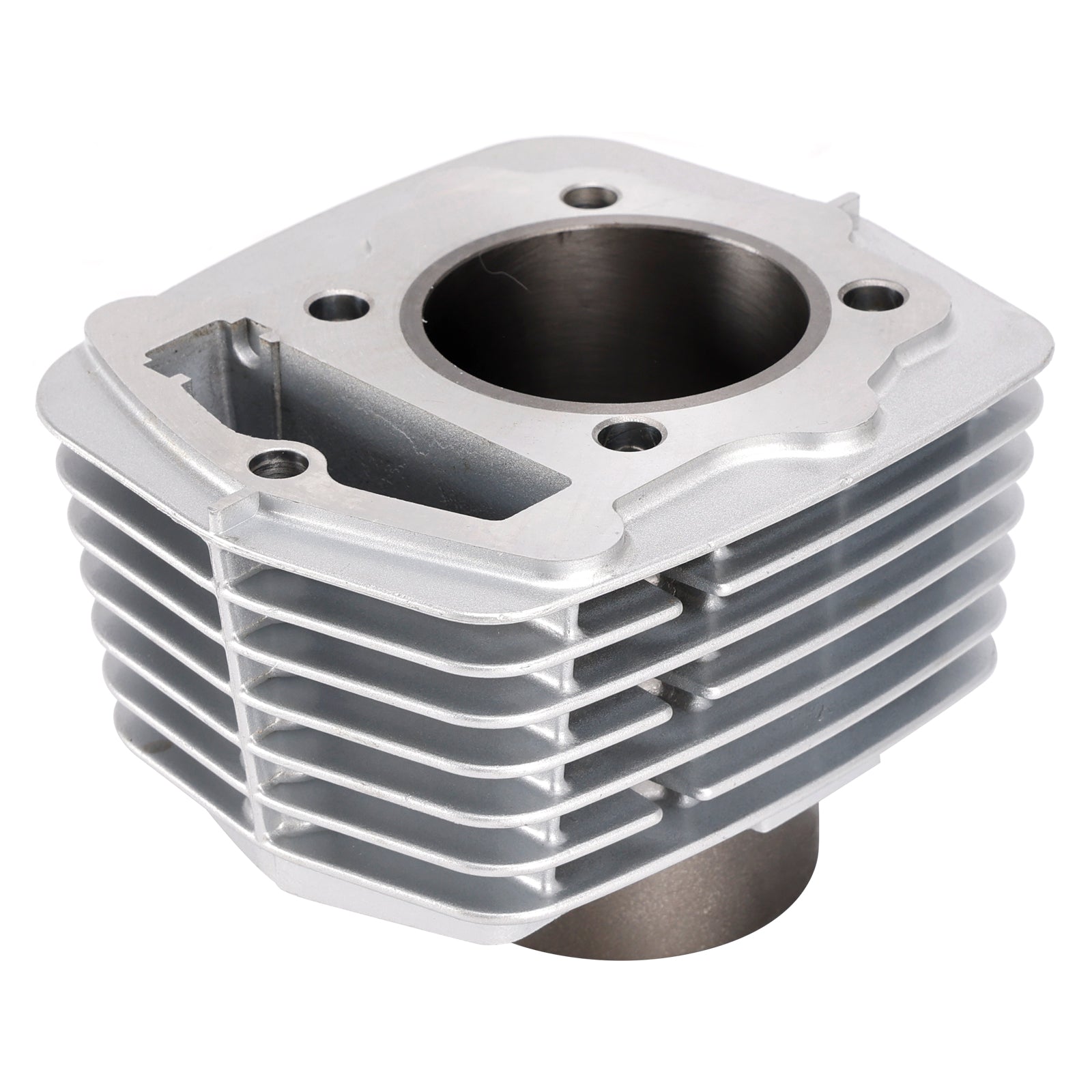

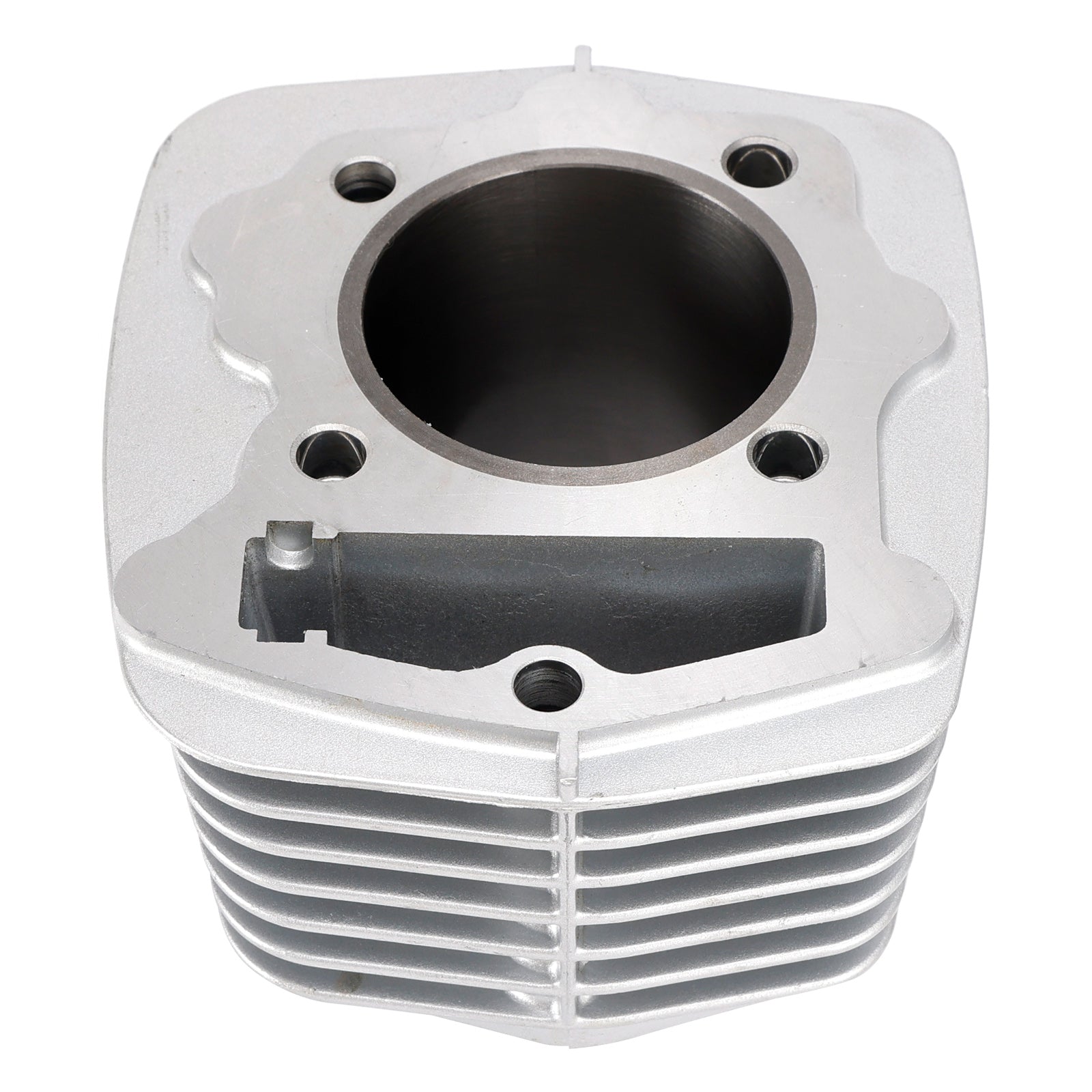

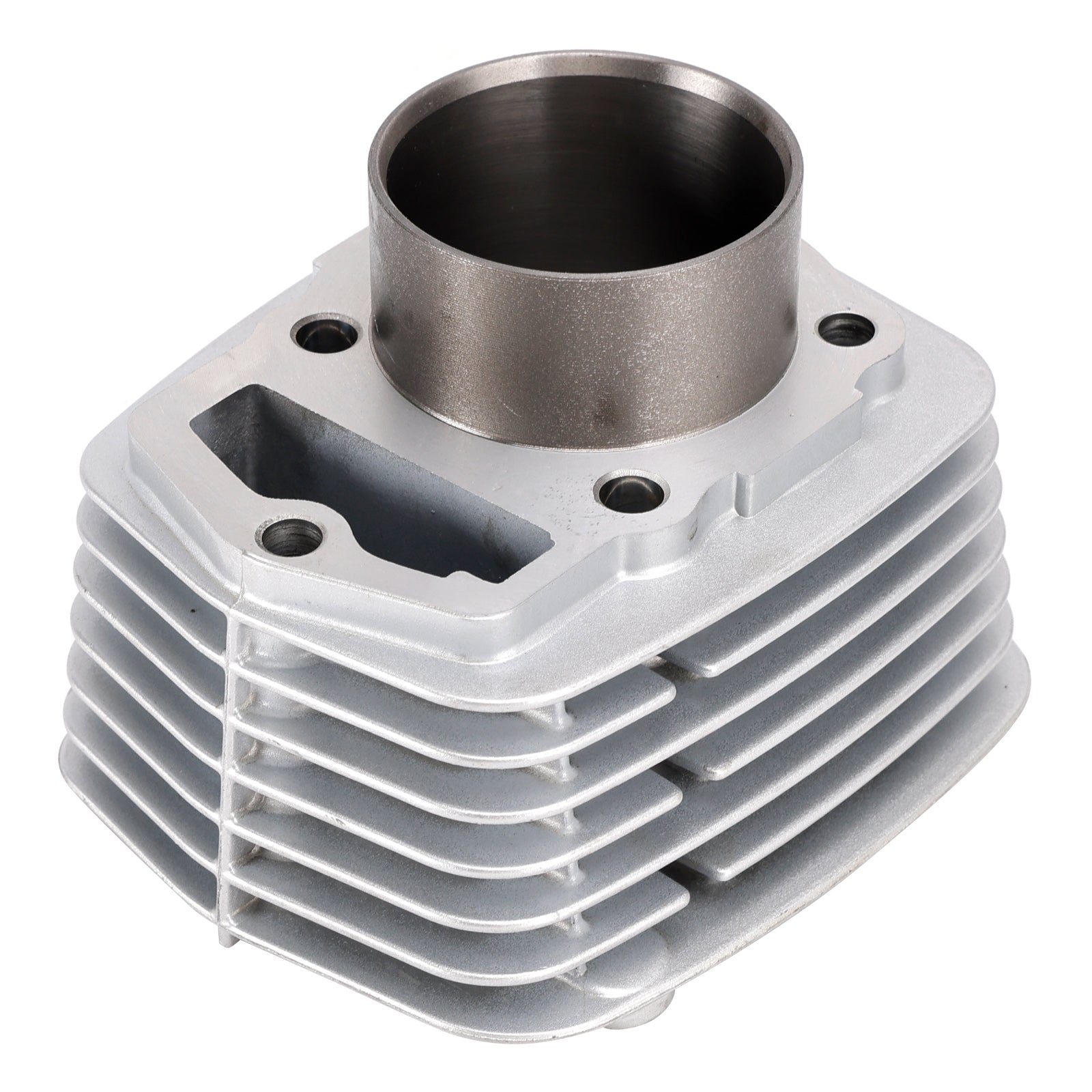

The cylinder is made of aluminum for good cooling with an internal cast iron jacket (unlike which has a nicasil treatment).
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 63 mm x 57.8 mm stroke, 15 mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum, Steel
Engine: 4 stroke, 2 valve
Displacement: 180cc
Bore Type: Standard Bore
Bore diameter: 63 mm
Stroke: 57.8 mm
Pin diameter: 15 mm
Pin Overall Length: 51mm

Replacement Part Number:
Cylinder: 12100-427-010
Cylinder Base Gasket: 12191-KT0-710,12191-KT0-711
Cylinder Head Gasket: 12251-427-020,12251-427-P00

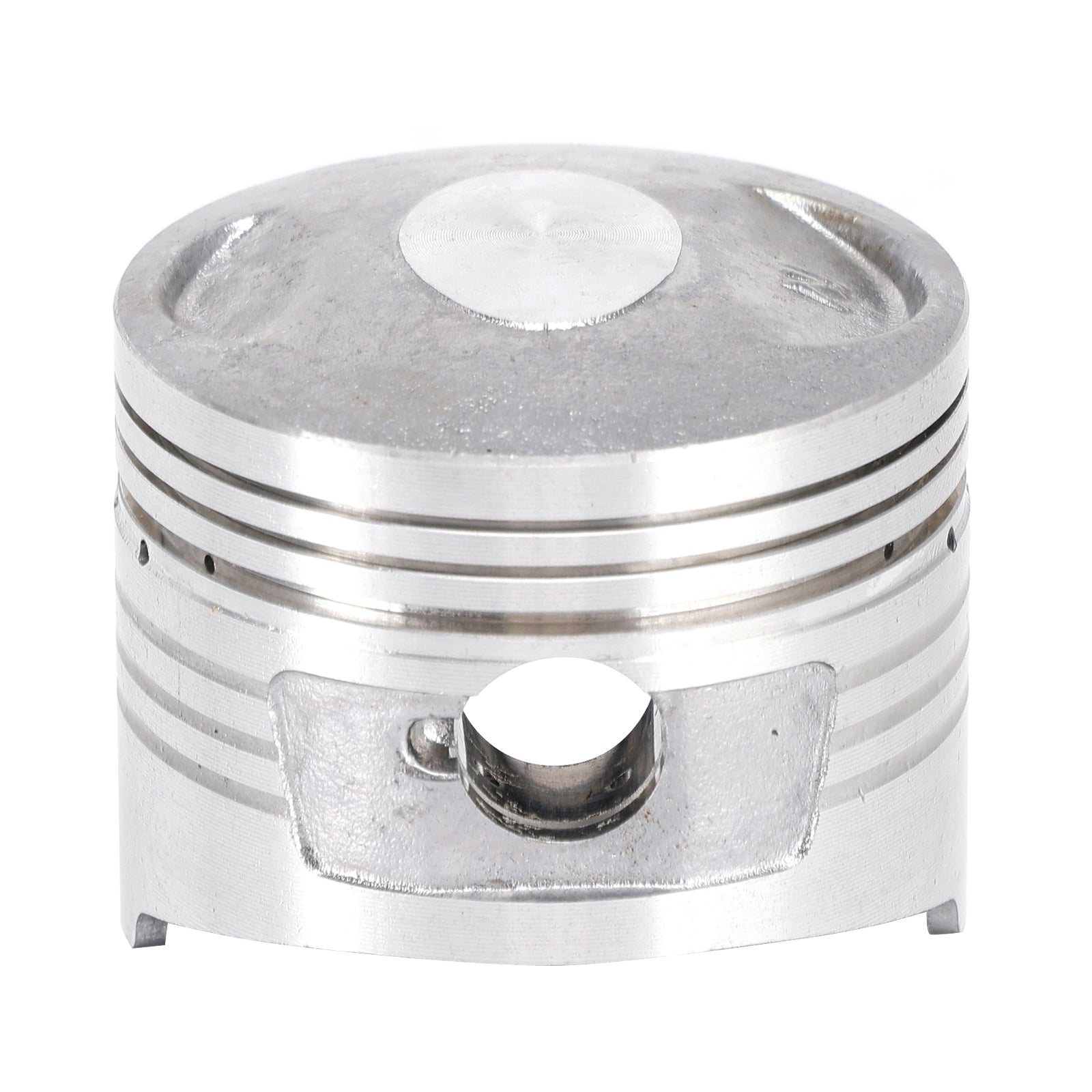

Piston: 13101-958-000
Pin, Piston: 13111-425-000
Piston Ring Set (Std): 13011-427-000
Circlips, piston (2): 94601-15000
Valve Stem Seal (2): 12208-MC0-003

Fits Make/Model/Year:
Fit for Honda XL185S 1979-1983
Fit for Honda ATC185 1980
Fit for Honda ATC185S 1981-1983

This kit will work on XR200/ATC200, but only 180cc and not 195cc like OEM.
Pre-bored and honed to 63mm and NO hole for cam chain adjuster.
Fit for Honda XR200 1980-1984 (2 valve engines)
Fit for Honda XR200R 1981-1983, 1986-2002 (2 valve engines)
Fit for Honda XL200R 1983-1984 (2 valve engines)
Fit for Honda TLR200 1986-1987 (2 valve engines)
Fit for Honda ATC200 1981-1983
Fit for Honda ATC200S 1983-1986
Fit for Honda ATC200M 1984-1985
Fit for Honda ATC200E Big Red 1982-1983
Fit for Honda ATC200ES Big Red 1984
Fit for Honda TRX200 1984

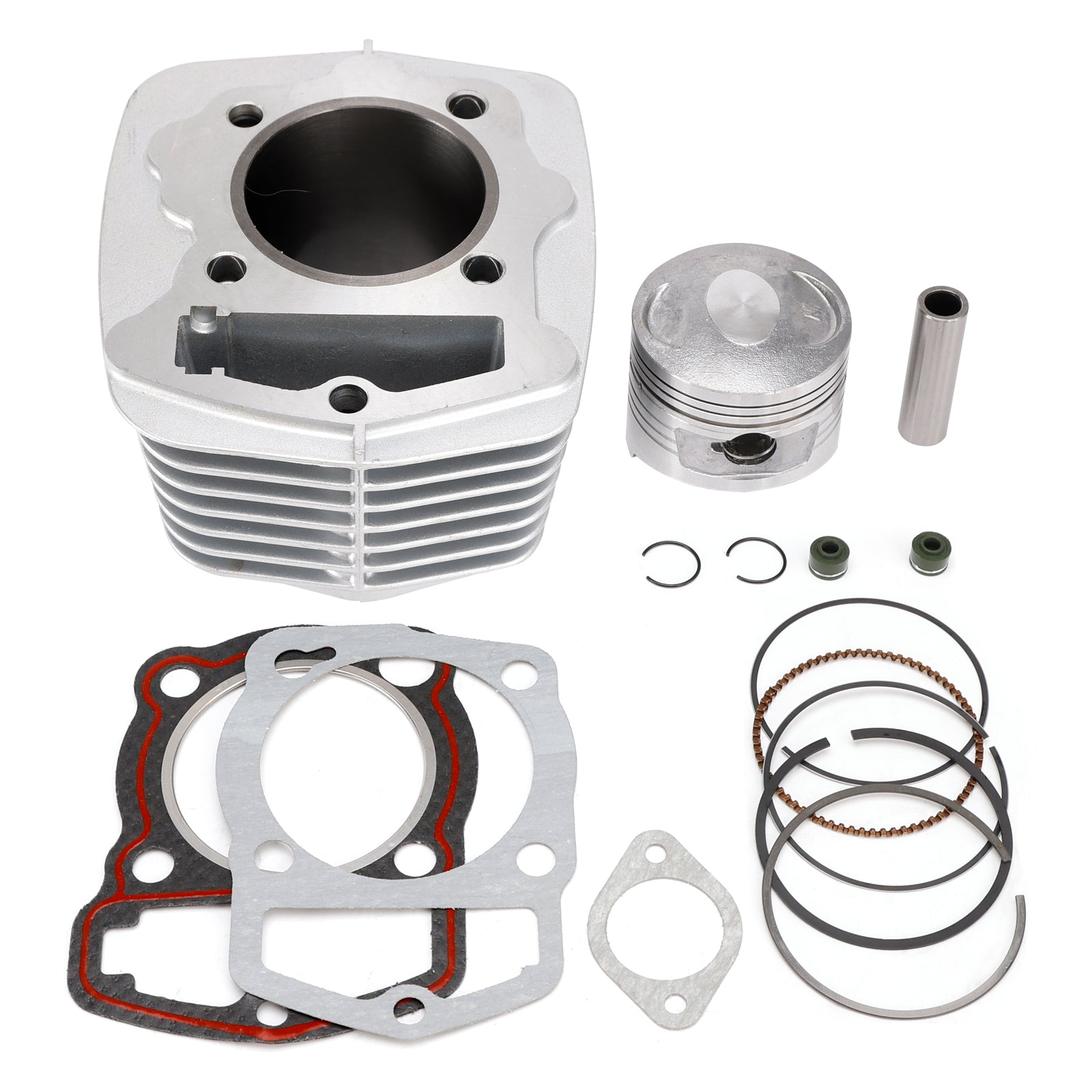

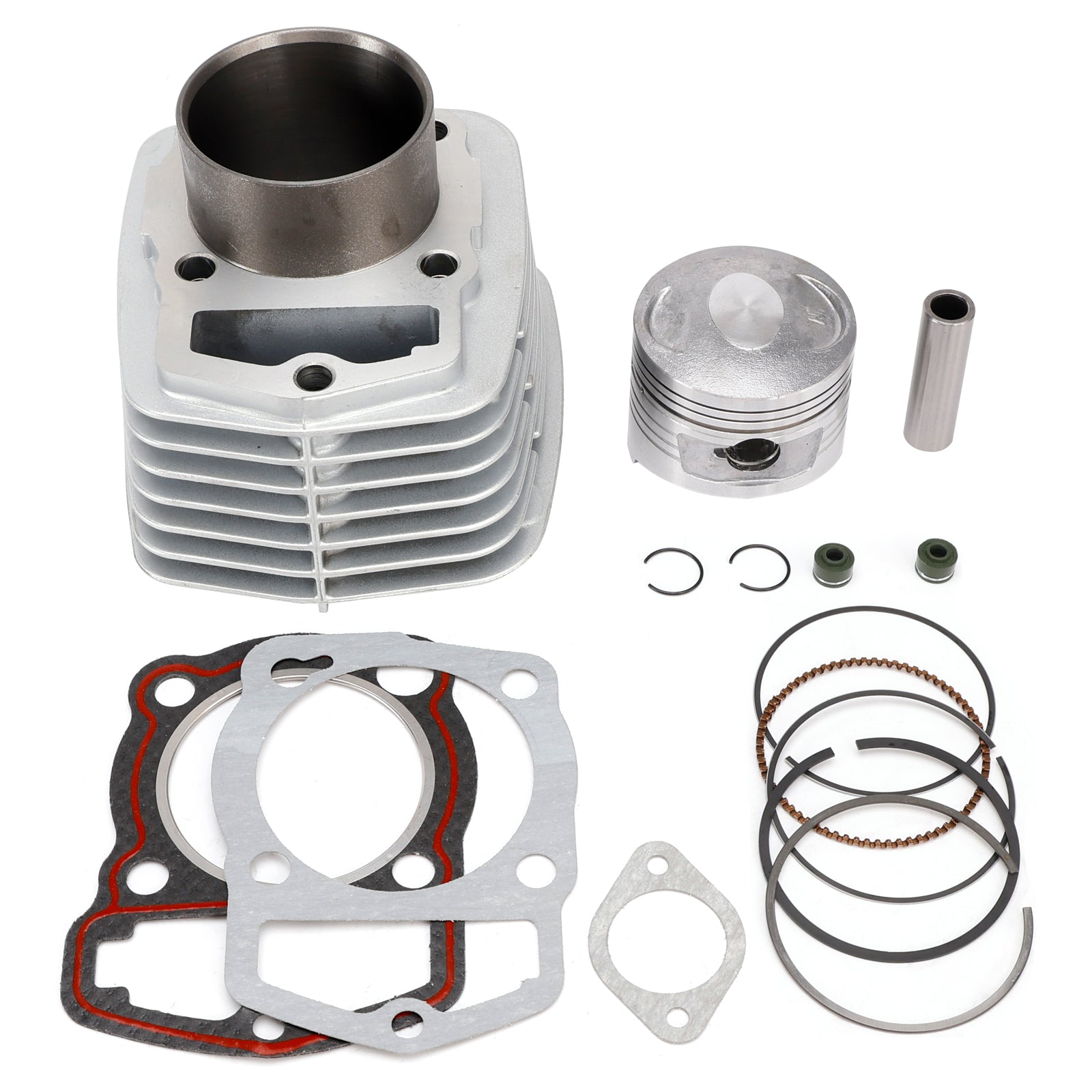

Package Includes:
1x 63mm Cylinder

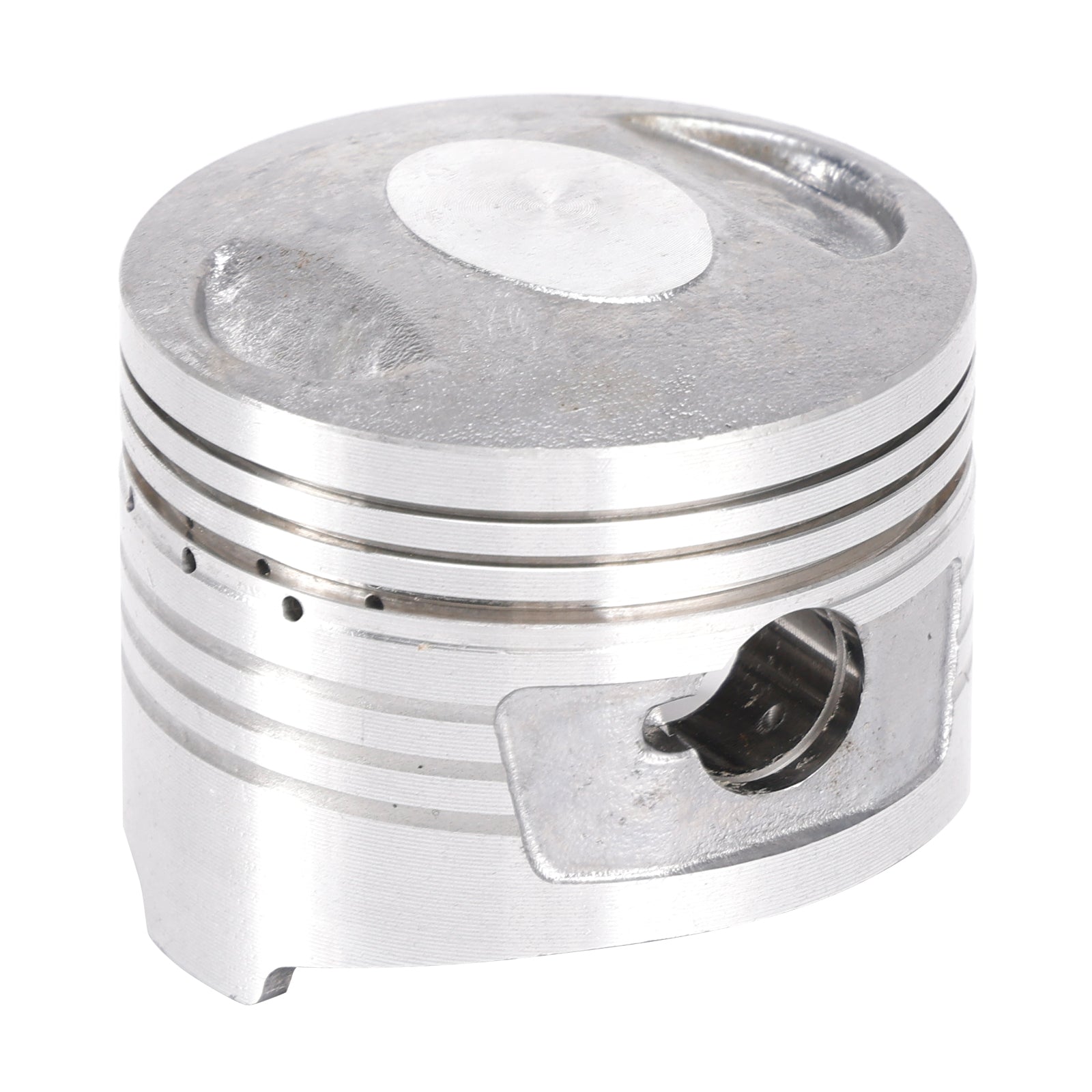

1x Piston

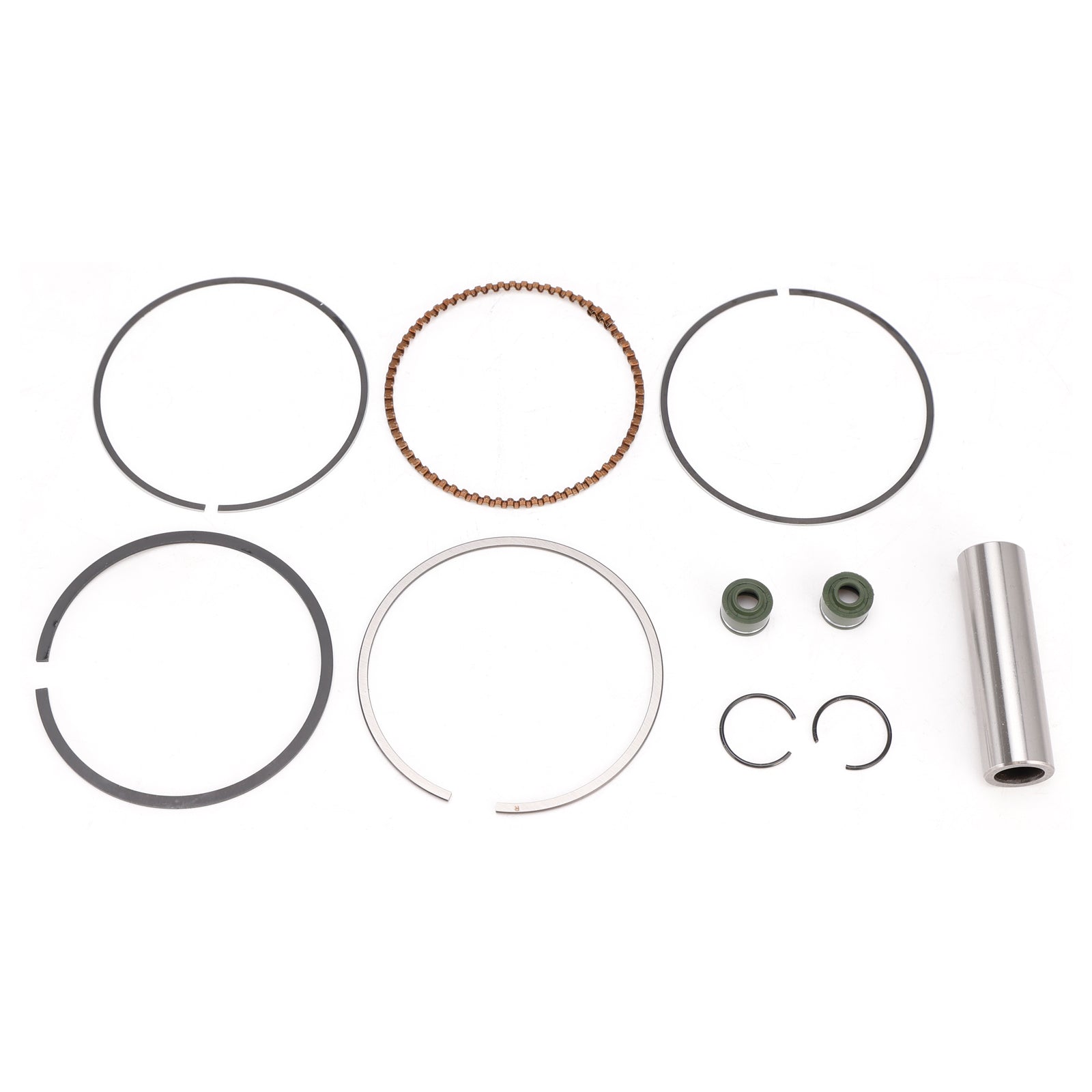

1x Piston Ring Set
1x 15mm Wristpin
1x Circlip(2)

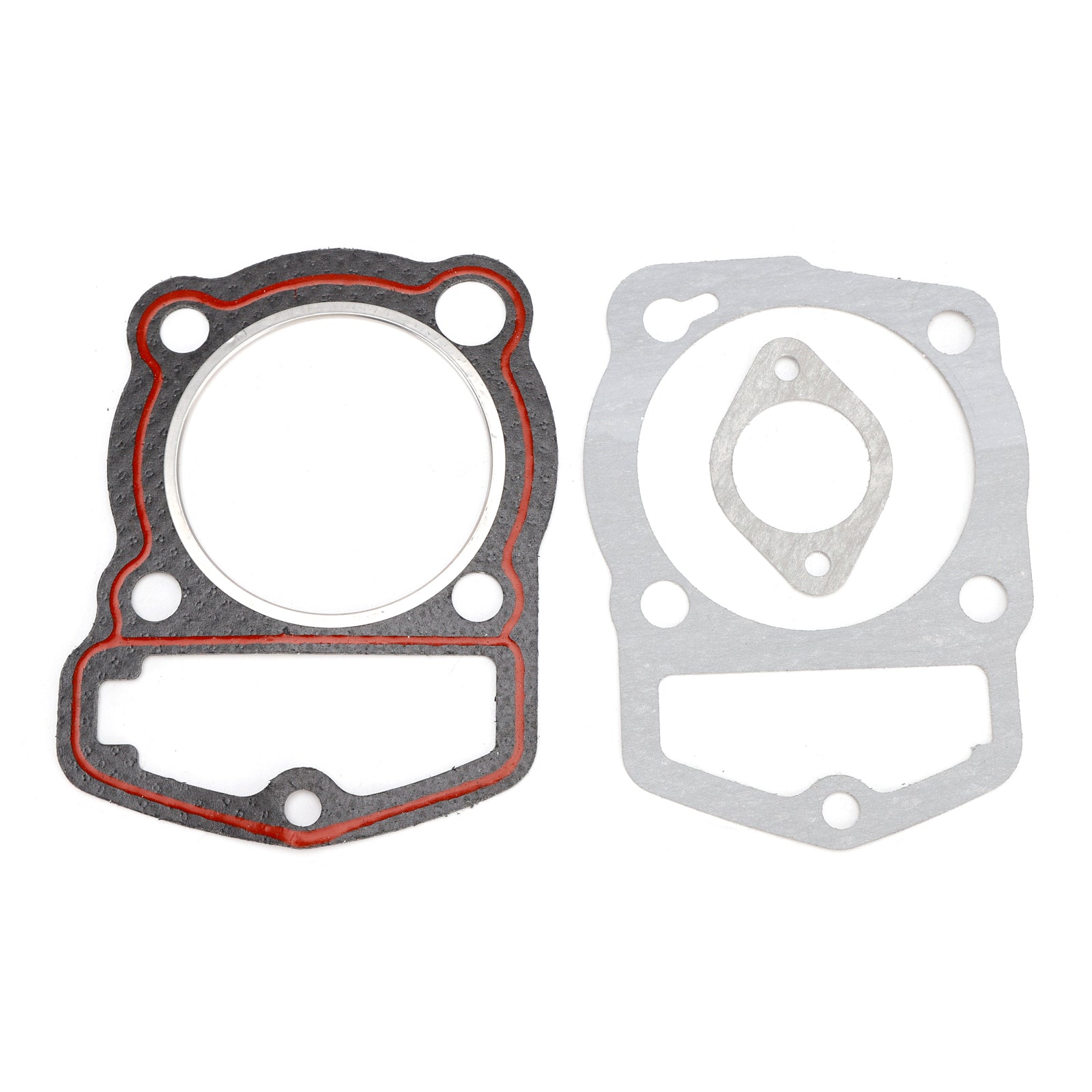

1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Cam Chain Adjust Gasket
2x Valve Stem Seals
