96-04 Honda XR400 XR400R XR 400 Piston Gaskets Cylinder Top End Rebuild Kit
96-04 Honda XR400 XR400R XR 400 Piston Gaskets Cylinder Top End Rebuild Kit
Couldn't load pickup availability
Fitment:
Fit for Honda TRX400EX Sportrax 1999-2008
Fit for Honda TRX400X 2009-2014
Fit for Honda XR400R 1996-2004
Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

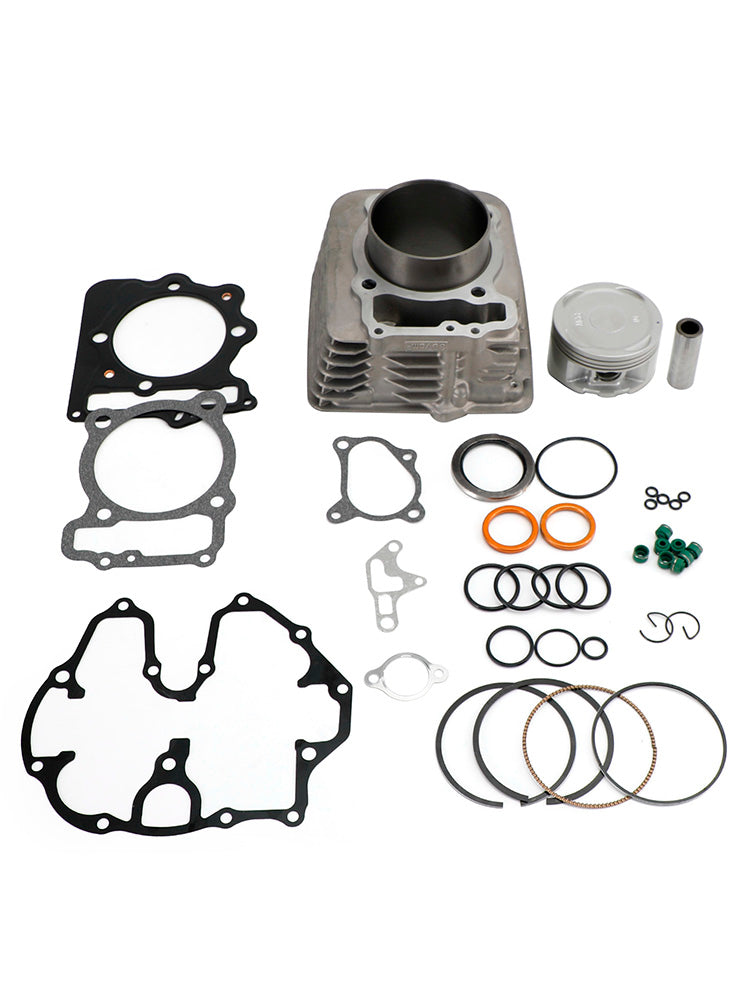

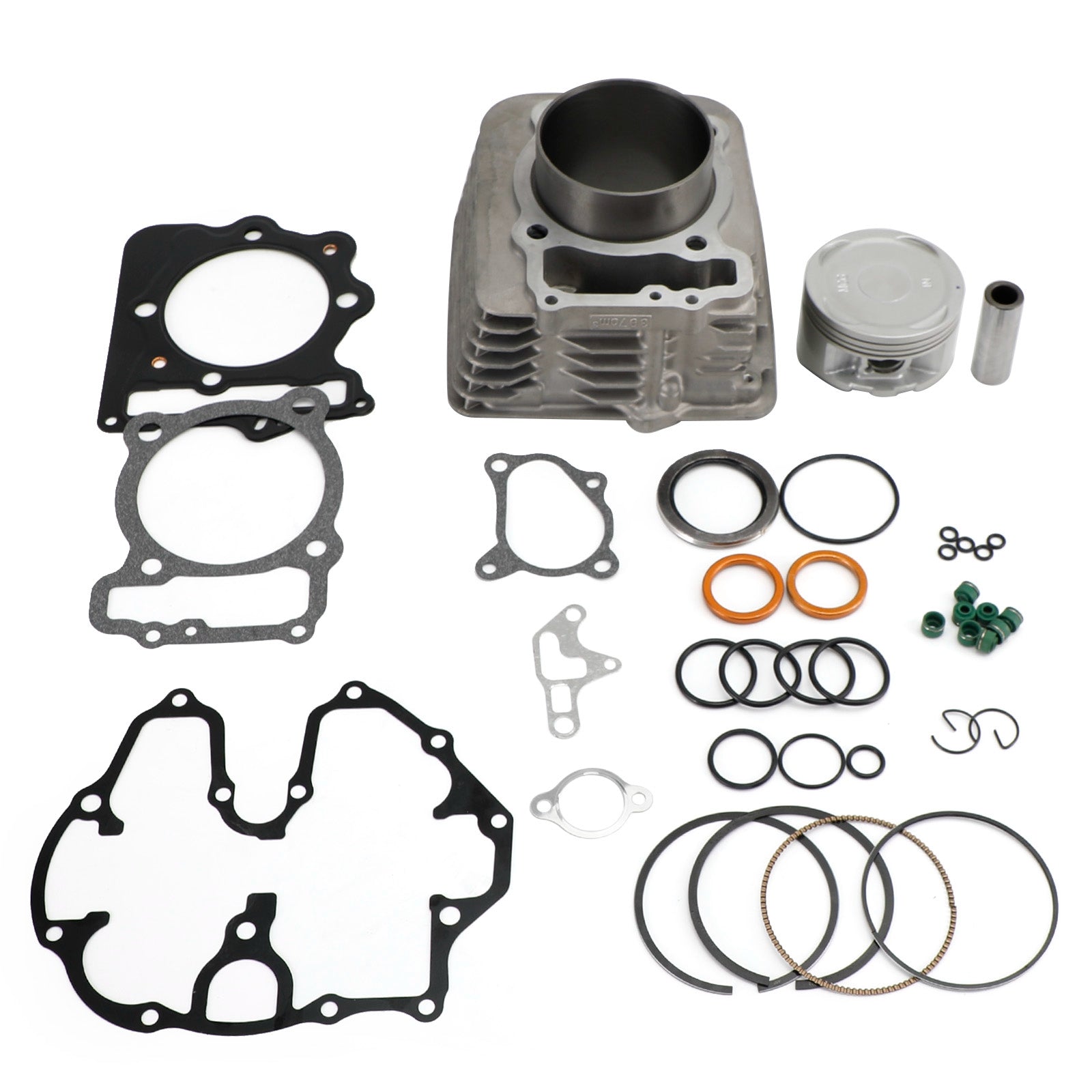

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard size - 85 mm x 70 mm stroke, 20mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 397cc
Bore Type: Stanard Bore
Bore Size: STD 85mm
Stroke: 70mm
Pin Diameter: 20mm
Replacement Part Number:

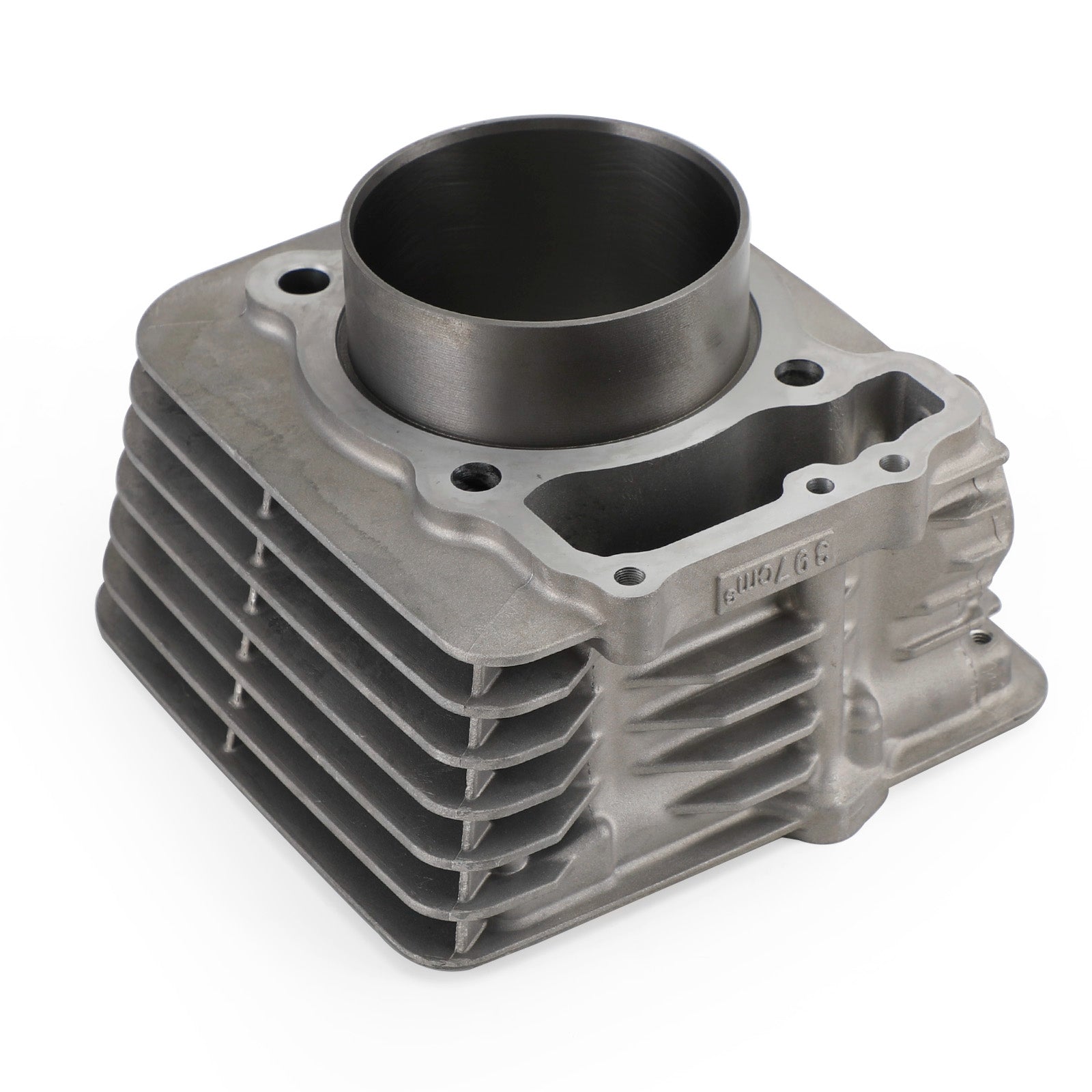

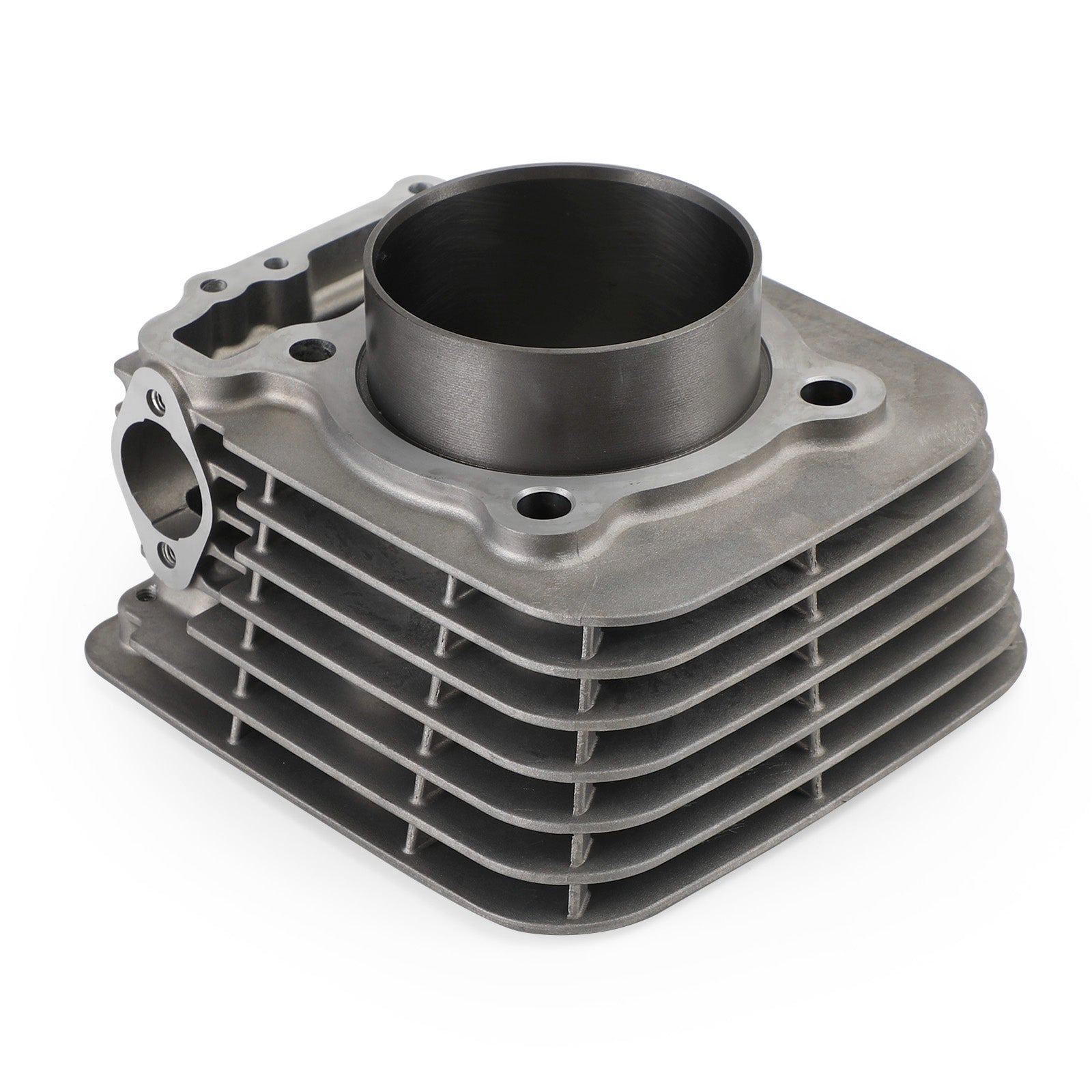

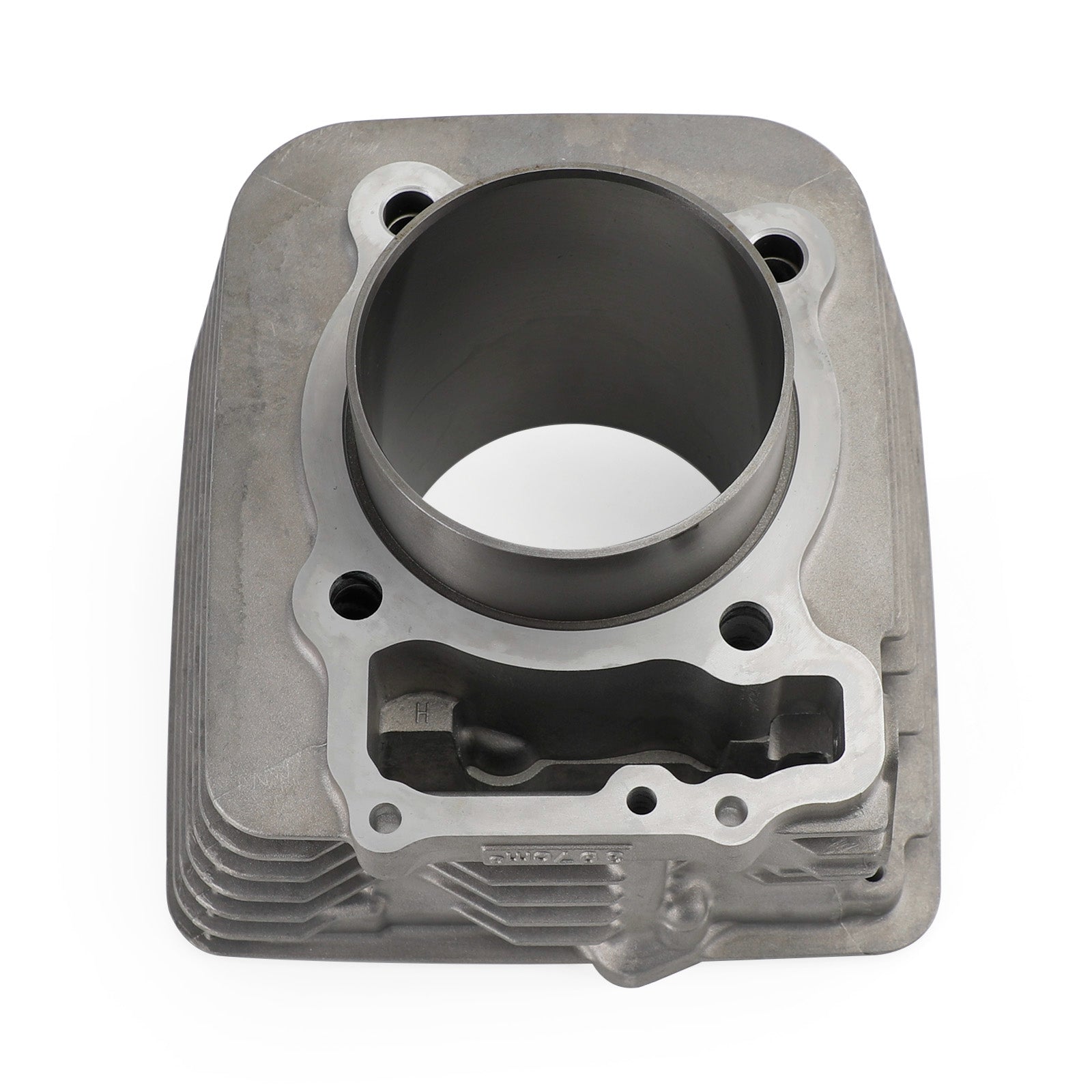

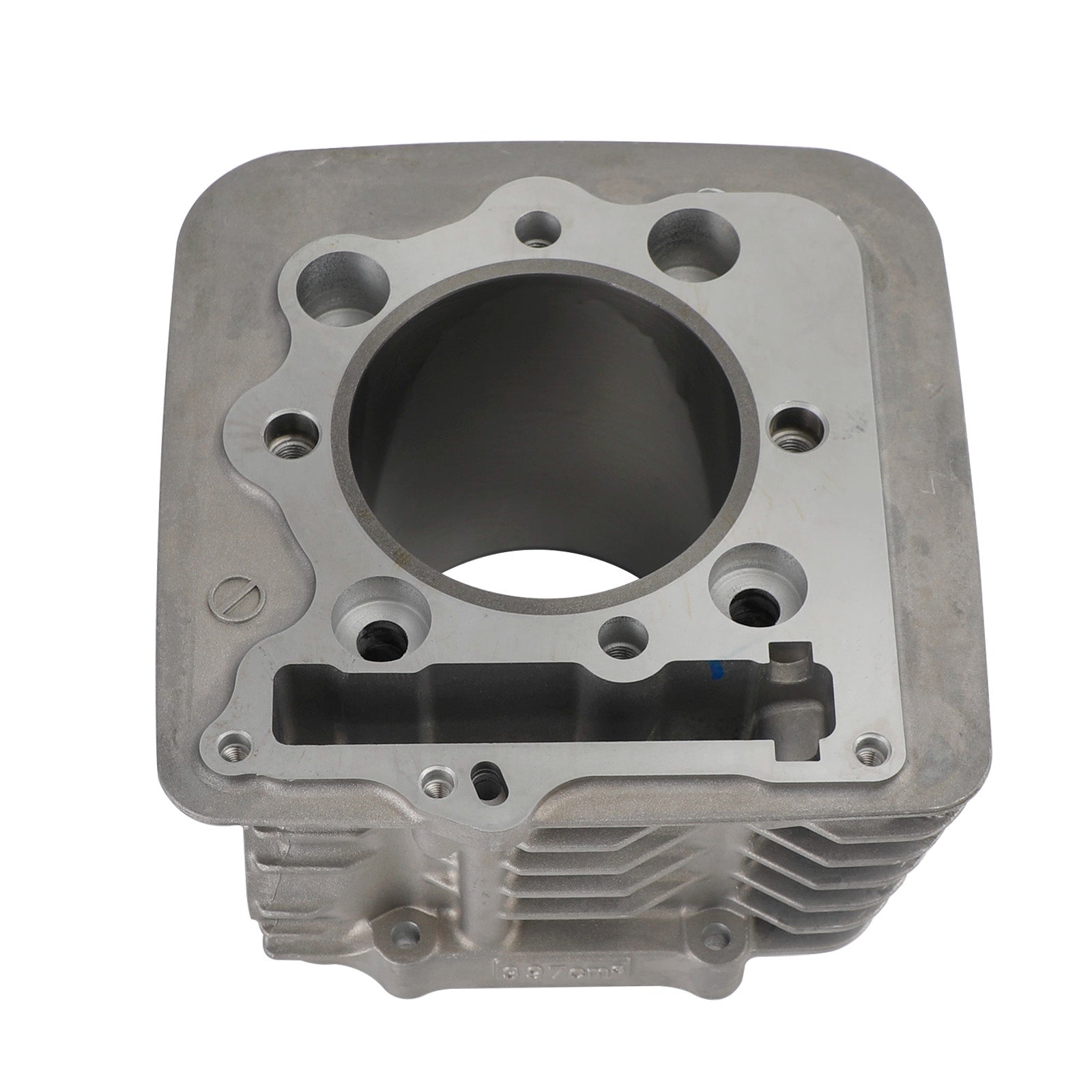

Cylinder: 12100-KCY-670, 12100-HN1-A70
Cylinder Base Gasket: 12191-KCY-671, 12191-HN1-A71
Cylinder Head Gasket: 12251-HN1-003, 12251-HN1-A41
Cylinder Head Cover Gasket: 12391-KCY-671

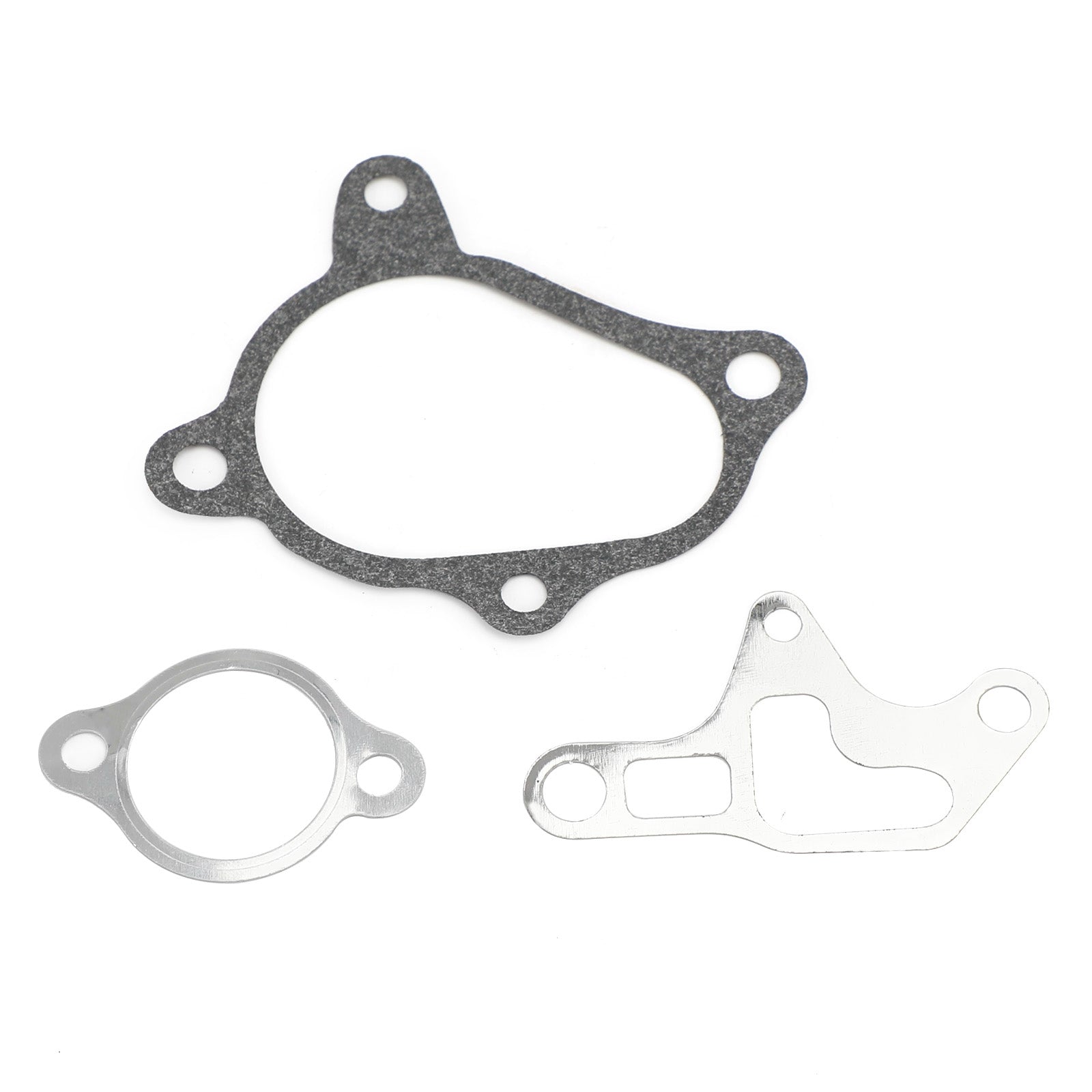

Starter Cover Gasket: 11377-HN1-010
Oil Pump Gasket: 15151-KCY-671
Tensioner Gasket: 14560-KCW-851

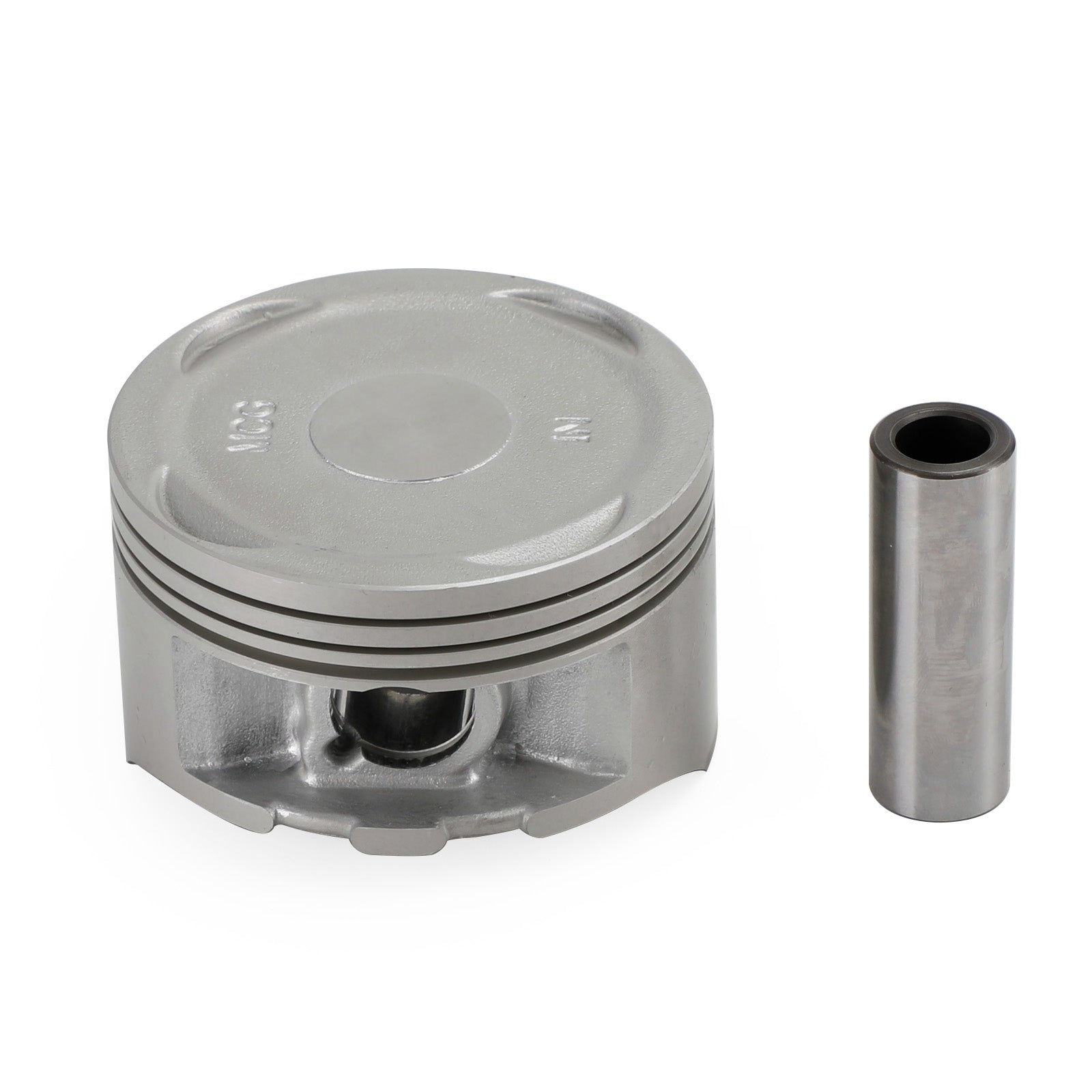

Piston (Std): 13101-KCY-670
Pin, piston: 13111-KCY-670

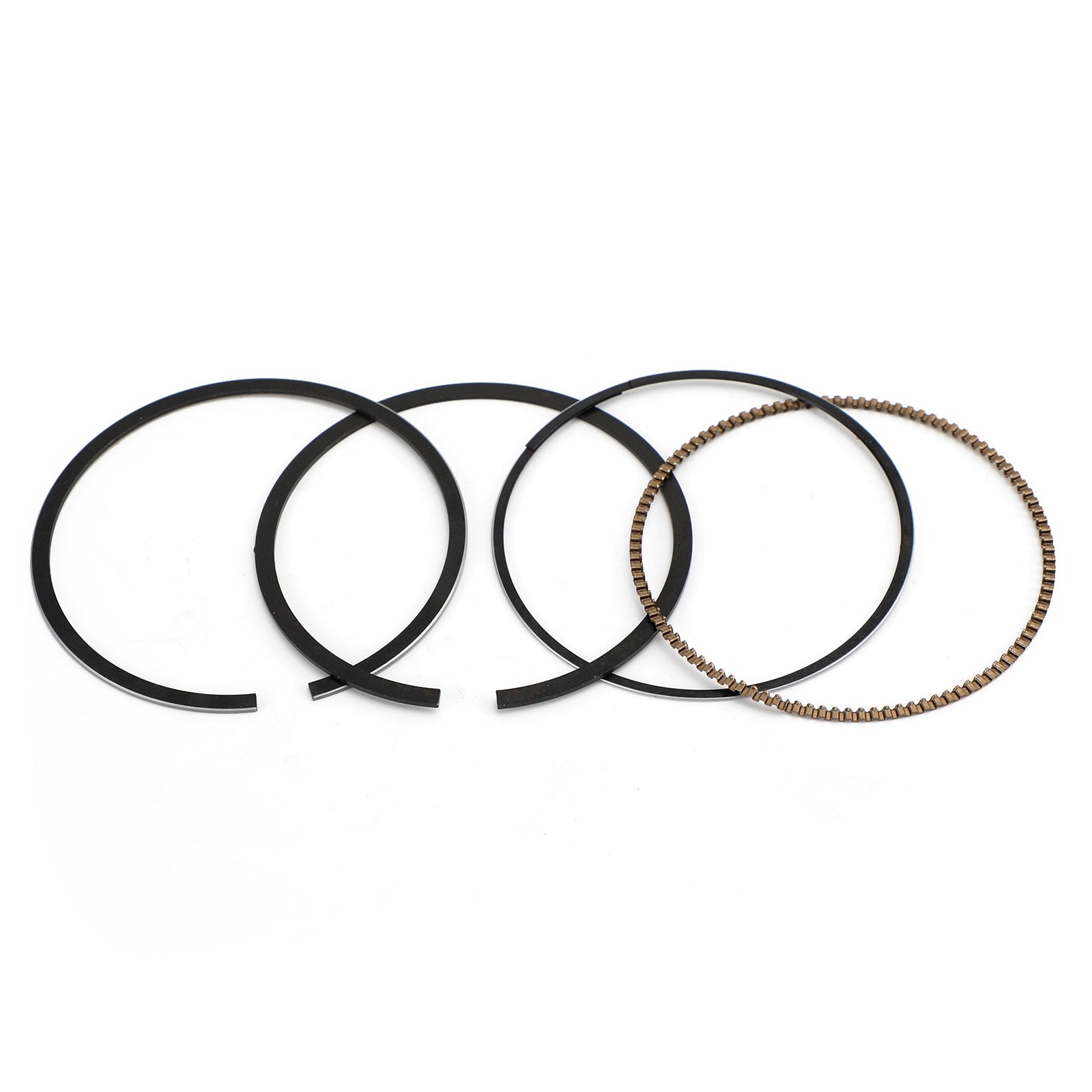

Ring Set, piston: 13011-KCY-670
Circlips, piston(1.2x20): 90601-KA5-000
O-Ring(1.5x9.5): 91306-MG3-000
O-Ring(35.5x3): 91301-428-003
Exhaust Gasket: 18291-MN5-650
Intake Manifold O-ring(45x2.5): 91303-397-000
Valve Stem Seal: 12209-KL4-005
Package includes:
1x Cylinder
1x Piston(STD)
1x Piston ring set
1x Wristpin
1x Circlip(2)

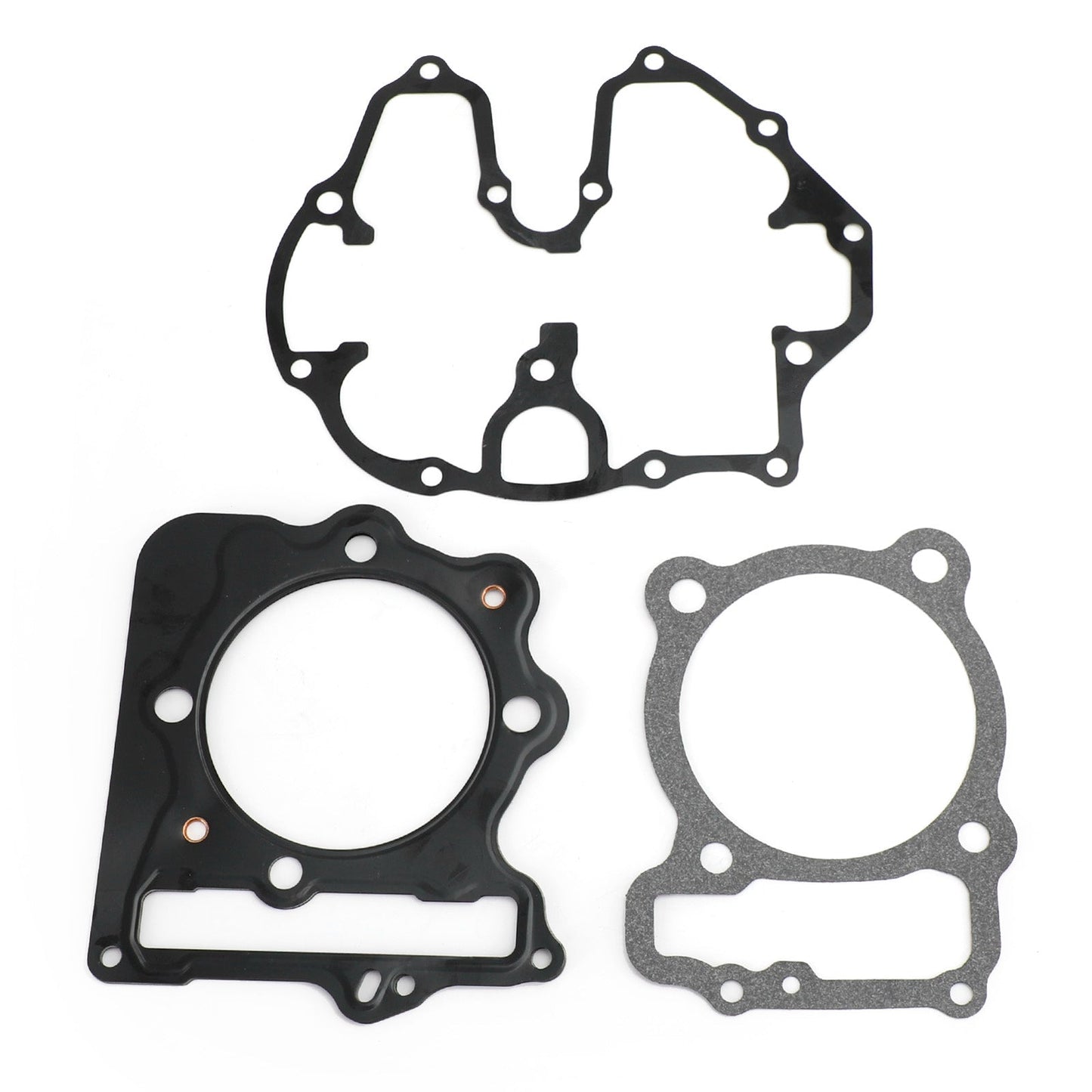

1x Cylinder base gasket
1x Cylinder head gasket
1x Cylinder head cover gasket
1x Chain tensioner gasket
1x Starter cover gasket
1x Oil pump gasket

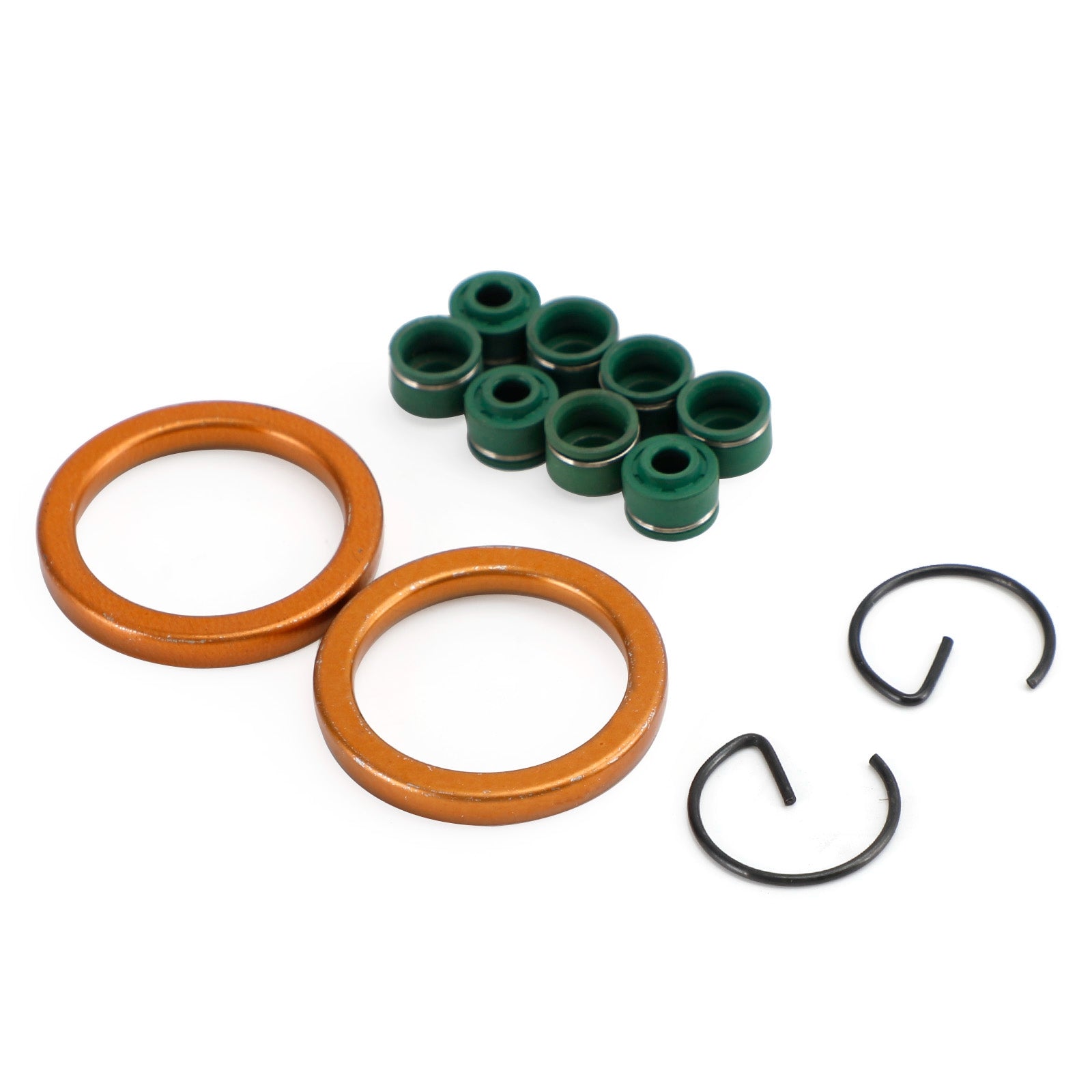

2x Exhaust gaskets
1x Intake manifold O-ring(45x2.5)

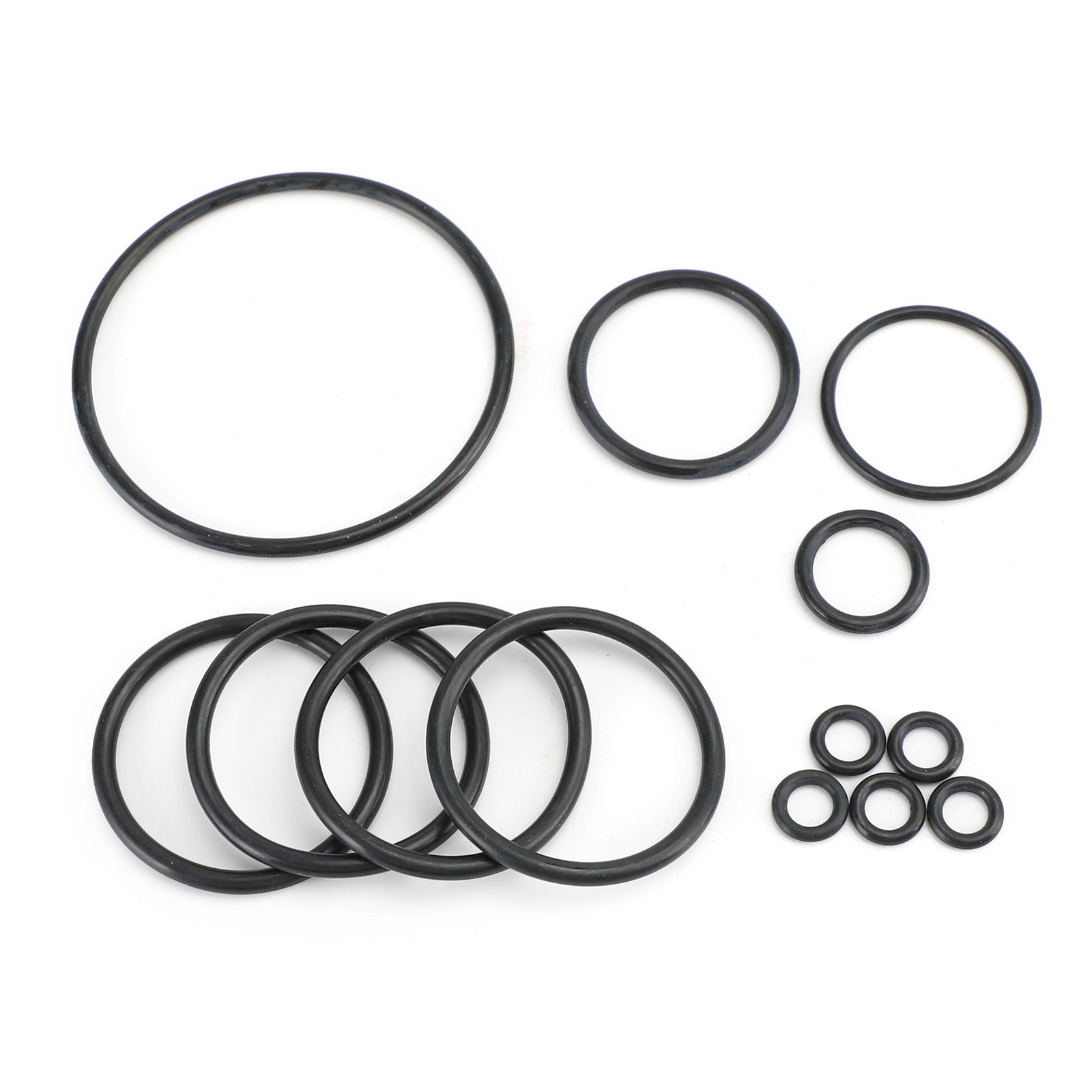

5x O-Rings(1.5x9.5)
4x O-Rings(35.5x3)
8x Valve stem seals
Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
