2009-2017 Polaris Ranger 800 80mm Cylinder Piston Gasket Top End Rebuild
2009-2017 Polaris Ranger 800 80mm Cylinder Piston Gasket Top End Rebuild
Couldn't load pickup availability
Fits Models:
Fit for Polaris Ranger 800: 2009-2017
Fit for Polaris Ranger 800 Midsize: 2013-2014
Fit for Polaris Ranger HD 800 2010-2012
Fit for Polaris Ranger Crew 800: 2010-2014
Fit for Polaris Ranger XP 800: 2010-2012
Fit for Polaris RZR 4 800: 2010-2014
Fit for Polaris RZR 800: 2008-2014
Fit for Polaris RZR S 800: 2009-2014
Fit for Polaris Sportsman 800: 2005-2014
Fit for Polaris Sportsman X2 800: 2007-2009
Replacement Part Number:
Cylinder: 2202696, 2203911, 2204393
Cylinder Base Gasket: 5247360
Cylinder Head Gasket: 5254357
Piston Kit: 2202917
Piston Ring Set (Std): 2202920
Circlips, piston: 3021510
Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

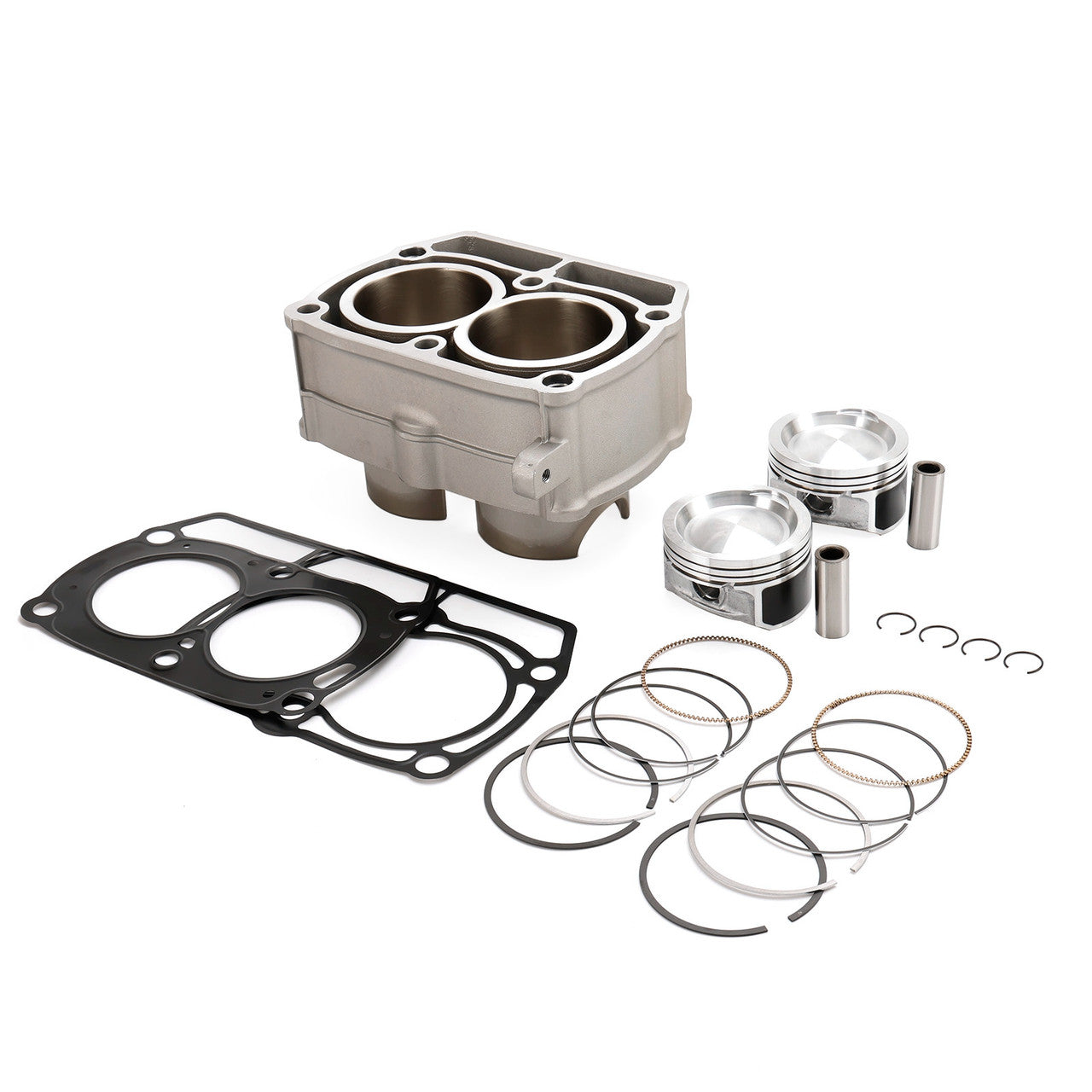

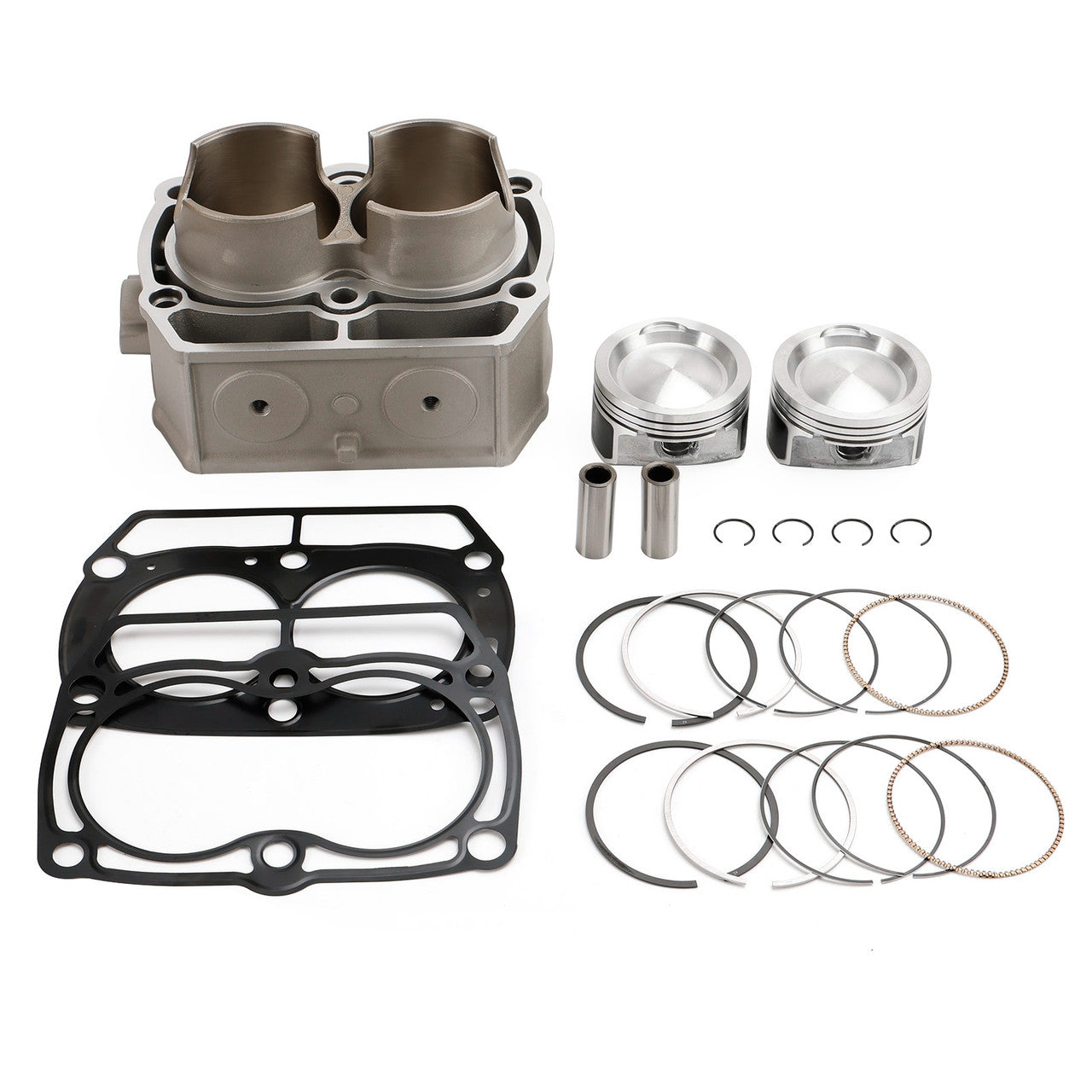

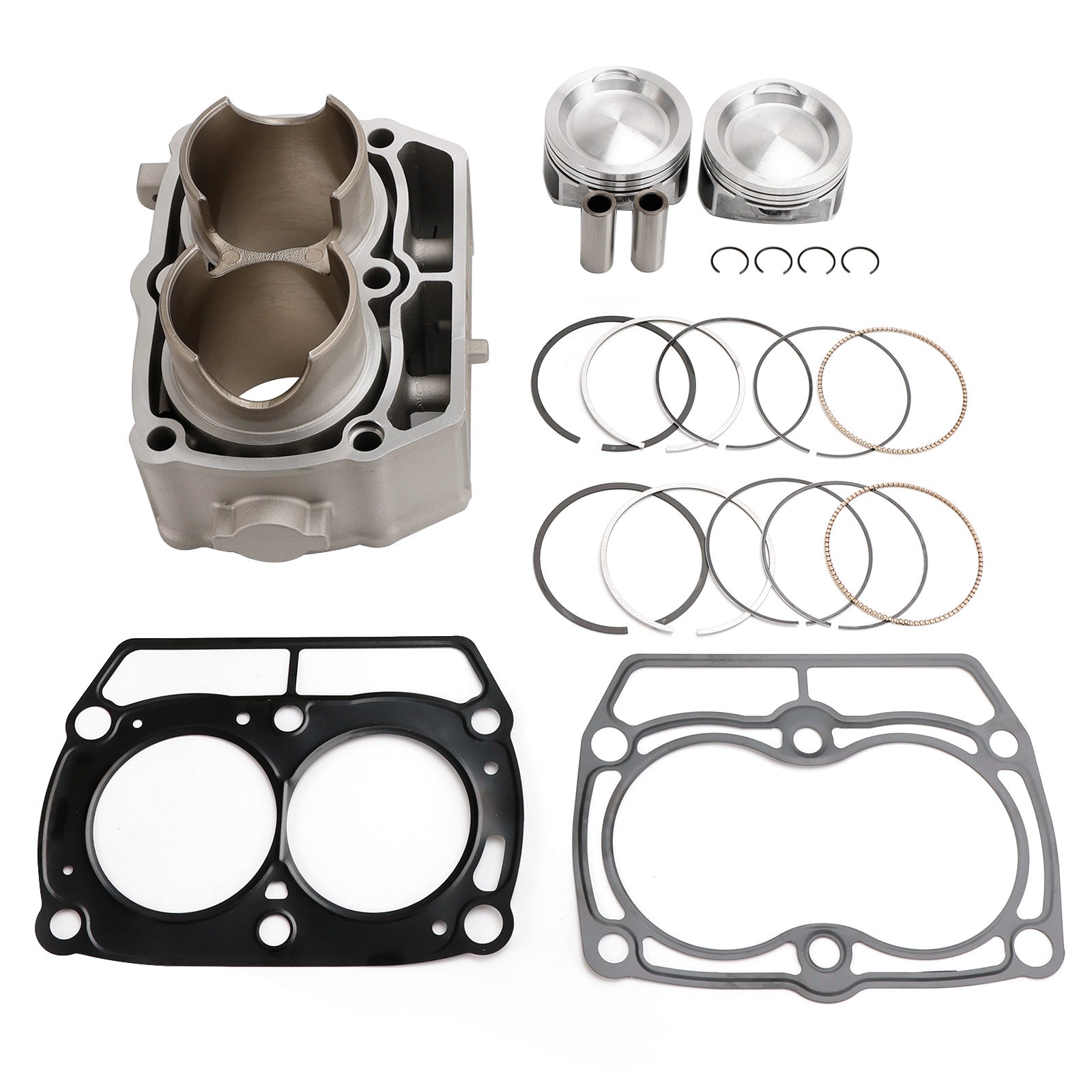

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 80mm x 76mm stroke, 18mm steel piston pin.
Compression Ratio: 10:1.
This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 760cc
Bore Type: Standard Bore
Bore diameter: STD 80mm
Stroke: 76mm
Pin diameter: 18mm
Package Includes:

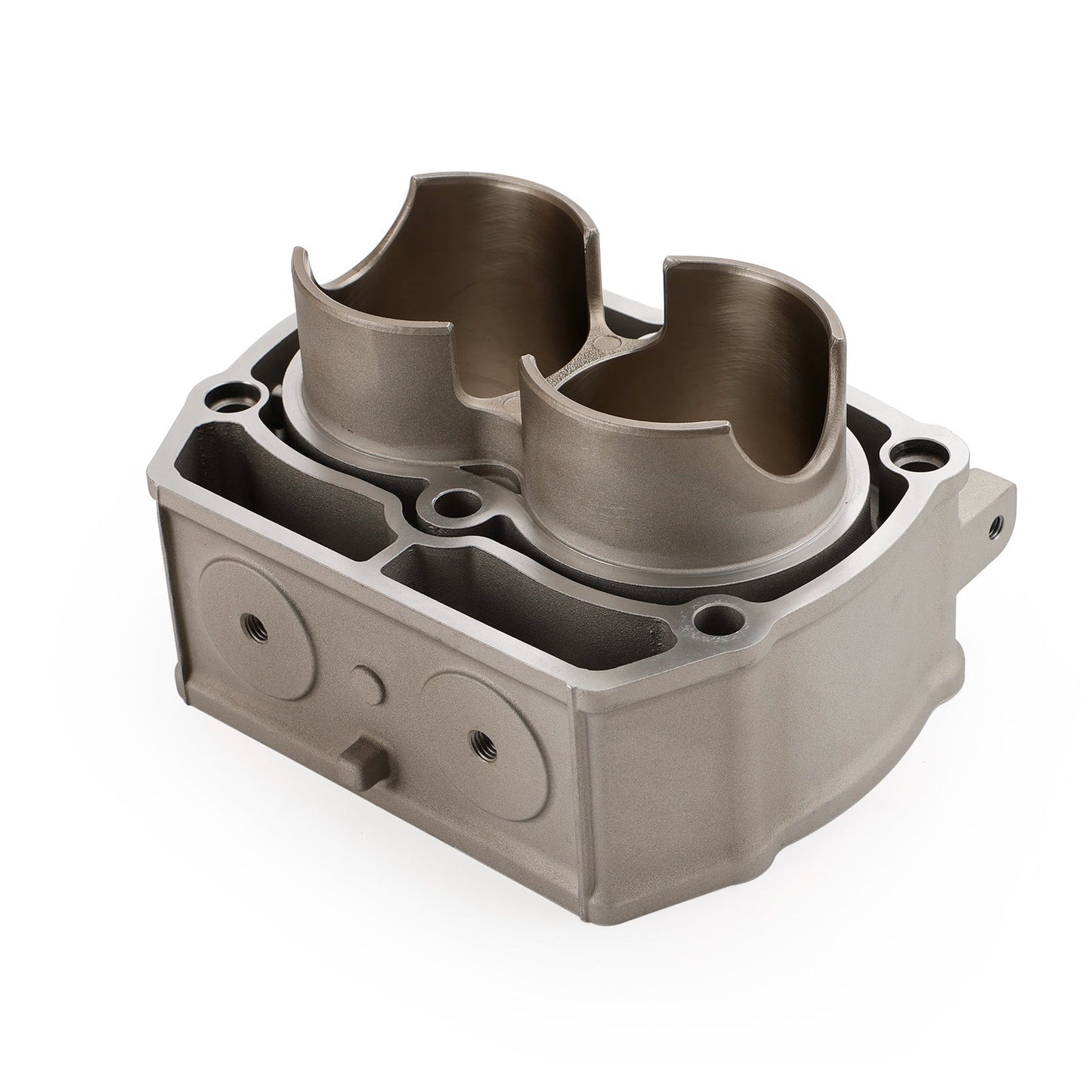

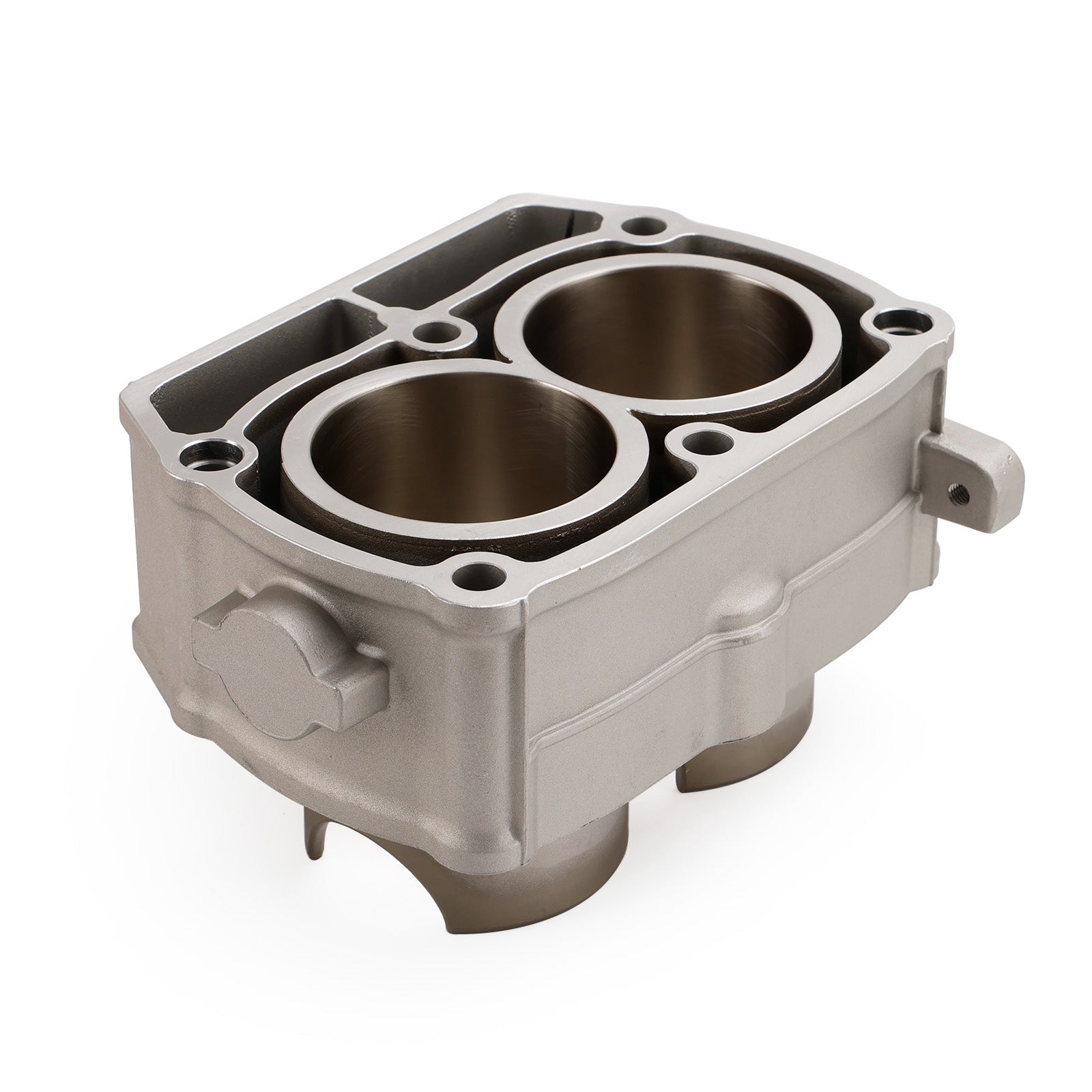

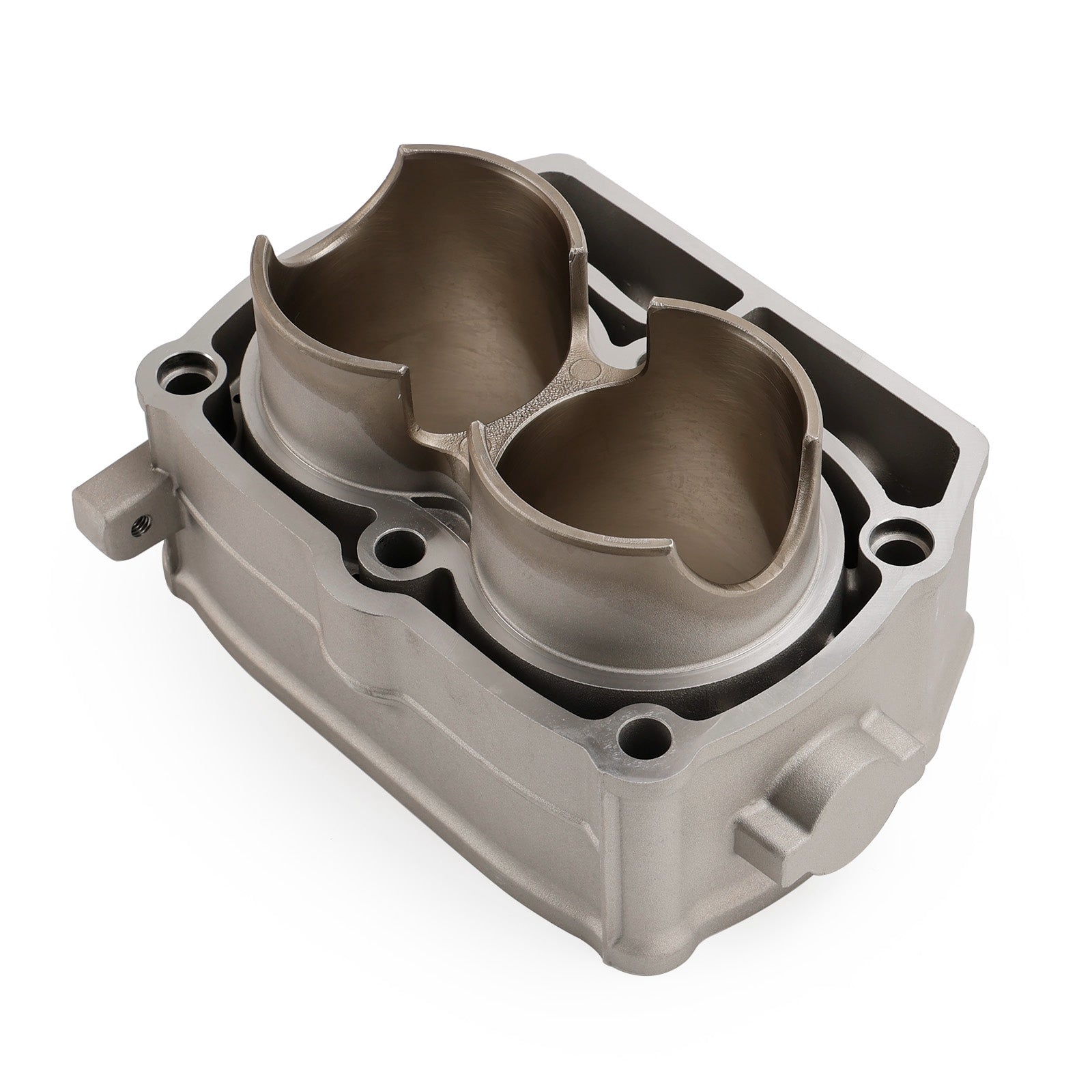

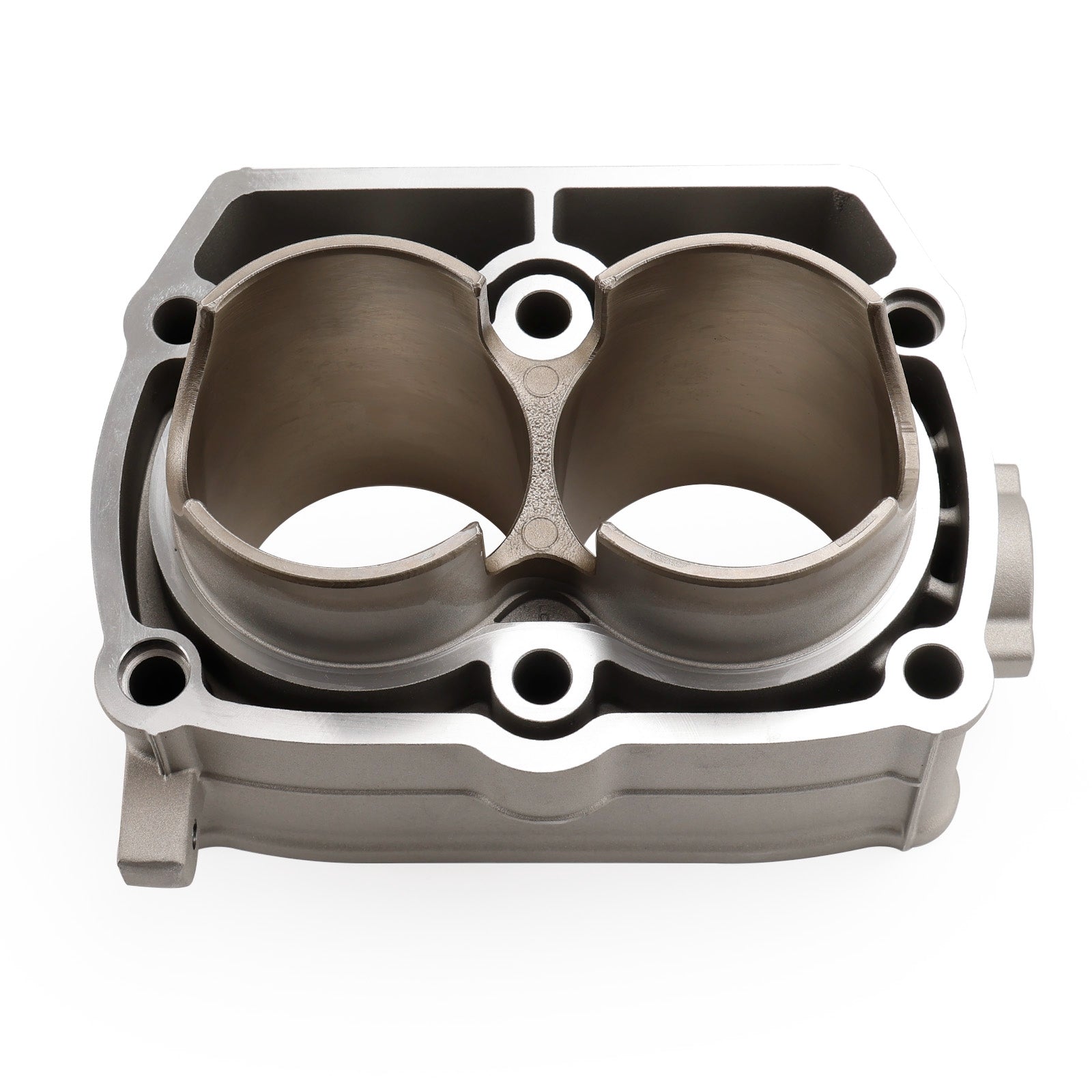

1x Cylinder

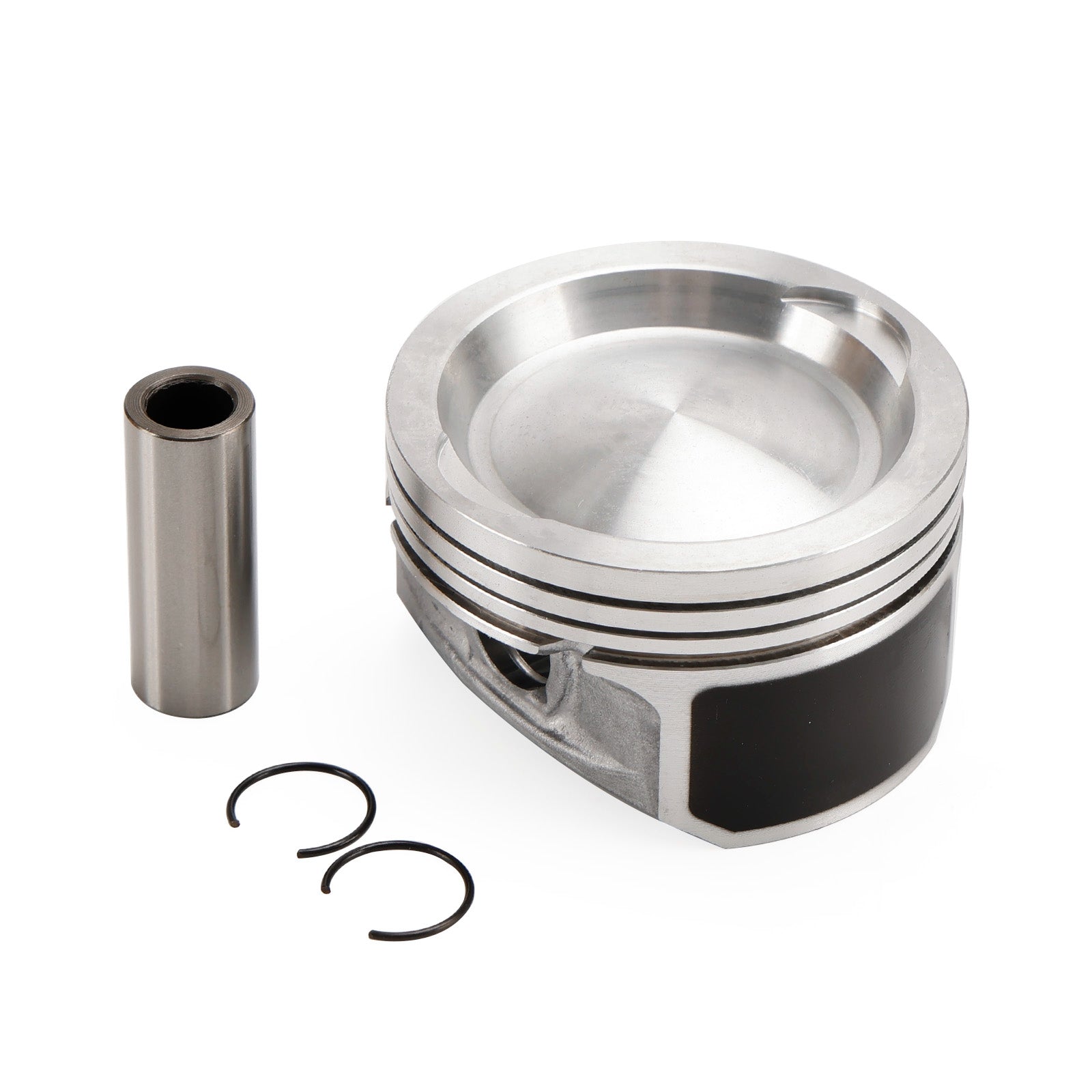

2x Piston
2x Piston Ring Set
2x Wristpin
2x Circlip(2)

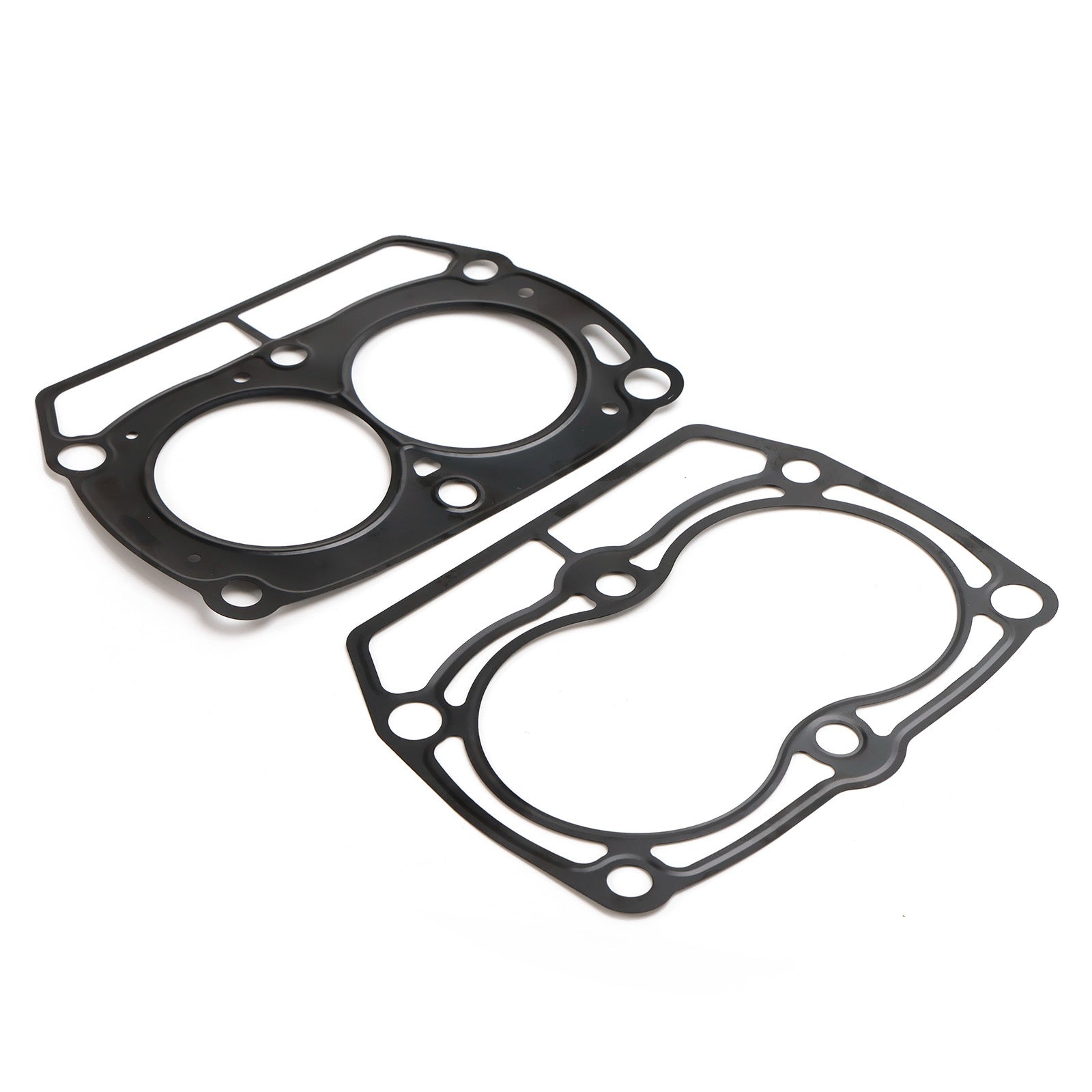

1x Cylinder Base Gasket
1x Cylinder Head Gasket
Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
Customer Reviews
Good price on everything I needed to rebuild my top end fast shipping
👍🏻Better quality assembly then most i have dealt with.
Had a few rough castings sharp edges like razor blades.
After the normal break-in process Runs just as good as it ever did before it started smoking heavy.
Also replaced valve seals Which was the cause of the oil burning and Glazed/Mirrored the original jug.
Seems to be within factory spec. Strong performance too!! Runs great now!!
